C1FC10WE HPS Fortress Commercial Encapsulated Distribution Transformer, 100 VA

C1FC10WE HPS Fortress Commercial Encapsulated Distribution Transformer

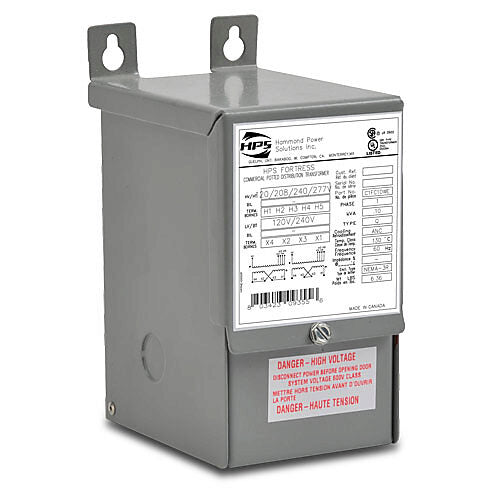

Hammond Power Solutions C1FC10WE is a wall-mount HPS Fortress transformer built for 100 VA, single-phase loads at 60 Hz. Its primary can be connected for 120, 208, 240, or 277 V AC, while the secondary supplies 120/240 V AC.

This exact unit uses the compact NQ0 case with pigtail leads and a Type 3R / NEMA 3R configuration. The cut sheet also confirms that it is not fused and does not have an electrostatic shield.

Common Applications

• Wall-mounted voltage transformation for commercial lighting work
• Electrical installations serving schools and office facilities
• HPS Fortress applications in retail centers and sports venues

Key Features

• Multiple primary choices: Field connection options cover four verified primary voltages.
• Protected core and coil: Silica sand and resin encapsulation limits exposure to moisture and airborne contaminants.
• Accessible wiring: Pigtail connections are reached through the front wiring area.
• Wall installation: The exact selection row assigns mounting type W for wall.

Specifications

• Rating: 100 VA / 0.10 kVA
• Electrical Phase: 1
• Primary: 120/208/240/277 V AC
• Secondary: 120/240 V AC
• Operating Frequency: 60 Hz
• NEMA Type: 3R
• Catalog Case: NQ0
• Mounting Type: Wall
• Lead Style: Pigtail
• Thermal System: 130 deg C insulation, 80 deg C rise
• Shield: Not included
• Integral Fuse: Not included

Product Identification

• Manufacturer Part Number: C1FC10WE
• Brand Owner: Hammond Power Solutions Inc.
• Product Line: HPS Fortress
• Catalog Case Size: 3.69 W x 5.06 D x 7.19 H in, approximate
• Drawing Envelope: 3.75 W x 5.25 D x 7.25 H in, maximum overall
• Catalog Product Weight: 7 lb, approximate
• 12-Digit UPC: 803423093556
• 14-Digit GTIN: 00803423093556
• UL File: E50394
• CSA File: LR3902

FAQ

What kind of transformer is C1FC10WE?

C1FC10WE is a commercial HPS Fortress distribution transformer with an encapsulated core and coil.

Which line voltages can be connected on the primary?

You can connect the primary for 120, 208, 240, or 277 V AC according to the verified rating.

What voltage is available on the secondary?

The secondary rating is 120/240 V AC at 60 Hz.

How is this transformer mounted and wired?

The catalog specifies wall mounting, and the exact-part cut sheet identifies pigtail connections.

Does this model include a fuse or shield?

This model has no integral fuse and no electrostatic shield.
