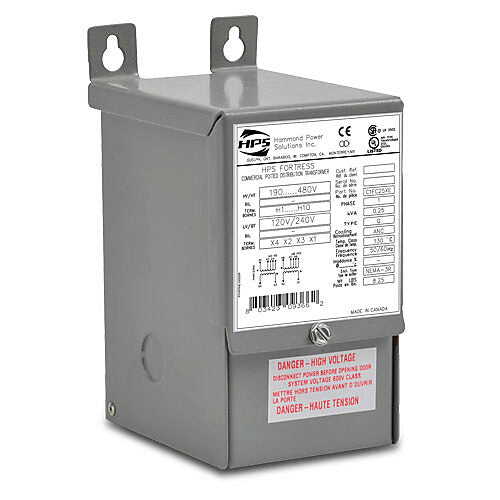

Hammond Power Solutions C1FC25XE Transformer | 250VA Single-Phase Type 3R
Hammond Power Solutions C1FC25XE Transformer | 250VA Single-Phase Type 3R
Price:
Sale
Sold out
Regular price
$187.80 USD
Regular price
$246.00 USD
Sale price
$187.80 USD
Unit price
per
Shipping calculated at checkout.
Stock:
62 in stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:
This single-phase general duty transformer is designed for industrial power distribution and control systems. It features versatile primary and secondary voltage compatibility with parallel and series connection options. Housed in a durable Type 3R/IP24 enclosure, it operates with a 95°C temperature rise and complies with IBC 2018 seismic standards.
Key Features:
✔ Part Number: C1FC25XE
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 1
✔ Duty: General Duty
✔ Frequency: 50/60Hz,60Hz(1)
✔ Primary Voltage: 120/240,130/262(1)
✔ Primary Connection: Parallel x Series (Vx2V)
✔ Secondary Voltage: 120/240,130/262(1)
✔ Secondary Connection: Parallel/Series-N (V/2V)
✔ Material: Copper
✔ Temperature Rise: 95°C
✔ Insulation Class: 130°C
✔ EKVA: 0.25
✔ Seismic Compliance: IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Sound Level: 45dBA (NEMA ST-20)
✔ Impedance (Std): 1% - 5%
✔ Enclosure Type: Type 3R / IP24
✔ Enclosure Finish: ANSI 61 Grey, UL50
✔ Enclosure Dimensions: 7.19in/183mm(H), 3.69in/94mm(W), 5.06in/129mm(D)
✔ Standard kVA: 0.25
✔ Vector Configuration: 0°
✔ Seismic Standard Value: IBC 2018
✔ OSHPD: No
✔ Seismic IP: lp=1.5
✔ Seismic ZH: z/h=1
✔ Seismic SDS Value: Sds=2.0
✔ Enclosure IR Window: No
✔ Primary Termination (Std): Wire Leads, Wire Leads, Wire Leads, Wire Leads, Wire Leads
✔ UPC: 803423093662
✔ Weight: 8
✔ Certification: CSA, UL, CE
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
✔ Enclosure CAD Drawing (PDF)
