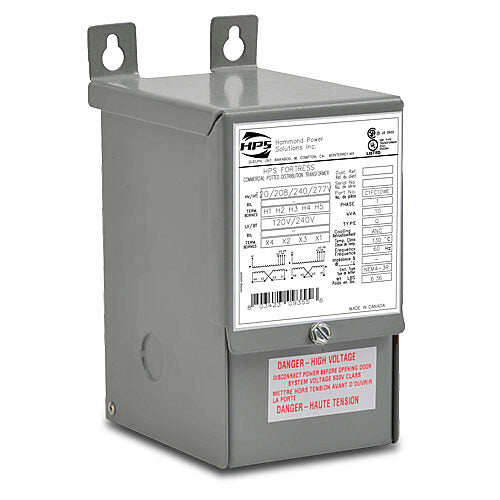

Images are for reference only
Hammond Power Solutions
C1FC50WE
C1FC50WE
Price:
Sale
Sold out
Regular price
$205.25 USD
Regular price
$269.00 USD
Sale price
$205.25 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 1 left
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:
This single-phase transformer is designed for general duty applications with a 500VA capacity. It features a copper construction and supports multiple primary voltages for flexible installation. The unit is housed in a Type 3R / IP24 enclosure, making it suitable for outdoor use and protected against water and dust. It meets CSA and UL certifications and complies with IBC 2018 seismic standards for reliable performance.
Key Features:
✔ Part Number: C1FC50WE
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 1
✔ Enclosure Grade: Standard
✔ Duty: General Duty
✔ Frequency: 60Hz
✔ Primary Voltage: 277, 240, 208, 120
✔ Secondary Voltage: 120/240
✔ Material: Copper
✔ Temperature Rise: 95°C
✔ Insulation Class: 130°C
✔ EKVA: 0.5
✔ Seismic Compliance: IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Sound Level: 45dBA (NEMA ST-20)
✔ Impedance (Std): 1% - 5%
✔ Secondary Termination: Wire Leads
✔ Enclosure Type: Type 3R / IP24
✔ Enclosure Finish: ANSI 61 Grey, UL50
✔ Enclosure Dimensions: 9.3in/237mm(H), 5.06in/129mm(W), 4.56in/116mm(D)
✔ Standard kVA: 0.5
✔ Vector Configuration: 0°
✔ UPC: 803423092498
✔ Weight: 14
✔ Certification: CSA, UL
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
✔ Enclosure CAD Drawing (PDF)
