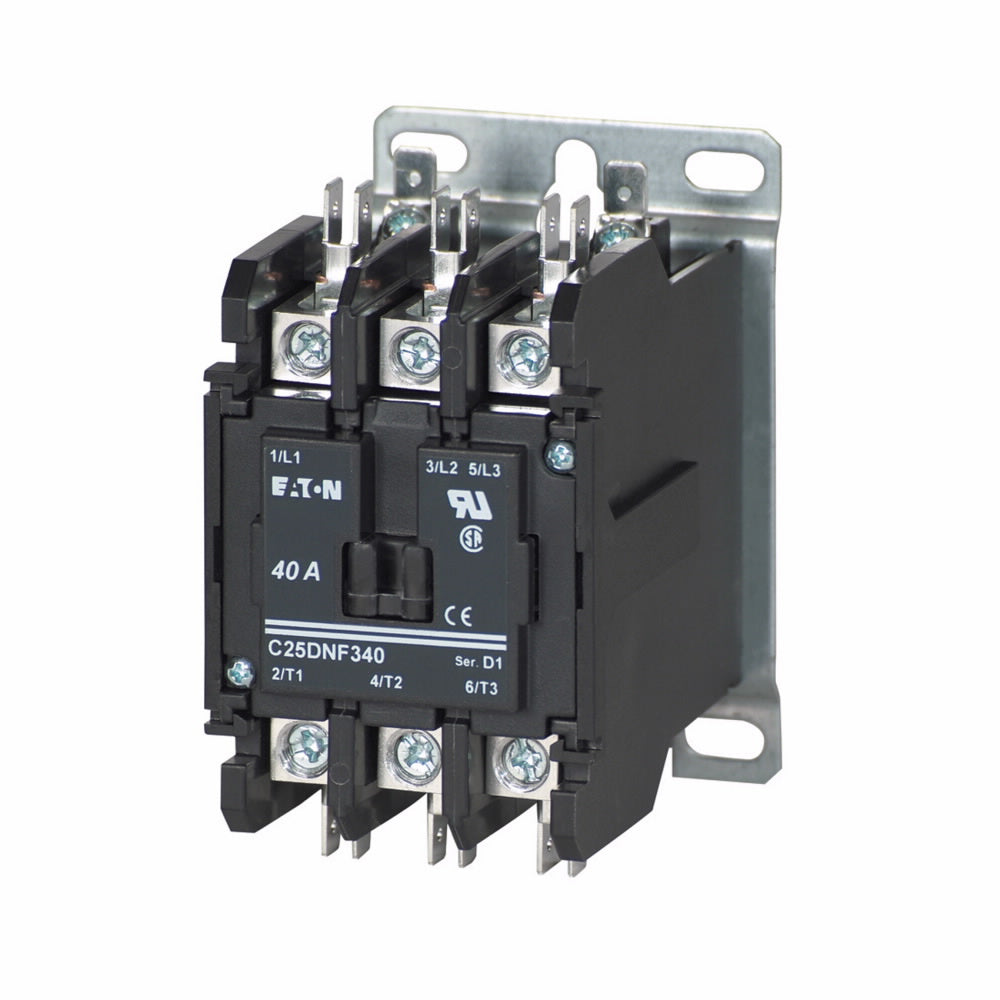

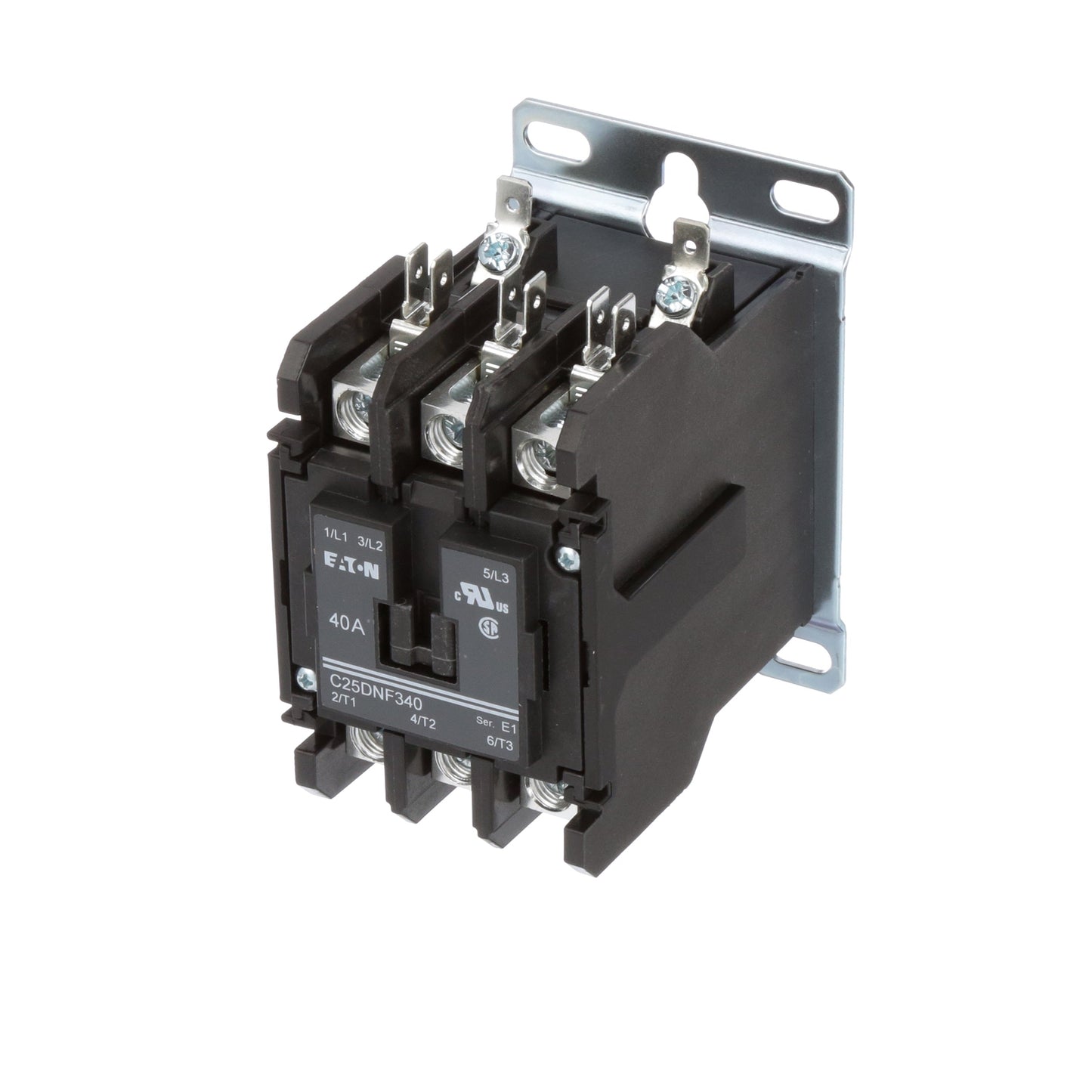

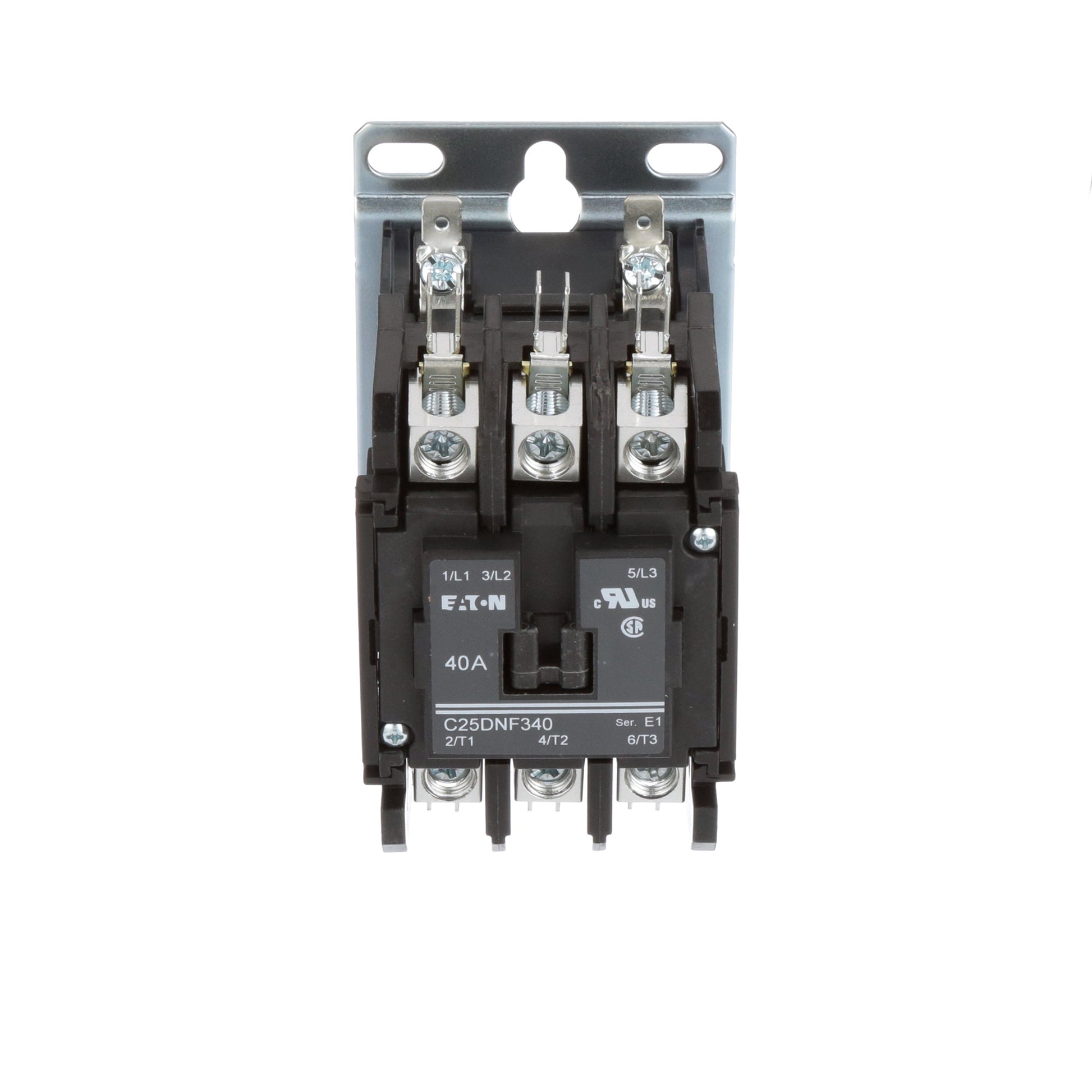

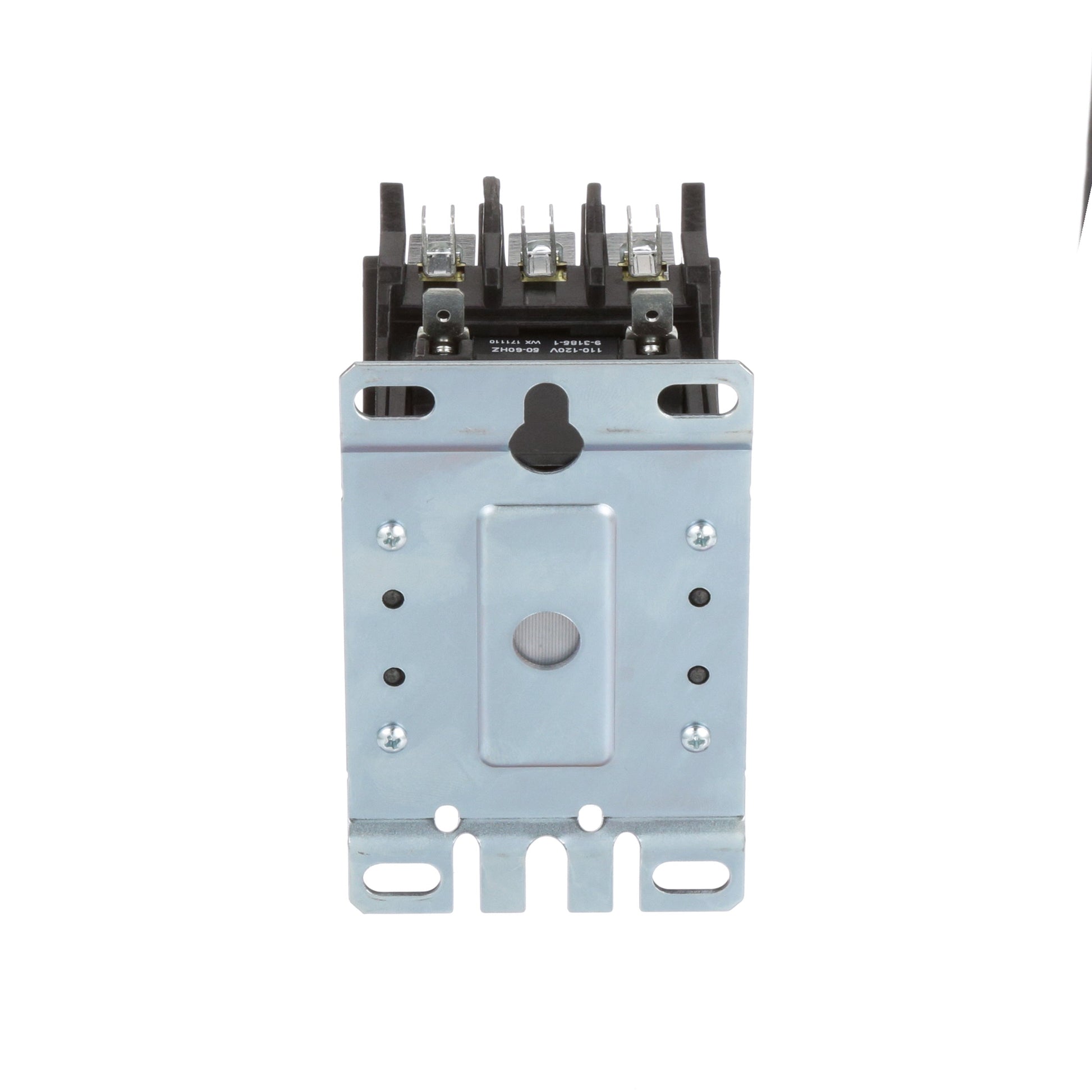

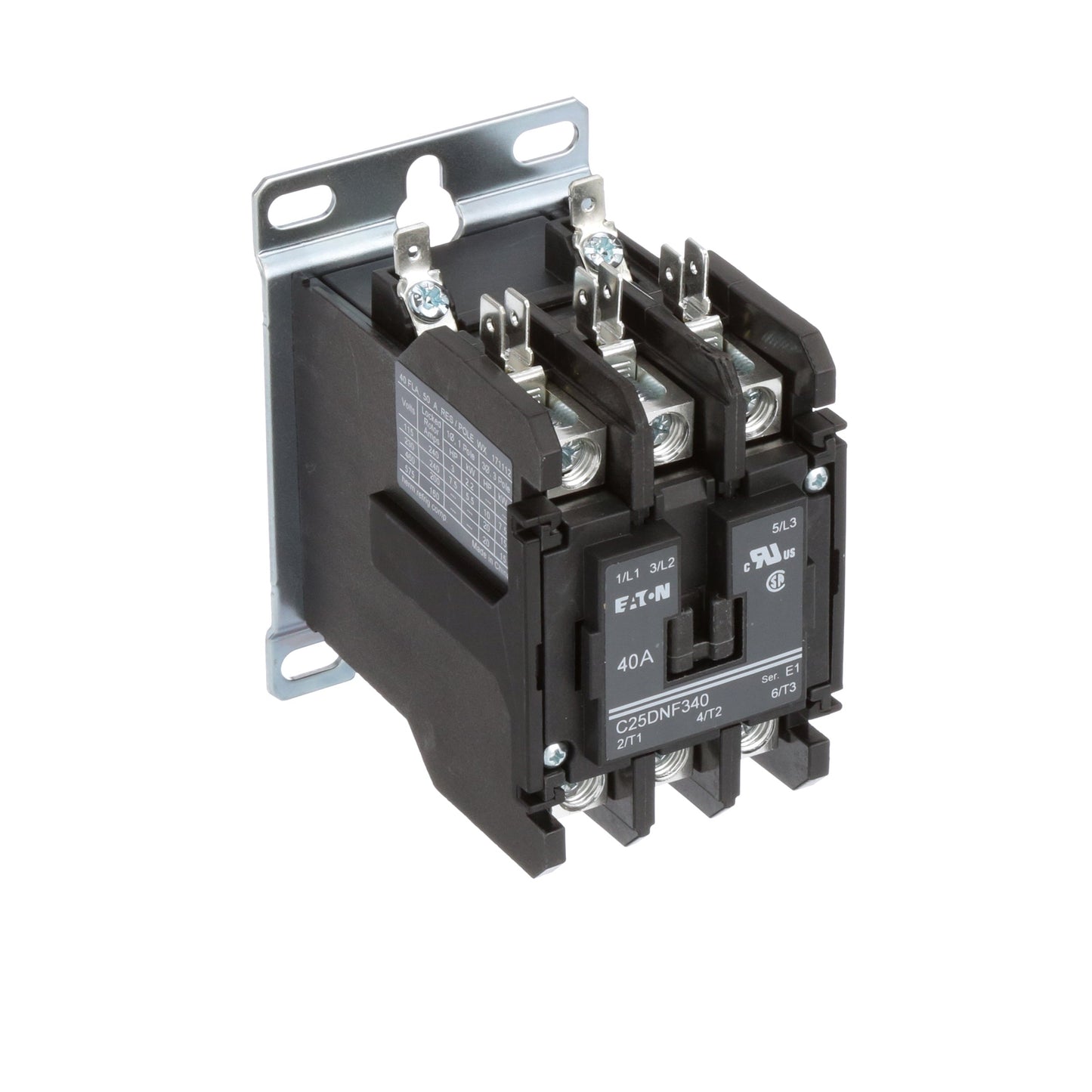

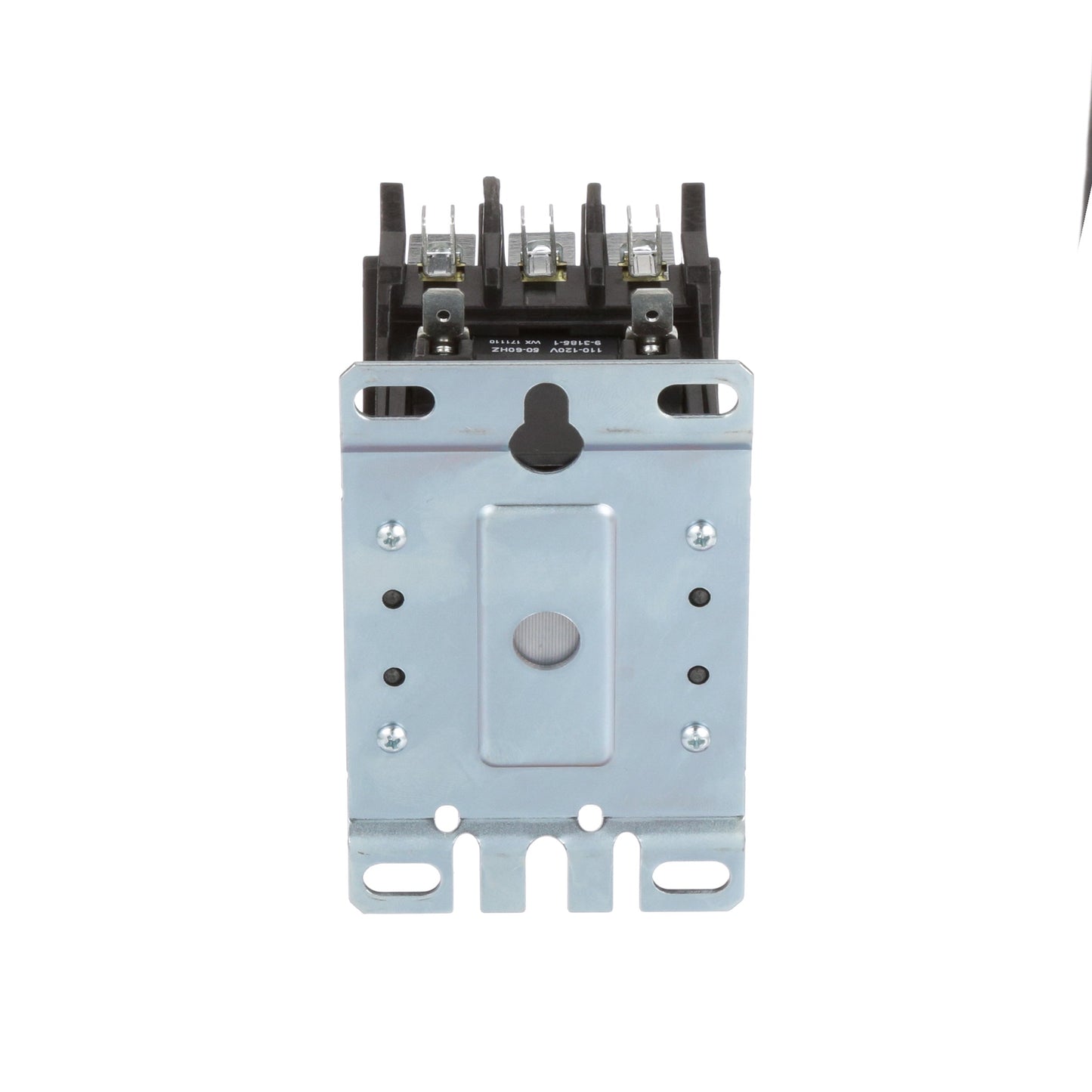

Eaton C25DNF340A Contactor | 3P 3PH 600V 40A 120V C25 Series

Product Description:
The Eaton C25DNF340A C25 Series Contactor is a 600V 3-phase 40A 3-pole starter with a 120V coil. It is designed for motor control applications and includes a non-reversing configuration. This definite purpose contactor is compatible with multiple frames and meets CSA and UL standards.

Key Features:
✔ Part Number: C25DNF340A
✔ Manufacturer: Cutler Hammer
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: C25 Series
✔ Type: C25
✔ Voltage: 600
✔ Amperage: 40A
✔ Phase: 3
✔ Poles: 3
✔ Configuration: Non-Reversing
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
✔ Coil Voltage Minimum: 120
✔ Compatible Frames: ND,HND,NDC,NDU,CND,CHND,CNDC
✔ Frequency: 50 Hz
✔ UPC: 782116300662
✔ GTIN: 00782116300662
✔ Country of Origin: China
✔ Dimensions: 3.75 in x 3.35 in x 2.4 in (Height x Length x Width)
✔ Weight: 2.20462 lb
✔ Certification: CSA Certified UL Recognized
