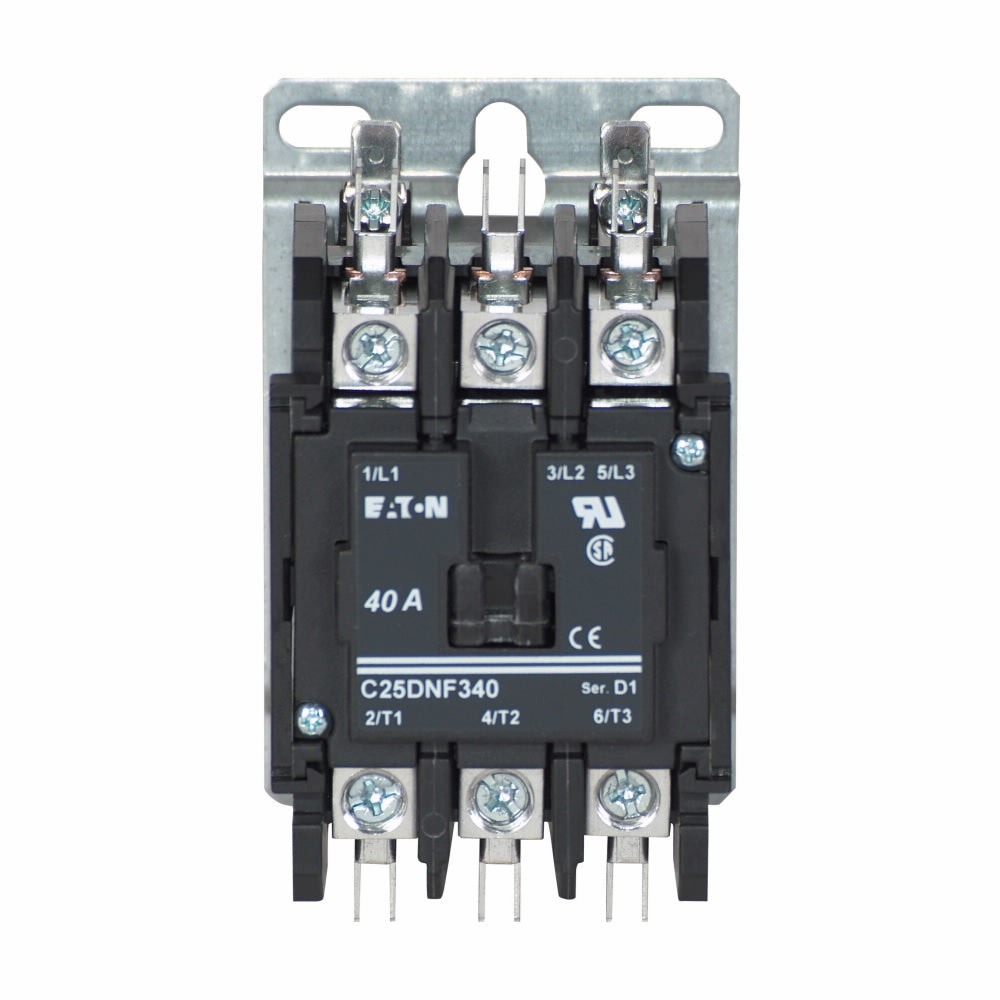

Cutler Hammer C25DNF340B Contactor 3 pole 3 phase 600V 40A 208V coil C25 Series

Product Description:
The Cutler Hammer C25DNF340B is a 3-phase definite purpose contactor designed for motor control applications. It operates at 600V and 40A, featuring a 3-pole non-reversing configuration. This unit includes a 208V coil and is suitable for use with compatible frames like ND and HND.

Key Features:
✔ Part Number: C25DNF340B
✔ Manufacturer: Cutler Hammer
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: C25 Series
✔ Type: C25
✔ Voltage: 600
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ Configuration: Non-Reversing
✔ Coil Voltage Maximum: 240
✔ Full Load Amps: Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
✔ Coil Voltage Minimum: 208
✔ Compatible Frames: ND,HND,NDC,NDU,CND,CHND,CNDC
✔ Frequency: 50 Hz
✔ UPC: 782116300686
✔ GTIN: 00782116300686
✔ Country of Origin: China
✔ Dimensions: 3.75 in x 3.35 in x 2.4 in (Height x Length x Width)
✔ Weight: 2.20462 lb
✔ Certification: UL Recognized CSA Certified
