Product Description:

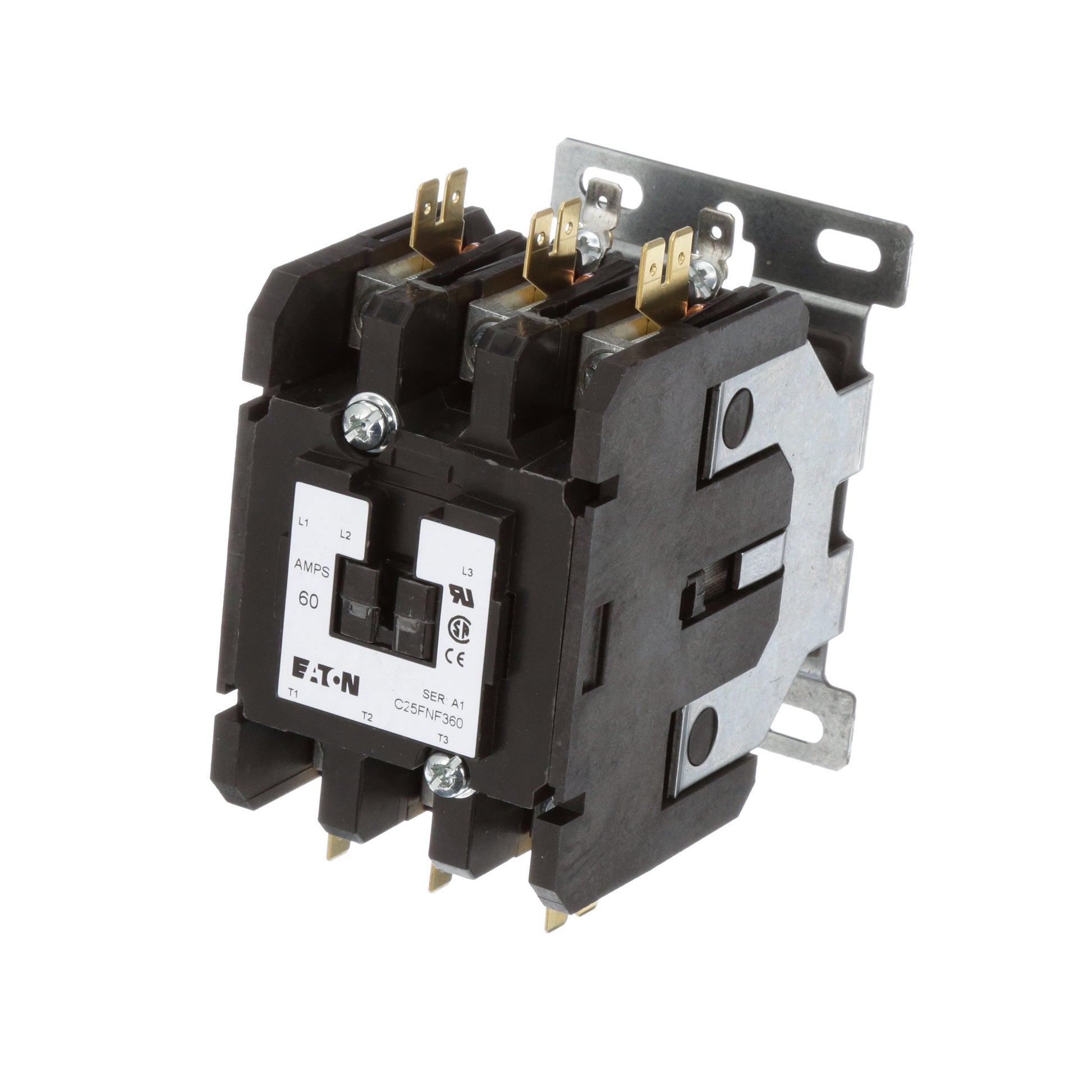

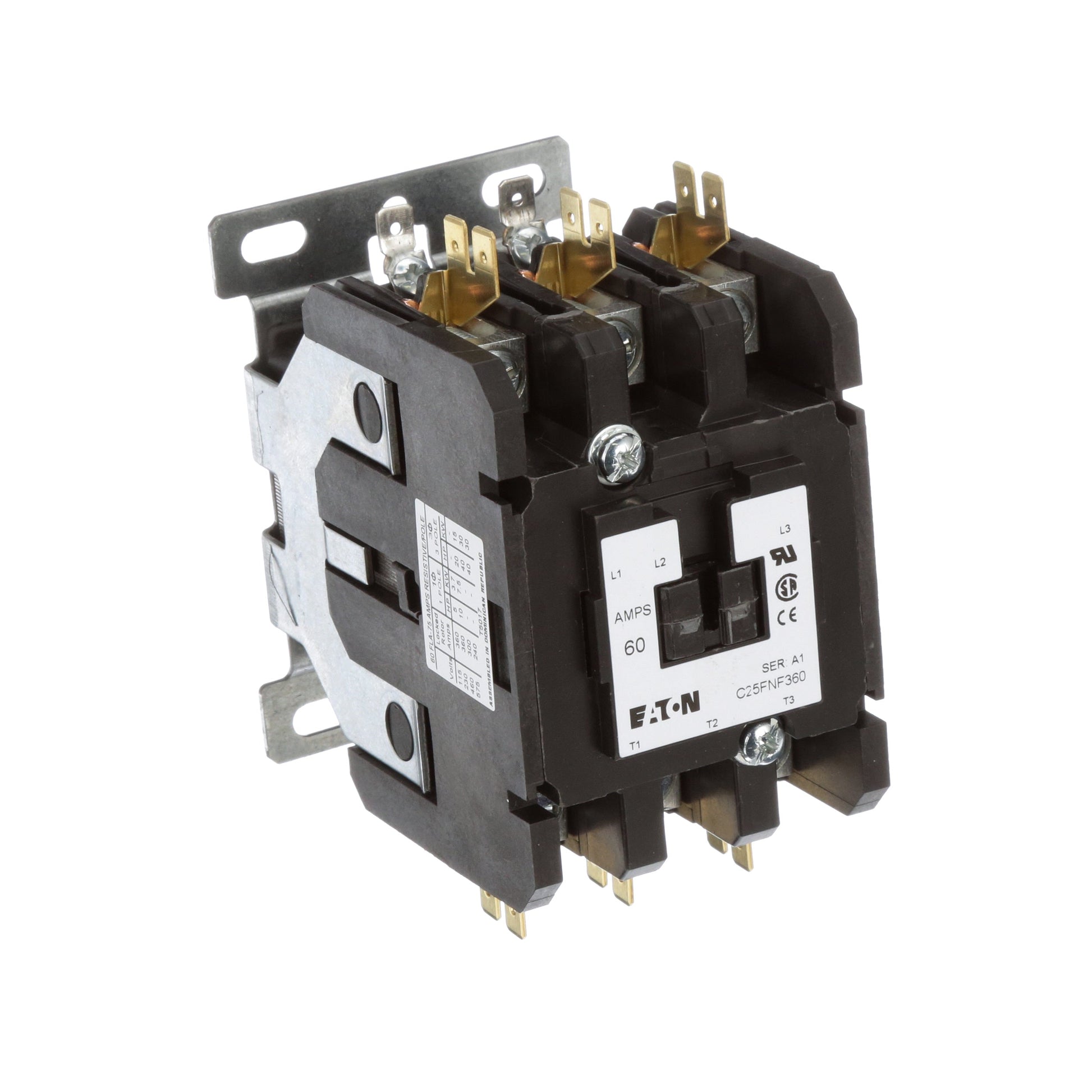

The Cutler Hammer C25FNF360B is a 3-phase contactor with a 600V rating and 60A capacity. It features a 3-pole non-reversing configuration and includes a 208V coil. This contactor is part of the C25 Series and is suitable for motor control applications. It meets CSA, RoHS, and UL standards for safety and performance.
Key Features:
✔ Part Number: C25FNF360B
✔ Manufacturer: Cutler Hammer
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: C25 Series
✔ Type: C25
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ Configuration: Non-Reversing
✔ Coil Voltage Maximum: 240
✔ Full Load Amps: Full Load Amps-Inductive 60A Full Load Amps-Resistive 75A
✔ Coil Voltage Minimum: 208
✔ Frequency: 50 Hz
✔ UPC: 782113476148
✔ GTIN: 00661191107222
✔ Country of Origin: Dominican Republic
✔ Dimensions: 2.4 in x 3.75 in
✔ Weight: 2 lb
✔ Certification: CSA, RoHS, UL Listed
