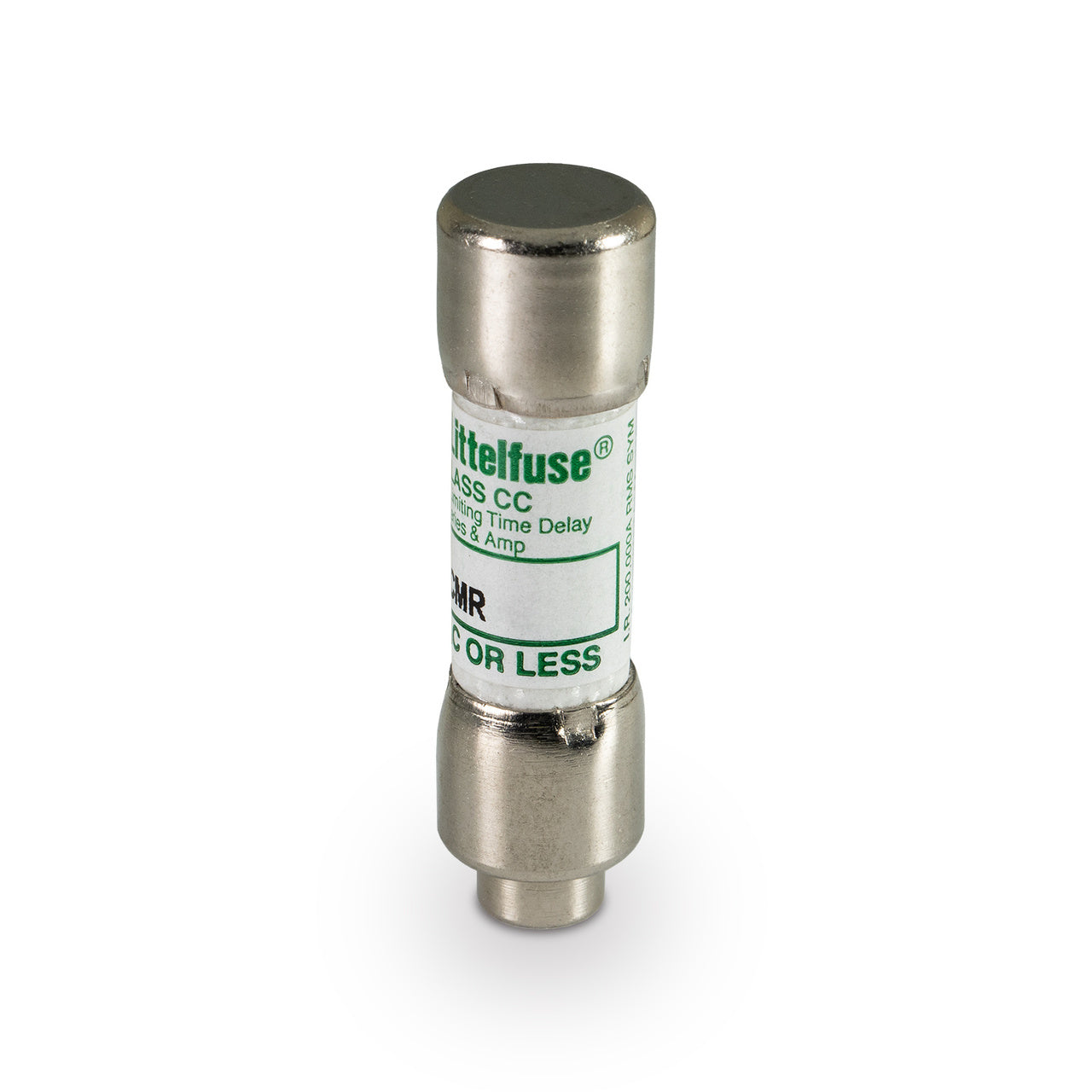

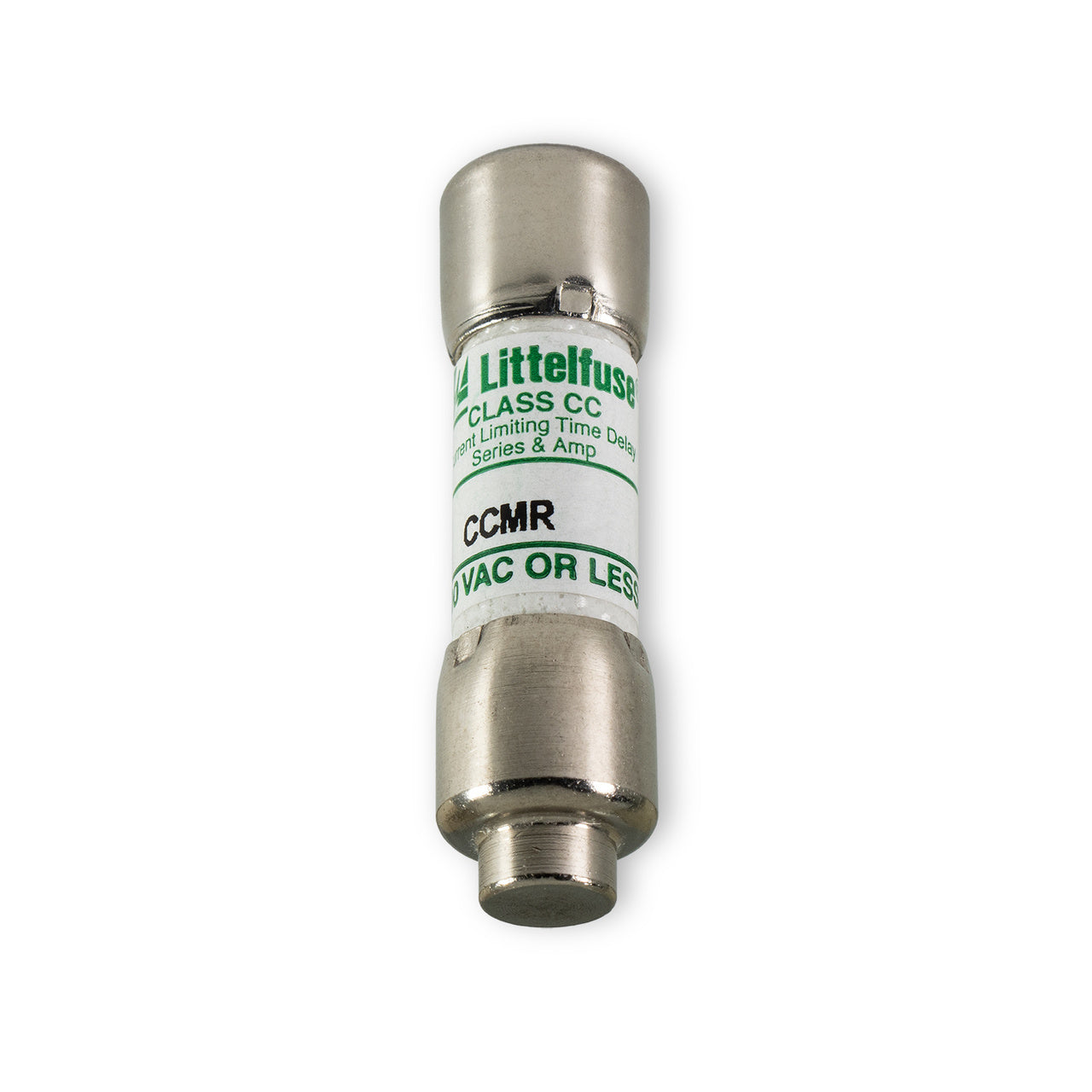

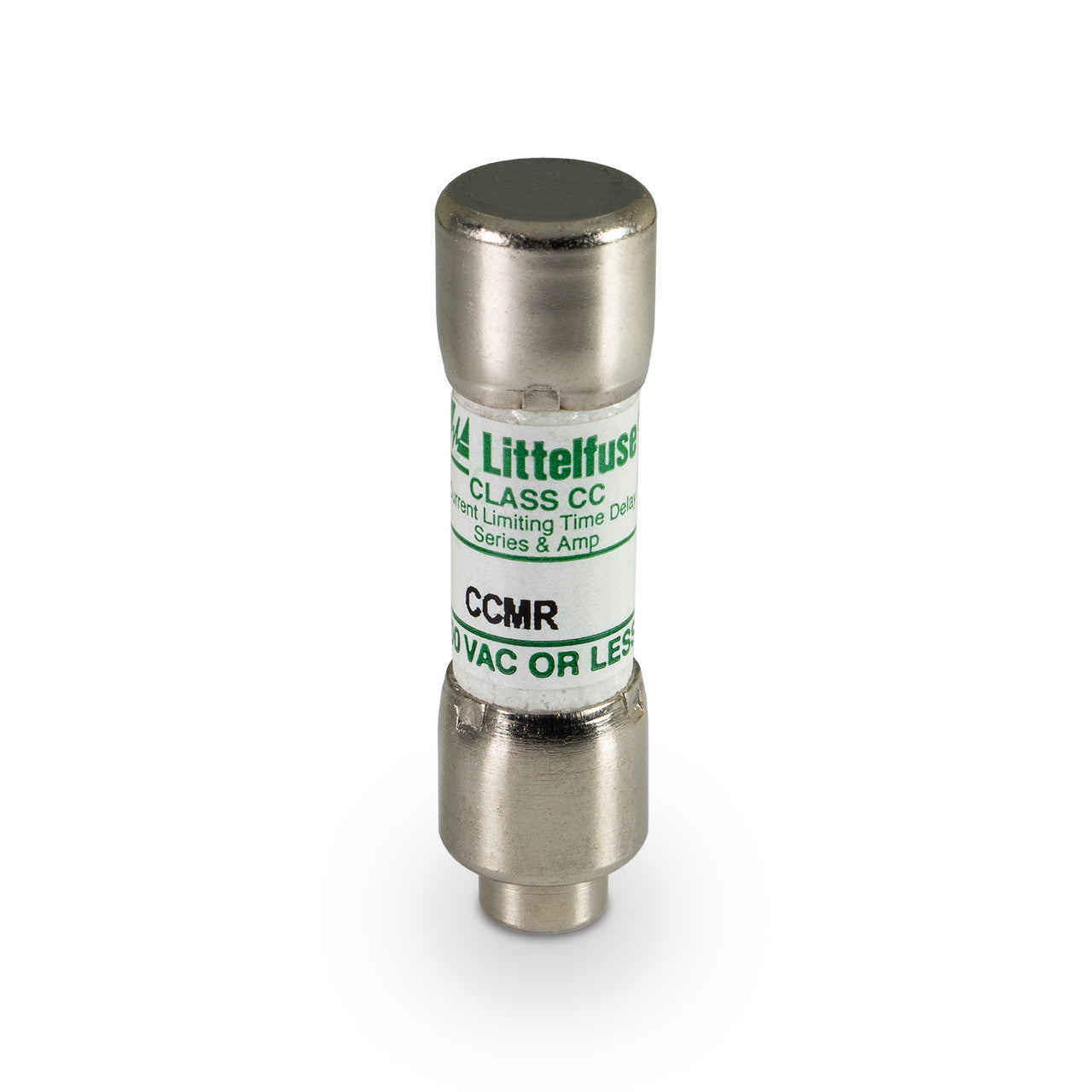

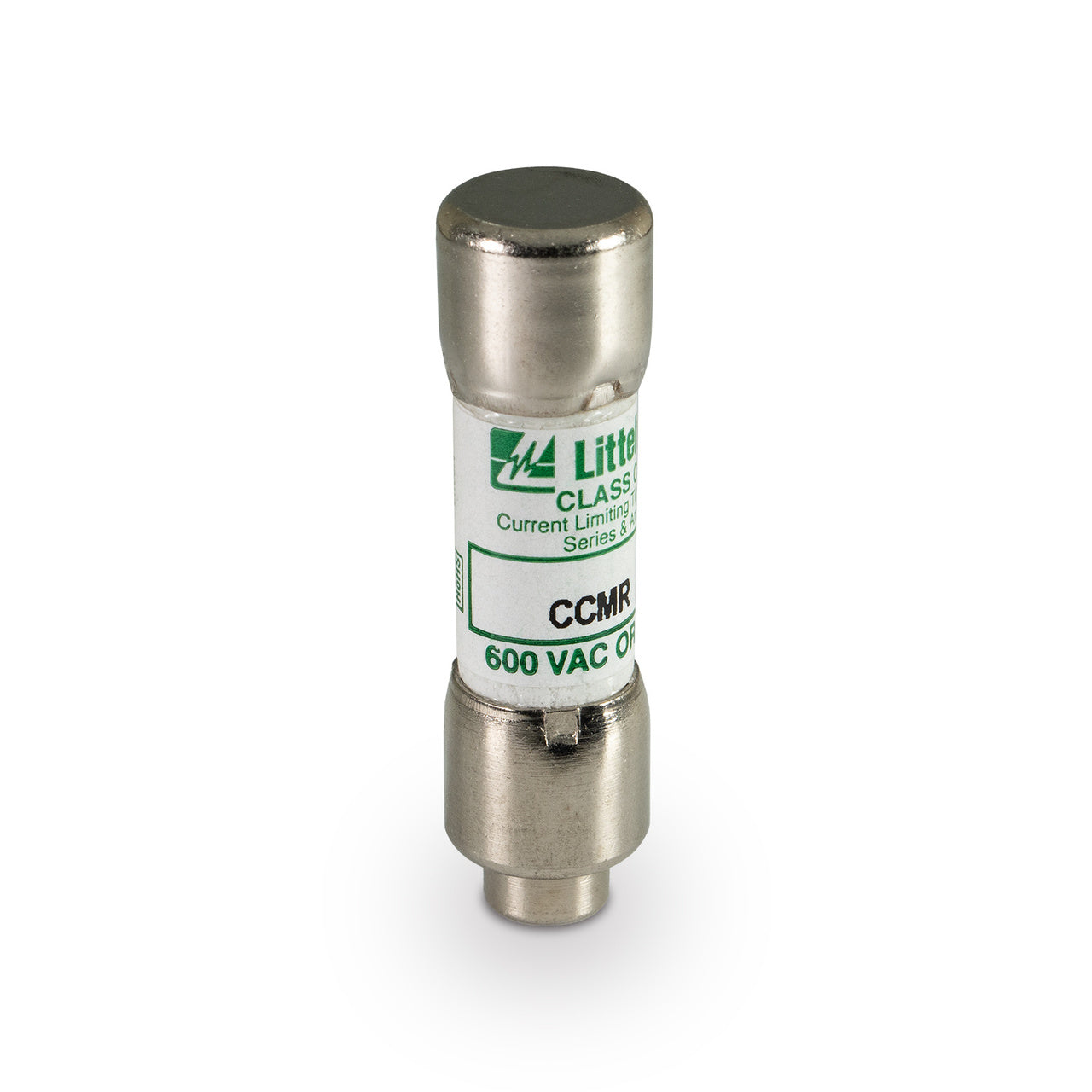

Littelfuse CCMR01.5 Fuse | CCMR Series ���������������� Class CC Dual-Element, Time-Delay Fuses CCMR Series ���������������� Class CC Dual-Element, Time-Delay Fuses 600V 1.5A

Product Description:
The Littelfuse CCMR01.5 is a Class CC dual-element, time-delay fuse designed for low-voltage applications. It operates at 600V with a 1.5A rating and features a ferrule connection. The fuse has a 300kA@600V AIC rating and a time-delay characteristic for enhanced protection. Its compact design includes a single barrel with a 0.41 diameter.

Key Features:
✔ Part Number: CCMR01.5
✔ Manufacturer: Littelfuse
✔ Category: Fuse
✔ Subcategory: Low Voltage Fuse
✔ Family: CCMR Series – Class CC Dual-Element, Time-Delay Fuses
✔ Type: CCMR Series – Class CC Dual-Element, Time-Delay Fuses
✔ Voltage: 600V
✔ Amperage: 1.5A
✔ AIC Rating: 300kA@600V
✔ Connection: Ferrule Rejection
✔ Diameter: 0.41
✔ Class Rating: CC
✔ Barrels: 1
✔ Velocity: TD - Time Delay
✔ Certification: CE, UL 248/248-4, UL Listed, CSA Certified, RoHS
✔ UPC: 079458968149
✔ Country of Origin: Mexico
✔ Dimensions: 1-1/2 in
✔ Weight: 5
