Littelfuse CCMR01.8 Fuse | CCMR Series ���������������� Class CC Dual-Element, Time-Delay Fuses CCMR Series ���������������� Class CC Dual-Element, Time-Delay Fuses 600V 1.8A

Product Description:

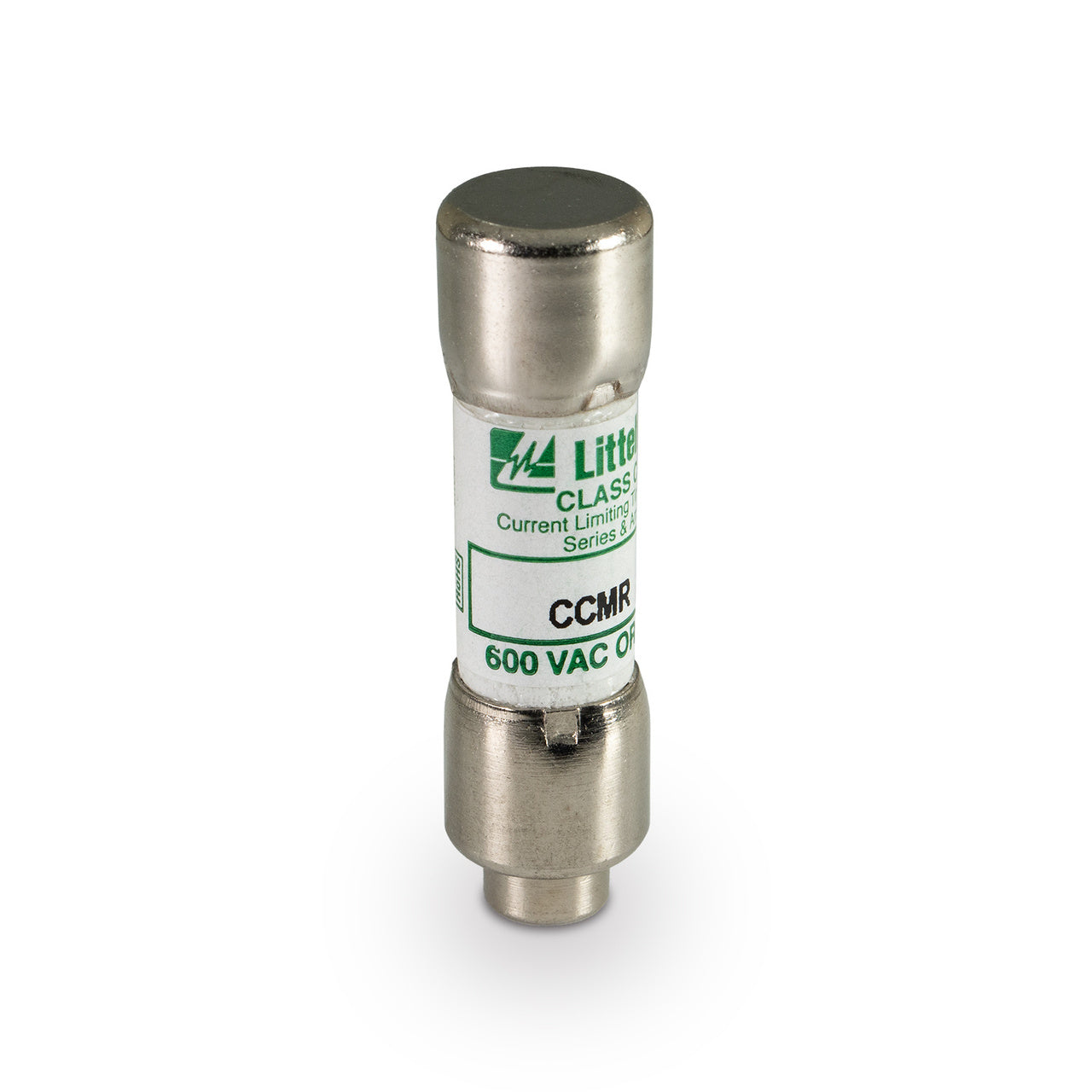

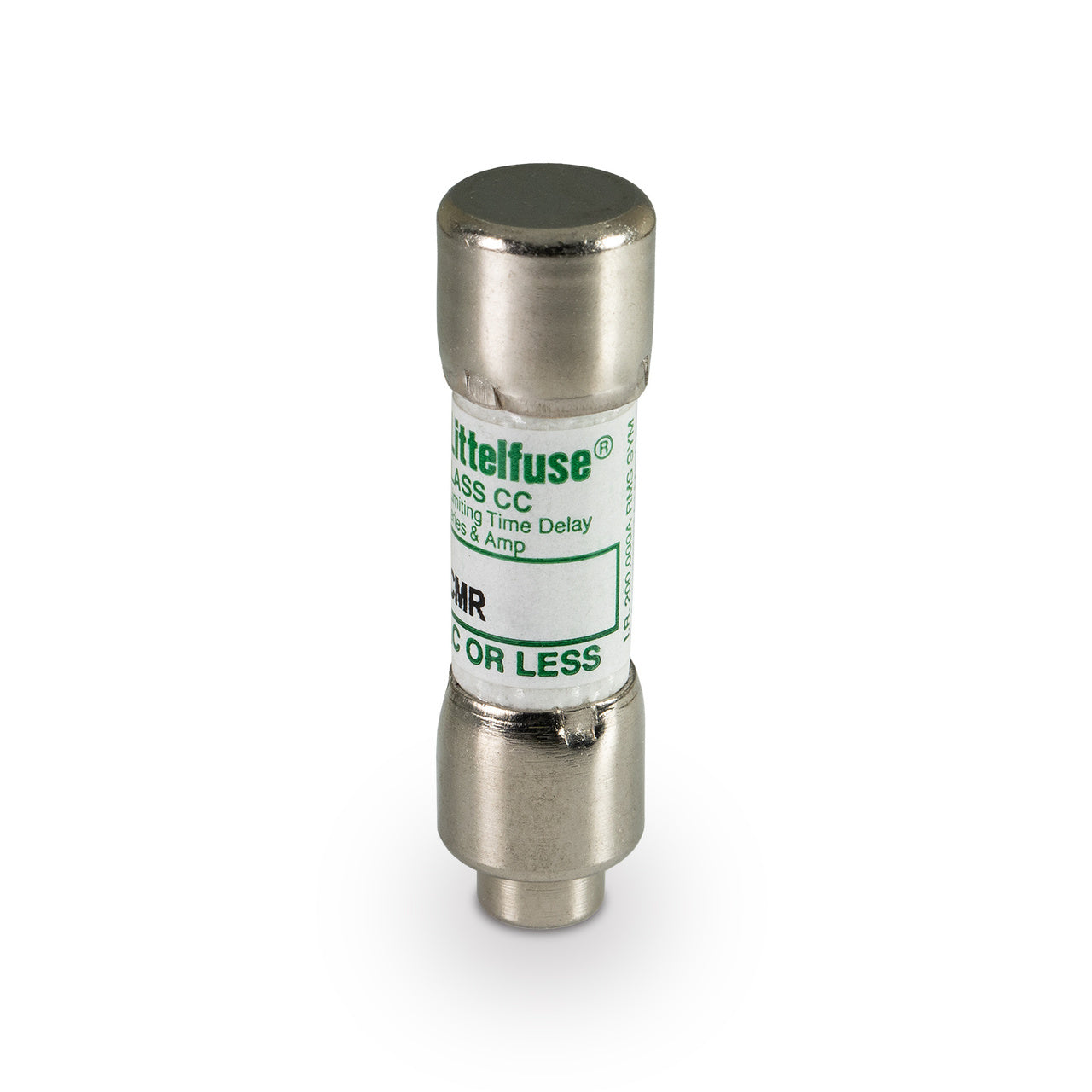

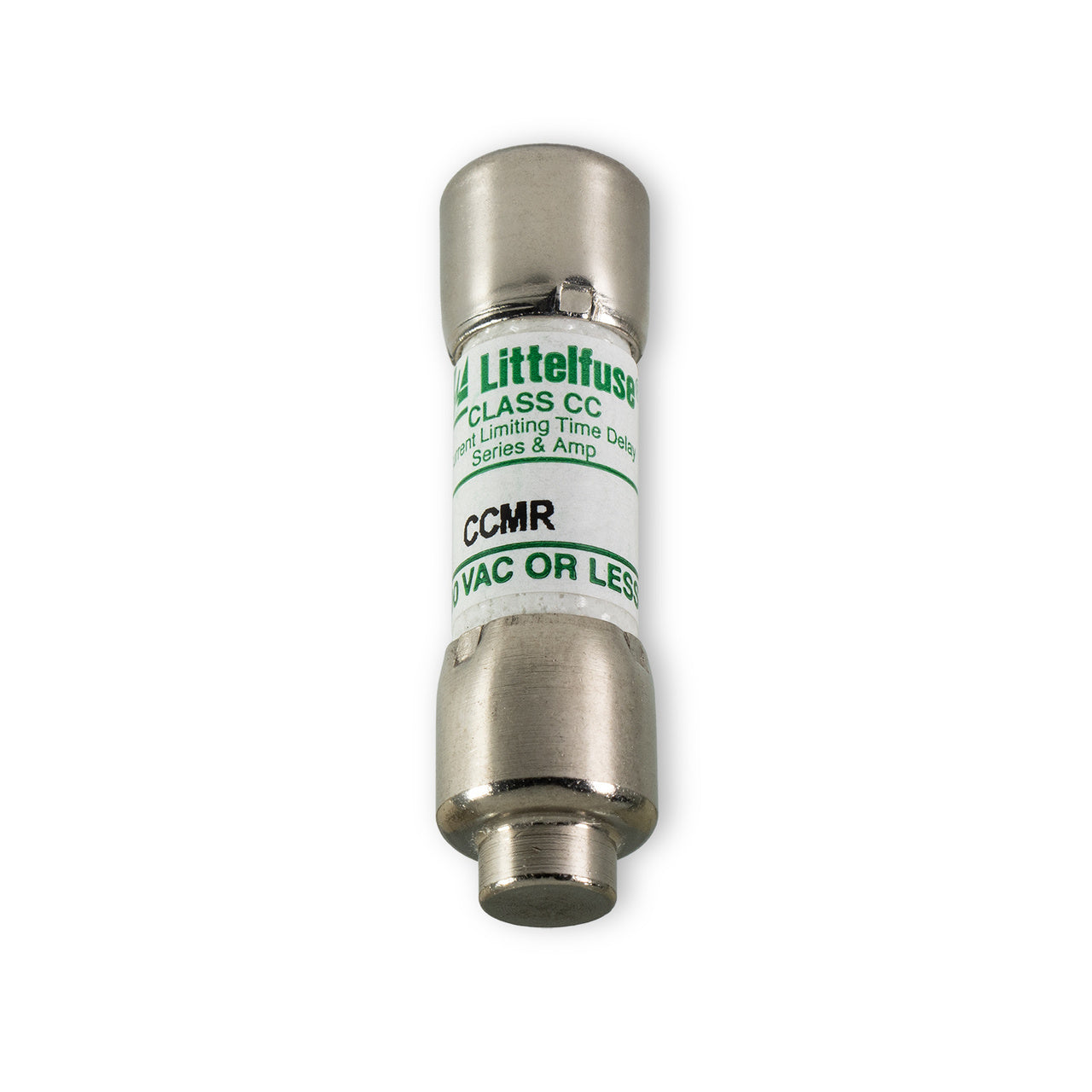

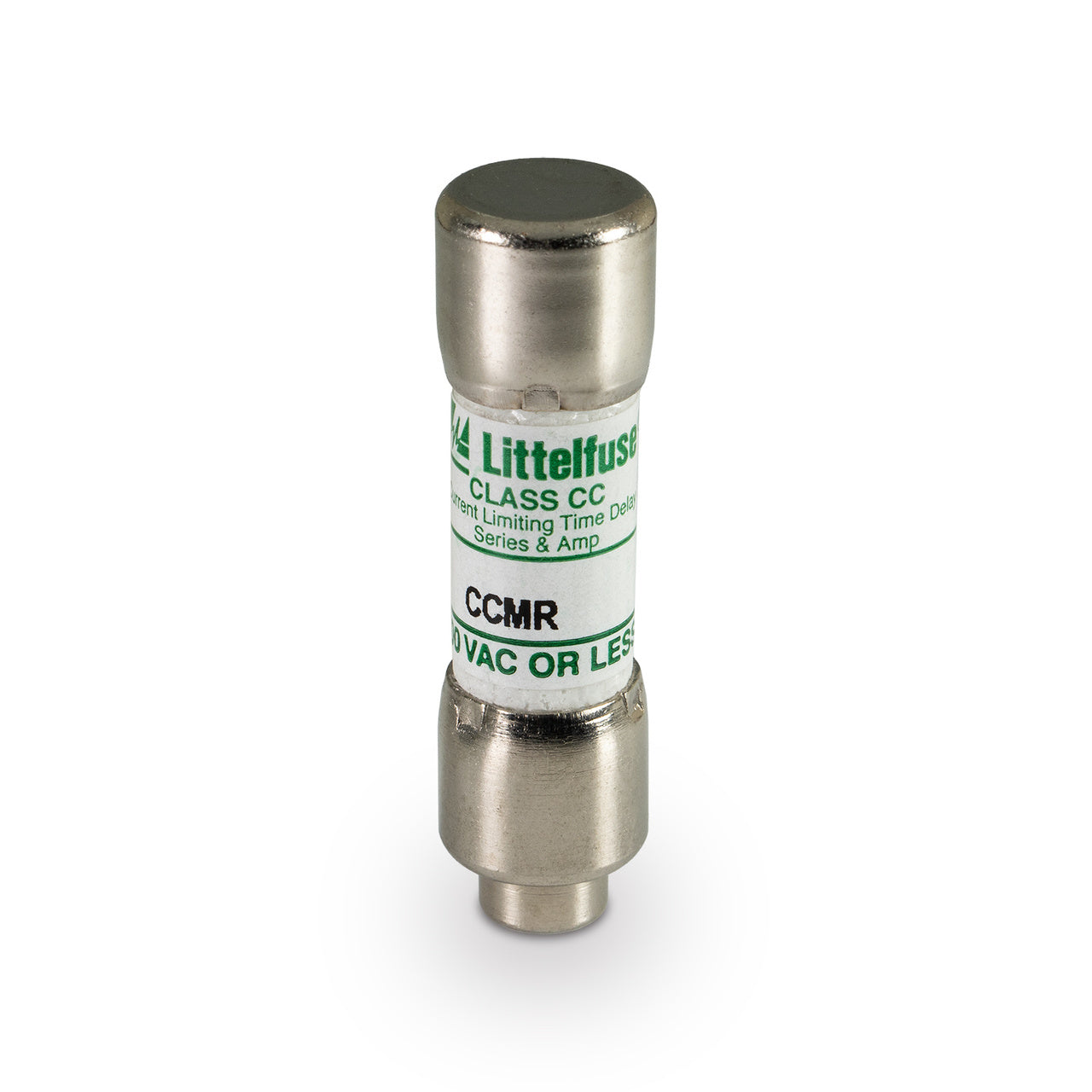

The Littelfuse CCMR01.8 is a Class CC dual-element, time-delay fuse with a 600V rating and 1.8A current capacity. It features a single-barrel design with a 0.41 diameter and a 300kA@600V AIC rating. This low-voltage fuse is ideal for time-delay applications and complies with multiple industry certifications.

Key Features:
✔ Part Number: CCMR01.8
✔ Manufacturer: Littelfuse
✔ Category: Fuse
✔ Subcategory: Low Voltage Fuse
✔ Family: CCMR Series – Class CC Dual-Element, Time-Delay Fuses
✔ Type: CCMR Series – Class CC Dual-Element, Time-Delay Fuses
✔ Voltage: 600V
✔ Amperage: 1.8A
✔ AIC Rating: 300kA@600V
✔ Connection: Ferrule Rejection
✔ Diameter: 0.41
✔ Class Rating: CC
✔ Barrels: 1
✔ Velocity: TD - Time Delay
✔ Certification: CE, UL 248/248-4, UL Listed, CSA Certified, RoHS
✔ UPC: 079458968163
✔ Country of Origin: Mexico
✔ Dimensions: 1-1/2 in
