Product Description:

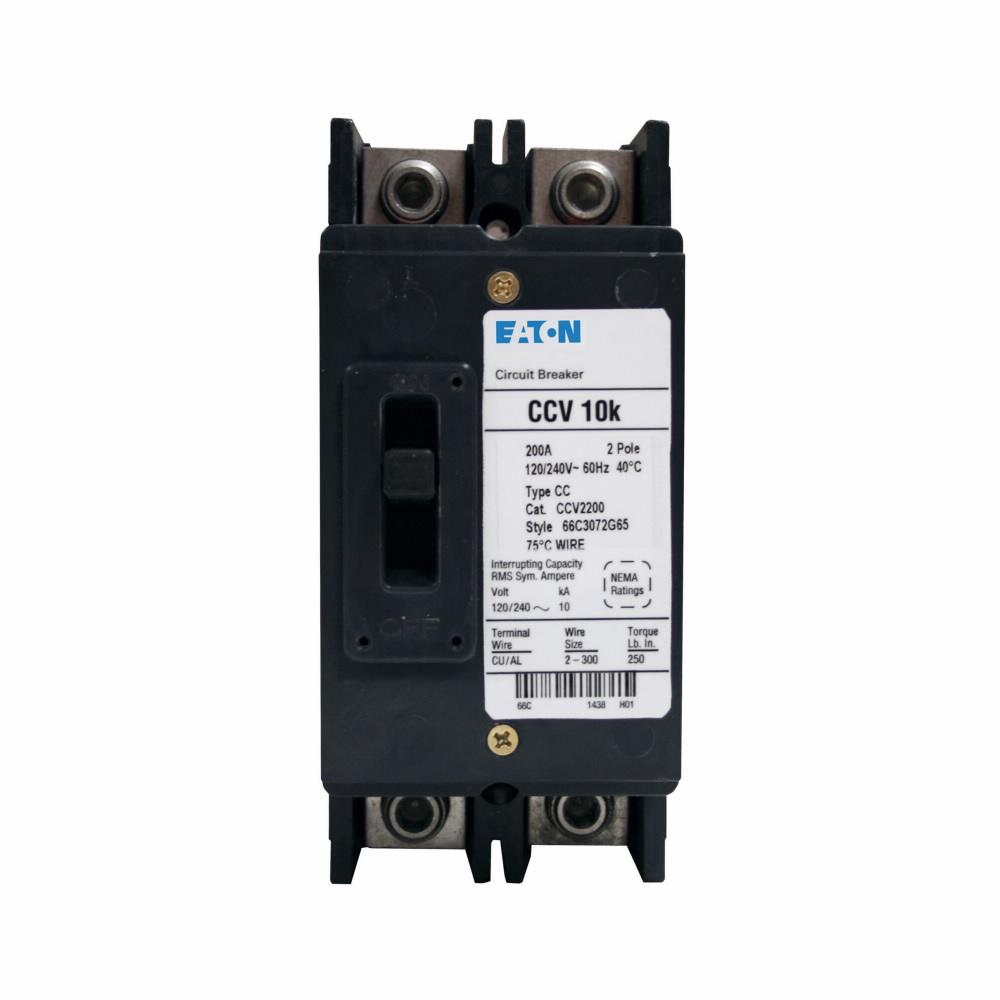

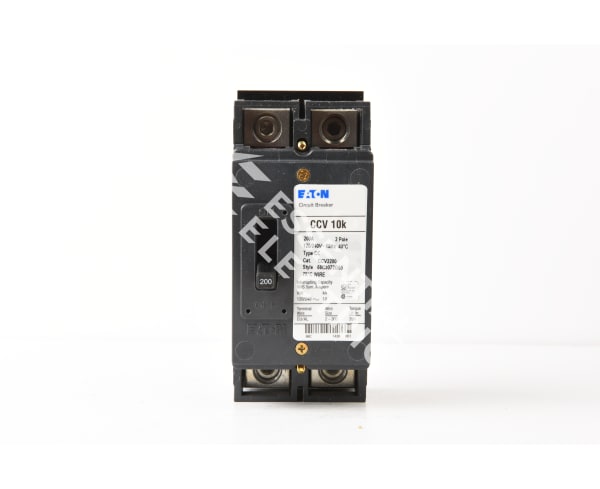

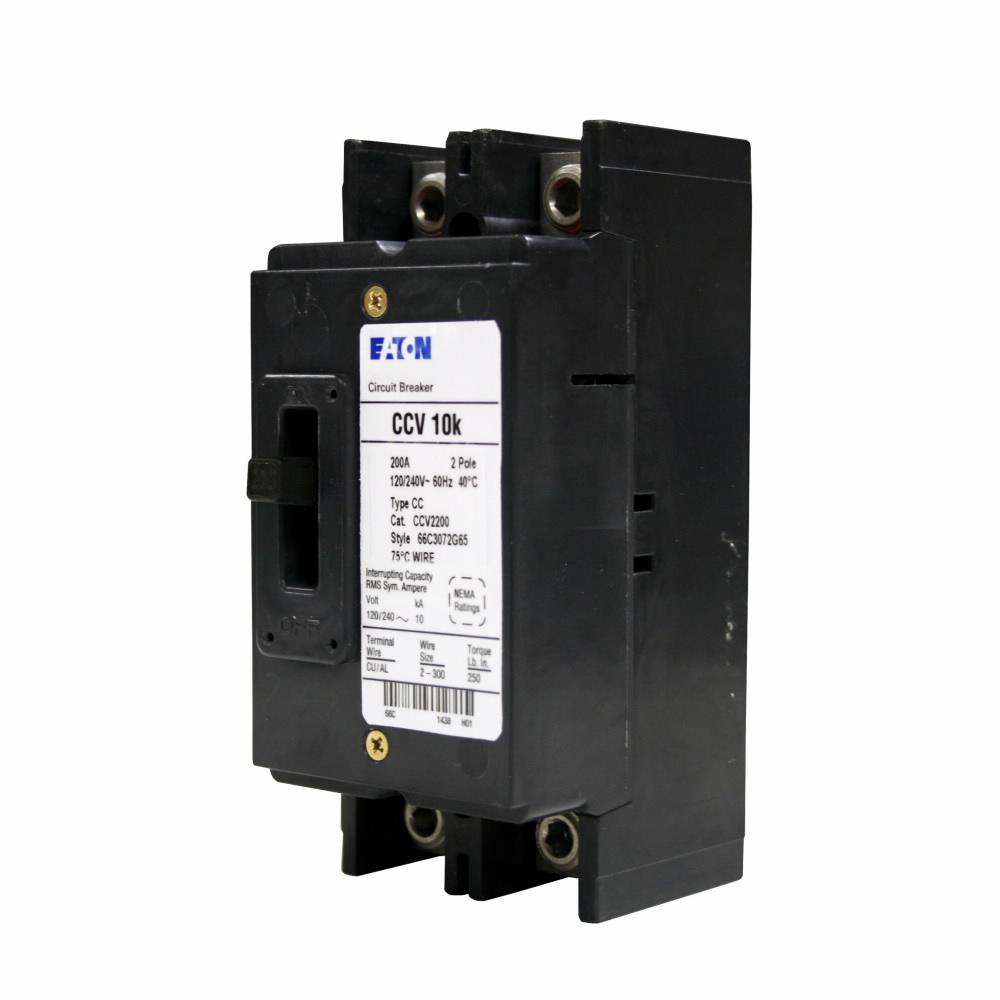

The Cutler Hammer CCV2200 is a Molded Case Circuit Breaker from the Tenant Main family. It features a 2-pole design with a 240V, 200A rating and a 10kA@240V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: CCV2200
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Tenant Main
✔ Type: CCV
✔ Voltage: 240
✔ Amperage: 200
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ MCM Size: Min. Wire Size 2/0 AWG (Cu/Al) Max. Wire Size 300 kcmil (Cu/Al)
✔ Breaker Type: CCV
✔ Protection: Thermal Magnetic
✔ UPC: 786685368573
✔ GTIN: 00786685368573
✔ Country of Origin: United States
✔ Dimensions: 4-1/2 in x 5-1/2 in
✔ Weight: 2
✔ Panel Type: Type ECC Unit Enclosures
✔ Standards: UL 489
✔ Certification: UL 489
