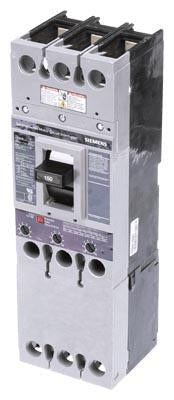

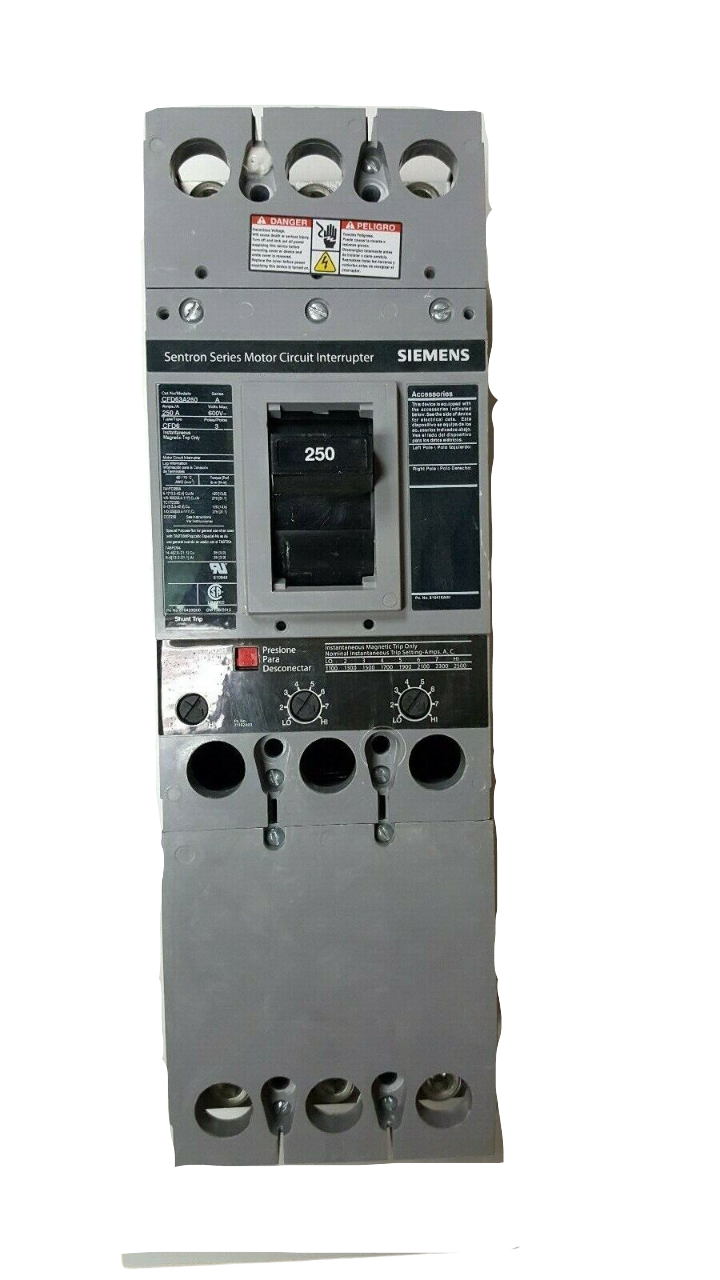

Siemens CFD63A250 Molded Case Circuit Breaker | 600V 250A 3P 200kA@480V Bolt-On Sentron Series

Product Description:
The Siemens CFD63A250 is a Molded Case Circuit Breaker from the Sentron Series family. It features a 3-pole design with a 600 Volt, 250 amp rating and a 200kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Magnetic Only protection. It does not include lugs, which must be ordered separately.

Key Features:
✔ Part Number: CFD63A250
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: CFD
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@480V
✔ Connection: Bolt-On
✔ Functions: I - Instantaneous
✔ Frame Size: FD Frame
✔ Protection: Magnetic Only
✔ UPC: 783643212343
✔ GTIN: 00783643212343
✔ Country of Origin: Mexico
✔ Weight: 18
✔ Certification: UL, IEC
✔ Wire Size: 6 AWG-350 KCM (CU)/4 AWG-350 KCM (AL)
