Product Description:

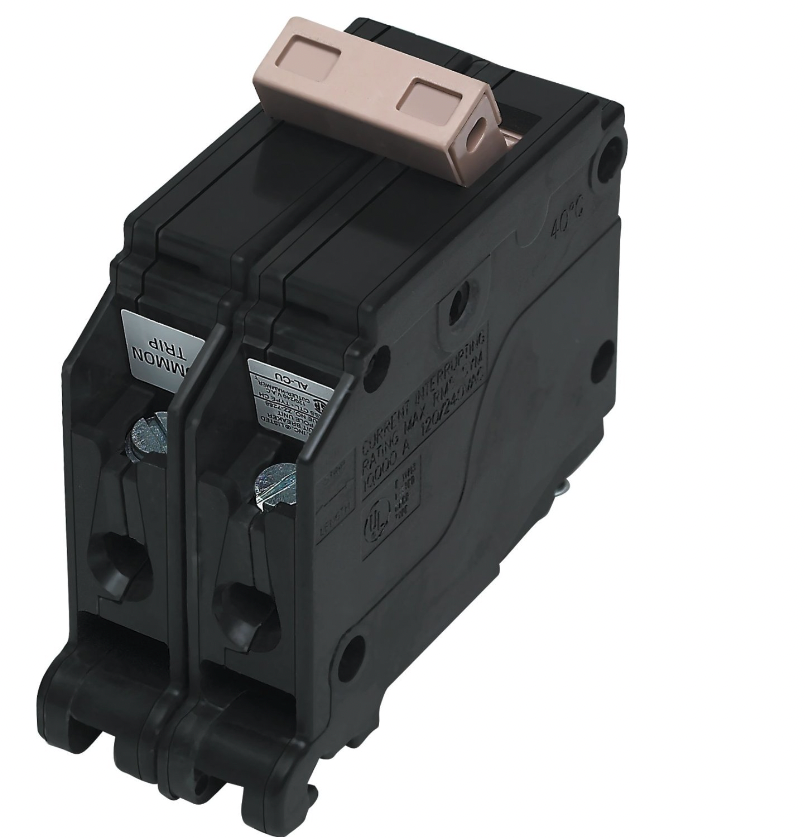

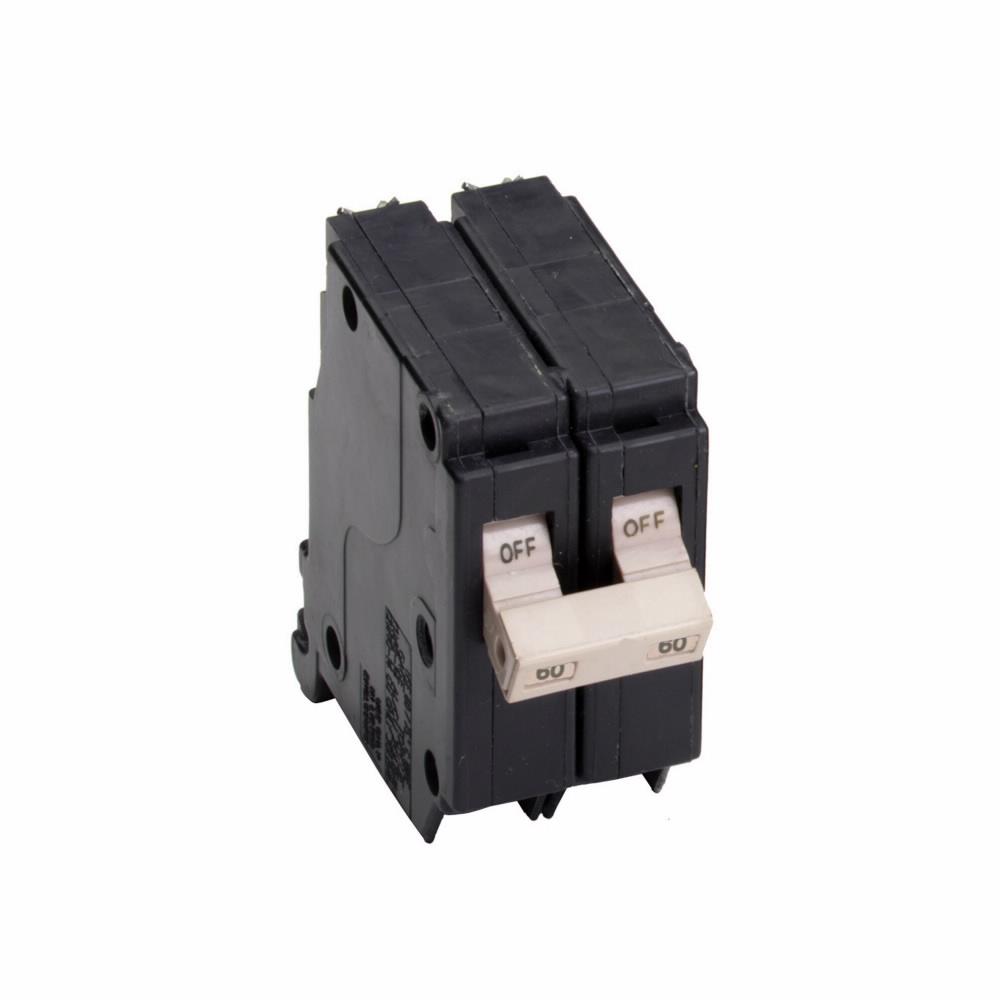

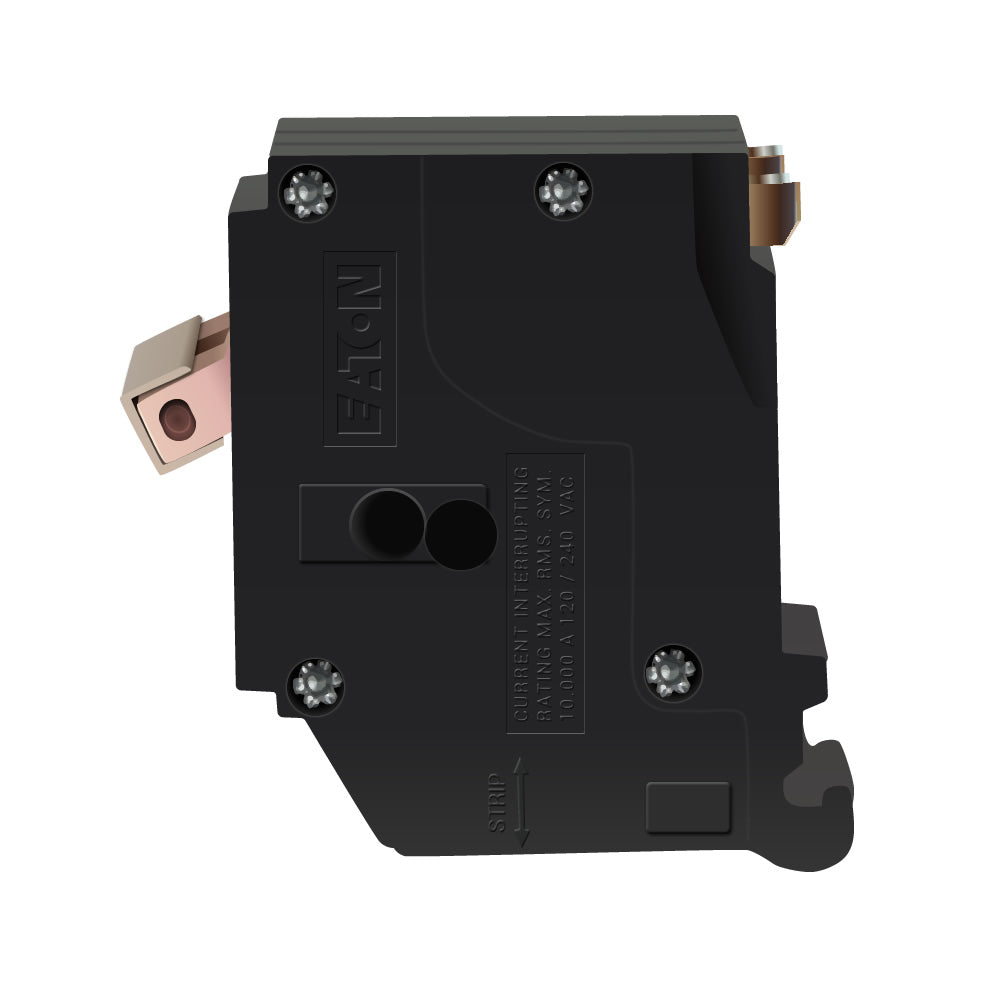

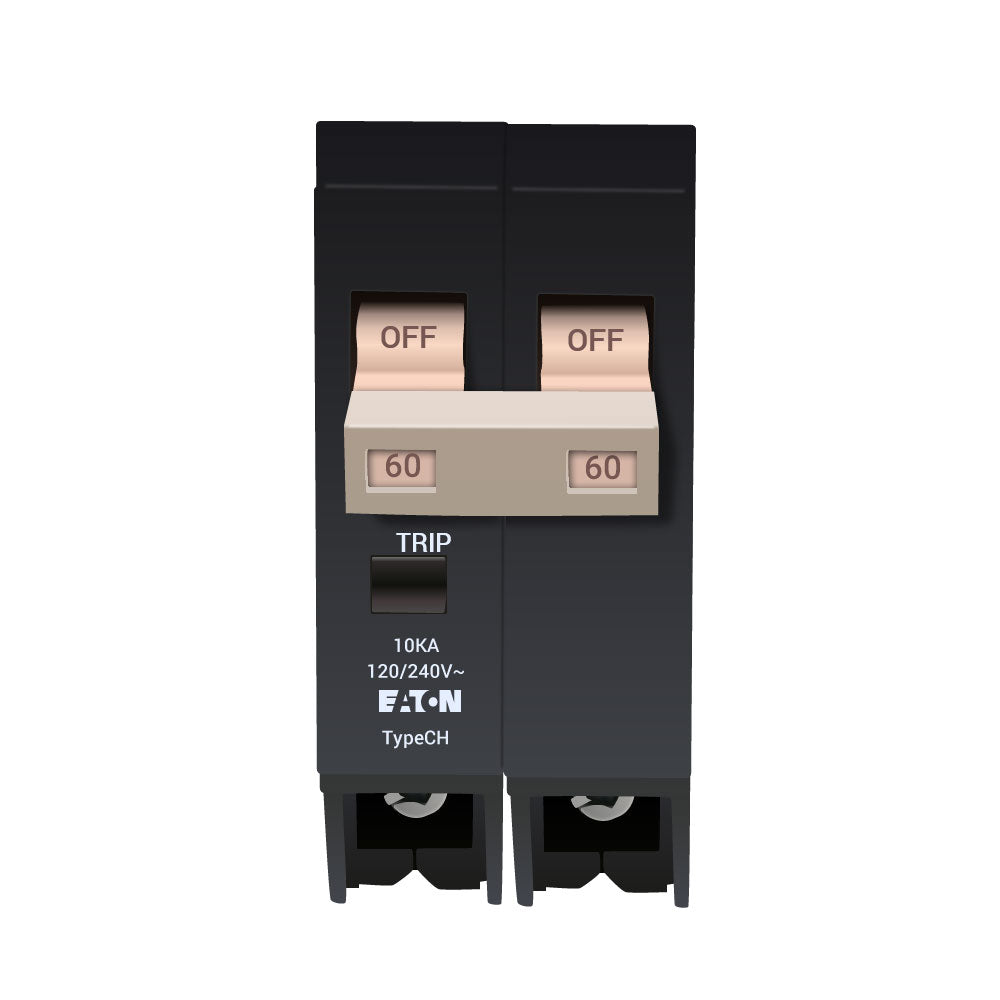

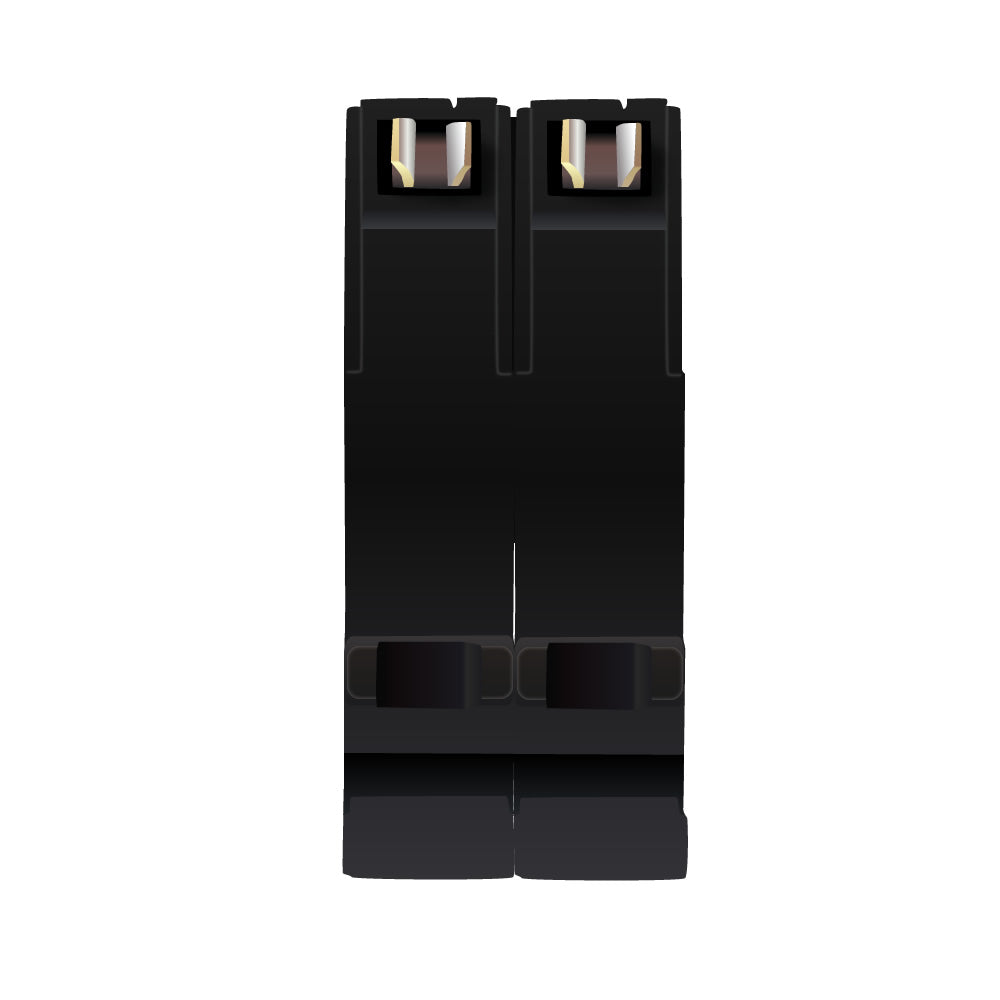

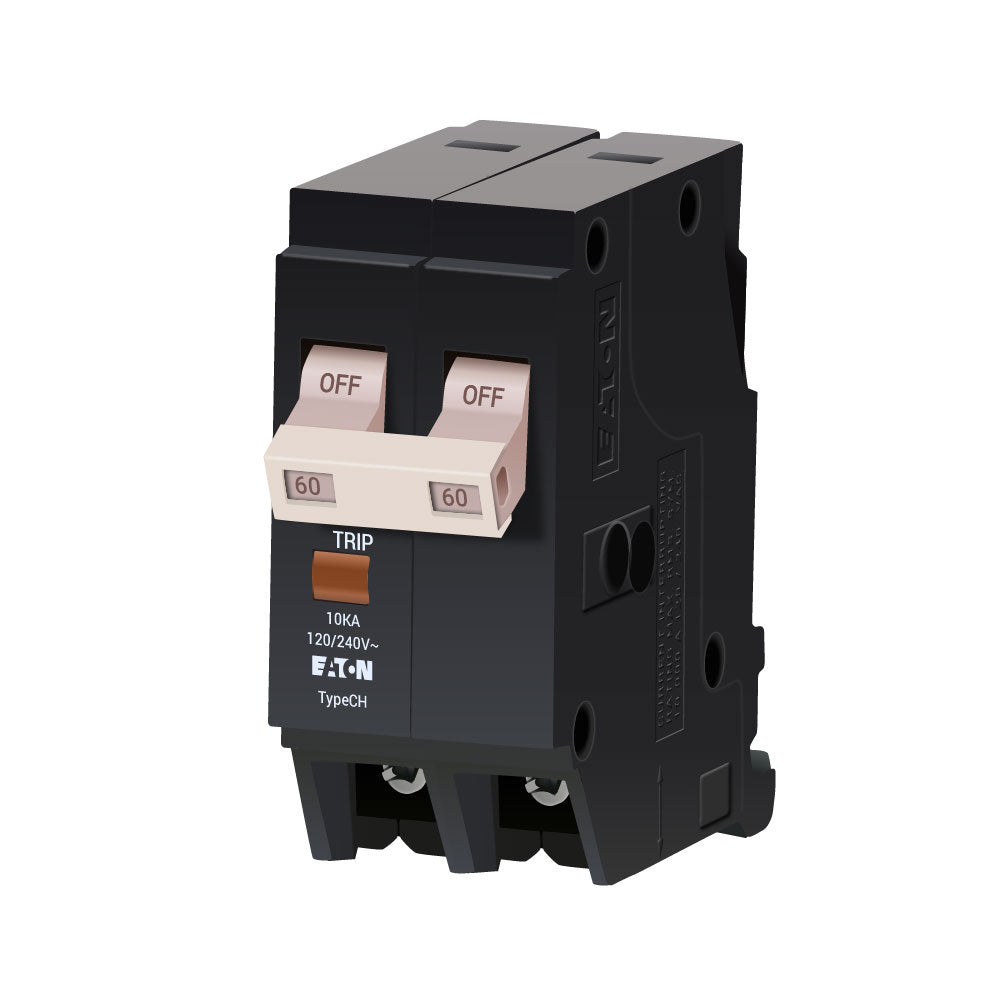

The Cutler Hammer CH260 is a Molded Case Circuit Breaker from the CH Series family. It features a 2-pole design with 240V voltage and 60A amperage rating, suitable for various electrical applications. The breaker offers Thermal Magnetic protection and has an AIC rating of 10kA@240V. It uses a Plug-In connection for easy installation.
Key Features:
✔ Part Number: CH260
✔ Manufacturer: Emery Jensen Distribution LLC
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: CH Series
✔ Type: CH
✔ Voltage: 240
✔ Amperage: 60
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2 AWG (Cu/Al)
✔ Breaker Type: CH
✔ Protection: Thermal Magnetic
✔ UPC: 78211310187
✔ GTIN: 00782113101873
✔ Country of Origin: United States
✔ Dimensions: 1-1/2 in x 3.5 in
✔ Weight: 2 lb
✔ Panel Type: Type CH Loadcenters
✔ Standards: UL 489
✔ Certification: UL 489
✔ Wire Size: 14 To 2 AWG (Aluminum/Copper)
