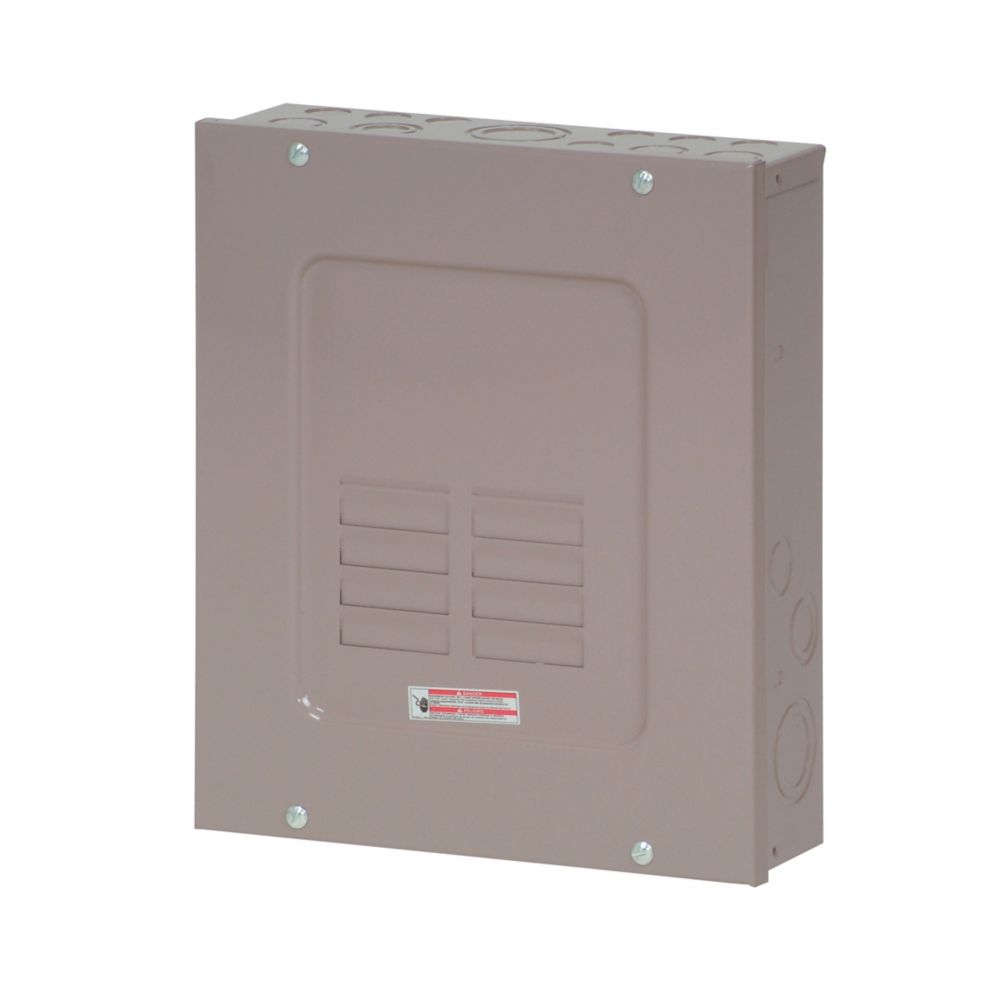

Eaton CH8L125SP 125A Main Lug Load Center, 8-Space, 25kAIC, NEMA 1 Surface Mount

Eaton CH8L125SP 125A Main Lug Load Center, 8-Space, 25kAIC, NEMA 1 Surface Mount

Setting up a 125A main lug sub-panel or swapping out a tired load center? The Eaton CH8L125SP gives you 8 full-size spaces, good for up to 16 circuits with tandems, on a copper bus rated 120/240V single-phase with a 25 kAIC interrupting rating. It is main lug only, so you will feed it from an upstream main breaker or pair it with a separate main disconnect at the service entrance.

This one is a surface-mount NEMA 1 indoor box built for Eaton Type CH breakers, with top or bottom feed and lugs sized for #6 to 1/0 AWG. Heads up before you order: the ground bar kit is not in the box, so pick it up separately if the job needs one. UL 50 and UL 67 listed.

Common Applications

• Panel upgrade or service change on a 120/240V single-phase residential or light commercial job
• Sub-panel feed off an existing main disconnect
• Adding circuit capacity without pulling a whole new service

Key Features

• 25 kAIC rating: Handles the short-circuit duty most jobs call for
• Copper bus: One-piece silver flash-plated copper bus for a solid, conductive mount
• CH breakers only: Built for Eaton Type CH branch breakers, no cross-brand guesswork
• Ground bar sold separately: Order the kit if the panel needs one, it is not included

Specifications

• Amperage Rating: 125 A
• Voltage Rating: 120/240 V AC, Single-Phase
• Interrupting Rating: 25 kAIC
• Number of Spaces: 8 (up to 16 circuits with tandem breakers)
• Bus Material: Copper
• Wire Size Range: #6-1/0 AWG
• Number of Wires: 3
• Feed Type: Top/Bottom
• Mounting: Surface
• Enclosure: NEMA 1, Metallic, Indoor

Product Identification

• Dimensions: 13 in H x 11 in W x 3.69 in D
• Weight: 12 lb
• UPC: 782114190531

FAQ

• Is the CH8L125SP a main breaker panel or main lug? Main lug only. There is no main breaker in the box, so you are feeding it from an upstream disconnect or a separate main breaker kit.
• What is the AIC rating on this panel? 25 kAIC.
• Does it come with a ground bar? No, order the ground bar kit separately, Eaton sells it apart from the panel.
• What breakers go in the CH8L125SP? Eaton Type CH branch breakers only.
• Can I use this as service equipment? Yes, per Eaton's catalog notes, as long as you are not exceeding two service disconnecting means or running it as a lighting and appliance panelboard.
• What size wire does it take? The main lugs take #6 to 1/0 AWG, fed top or bottom.
