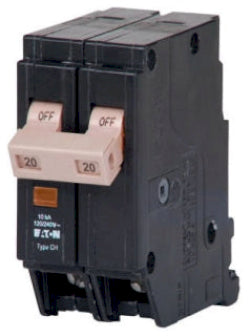

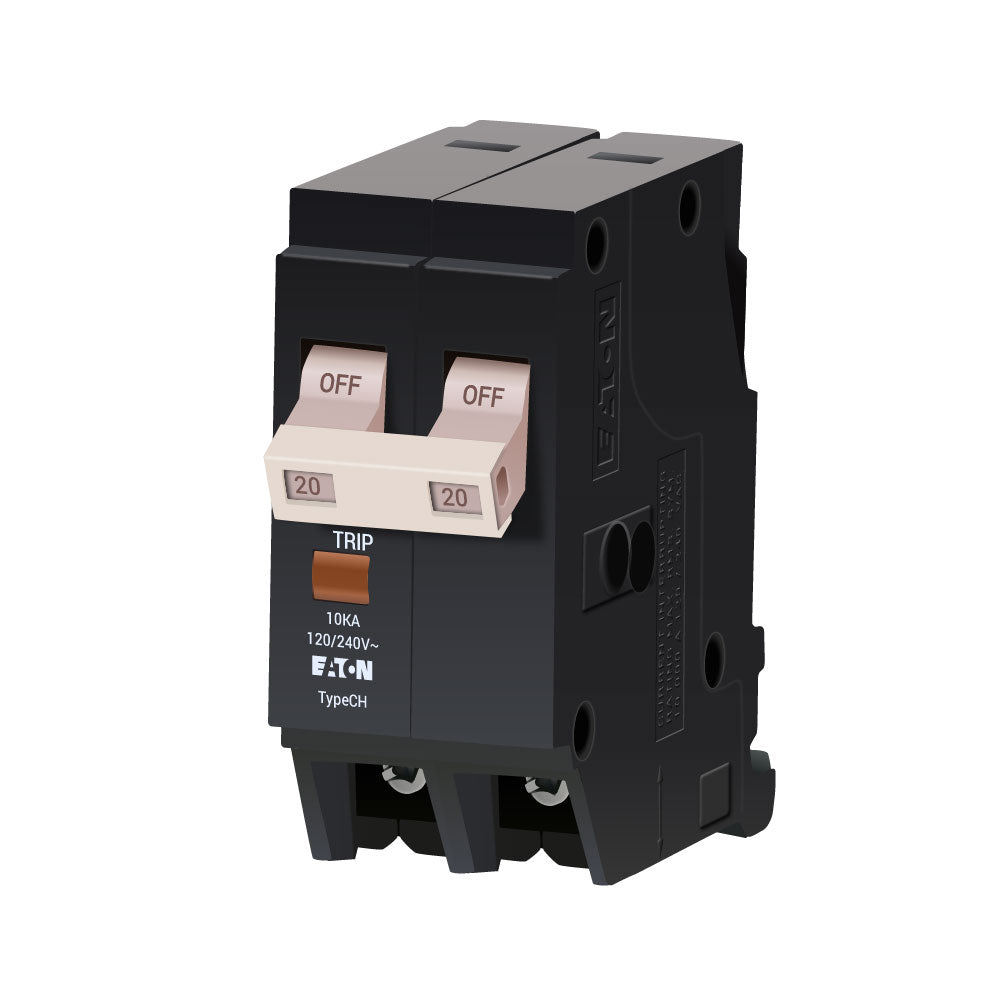

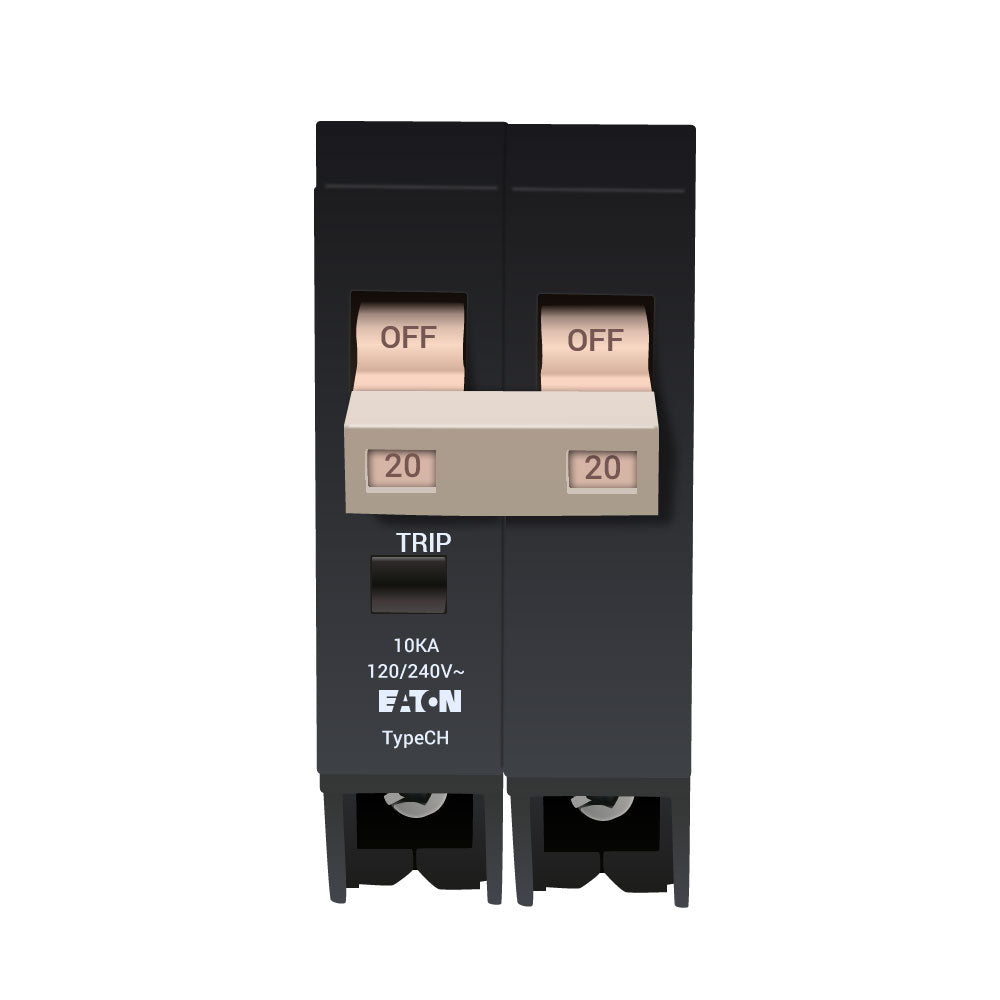

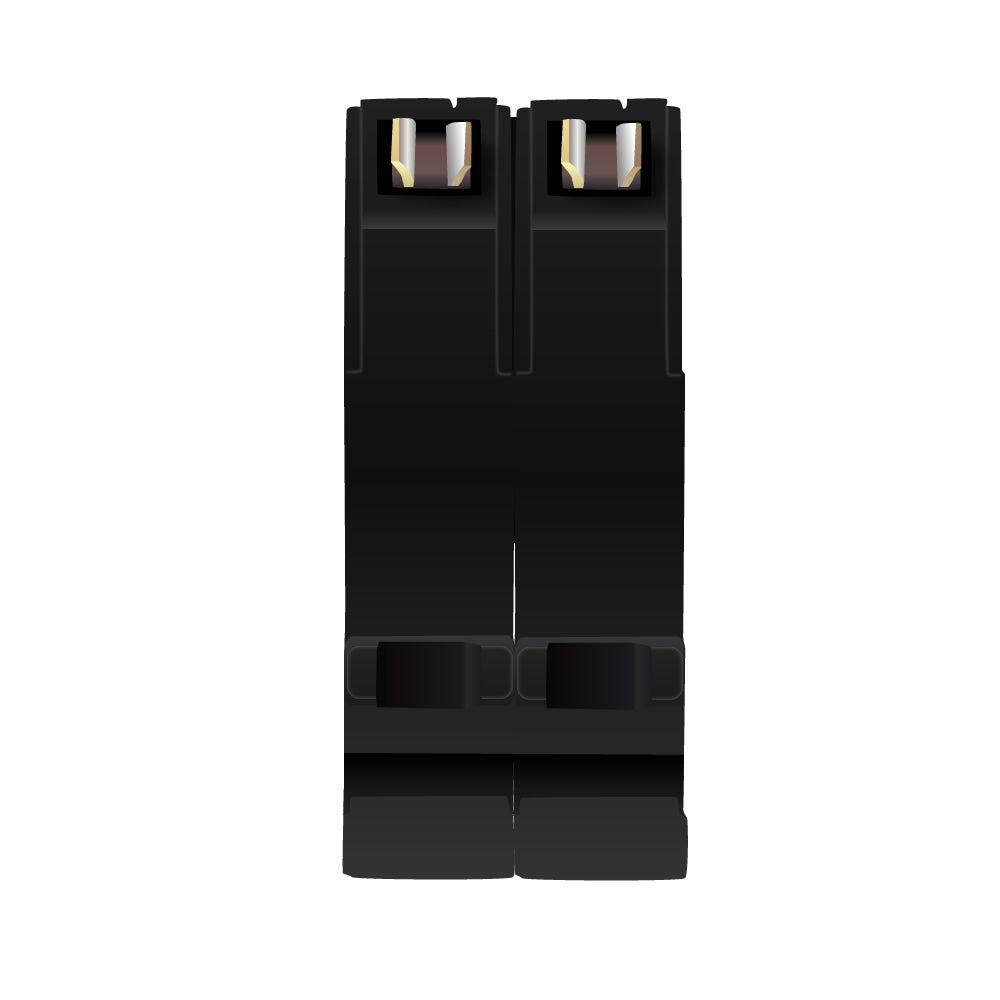

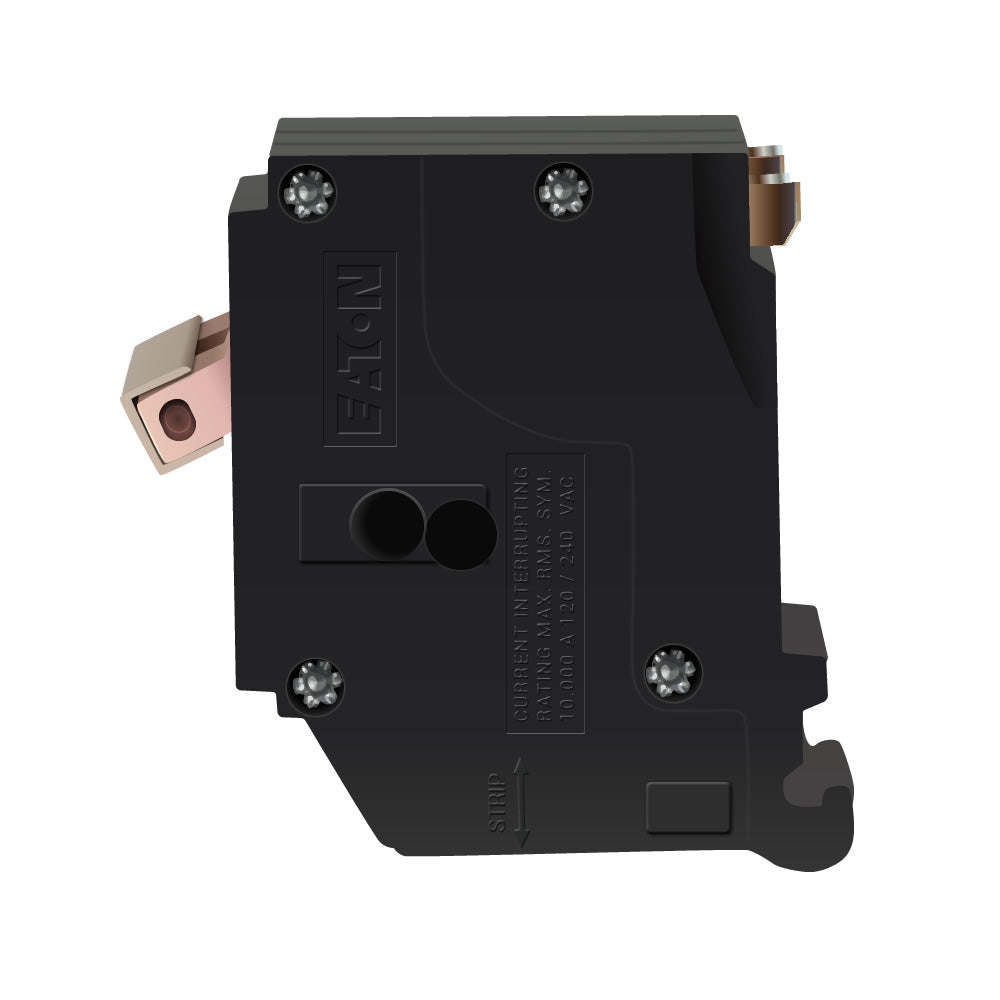

Eaton CHF220 Circuit Breaker | 240V 20A 2P 10kA@120V Plug-In CH Series

Product Description:
The Eaton CHF220 is a Molded Case Circuit Breaker from the CH Series family. It features 2 poles, 240V voltage, and 20A amperage with a 10kA@120V AIC rating. This breaker uses a Plug-In connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: CHF220
✔ Manufacturer: Emery Jensen Distribution LLC
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: CH Series
✔ Type: CHF
✔ Voltage: 240
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ MCM Size: Min. Wire Size (2) 14 AWG (Cu/Al) Max. Wire Size (2) 10 AWG (Cu/Al)
✔ Breaker Type: CHF
✔ Protection: Thermal Magnetic
✔ UPC: 786685361888
✔ GTIN: 00786685361888
✔ Country of Origin: United States
✔ Dimensions: 0.75 in x 2.6 in
✔ Weight: 0.5
✔ Panel Type: Type CH Loadcenters
✔ Standards: UL 489, HACR Rated
✔ Certification: UL 489, HACR Rated
