Product Description:

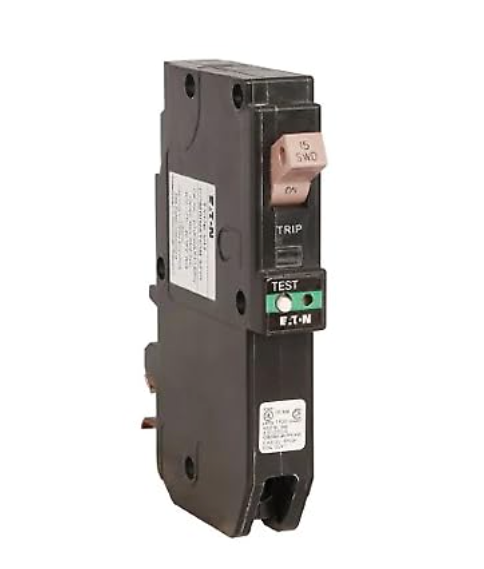

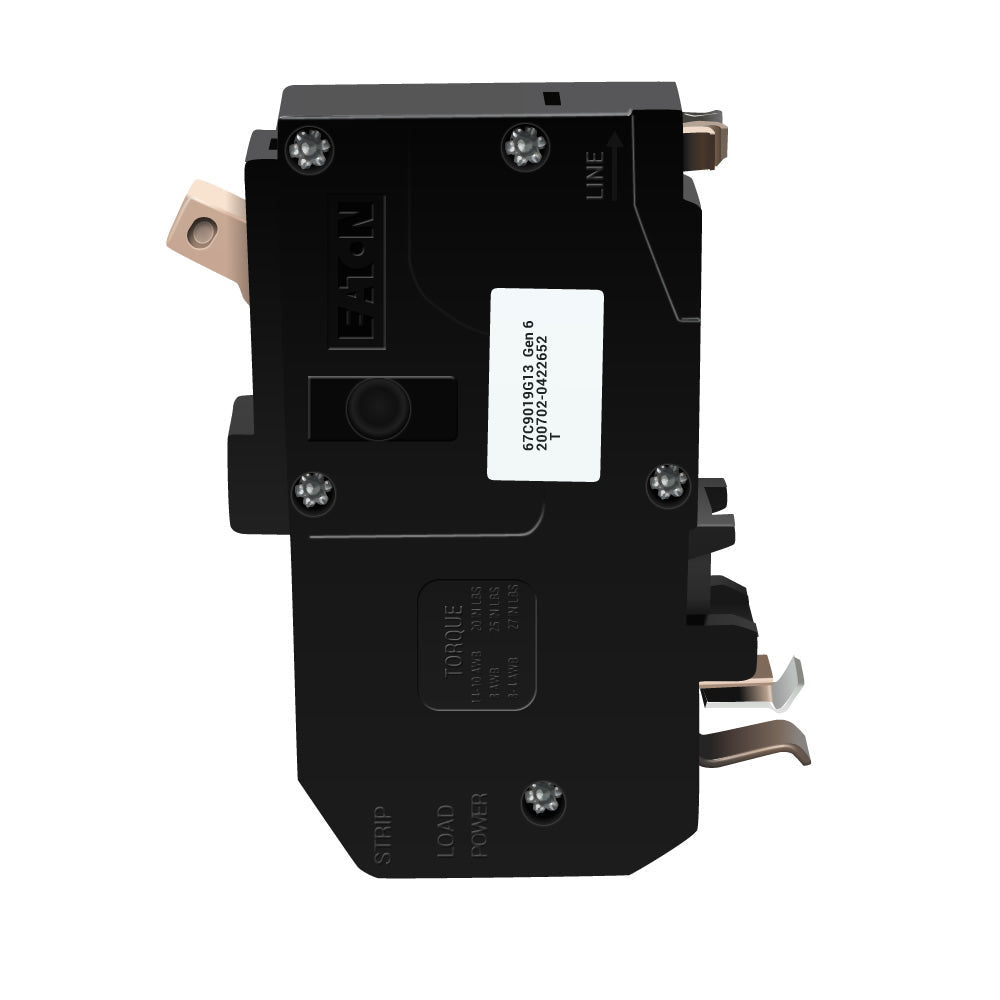

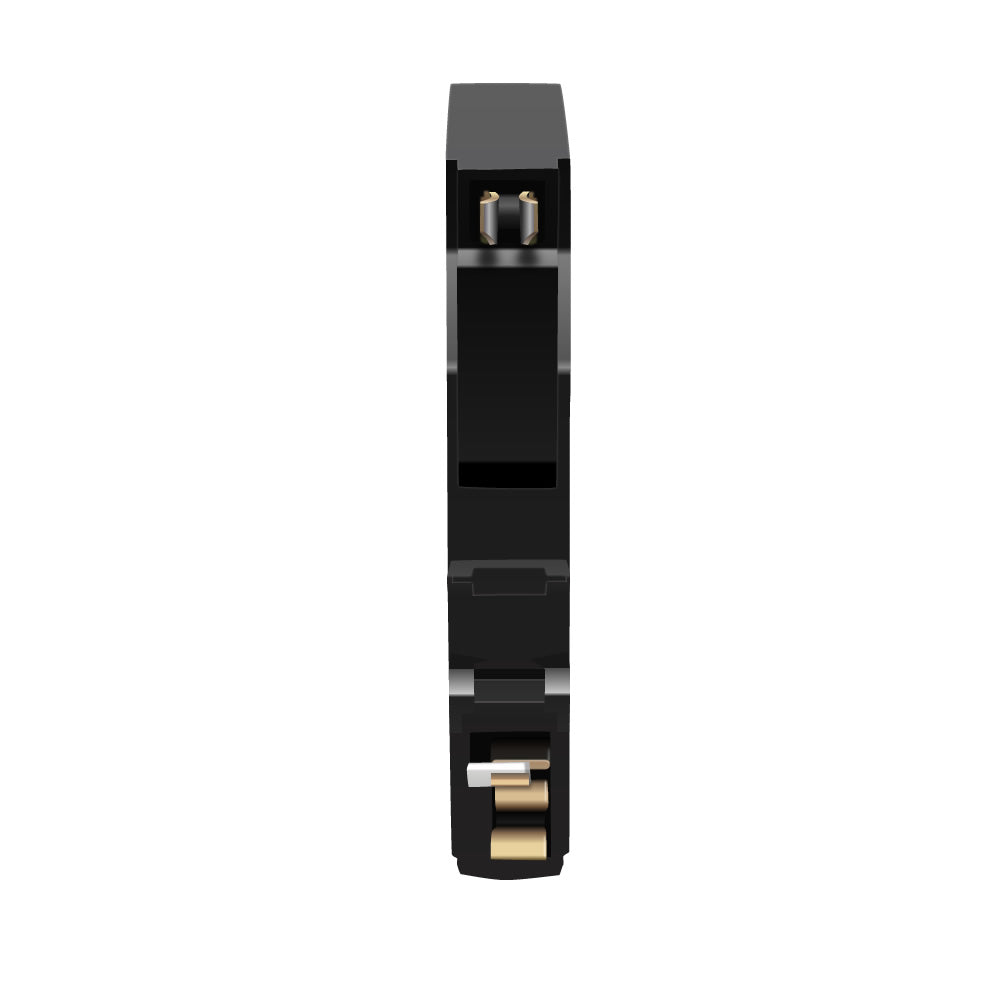

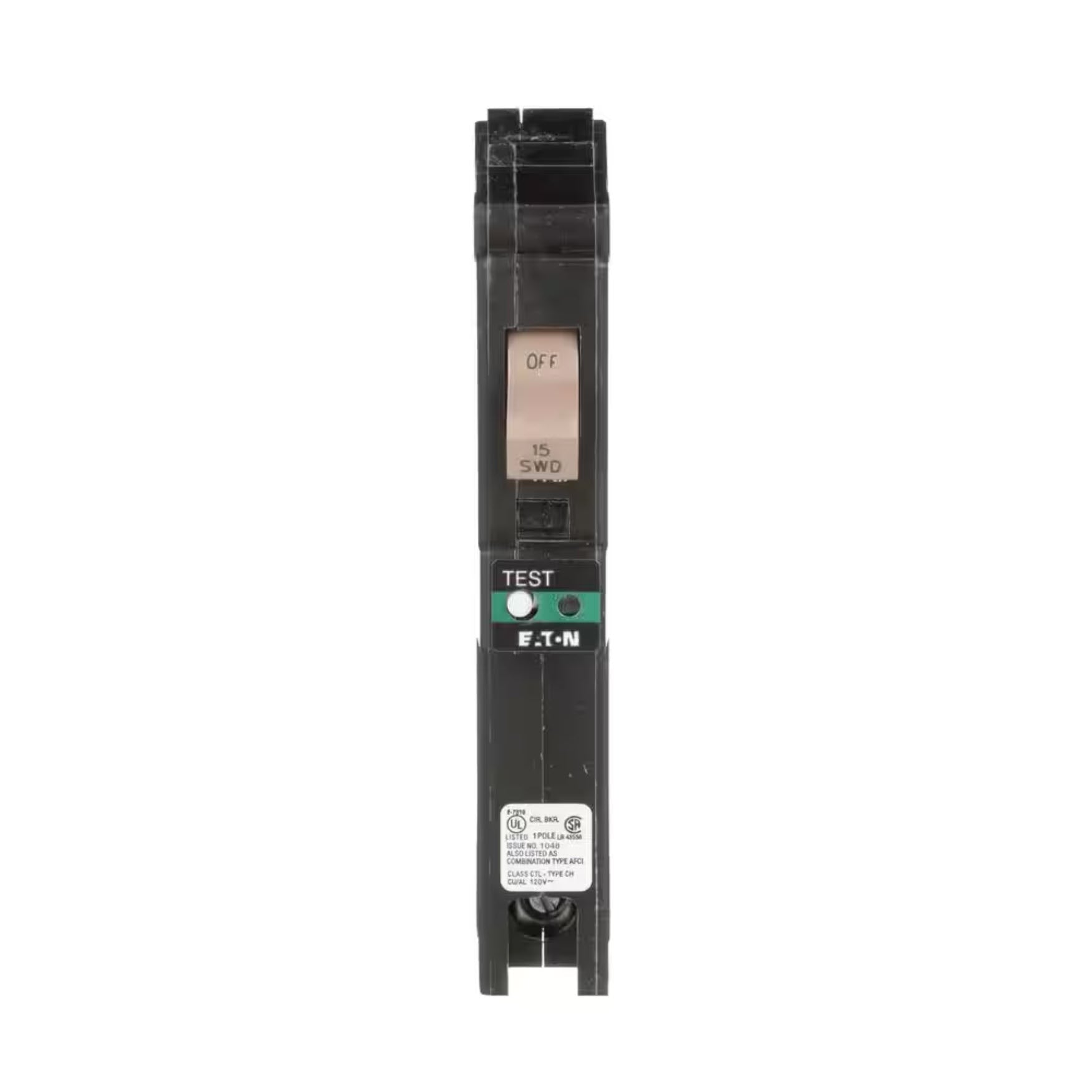

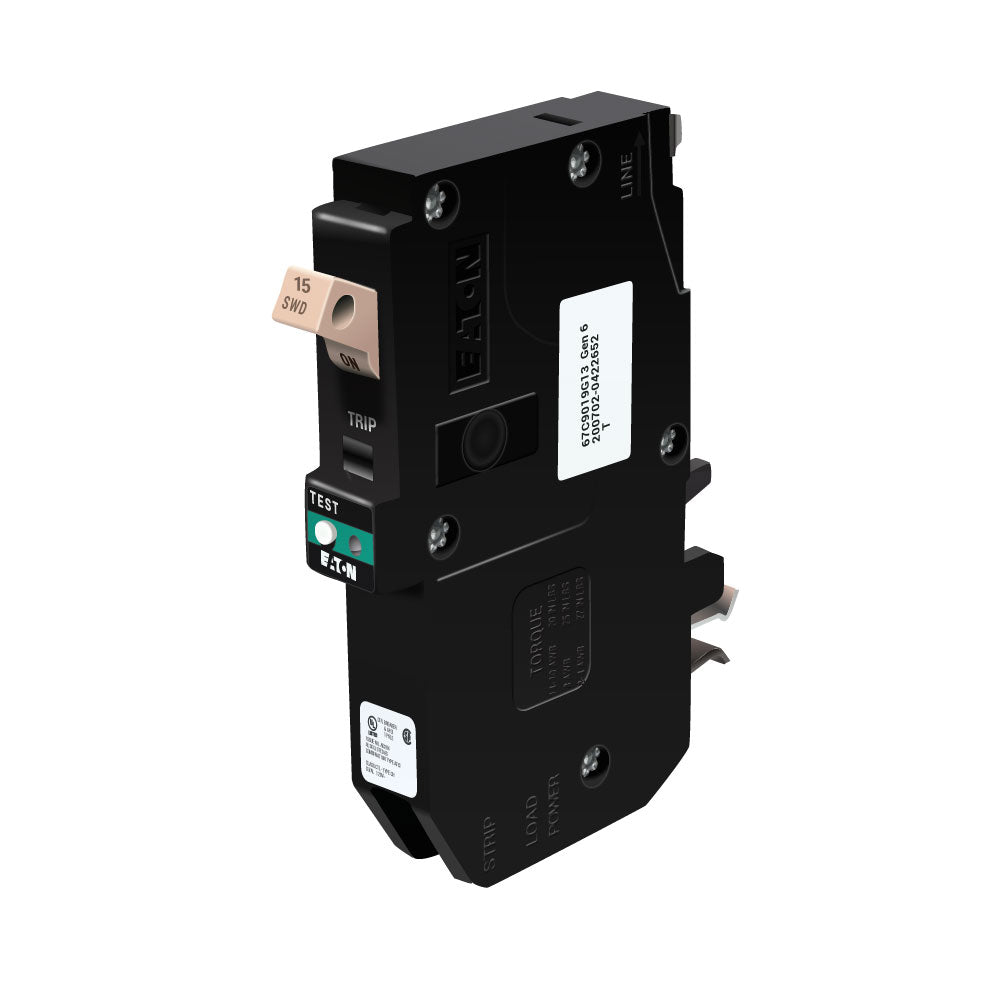

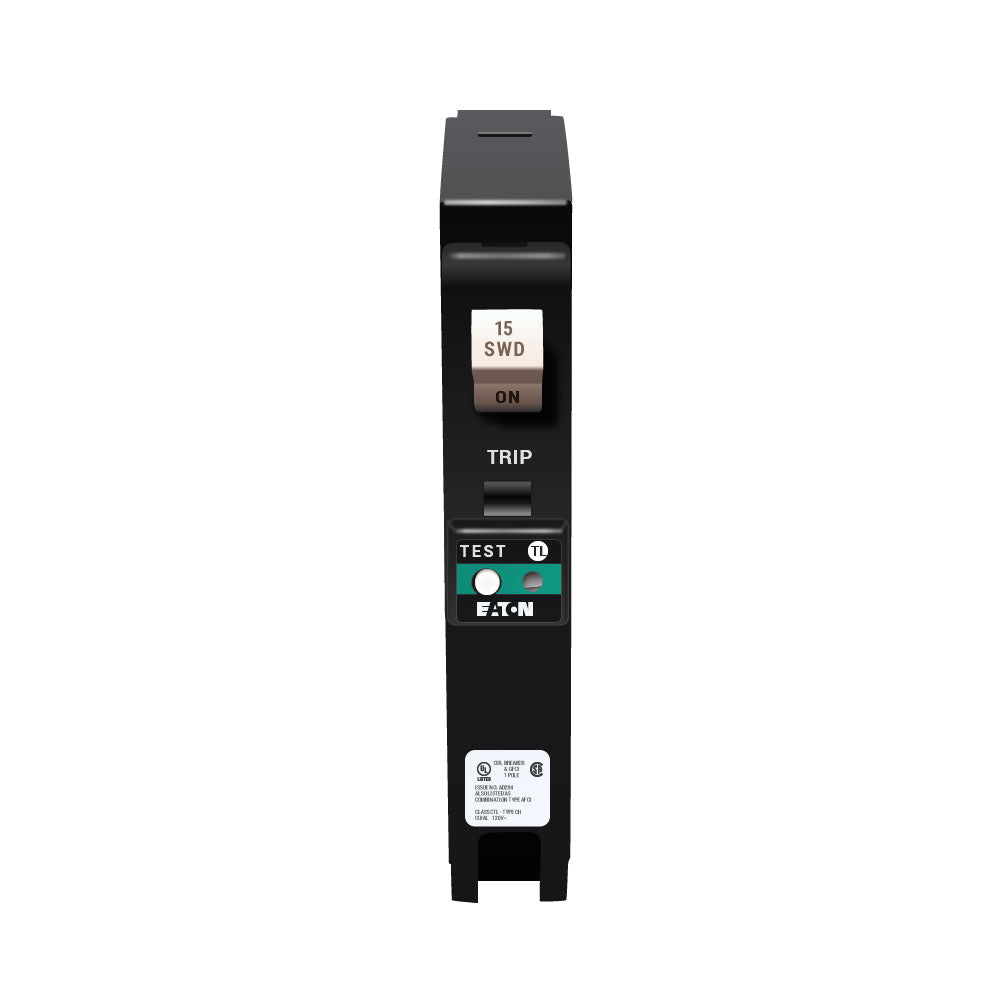

The Cutler Hammer CHFP115AF is a Molded Case Circuit Breaker from the CH Series family. It features a 1 pole, 120 Volt, 15 amp rating with a 10kA@120V AIC rating. This breaker uses a Plug-In connection and offers Thermal Magnetic protection. It is designed for use in Type CH Loadcenters and complies with UL 489 standards.
Key Features:
✔ Part Number: CHFP115AF
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: CH Series
✔ Type: CH
✔ Voltage: 120
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pigtail
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 6 AWG
✔ Breaker Type: CH
✔ Protection: Thermal Magnetic
✔ Trip Type: Arc Fault (AFCI)
✔ UPC: 786689058920
✔ GTIN: 00786689058920
✔ Country of Origin: Dominican Republic
✔ Dimensions: 6.1 in x 3.5 in x 1.2 in
✔ Weight: 0.45 lb
✔ Panel Type: Type CH Loadcenters
✔ Standards: UL 489, HACR Rated
✔ Certification: UL 489, HACR Rated
