Product Description:

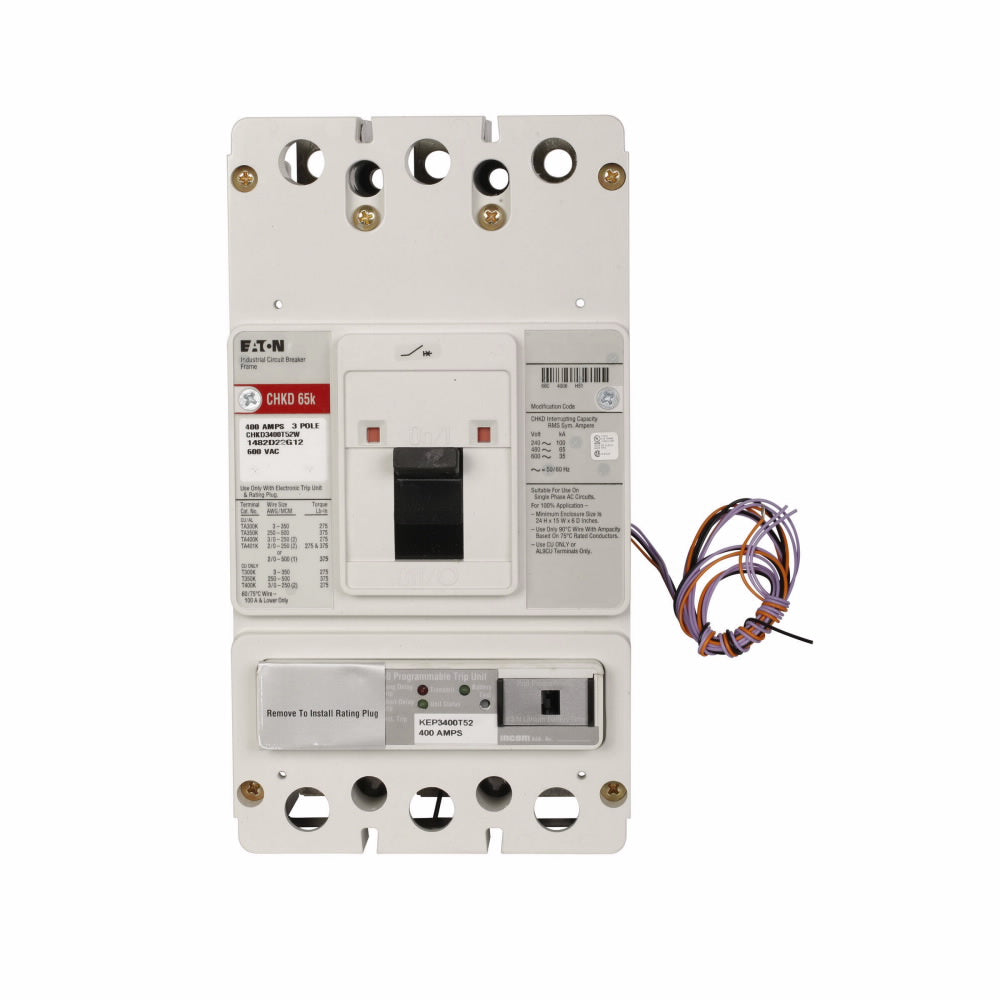

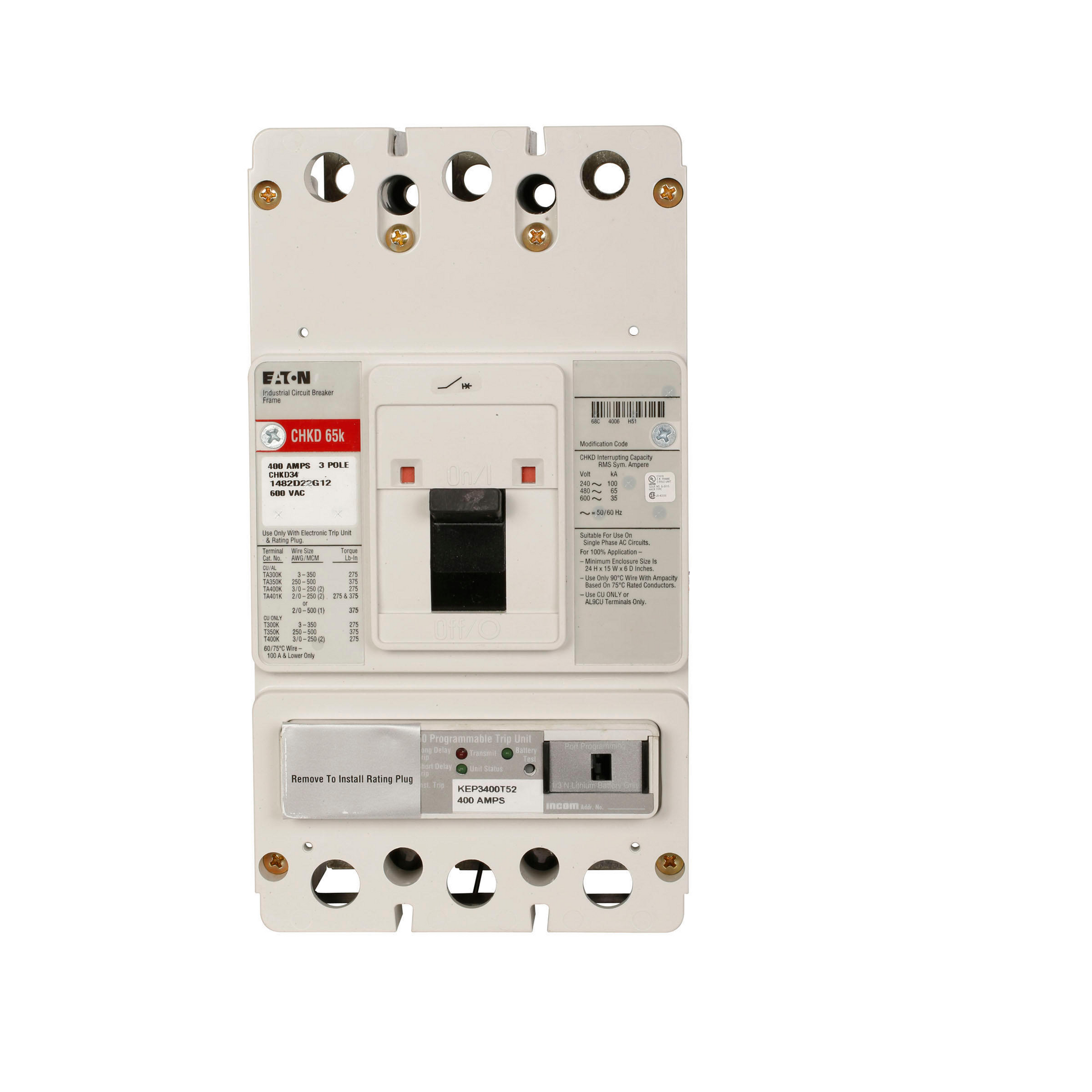

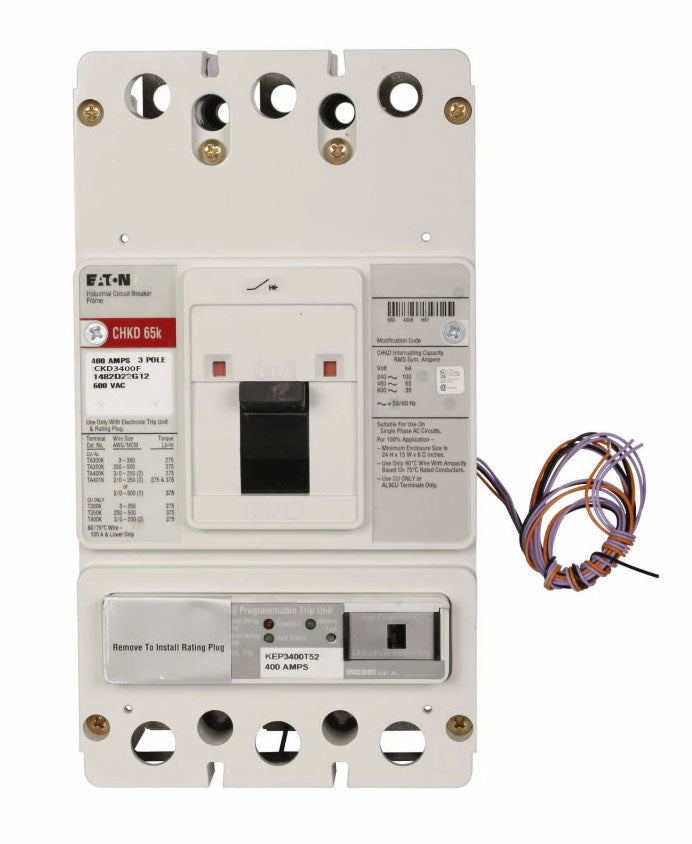

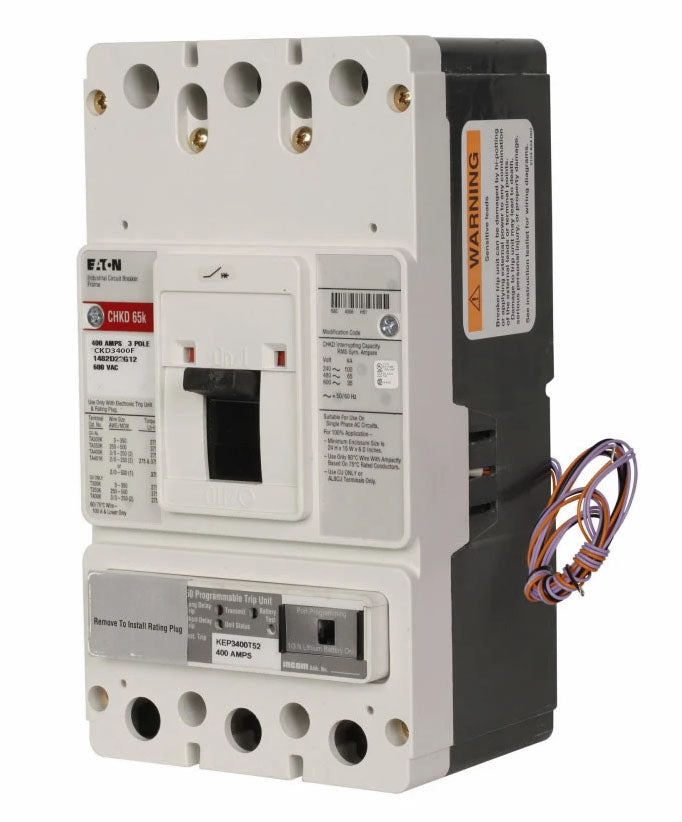

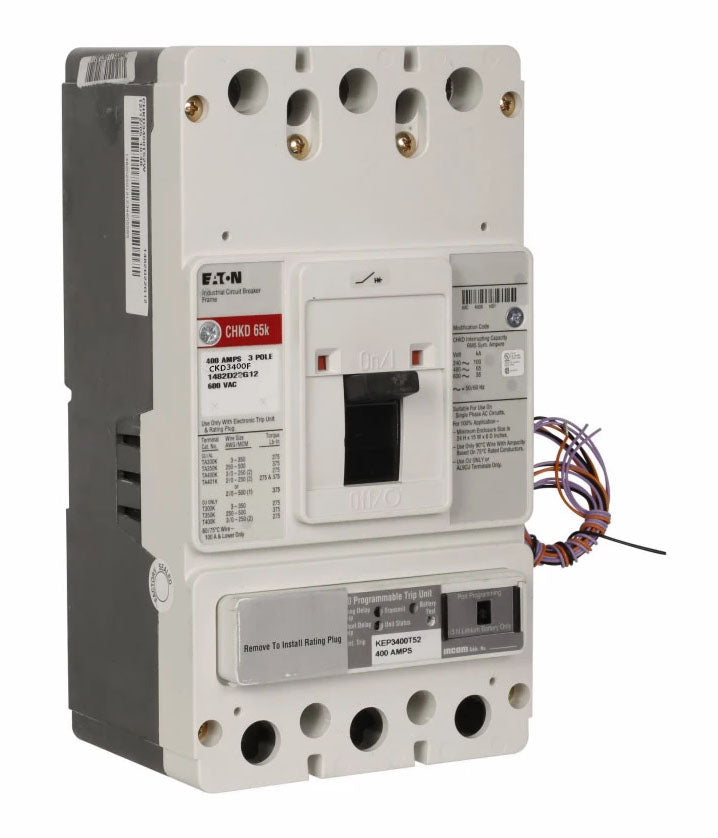

The Cutler Hammer CKD3400F is a Molded Case Circuit Breaker from the Series C family. It features a 3-pole design with a 600V, 400A rating and a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection. Frame only, trip unit and lugs not included.
Key Features:
✔ Part Number: CKD3400F
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: CKD
✔ Voltage: 600V
✔ Amperage: 400A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ Frame Size: K Frame
✔ Certification: UL Listed
✔ UPC: 786679346402
✔ GTIN: 00786679346402
✔ Country of Origin: Dominican Republic
✔ Weight: 9.9 lbs
