Product Description:

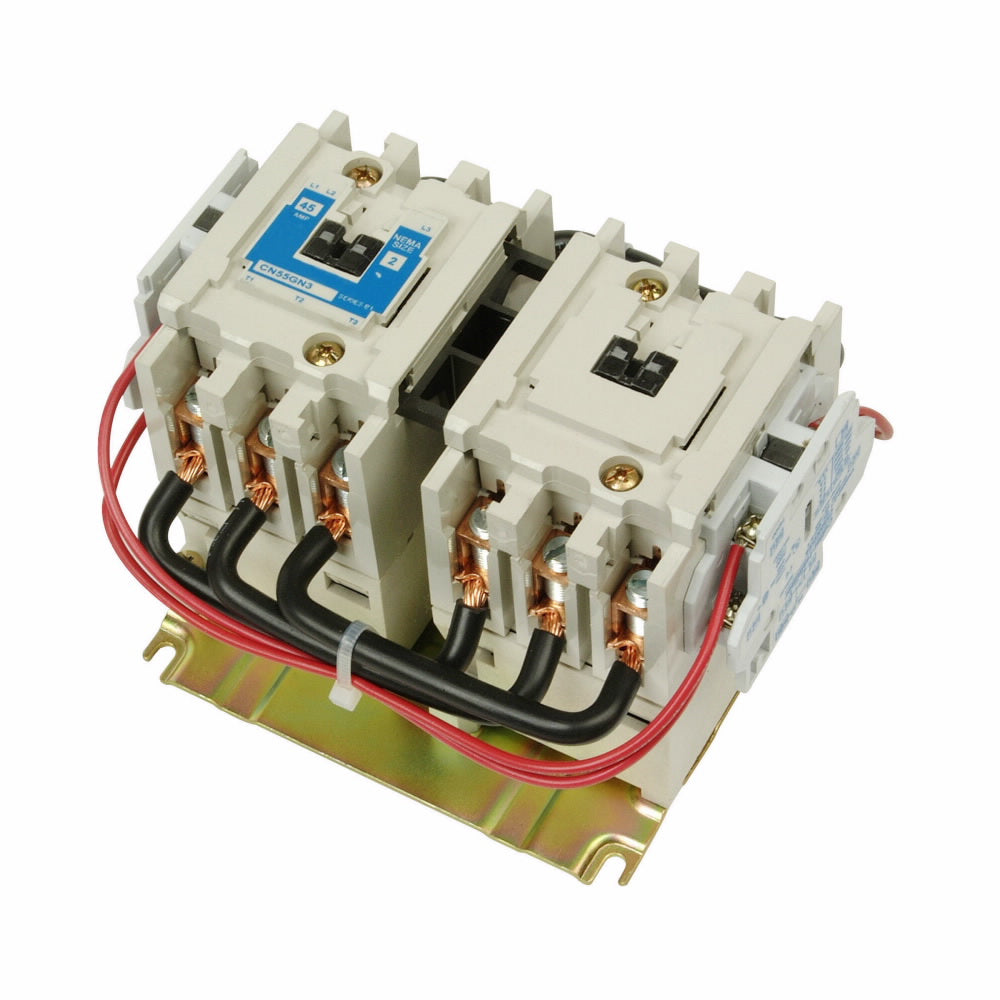

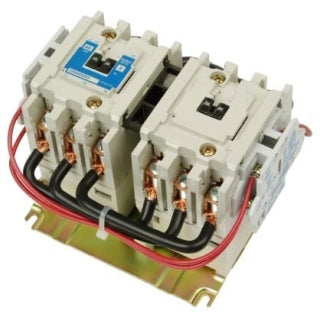

The Cutler Hammer CN55GN3AB Freedom Series Contactor is a 600V 3-phase 45A 3-pole starter with a 110V coil. It offers horsepower ratings of 10 hp at 208V, 15 hp at 240V, and 25 hp at 480V. This NEMA reversing contactor includes a 120 VAC coil and is ideal for motor control applications.
Key Features:
✔ Part Number: CN55GN3AB
✔ Manufacturer: Cutler Hammer
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Freedom Series
✔ Type: CN55GN
✔ Voltage: 600
✔ Amperage: 45
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
✔ Configuration: Reversing
✔ Aux Contacts: 1NO/1NC
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: 45 A
✔ Coil Voltage Minimum: 110
✔ Nema Starter Size: 2
✔ Frequency: 50 Hz
✔ UPC: 782113973586
✔ GTIN: 00782113973586
✔ Country of Origin: Dominican Republic
✔ Dimensions: 7.3 in x 6.5 in
✔ Weight: 12 lb
✔ Certification: CSA, UL Listed
