Product Description:

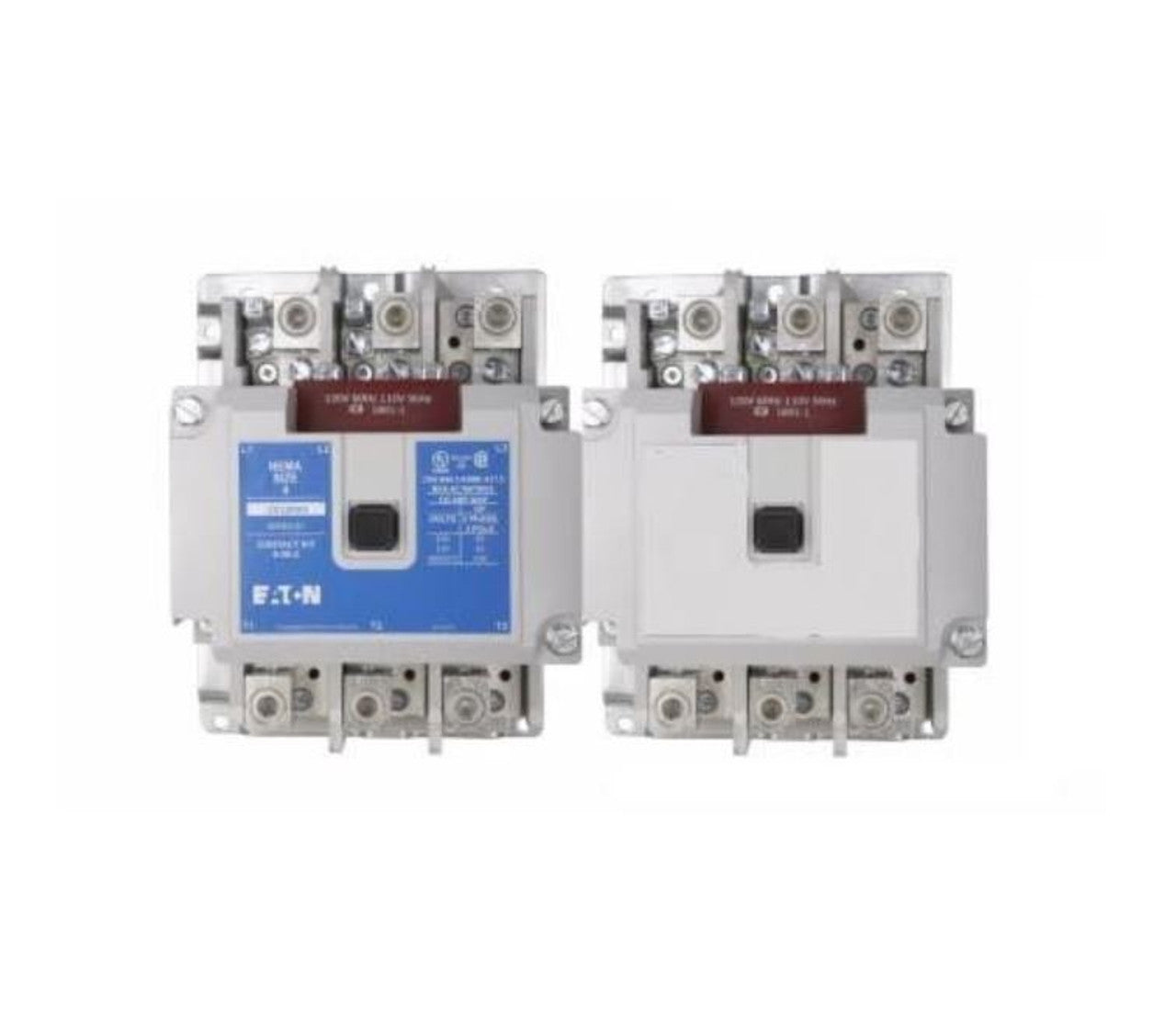

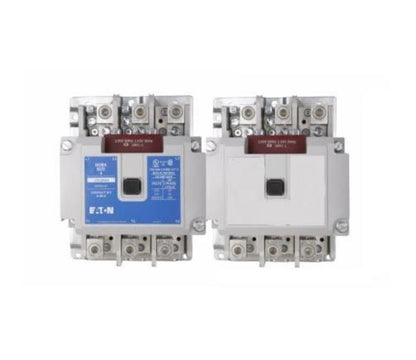

The Cutler Hammer CN55NN3A Freedom Series Contactor is a 600V 3-phase 135A 3-pole starter with a 110V coil. It offers horsepower ratings of 40 hp at 208V, 50 hp at 240V, and 100 hp at 480V. This NEMA reversing contactor includes 1NO/1NC auxiliary contacts and is ideal for motor control applications.
Key Features:
✔ Part Number: CN55NN3A
✔ Manufacturer: Cutler Hammer
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Freedom Series
✔ Type: CN55NN
✔ Voltage: 600
✔ Amperage: 135
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 40 hp HP @ 3 Phase - 240V 50 hp HP @ 3 Phase - 480V 100 hp
✔ Configuration: Reversing
✔ Aux Contacts: 1NO/1NC
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: 135 A
✔ Coil Voltage Minimum: 110
✔ Nema Starter Size: 4
✔ Frequency: 50 Hz
✔ UPC: 782113604145
✔ GTIN: 00782113604145
✔ Country of Origin: Dominican Republic
✔ Dimensions: 17.1 in x 15.63 in
✔ Weight: 60 lb
✔ Certification: CSA, UL Listed
