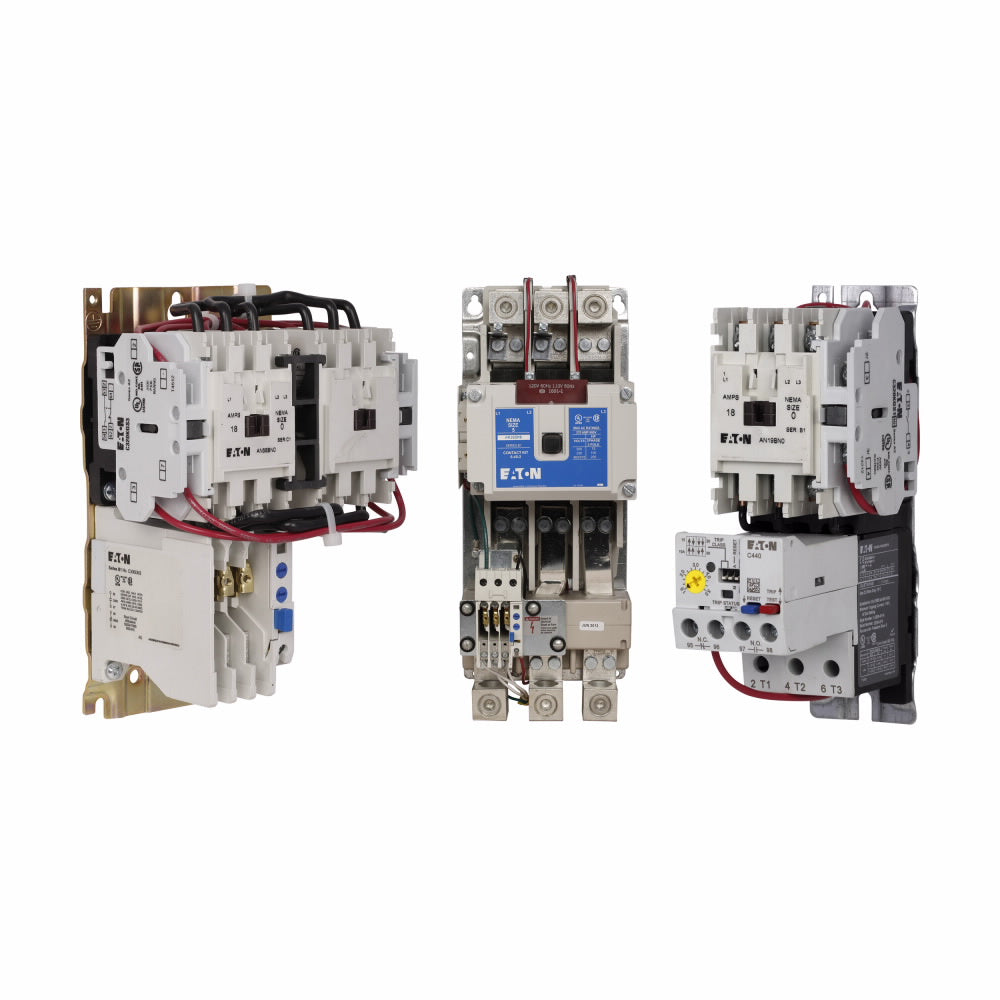

Cutler Hammer CN55SN3A Contactor | 3P 3P 600V 270A 110V Coil Freedom Series

Product Description:
The Cutler Hammer CN55SN3A is a Freedom Series 3-phase reversing contactor designed for heavy-duty motor control applications. It operates at 600V with a 270A full load current and is rated for up to 200 hp at 480V. This NEMA Size 5 starter includes a 110V coil and comes with 1 normally open and 1 normally closed auxiliary contact.

Key Features:
✔ Part Number: CN55SN3A
✔ Manufacturer: Cutler Hammer
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Freedom Series
✔ Type: CN55SN
✔ Voltage: 600
✔ Amperage: 270
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 75 hp HP @ 3 Phase - 240V 100 hp HP @ 3 Phase - 480V 200 hp
✔ Configuration: Reversing
✔ Aux Contacts: 1NO/1NC
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: 270 A
✔ Coil Voltage Minimum: 110
✔ Nema Starter Size: 5
✔ Frequency: 50 Hz
✔ UPC: 782113604183
✔ GTIN: 00782113604183
✔ Country of Origin: Dominican Republic
✔ Dimensions: 17.7 in x 10.5 in
✔ Weight: 75
✔ Certification: CSA, UL Listed
