CPR154 Crouse-Hinds Arktite 20A Delayed Action Cord Receptacle, 2W 3P, 125-250V, for CPP512 and CPP516 Plugs

CPR154 Crouse-Hinds Arktite 20A Delayed Action Cord Receptacle, 2W 3P, 125-250V, for CPP512 and CPP516 Plugs

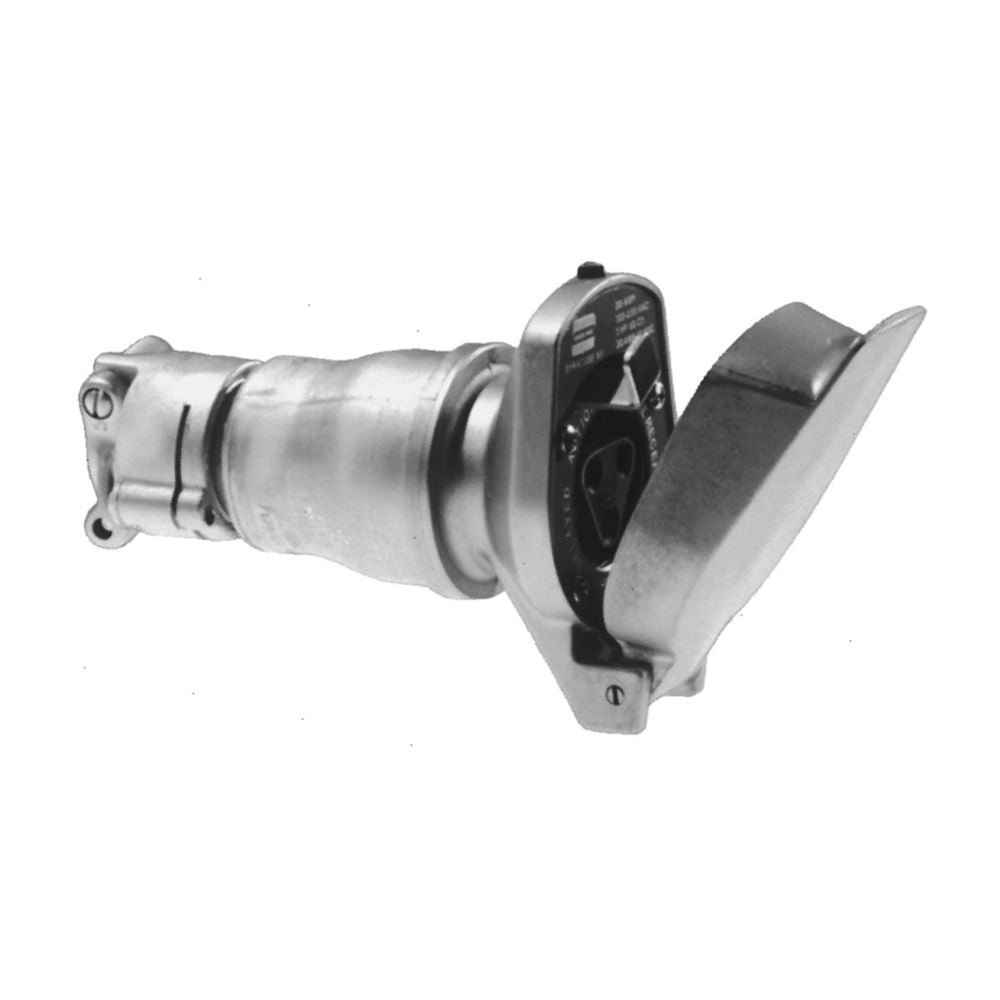

Building an adapter set or an extension cord for gear that already has an Arktite CPP plug on it? The Crouse-Hinds CPR154 goes on the end of your cable and takes CPP516 and CPP512 series plugs. You wire it with pressure terminals, then lock the cable down with the gland nut, mechanical cable grip, and bushing for effective strain relief.

It is a 2-wire, 3-pole Style 2 unit, so ground runs through the extra pole and the shell. Ratings are 20A, 1 HP at 125-250 VAC 60 Hz, plus 20A at 18 VDC. One thing to keep straight on the job: Eaton rates CPR receptacles for non-hazardous areas only, so this is not a classified-location device.

Common Applications

• Adapter sets that let CPP-plugged portable equipment connect to receptacles in non-hazardous areas
• Extension cords with the CPR154 at one end and a CPP plug at the other
• Cord-end connections for CPP516 and CPP512 series plugs

Key Features

• Delayed action spring door: Uses the same delayed action rotating mechanism found in Arktite CPS receptacles.
• Easy terminations: Pressure terminals come furnished for quick wiring.
• Cable grip: Gland nut, mechanical grip, and bushing hold the cord.
• Grounded two ways: Style 2 grounding through the extra pole and shell.
• Housing and contacts: Copper-free aluminum body with brass contacts.

Specifications

• Catalog Number: CPR154
• Manufacturer: Eaton Crouse-Hinds
• Series: Arktite CPR
• Type: Delayed action circuit breaking cable connector receptacle
• Configuration: 2-wire, 3-pole
• AC Rating: 20A, 1 HP, 125-250 VAC, 60 Hz
• DC Rating: 20A, 18 VDC
• Grounding: Style 2, through extra pole and shell
• Cable Diameter Range: .375 to .625 (Eaton ordering table)
• Housing Material: Copper-free aluminum, natural finish
• Insulation: Fiberglass-reinforced polyester, natural (red)
• Contacts: Brass
• Mating Plugs: CPP516 and CPP512 series
• Area Use: Non-hazardous areas only

Product Identification

• UPC: 782274177700

FAQ

What plugs go into the CPR154?
CPP516 and CPP512 series plugs, per Eaton.

Can I install the CPR154 in a classified area?
No. CPR receptacles are rated by Eaton for non-hazardous areas only.

How does the CPR154 terminate and hold the cable?
Conductors land on pressure terminals, and the gland nut with mechanical cable grip and bushing provides the strain relief.

What are the CPR154 ratings?
You get 20A, 1 HP at 125-250 VAC 60 Hz, and 20A at 18 VDC.

Where does the ground go on the CPR154?
It is Style 2, so it grounds through the extra pole and the shell.
