Product Description:

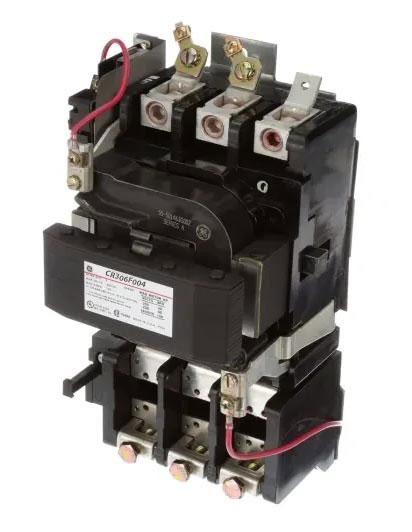

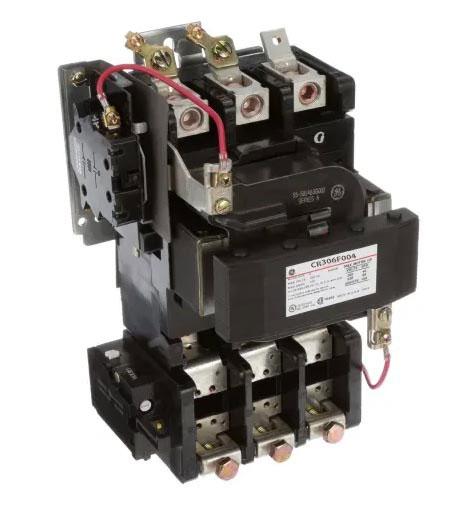

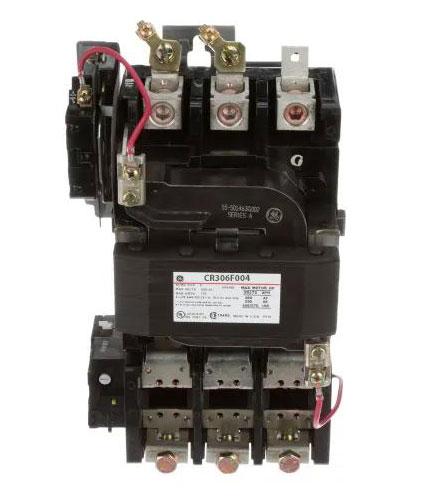

The General Electric CR306F004 300-Line Motor Starter is a 600V 3-phase starter with a 135A rating and 3 poles. It supports horsepower ratings of 40 hp at 208V, 50 hp at 240V, and 100 hp at 480V. This starter includes a 460V coil, though heater packs must be purchased separately.
Key Features:
✔ Part Number: CR306F004
✔ Manufacturer: General Electric
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: 300-Line
✔ Type: CR306
✔ Voltage: 600
✔ Amperage: 135
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 40 hp HP @ 3 Phase - 240V 50 hp HP @ 3 Phase - 480V 100 hp
✔ Coil Voltage Maximum: 480
✔ Coil Voltage Minimum: 460
✔ Nema Rating: 4
✔ Nema Starter Size: 4
✔ UPC: 783166361979
✔ GTIN: 00783166361979
✔ Country of Origin: United States
✔ Dimensions: 6.62 in x 11.62 in
✔ Weight: 28
✔ Certification: CSA, UL Listed
