Product Description:

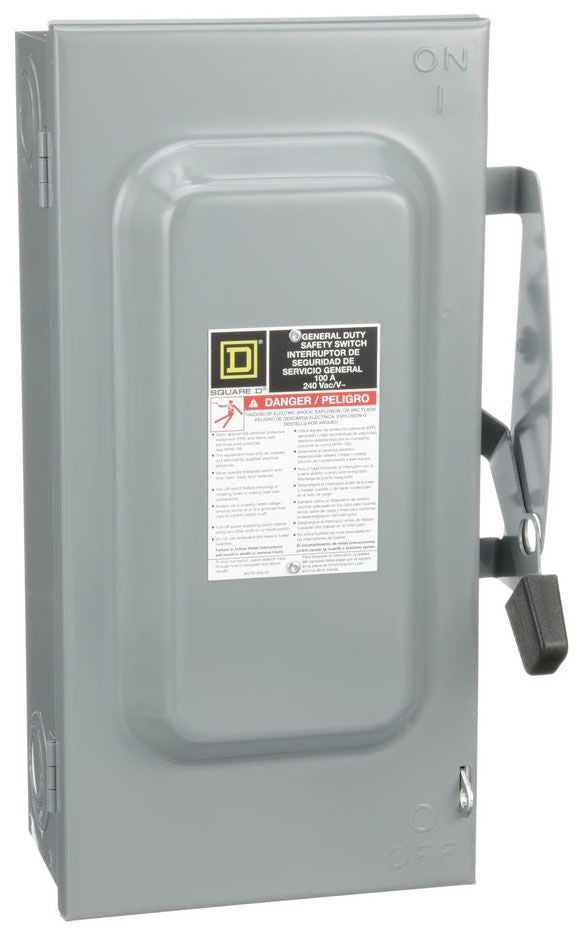

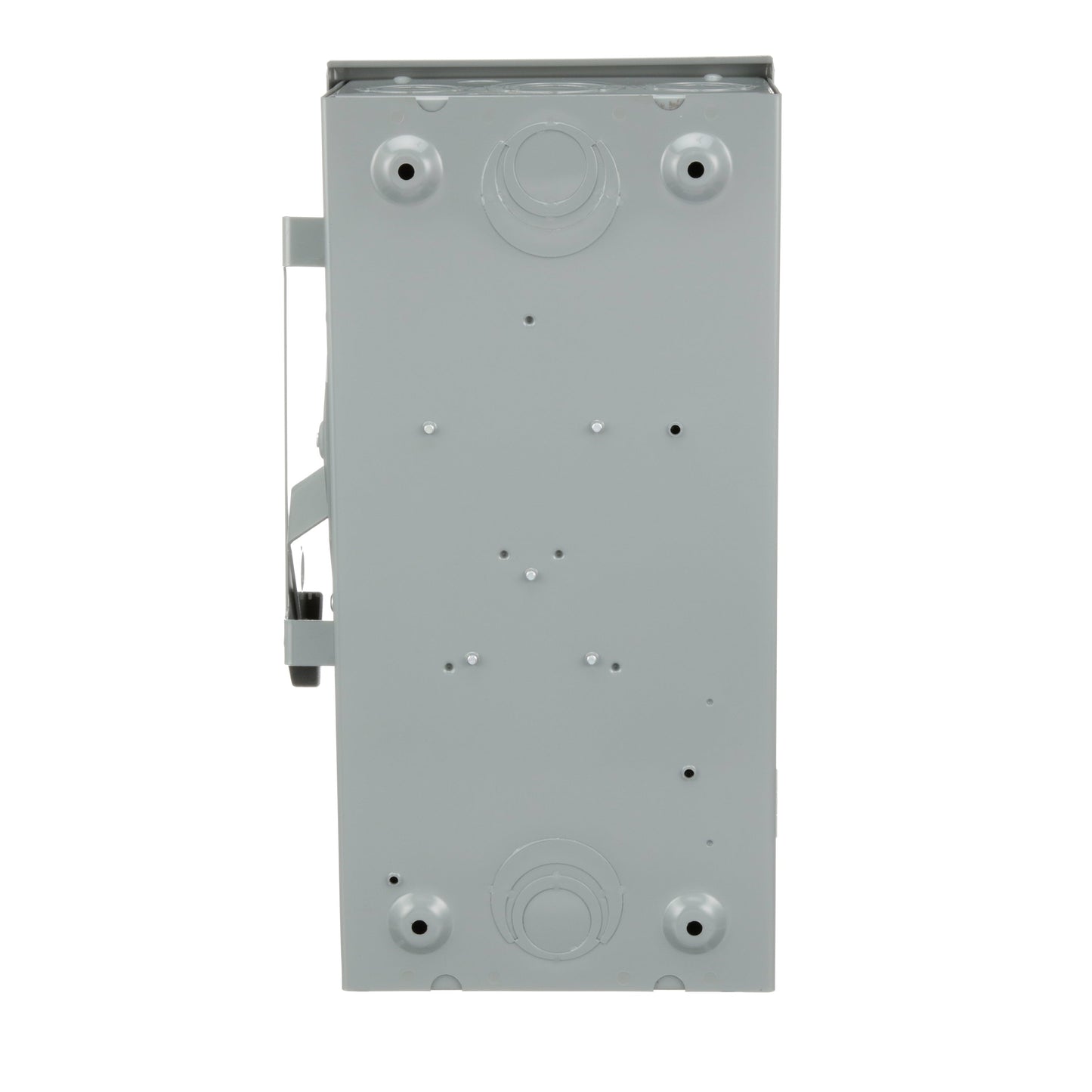

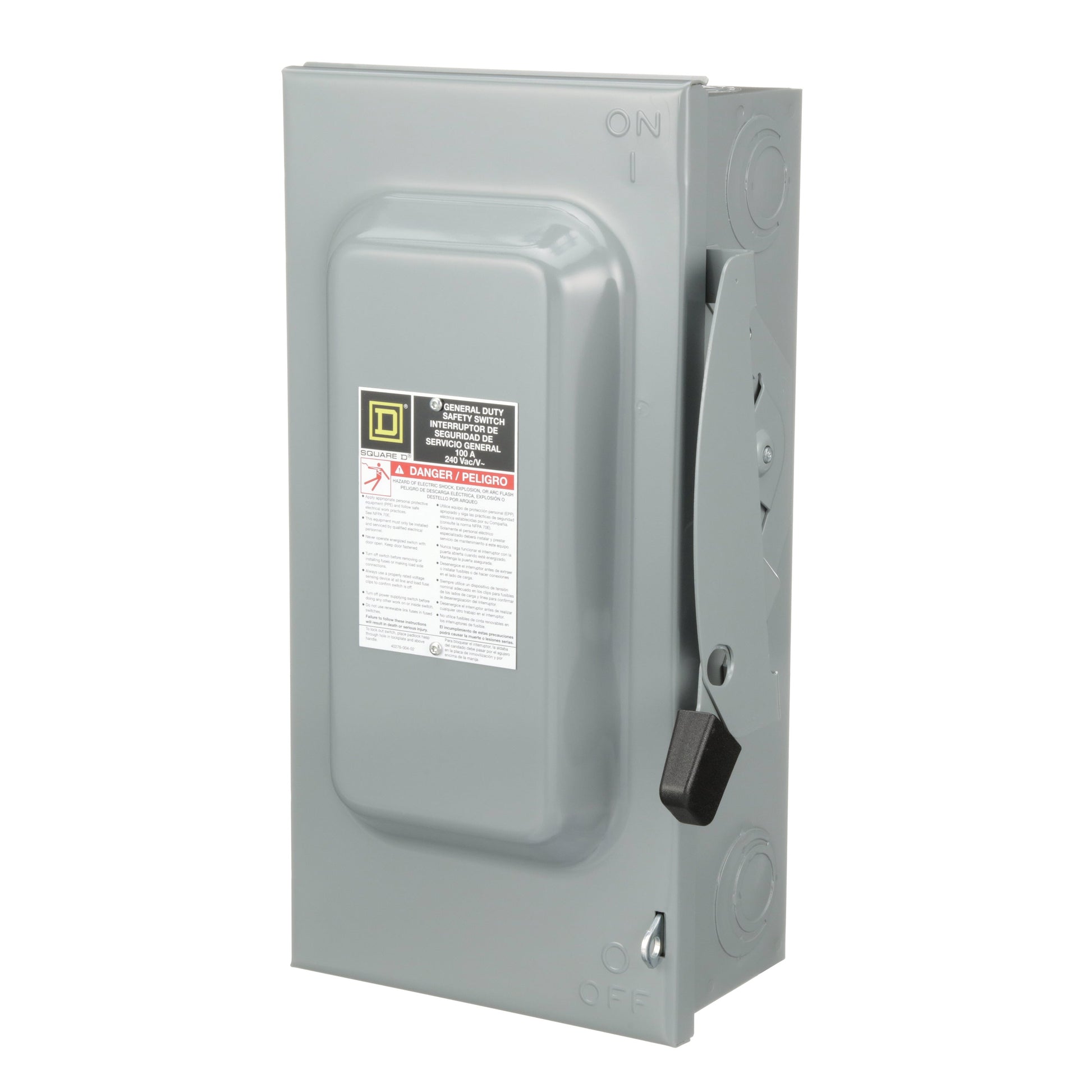

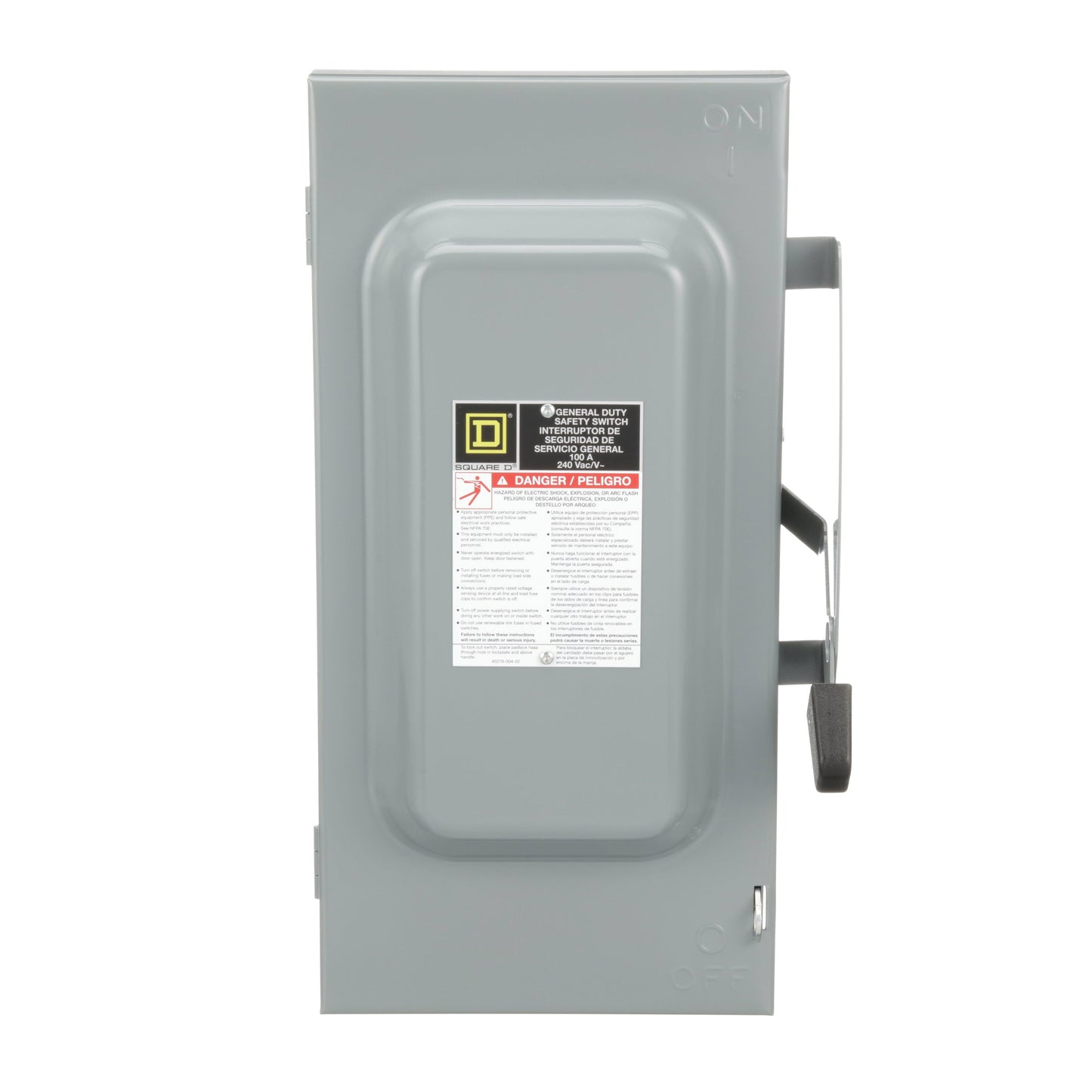

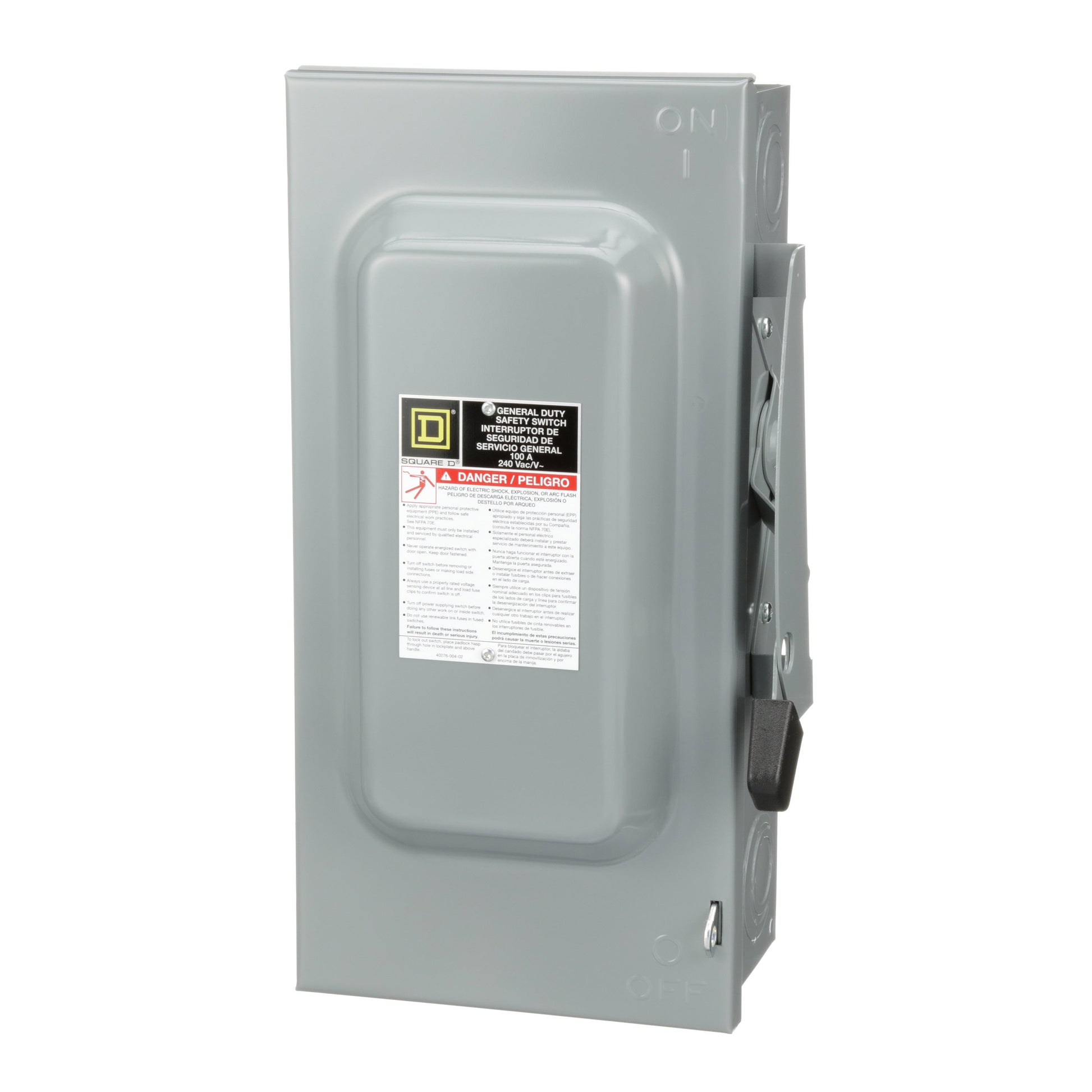

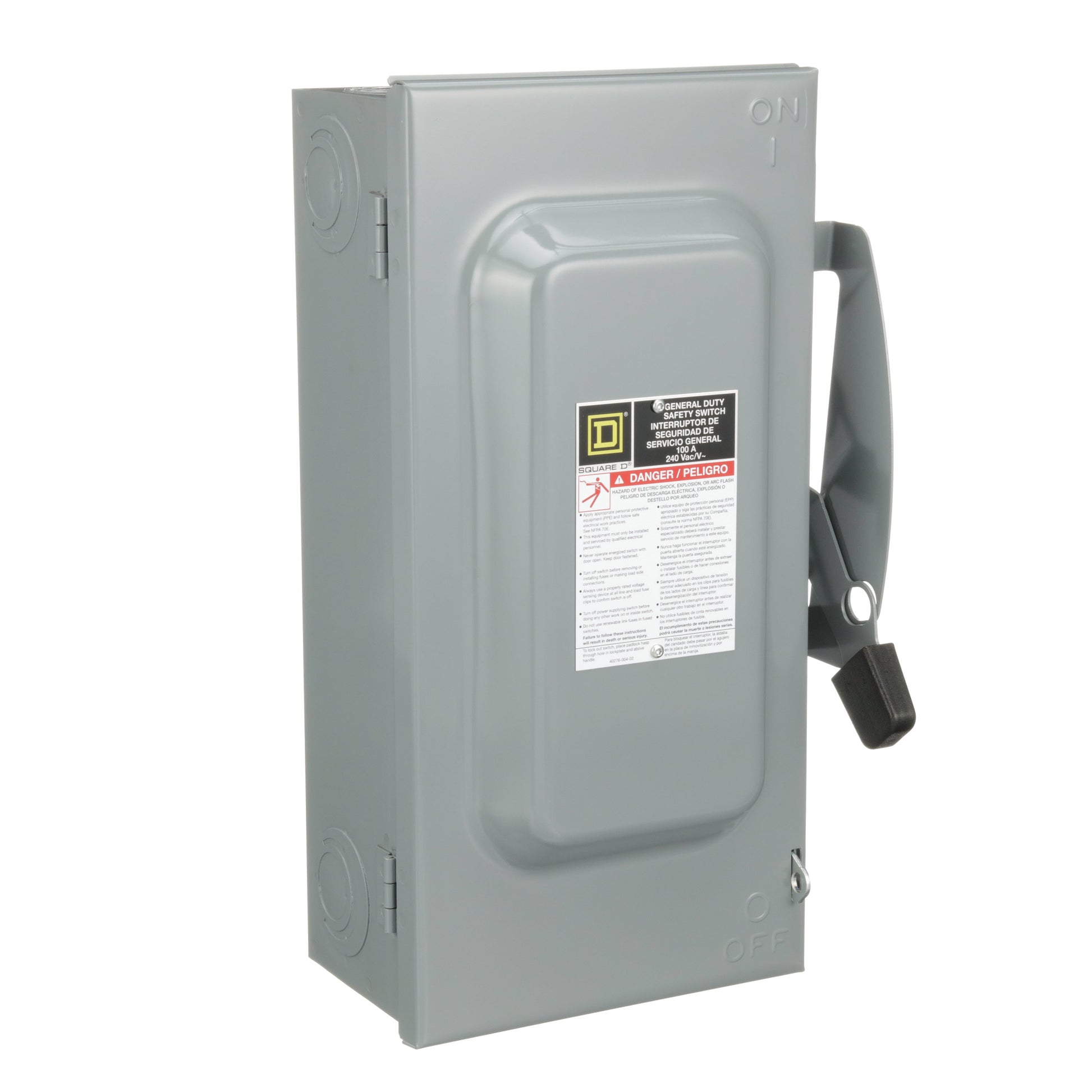

The Square D D223N is a 1-phase, 2-pole disconnect switch rated for 240V AC and 100A. It features a NEMA 1 enclosure rating and a high AIC rating of 100kA@240V for reliable circuit protection. This fusible switch is part of the Series F family and is designed for single-switch configurations.
Key Features:
✔ Part Number: D223N
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series F
✔ Type: D
✔ Voltage: 240V AC
✔ Amperage: 100
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 100kA@240V
✔ Fuse Class: R
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: NEMA 1
✔ Compatible Frames: RLF
✔ UPC: 785901460688
✔ GTIN: 00785901460688
✔ Country of Origin: United States
✔ Dimensions: 10.56 in x 6.5 in x 17.5 in (WxDxH)
✔ Weight: 6.74
✔ Certification: UL listed
