Product Description:

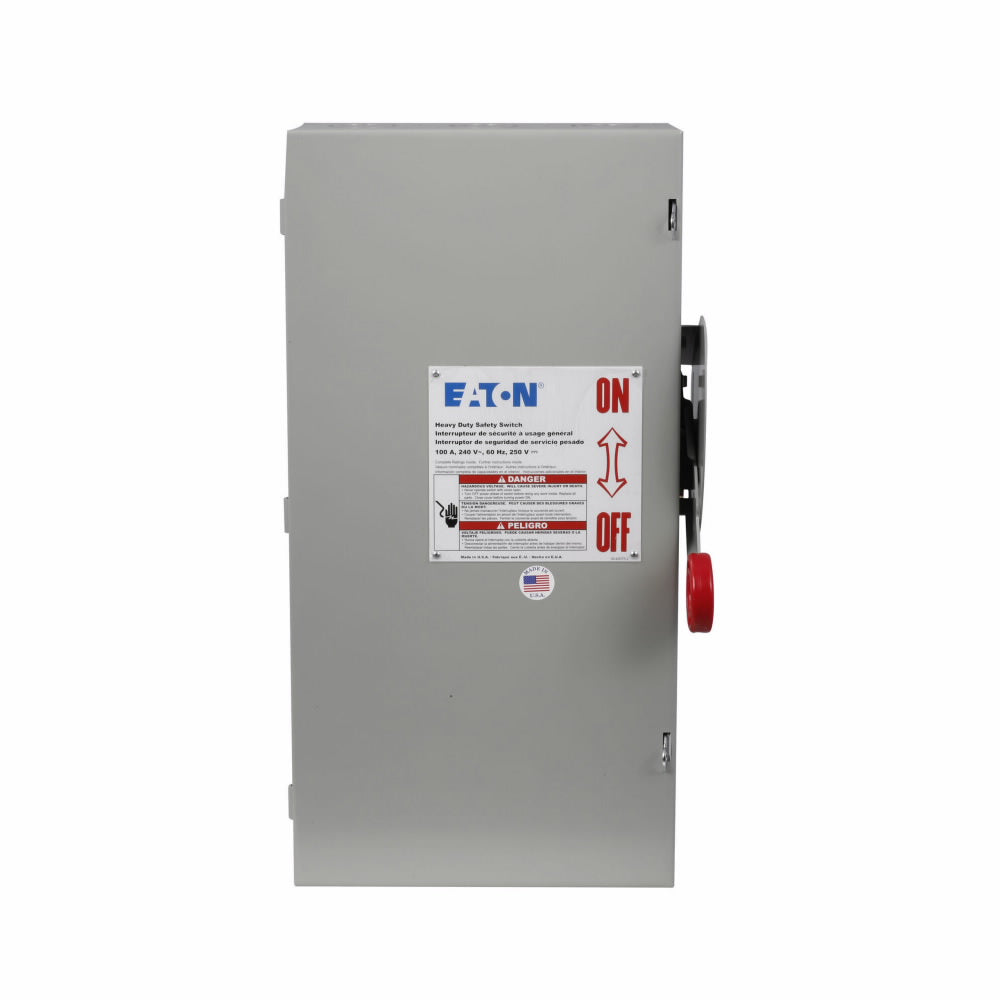

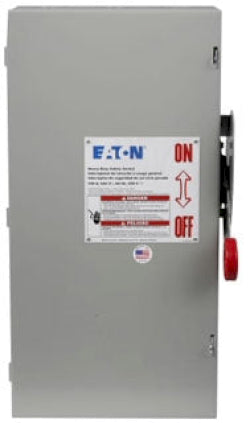

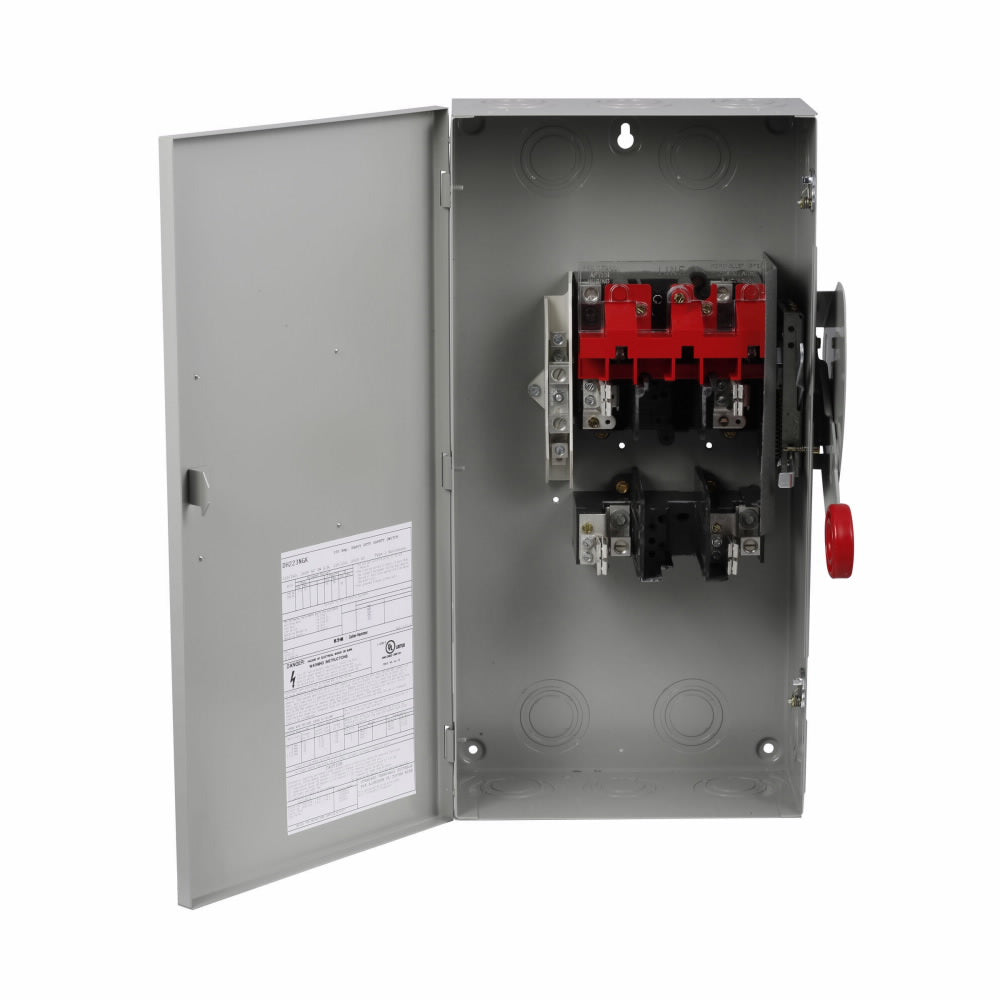

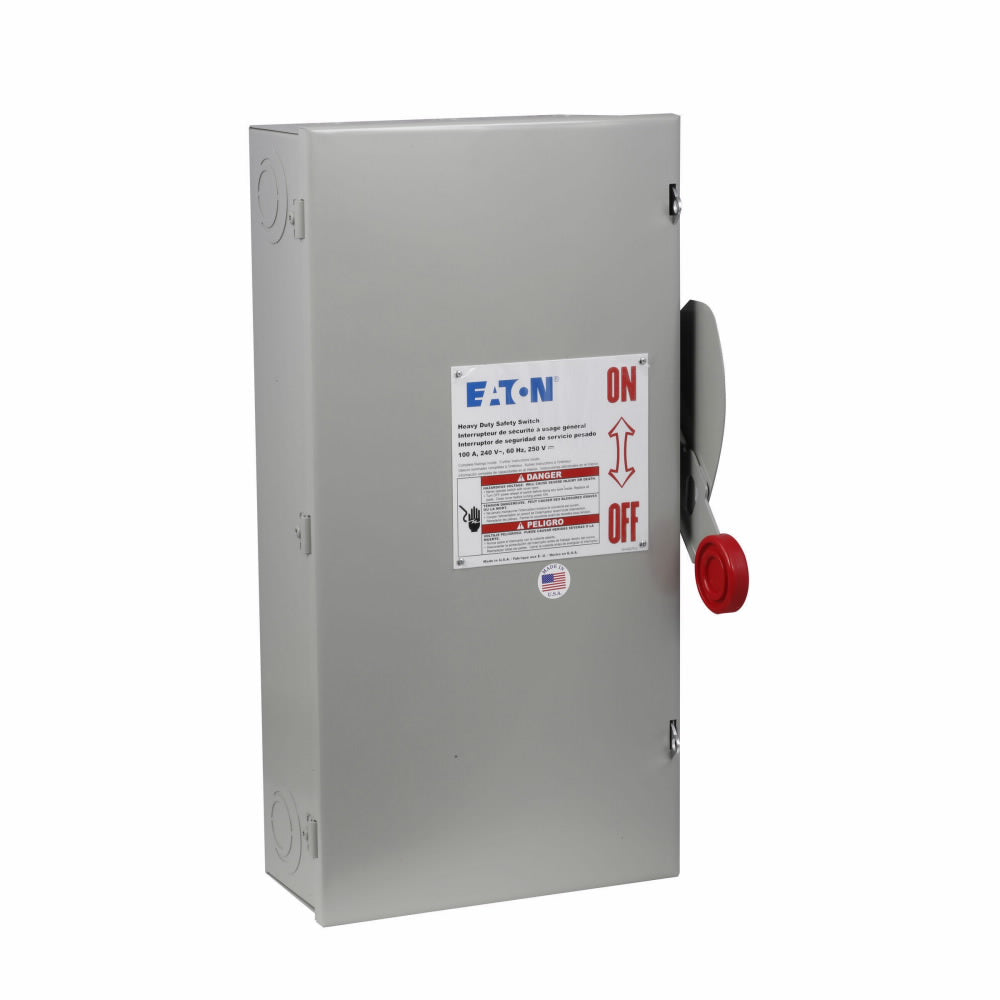

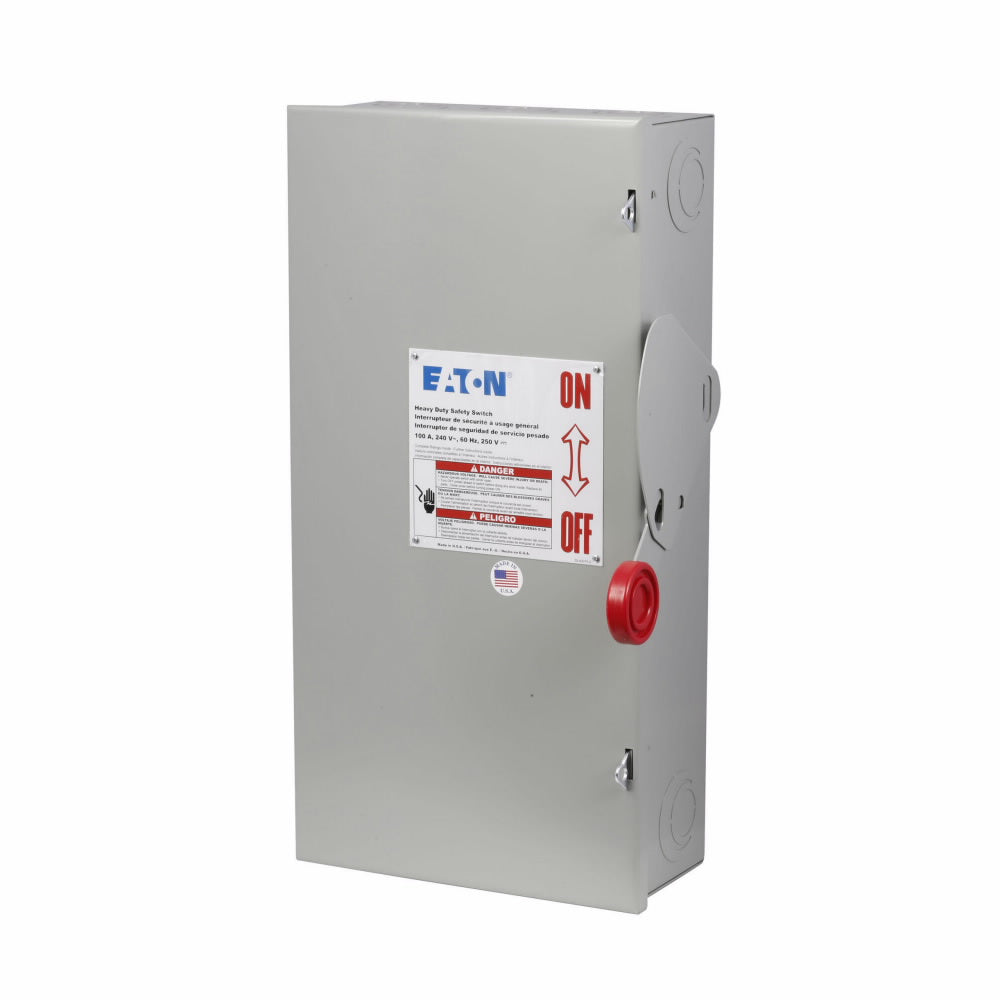

The Cutler Hammer DH223NGK is a 1-phase, 2-pole disconnect switch rated for 240V and 100A. It features a NEMA 1 rating and a high AIC rating of 100kA@240V, making it suitable for robust electrical applications. This fusible switch is part of the DH Series and is designed for single-switch configurations.
Key Features:
✔ Part Number: DH223NGK
✔ Manufacturer: Cutler Hammer
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: DH Series
✔ Type: DH
✔ Voltage: 240
✔ Amperage: 100
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 100kA@240V
✔ Fuse Class: R
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: NEMA 1
✔ Compatible Frames: SGHA
✔ UPC: 782113206226
✔ GTIN: 00783164087079
✔ Country of Origin: United States
✔ Dimensions: 12.75 in x 22.5 in x 9 in (WxDxH)
✔ Weight: 18
✔ Certification: UL Listed, NEC 230.62 (C) Compliant Barrier
