Product Description:

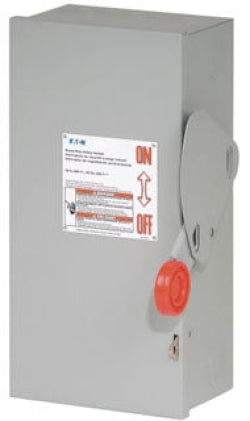

The Cutler Hammer DH261UGK is a 1-phase, 2-pole disconnect switch rated for 600V and 30A. It features a NEMA 1 enclosure and a high AIC rating of 200kA@600V. This non-fusible switch is designed for single-switch configurations and is UL listed for safety.
Key Features:
✔ Part Number: DH261UGK
✔ Manufacturer: Cutler Hammer
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: DH Series
✔ Type: DH
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 200kA@600V
✔ Configuration: Single
✔ Switch Style: Non-Fusible
✔ Nema Rating: NEMA 1
✔ Compatible Frames: TED
✔ UPC: 782113205472
✔ GTIN: 00785901029373
✔ Country of Origin: United States
✔ Dimensions: 8.81 in x 9.89 in x 15.81 in (WxDxH)
✔ Weight: 17
✔ Certification: UL Listed, NEC 230.62 (C) Compliant Barrier
