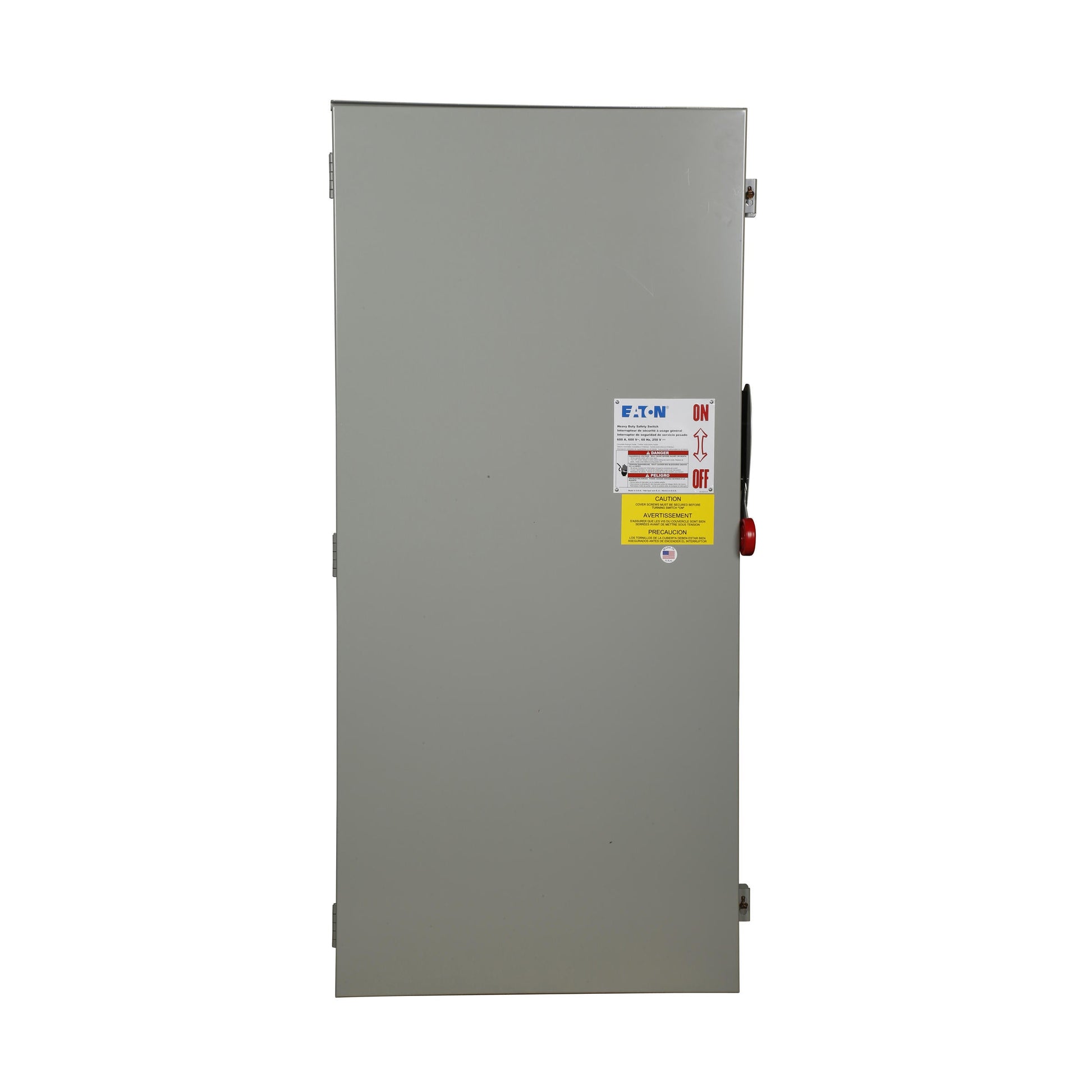

Eaton DH366NRK Disconnect Switch | 600V 600A 3P Fusible DH Series

Product Description:
The DH366NRK is a heavy-duty fusible disconnect switch with a visible double-break rotary blade mechanism for reliable operation. Its clear line shield and probe holes allow for safe testing without removing the shield, while the interlocking mechanism ensures safety by preventing door access when the handle is in the on position. Designed for industrial use, it features triple padlocking capability and a NEMA 3R rating for durability in harsh environments.

Key Features:
✔ Part Number: DH366NRK
✔ Manufacturer: Eaton
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: DH Series
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@600V
✔ Fuse Class: R
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: NEMA 3R
✔ UPC: 782113207605
✔ GTIN: 00782113207605
✔ Country of Origin: United States
✔ Dimensions: 27.5 in x 58 in x 12 in (WxDxH)
✔ Weight: 145 lb
✔ Certification: UL Listed, NEC 230.62 (C) Compliant Barrier
