Cutler Hammer DH367NGK Disconnect | 600V 800A 3P Fusible Switch

Product Description:

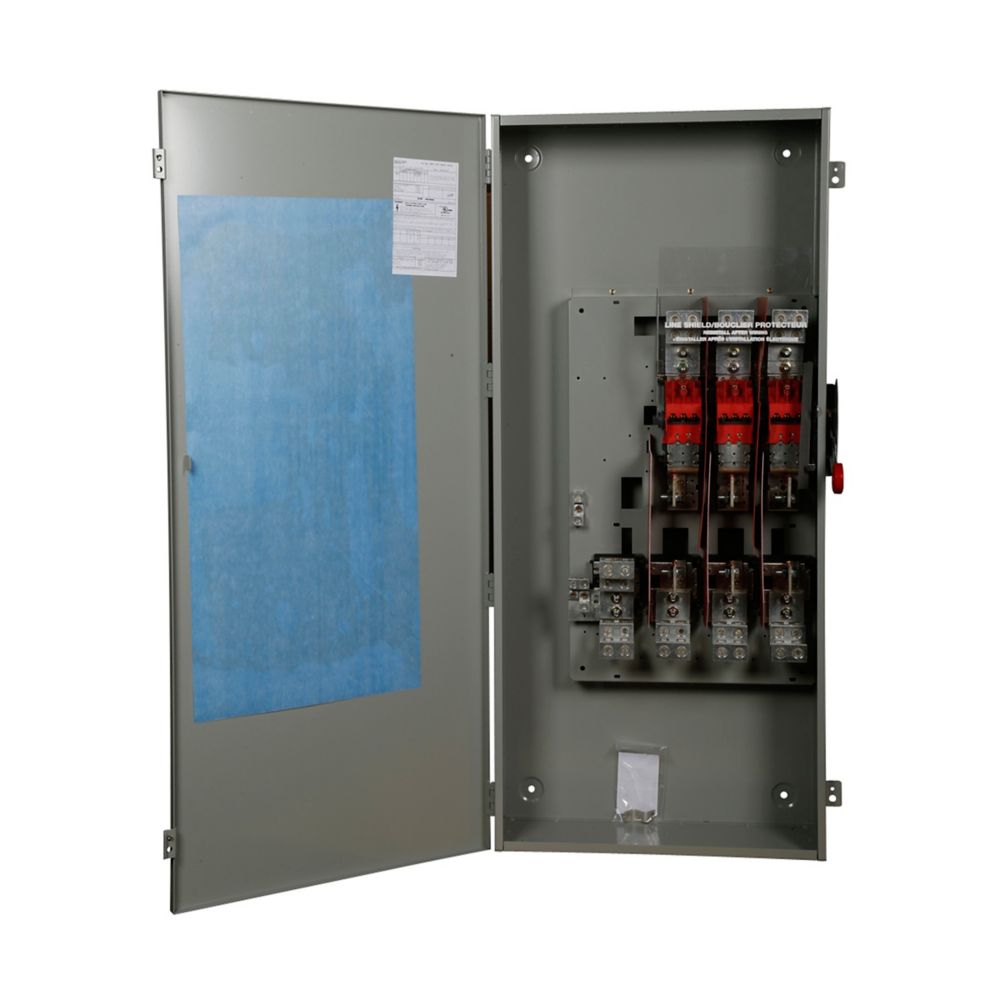

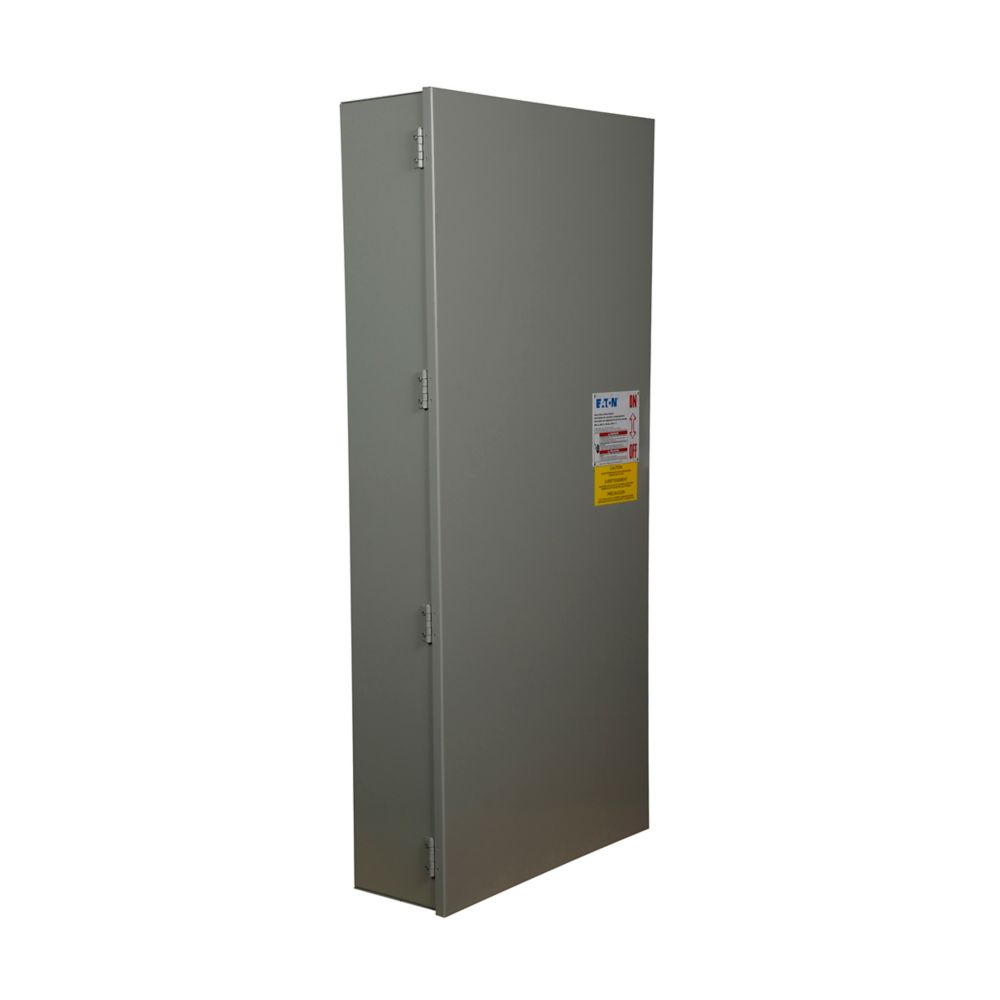

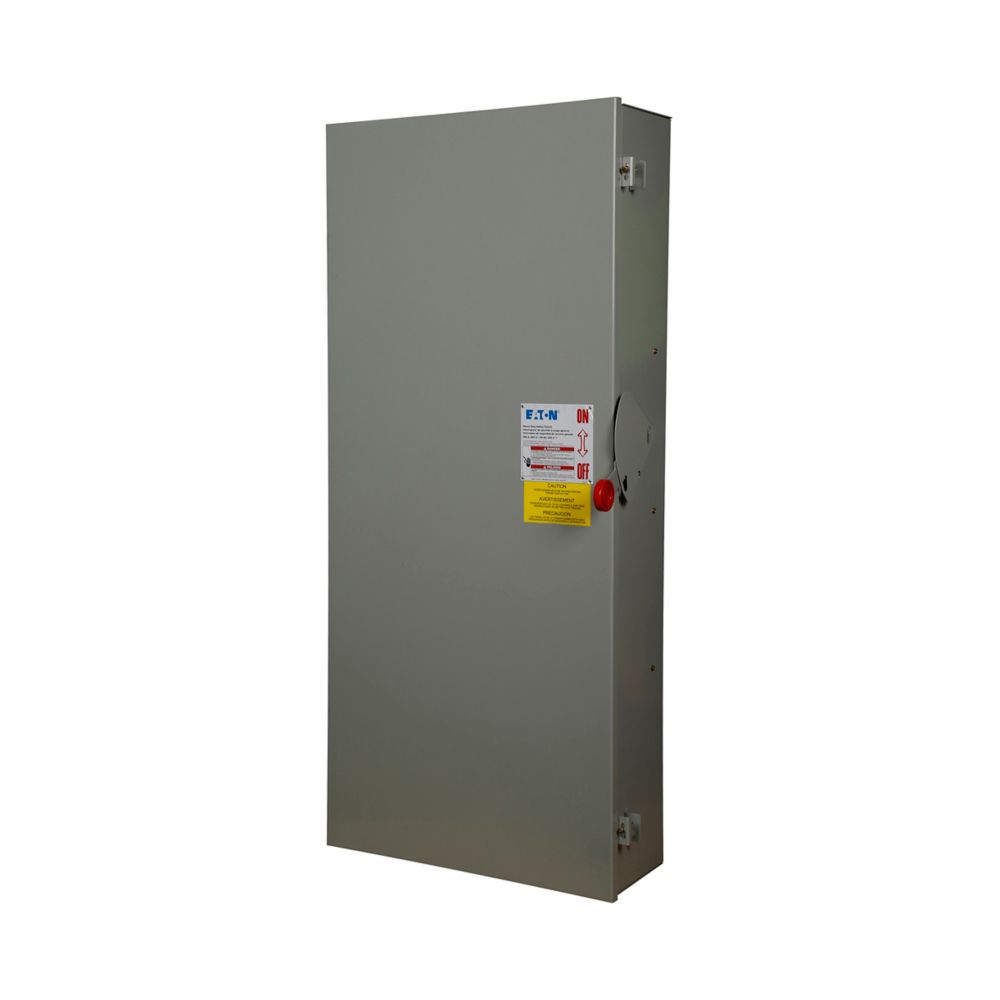

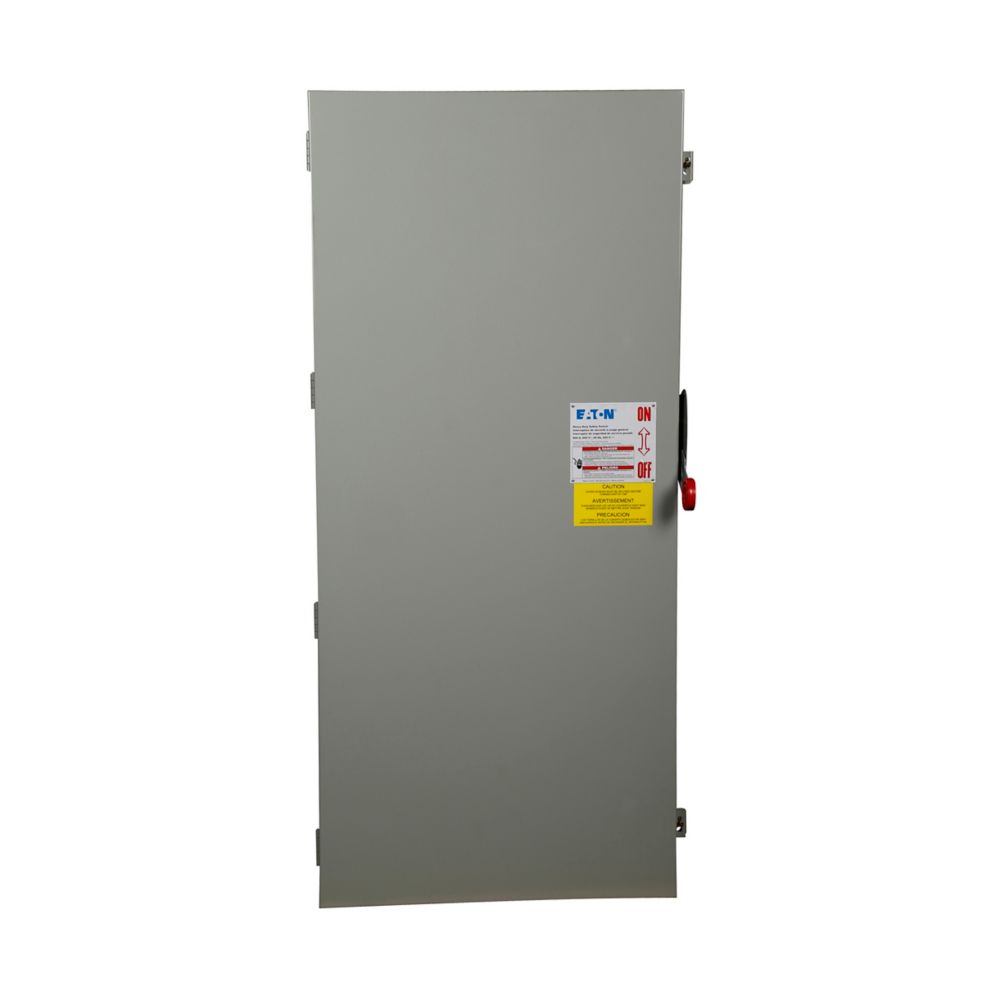

This is a heavy-duty industrial disconnect switch designed for high-amperage electrical systems. It is a 3-pole, 3-phase fusible switch with a 600V voltage rating and an 800A amperage capacity. The unit features a 100kA interrupting rating and solid-state protection for reliable circuit isolation. Its NEMA 1 enclosure and bolt-on connection make it suitable for various industrial applications.

Key Features:
✔ Part Number: DH367NGK
✔ Manufacturer: Cutler Hammer
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Voltage: 600
✔ Amperage: 800
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@600V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Fuse Class: R
✔ Wire: 4
✔ Configuration: Single
✔ Coil Voltage Maximum: 277
✔ Coil Voltage Minimum: 277
✔ Switch Style: Fusible
✔ Nema Rating: NEMA 1
✔ Protection: Solid State
✔ Compatible Frames: SGHA
✔ UPC: 78211363926
✔ GTIN: 00782114000000
✔ Country of Origin: United States
✔ Dimensions: 27.5 in x 57.5 in x 12.38 in (WxDxH)
✔ Weight: 258
