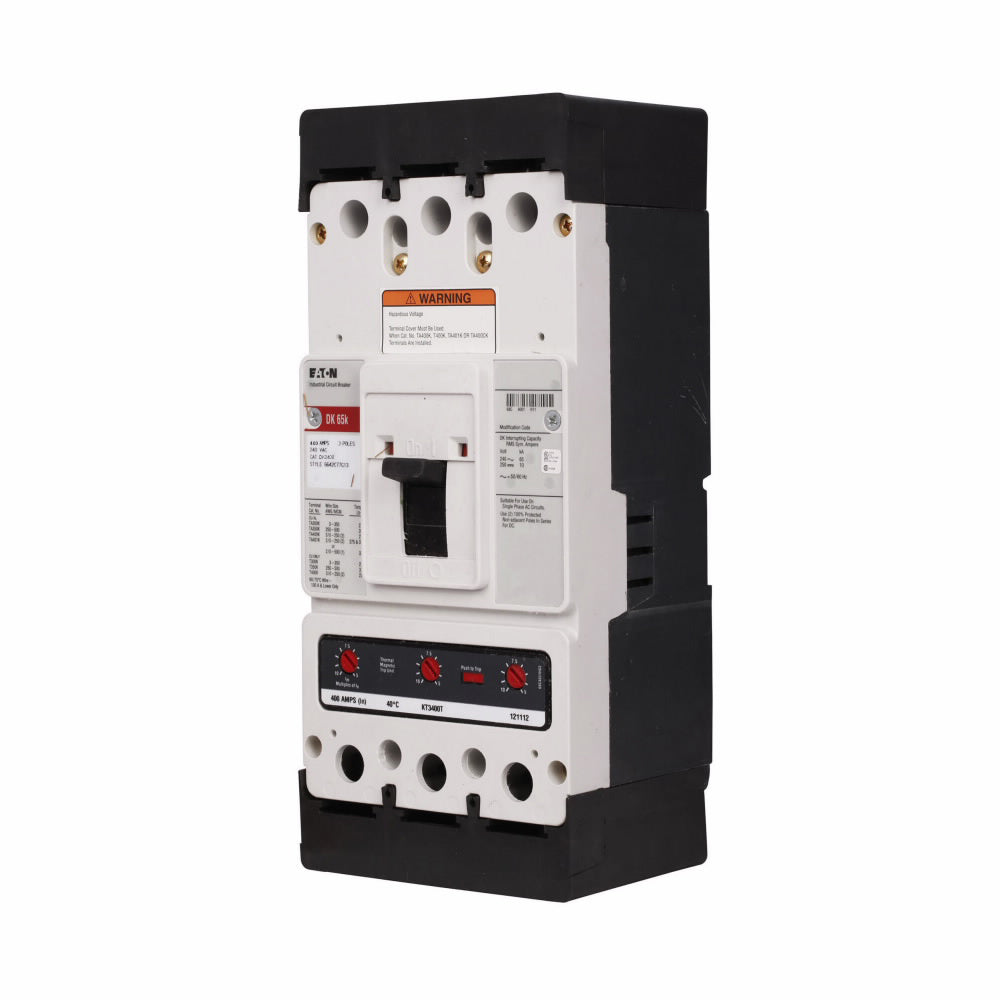

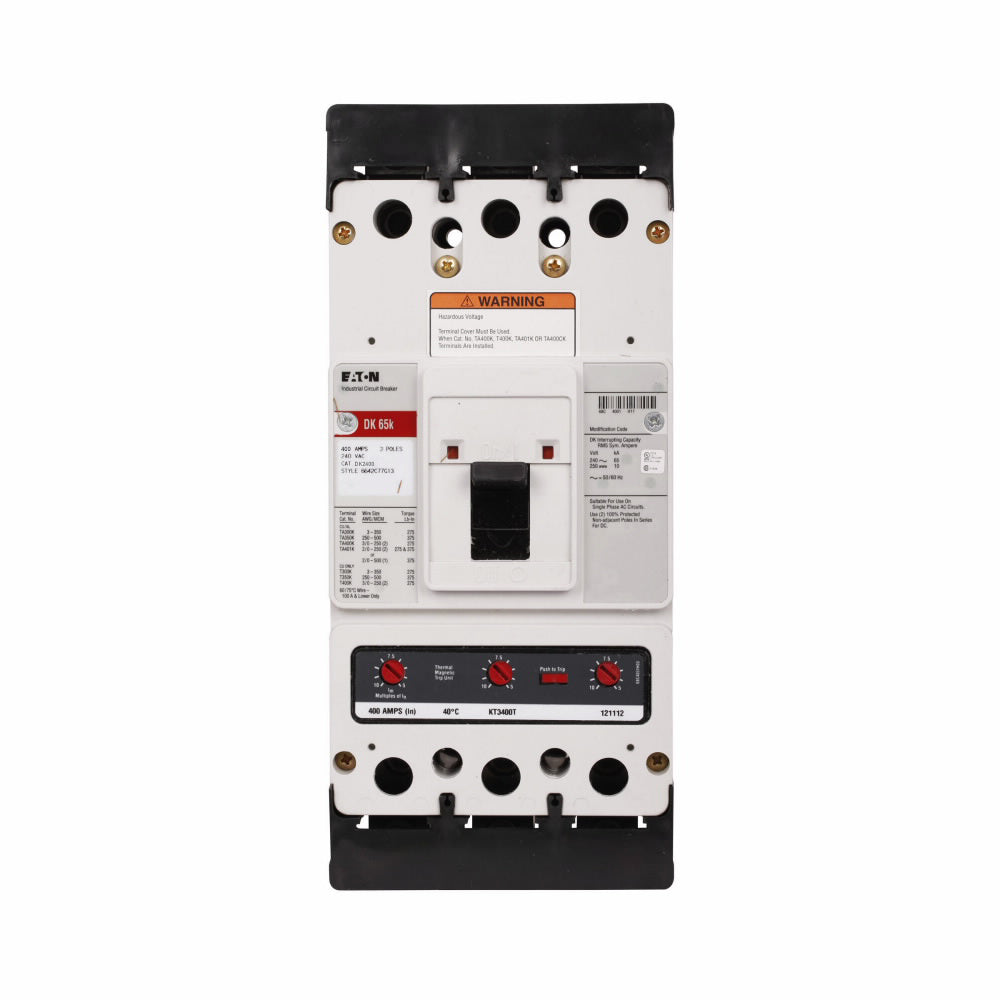

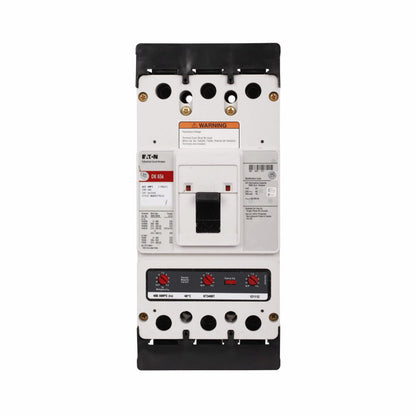

Cutler Hammer DK2400 Circuit Breaker | Series C DK 240V 400A
Cutler Hammer DK2400 Circuit Breaker | Series C DK 240V 400A
Price:
Sale
Sold out
Regular price
$2,596.90 USD
Regular price
$5,261.45 USD
Sale price
$2,596.90 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 8 left
Couldn't load pickup availability
Product Description:
The Cutler Hammer DK2400 is a Molded Case Circuit Breaker from the Series C family. It features a 2-pole design with a 240V, 400A rating and a 65kA@240V AIC rating. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection. It is UL Listed and has a compact frame size of K.
Key Features:
✔ Part Number: DK2400
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: DK
✔ Voltage: 240V
✔ Amperage: 400A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 65kA@240V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: K Frame
✔ Protection: Thermal Magnetic
✔ UPC: 786679044070
✔ GTIN: 00786679044070
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 4.1in, Height 5.5in, Width 5.5in
✔ Weight: 11.7 lbs
✔ Certification: UL
