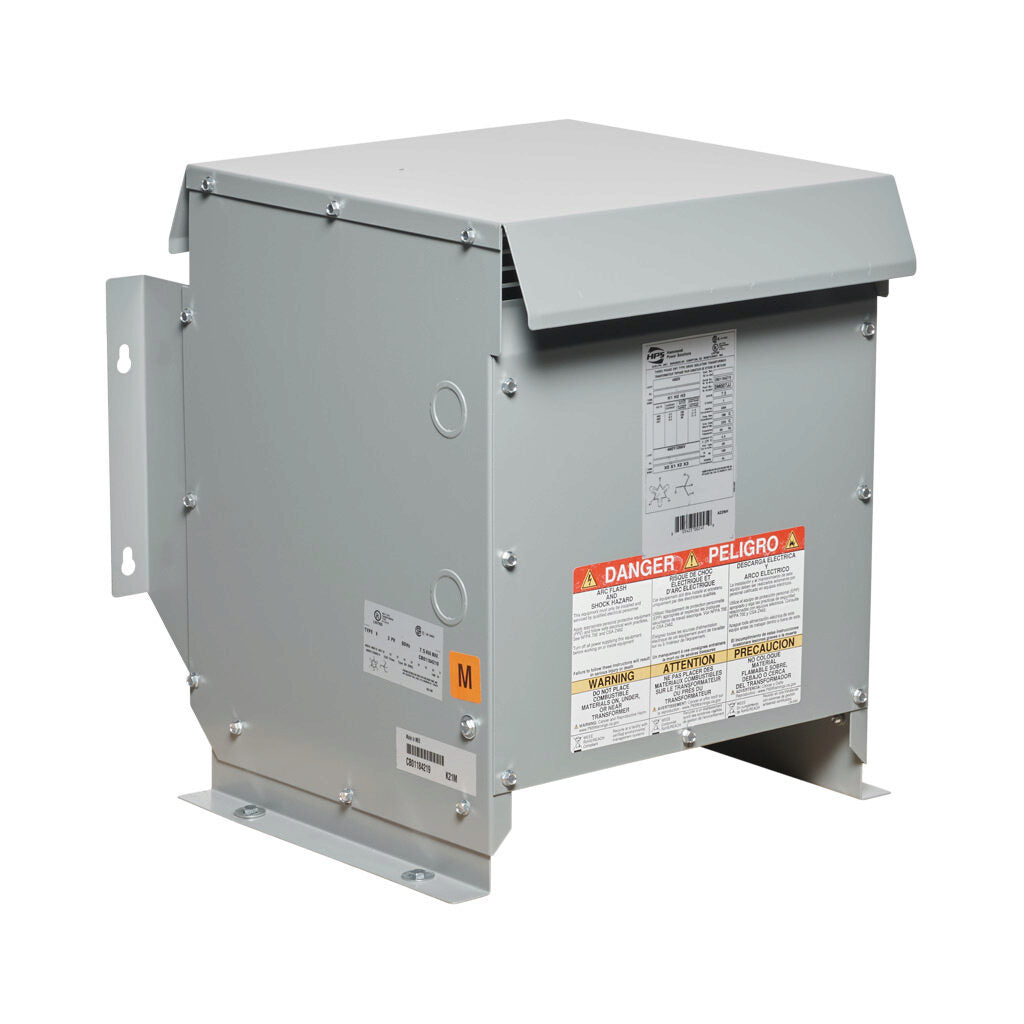

Hammond Power Solutions DM007JJ Transformer | 3-Phase 7.5 kVA 460D-460Y/266V
Hammond Power Solutions DM007JJ Transformer | 3-Phase 7.5 kVA 460D-460Y/266V
Price:
Sale
Sold out
Regular price
$1,895.21 USD
Regular price
$2,142.00 USD
Sale price
$1,895.21 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:

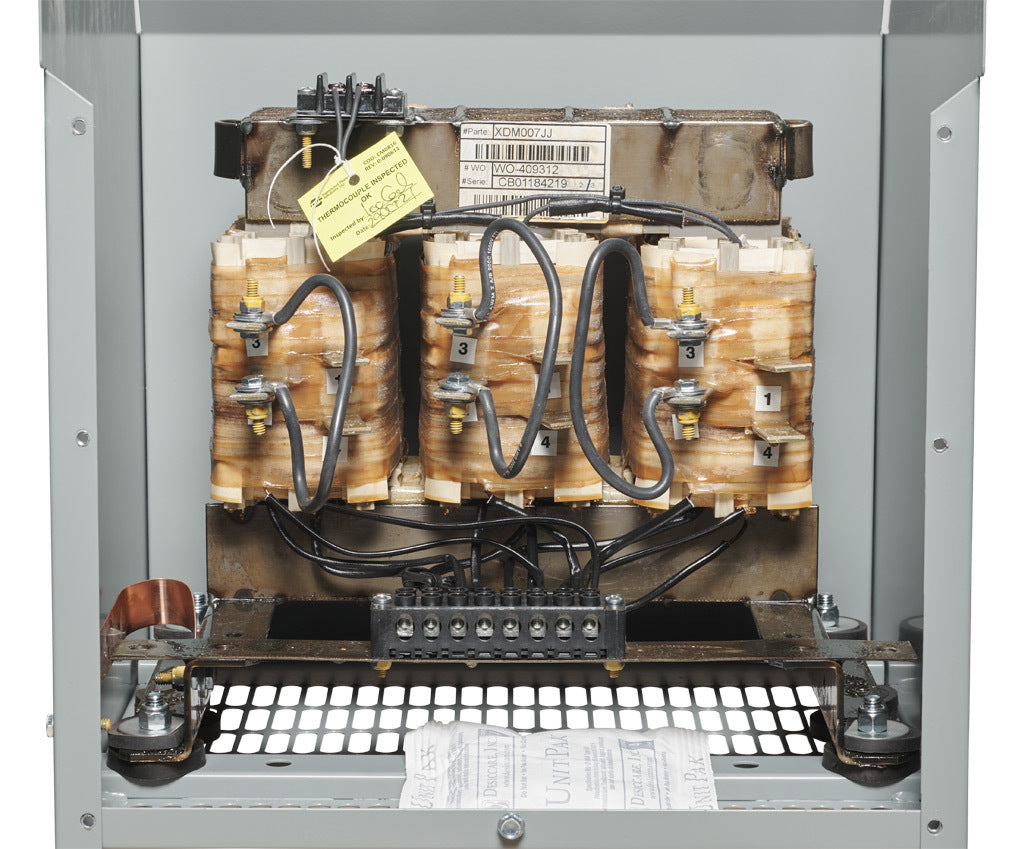

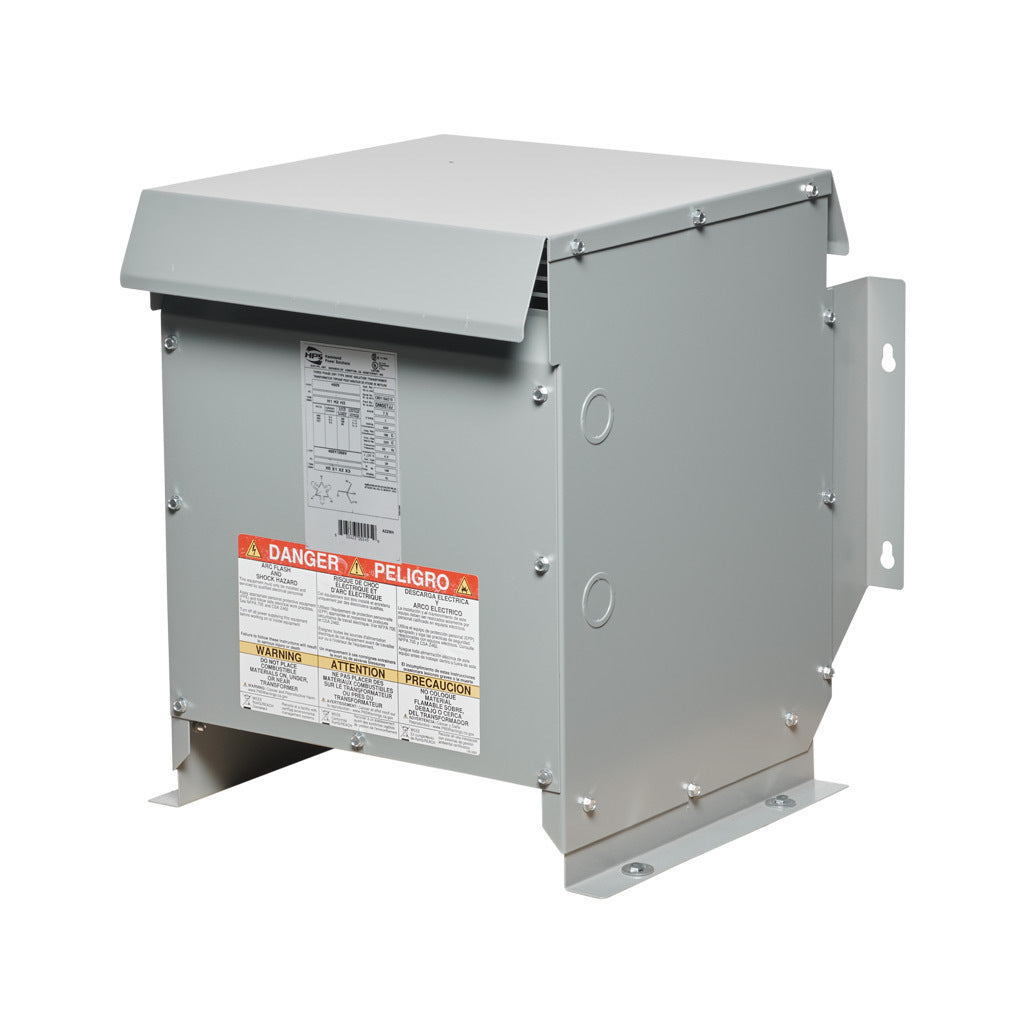

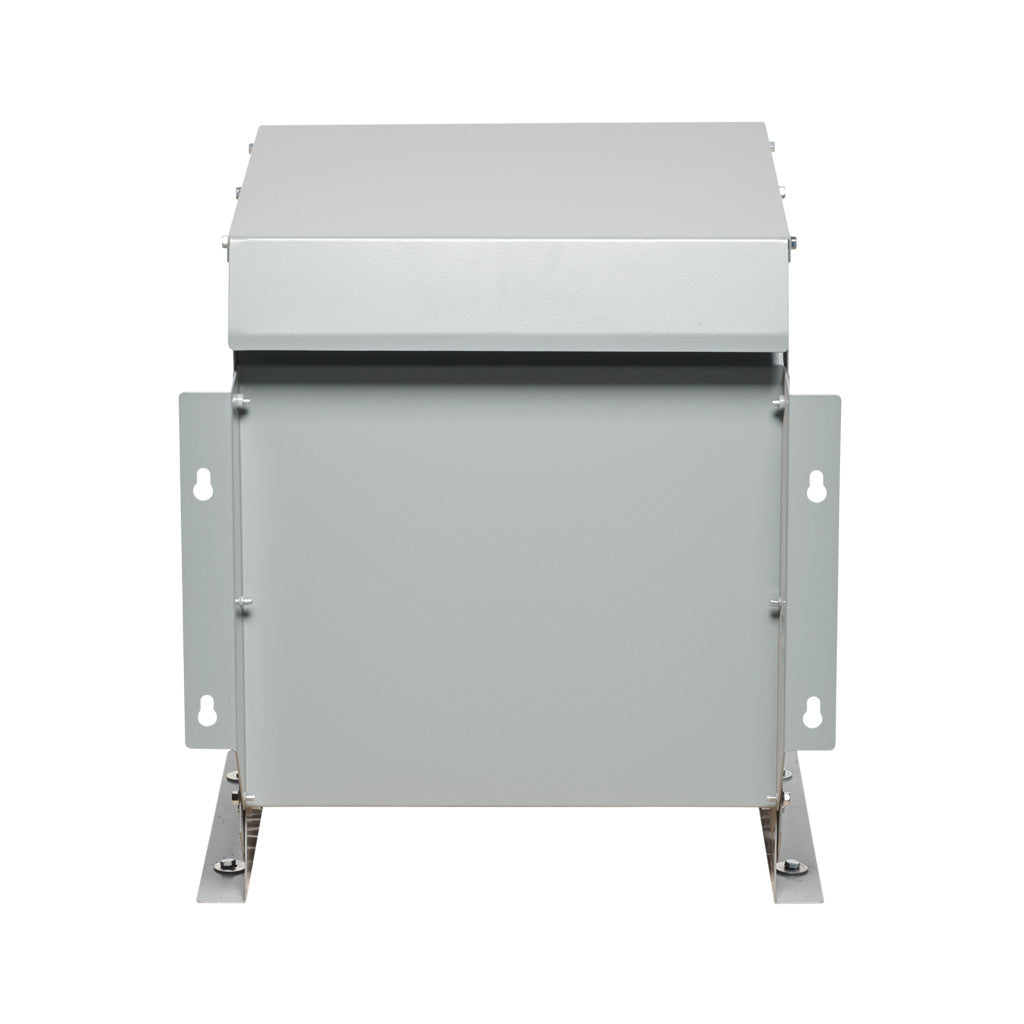

This three-phase general duty transformer is designed for industrial power distribution applications. It features a 460V delta primary with taps and delivers 460Y/266V secondary output at 7.5 kVA capacity. Constructed with aluminum windings, it is housed in a Type 3R/IP24 enclosure and is compliant with IBC 2018 seismic standards. Typical applications include industrial machinery, commercial buildings, and power distribution systems.
Key Features:
✔ Part Number: DM007JJ
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 3
✔ Duty: General Duty
✔ Frequency: 60Hz
✔ Primary Voltage: 460D
✔ Primary Connection: Delta
✔ Primary FCAN (NPL): 1x5%
✔ Primary FCBN (NPL): 1x5%
✔ Secondary Voltage: 460Y/266
✔ Secondary Connection: Wye-N
✔ Material: Aluminum
✔ Temperature Rise: 150°C
✔ Insulation Class: 220°C
✔ EKVA: 7.5
✔ Seismic Compliance: IBC 2018 (Sds=2.0, z/h=0, lp=1.5)
✔ Sound Level: 40 dBA (NEMA ST-20)
✔ Impedance (Std): 3% - 6%
✔ Secondary Termination (NPL): Terminal Block

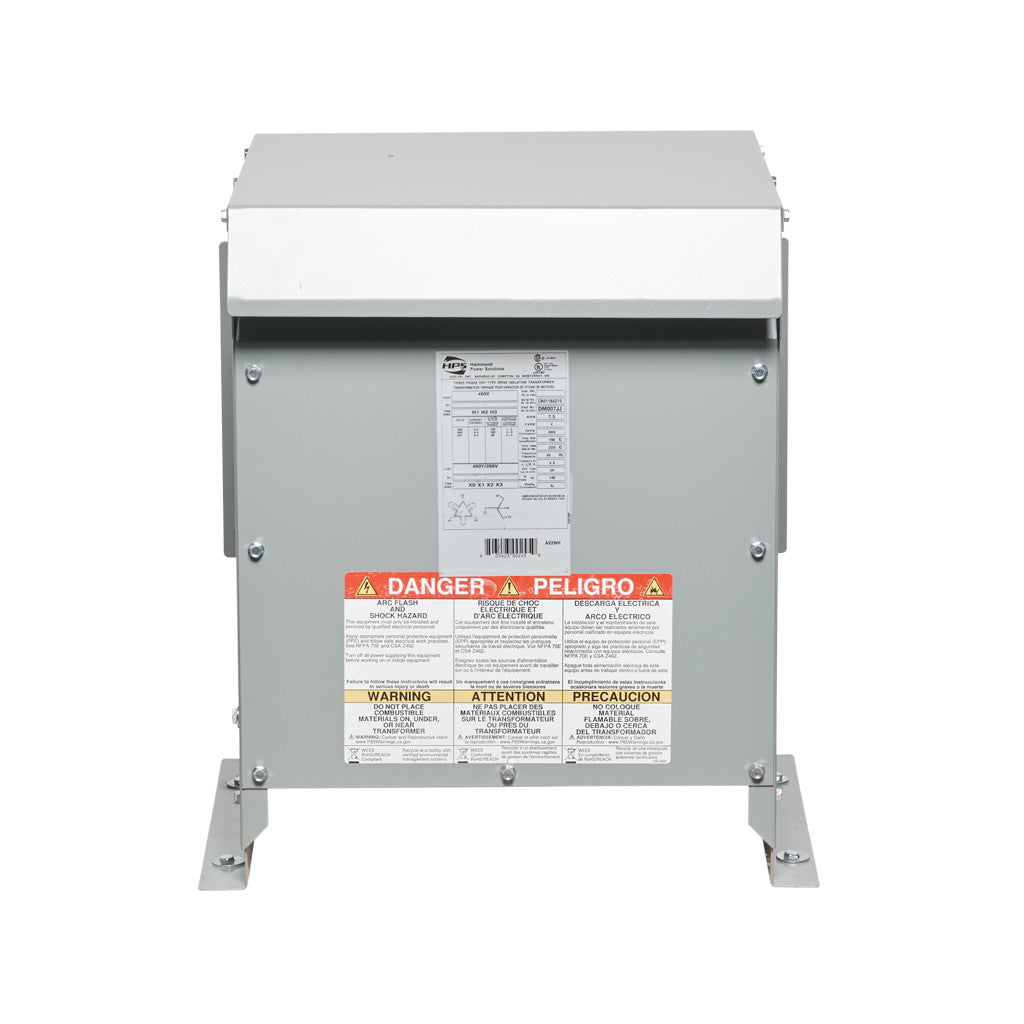

✔ Enclosure Type: Type 3R / IP24
✔ Enclosure Finish: ANSI 61 Grey, UL50
✔ Enclosure PN (NPL): NH5-N3R
✔ Enclosure Dimensions: 21.5in/547mm(H), 19.38in/493mm(W), 20.2in/514mm(D)
✔ Nameplate: Standard
✔ Standard kVA: 7.5
✔ Vector Configuration: Dyn1 (-30°)
✔ Seismic Standard Value: IBC 2018
✔ OSHPD: No
✔ Seismic IP: lp=1.5
✔ Seismic ZH: z/h=0
✔ Seismic SDS Value: Sds=2.0
✔ Enclosure IR Window: No
✔ UPC: 803423002459
✔ Weight: 140
✔ Certification: CSA, UL
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
✔ Enclosure CAD Drawing (PDF)
