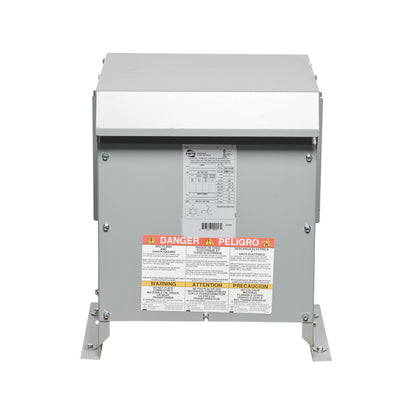

Hammond Power Solutions DM011JJ Transformer 3-Phase 11kVA 460V Delta/Wye
Hammond Power Solutions DM011JJ Transformer 3-Phase 11kVA 460V Delta/Wye
Price:
Sale
Sold out
Regular price
$2,014.91 USD
Regular price
$2,268.00 USD
Sale price
$2,014.91 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 4 left
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:

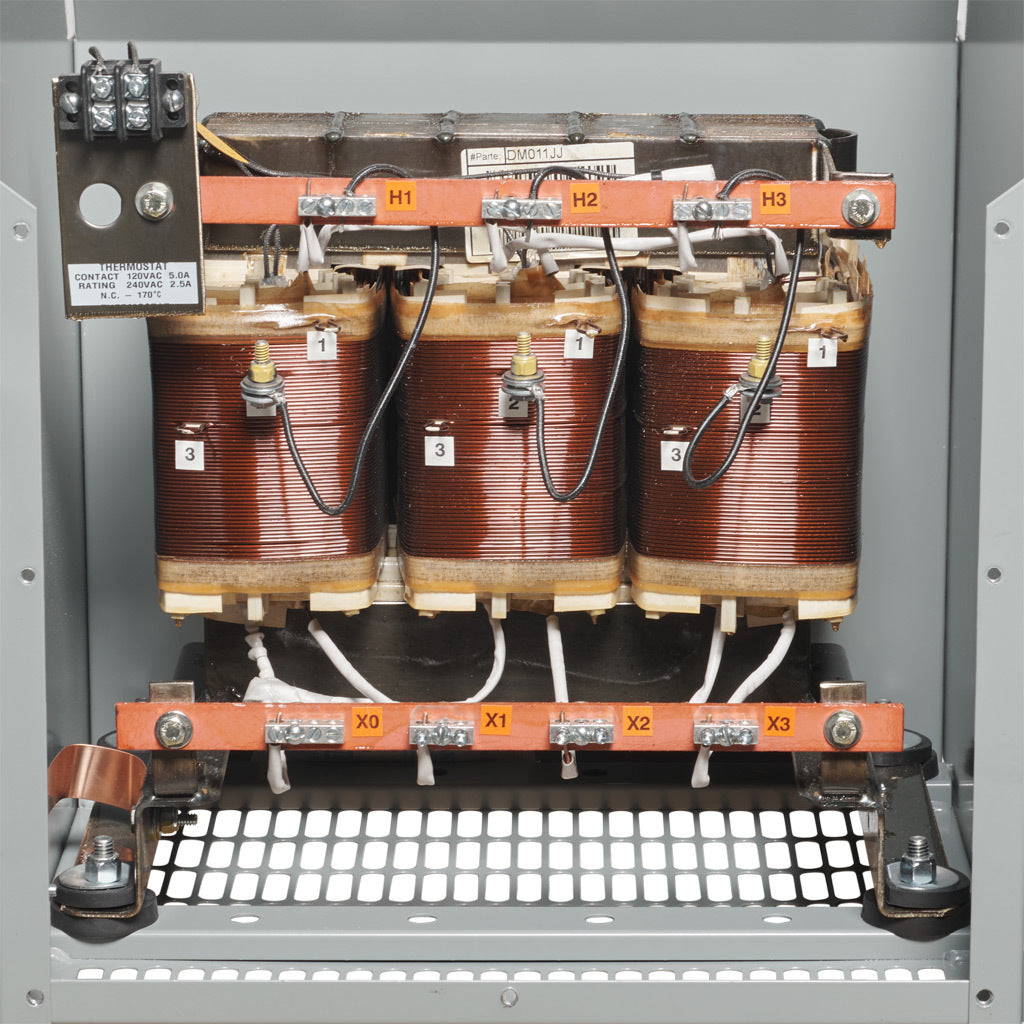

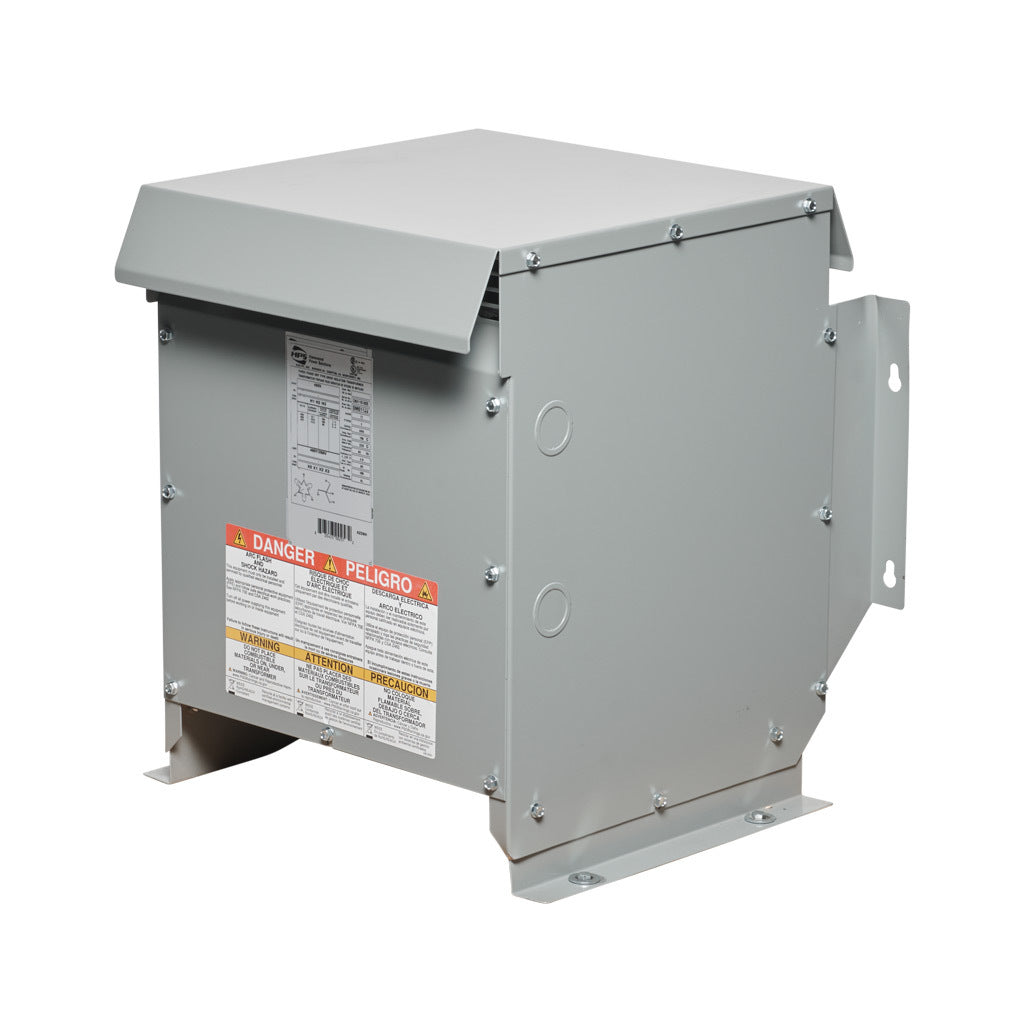

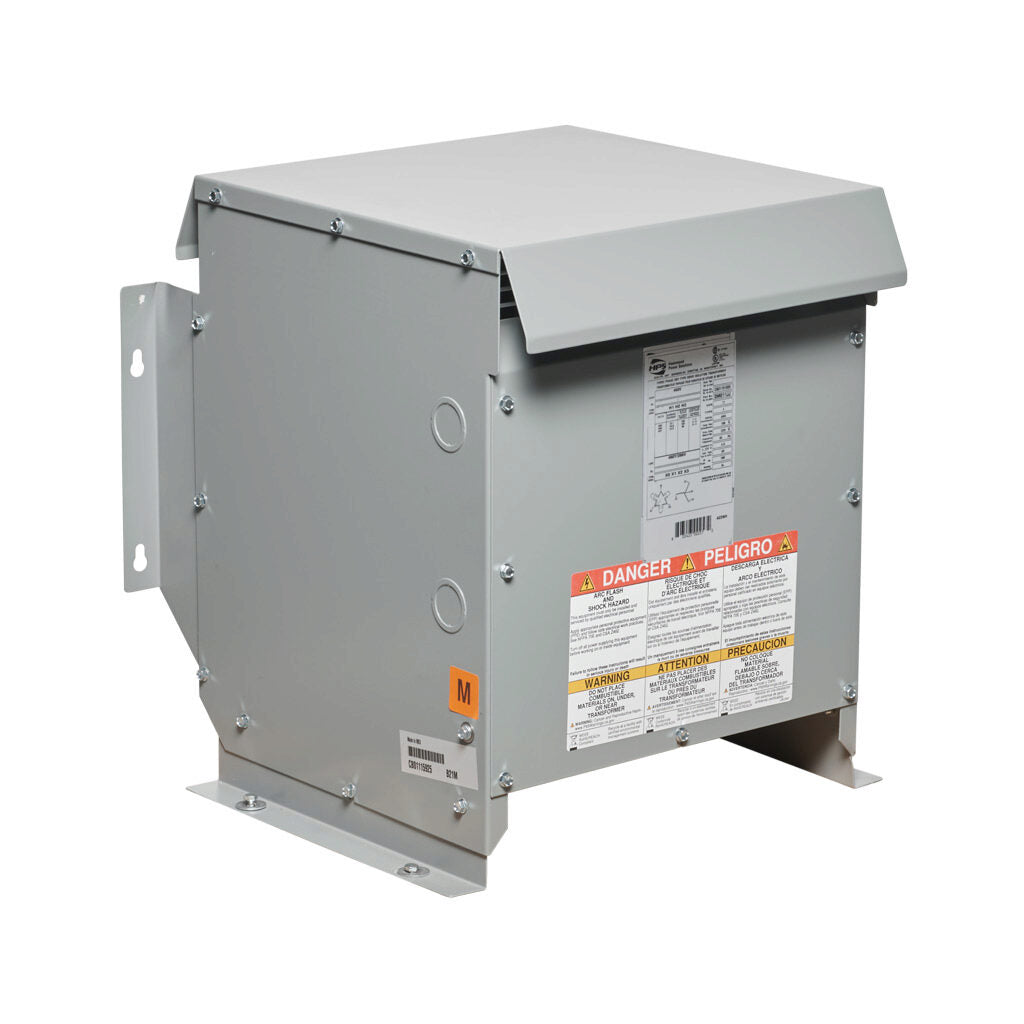

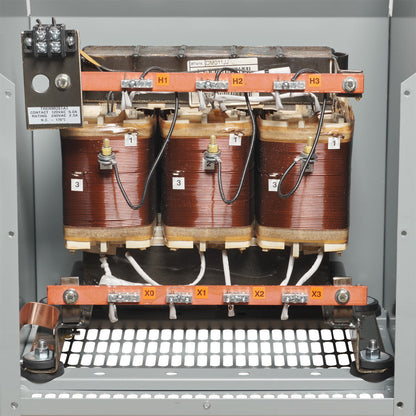

This three-phase general duty transformer is designed for industrial power distribution applications. It features a 460V delta primary and 460Y/266V wye-n secondary configuration with an 11 kVA capacity. The unit is built with aluminum windings and a Type 3R/IP24 enclosure, meeting UL50 and NEMA ST-20 specifications. It is suitable for industrial control systems, machinery power supplies, and commercial building electrical distribution.
Key Features:
✔ Part Number: DM011JJ
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 3
✔ Duty: General Duty
✔ Frequency: 60Hz
✔ Primary Voltage: 460D
✔ Primary Connection: Delta
✔ Secondary Voltage: 460Y/266
✔ Secondary Connection: Wye-N
✔ Material: Aluminum
✔ Temperature Rise: 150°C
✔ Insulation Class: 220°C
✔ kVA Rating: 11
✔ Impedance: 3% - 6%
✔ Enclosure Type: Type 3R / IP24
✔ Enclosure Finish: ANSI 61 Grey
✔ Dimensions: 21.5" H × 19.38" W × 20.2" D
✔ Sound Level: 45 dBA
✔ Seismic Compliance: IBC 2018 (Sds=2.0)
✔ Vector Configuration: Dyn1 (-30°)
✔ Certification: CSA, UL
✔ UPC: 803423002572
✔ Weight: 165
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
✔ Enclosure CAD Drawing (PDF)
