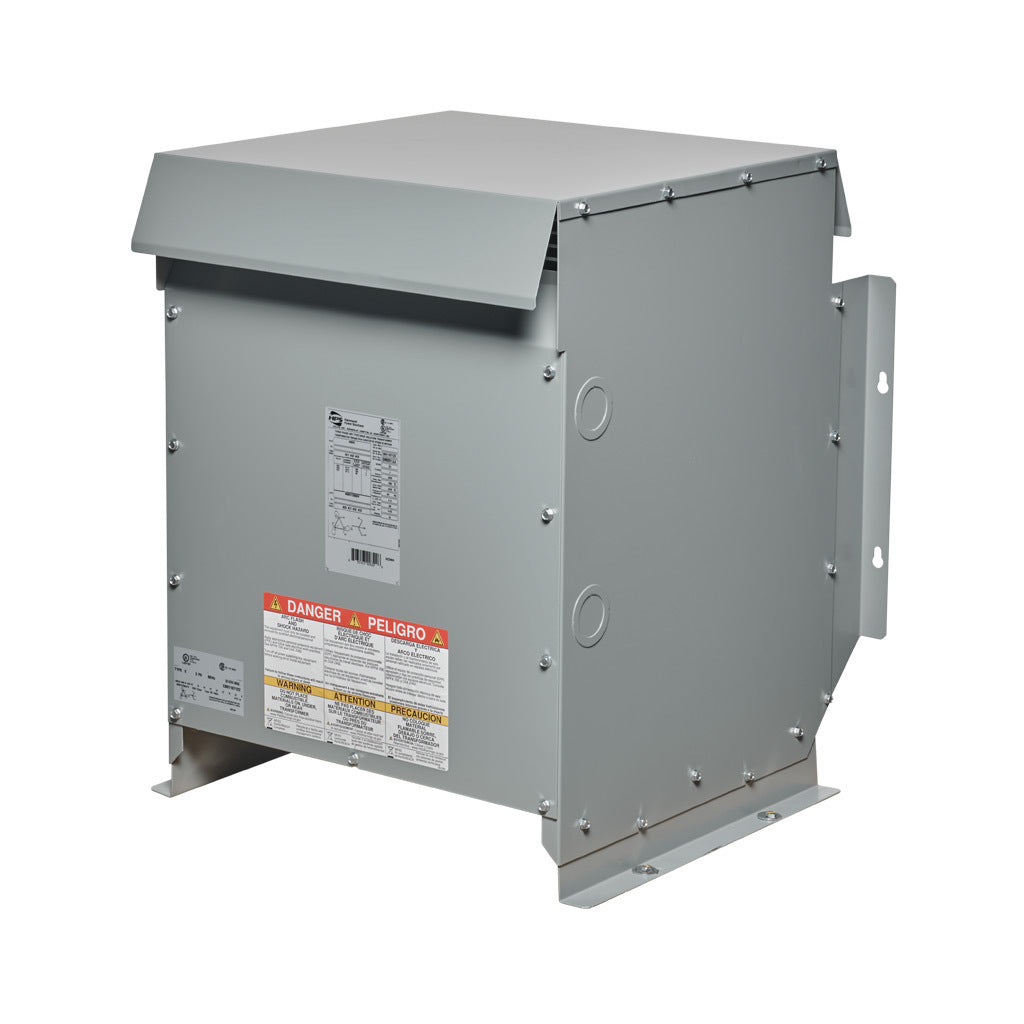

Hammond Power Solutions DM051JJ Transformer | 3-Phase 51 kVA 460D-460Y/266V
Hammond Power Solutions DM051JJ Transformer | 3-Phase 51 kVA 460D-460Y/266V
Price:
Sale
Sold out
Regular price
$3,720.64 USD
Regular price
$5,109.00 USD
Sale price
$3,720.64 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 2 left
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:

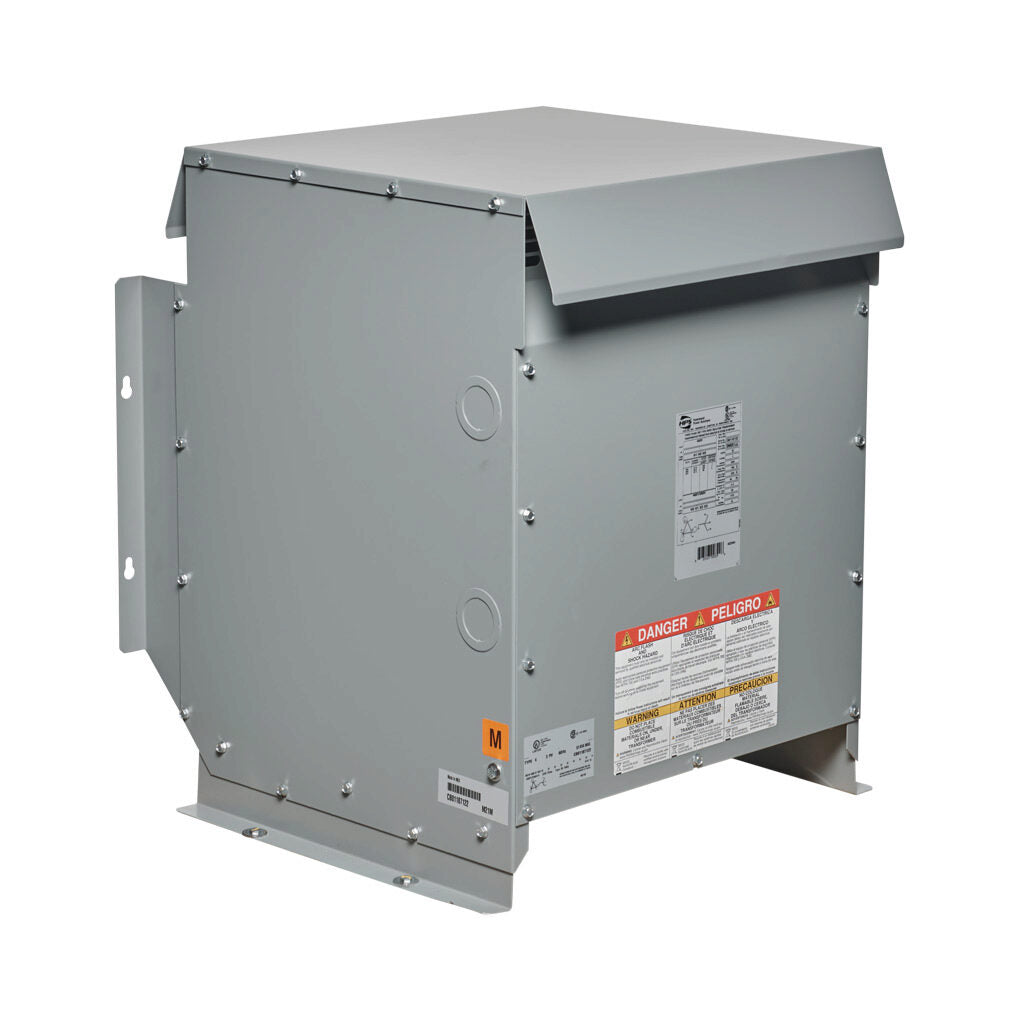

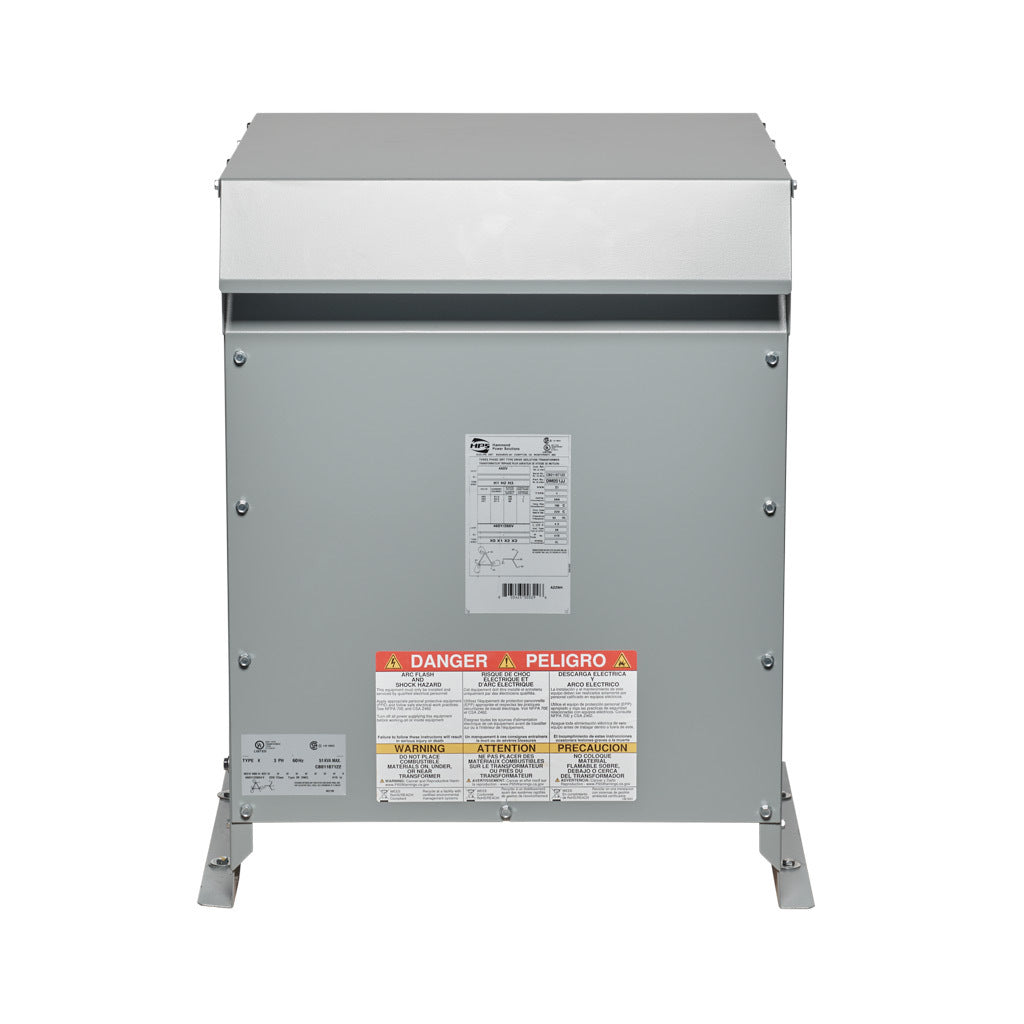

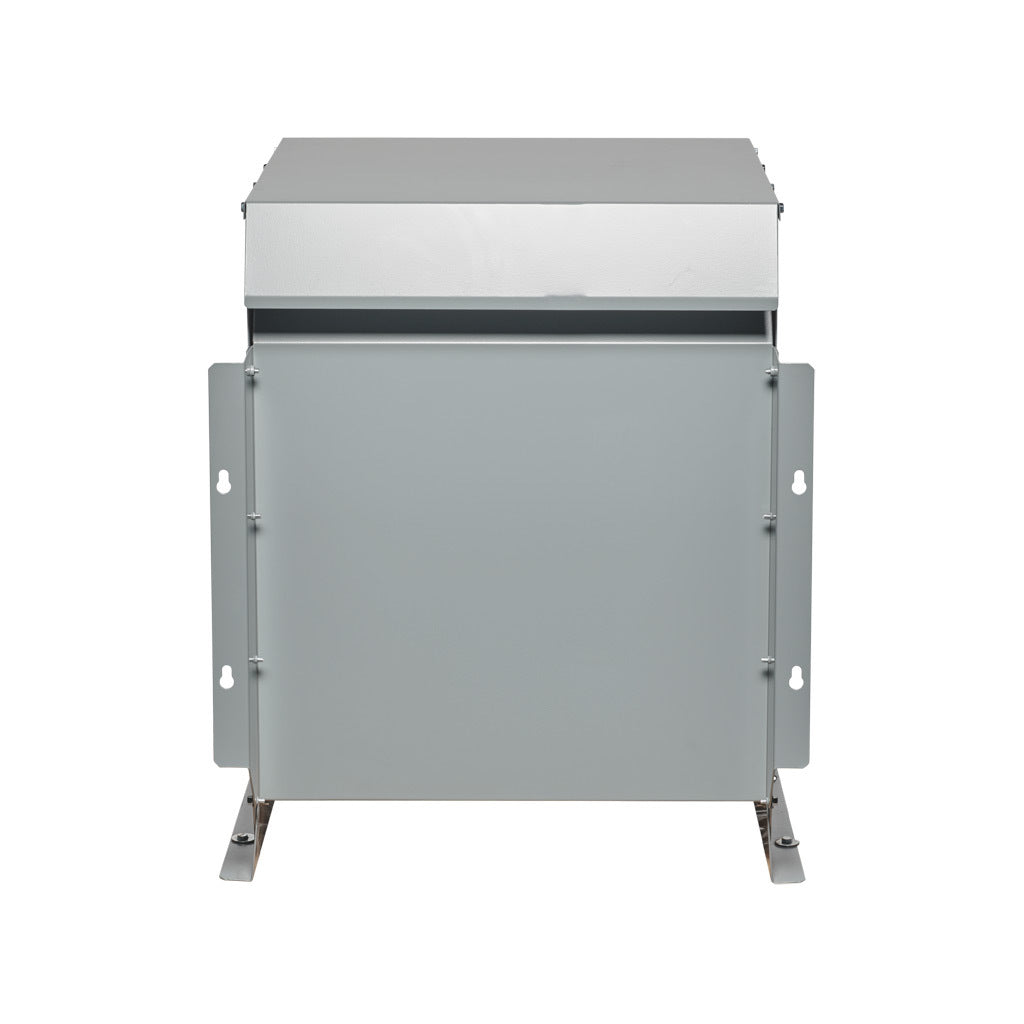

This three-phase general duty transformer is designed for industrial power distribution applications. It provides 51 kVA capacity with a 460V delta primary and 460Y/266V secondary output. The unit features an aluminum winding construction and a Type 3R/IP24 enclosure, making it suitable for manufacturing plants and commercial buildings. It complies with IBC 2018 seismic standards and operates with a low 50 dBA sound level.
Key Features:
✔ Part Number: DM051JJ
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 3
✔ Duty: General Duty
✔ Frequency: 60Hz
✔ Primary Voltage: 460D
✔ Primary Connection: Delta
✔ Secondary Voltage: 460Y/266
✔ Secondary Connection: Wye-N

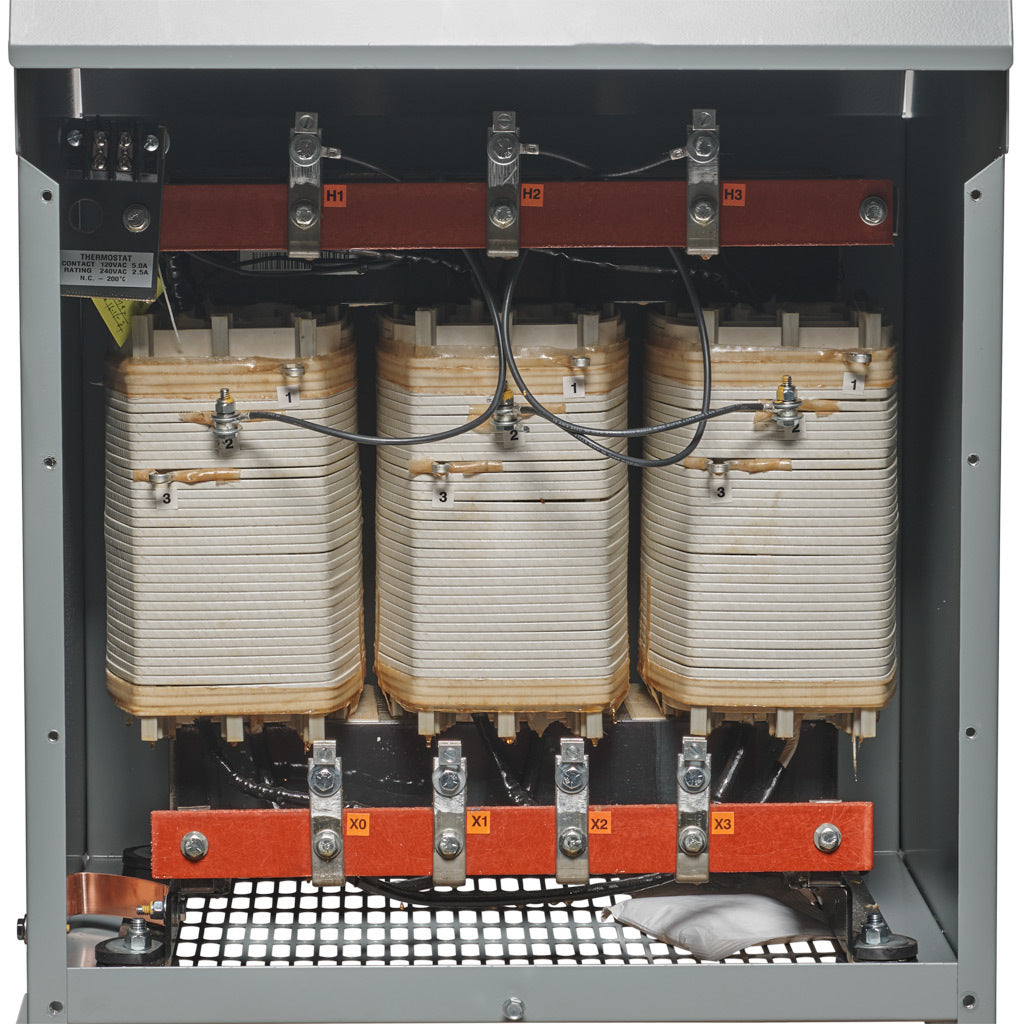

✔ Material: Aluminum
✔ Temperature Rise: 150°C
✔ Insulation Class: 220°C
✔ EKVA: 51
✔ Seismic Compliance: IBC 2018 (Sds=2.0, z/h=0, lp=1.5)
✔ Sound Level: 50 dBA (NEMA ST-20)
✔ Impedance (Std): 3% - 6%
✔ Secondary Termination (NPL): Mechanical Lugs
✔ Enclosure Type: Type 3R / IP24
✔ Enclosure Finish: ANSI 61 Grey, UL50
✔ Enclosure Dimensions: 28.75in/731mm(H), 23.9in/608mm(W), 25in/635mm(D)
✔ Standard kVA: 51
✔ Vector Configuration: Dyn1 (-30°)
✔ UPC: 803423003296
✔ Weight: 415
✔ Certification: CSA, UL
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
✔ Enclosure CAD Drawing (PDF)
