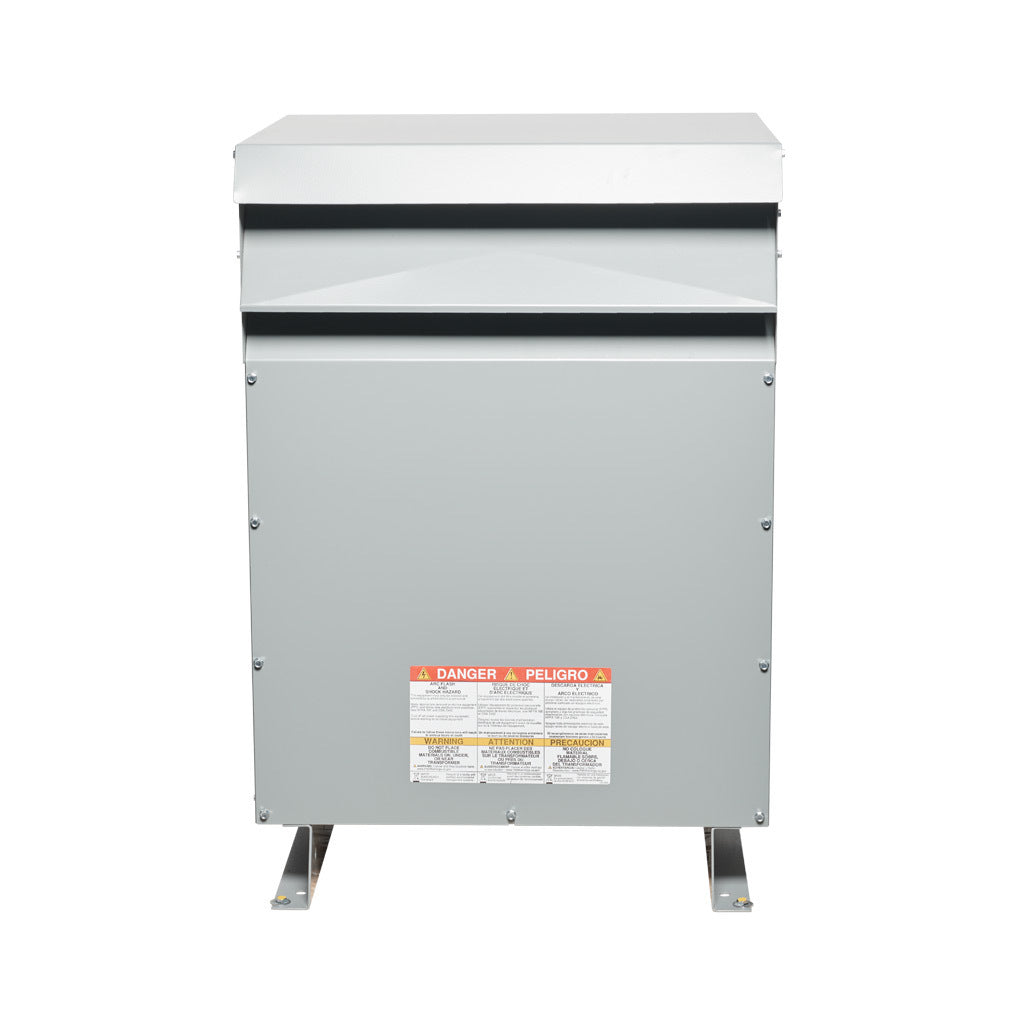

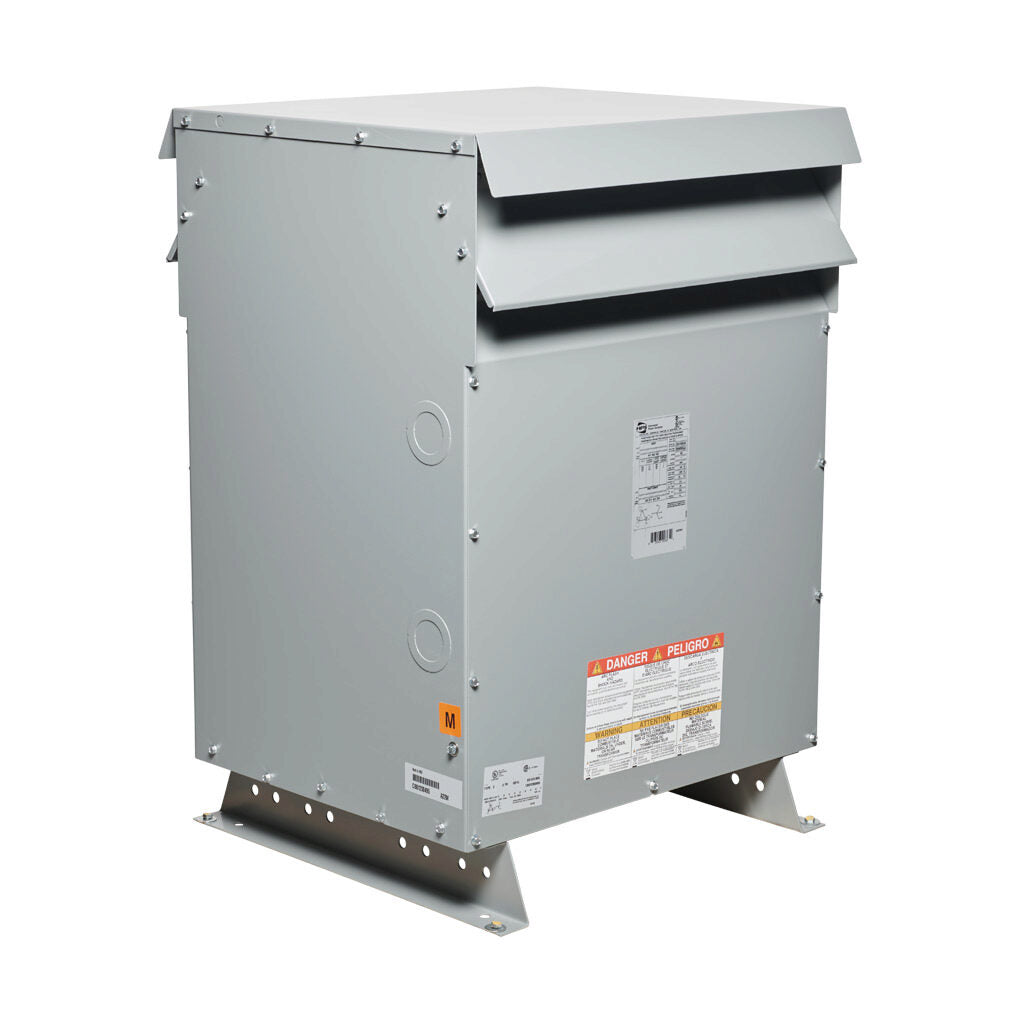

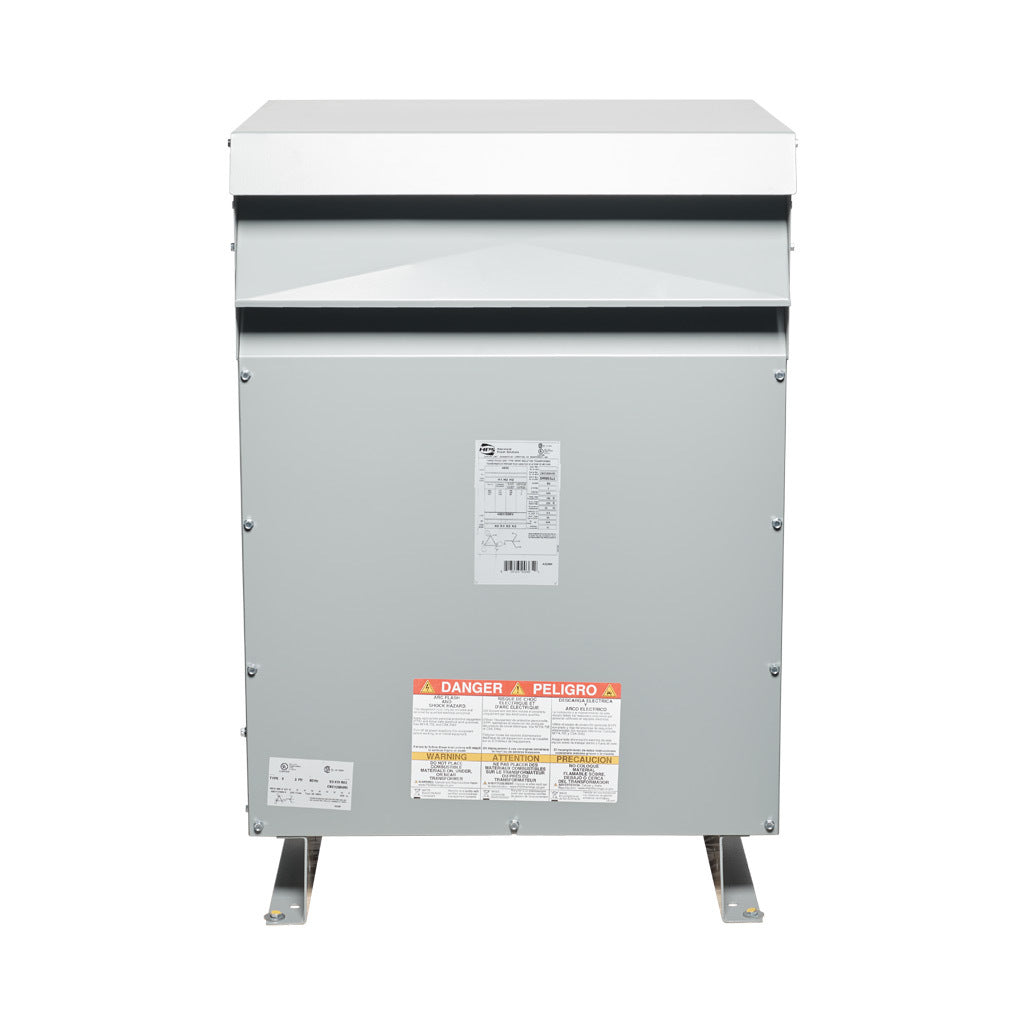

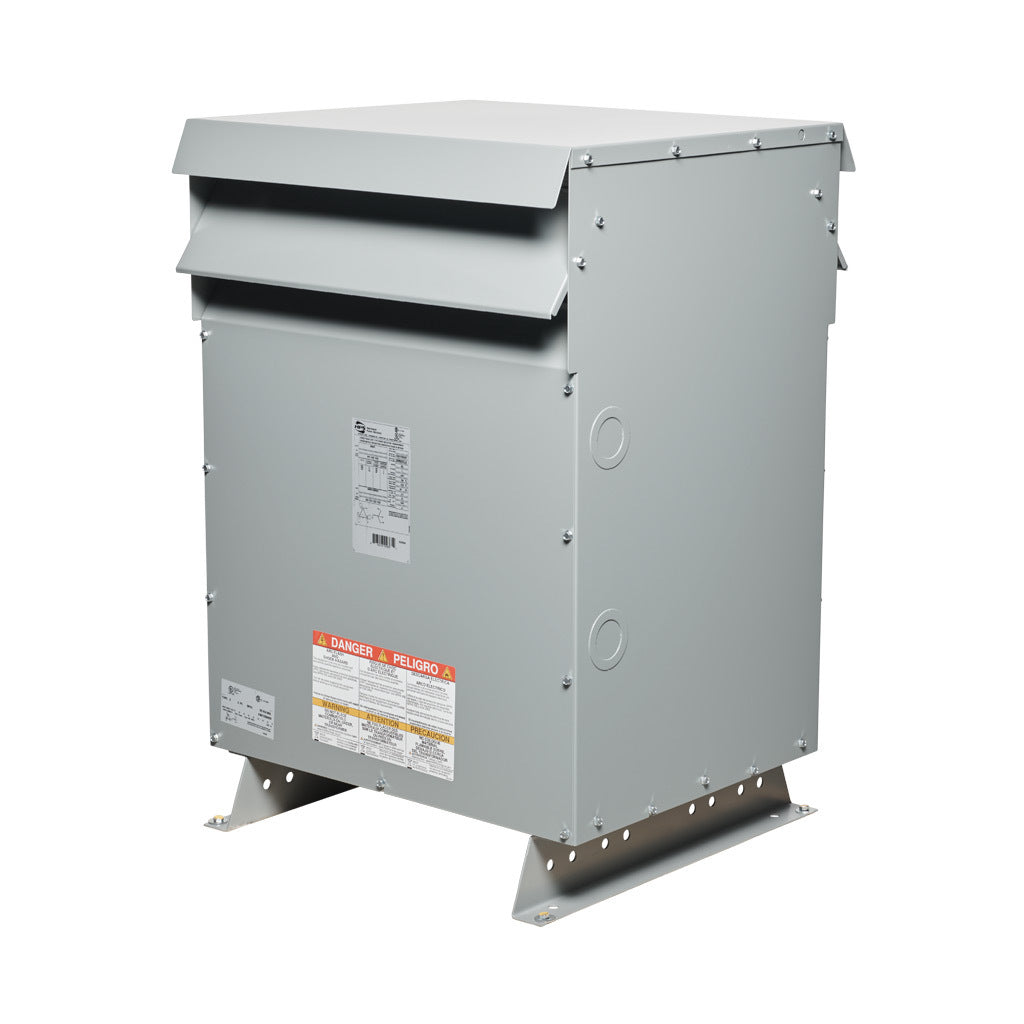

Hammond DM093JJ Drive Isolation Transformer | 93 kVA 3-Phase 460V Aluminum Coils DM
Hammond DM093JJ Drive Isolation Transformer | 93 kVA 3-Phase 460V Aluminum Coils DM
Price:
Sale
Sold out
Regular price
$5,356.54 USD
Regular price
$7,353.00 USD
Sale price
$5,356.54 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 7 left
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:
The HPS DM093JJ is a 3-phase drive isolation transformer with a 93 kVA rating, designed for industrial use. It features aluminum coils and operates at 460V primary and secondary voltages, ensuring reliable performance for sensitive equipment. This transformer is built for general duty applications with a 150°C temperature rise and 220°C insulation class.
Key Features:
✔ Part Number: DM093JJ
✔ Manufacturer: Hammond
✔ Category: Transformer
✔ Subcategory: Drive Isolation
✔ Family: Standard Drive Isolation
✔ Type: DM
✔ Phase: 3

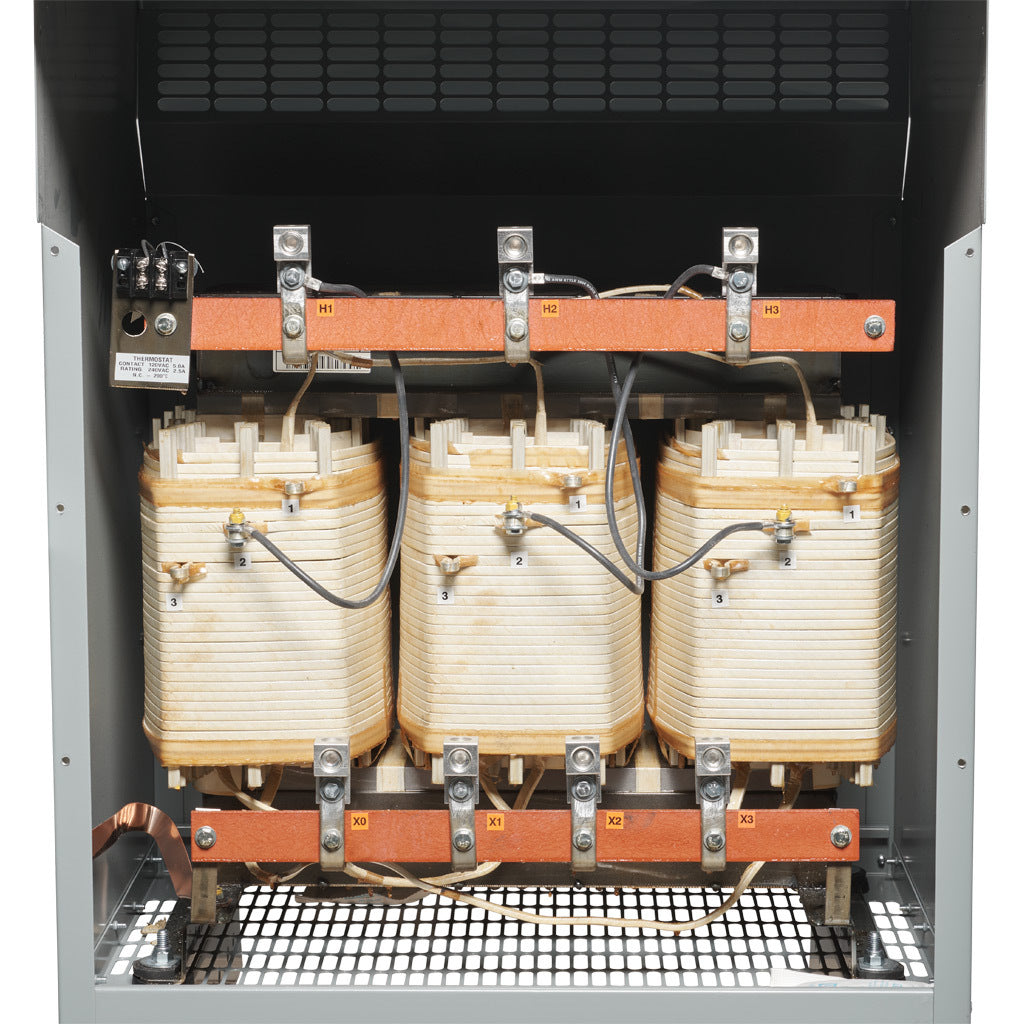

✔ Coil Material: ALUMINUM
✔ KVA Rating: 93
✔ Frequency: 60Hz
✔ Primary Voltage: 460D
✔ Primary Connection: Delta
✔ Secondary Voltage: 460Y/266
✔ Secondary Connection: Wye-N
✔ Temperature Rise: 150°C
✔ Insulation Class: 220°C
✔ EKVA: 93
✔ Sound Level: 50 dBA (NEMA ST-20)
✔ Impedance (Std): 3% - 6%
✔ Enclosure Type: Type 3R / IP24
✔ Enclosure Finish: ANSI 61 Grey, UL50
✔ Enclosure Dimensions: 38in/966mm(H), 26in/661mm(W), 21in/534mm(D)
✔ Vector Configuration: Dyn1 (-30°)
✔ UPC: 803423003654
✔ GTIN: 00803423003654
✔ Weight: 645 lb
✔ Certification: CSA, UL
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
✔ Enclosure CAD Drawing (PDF)
