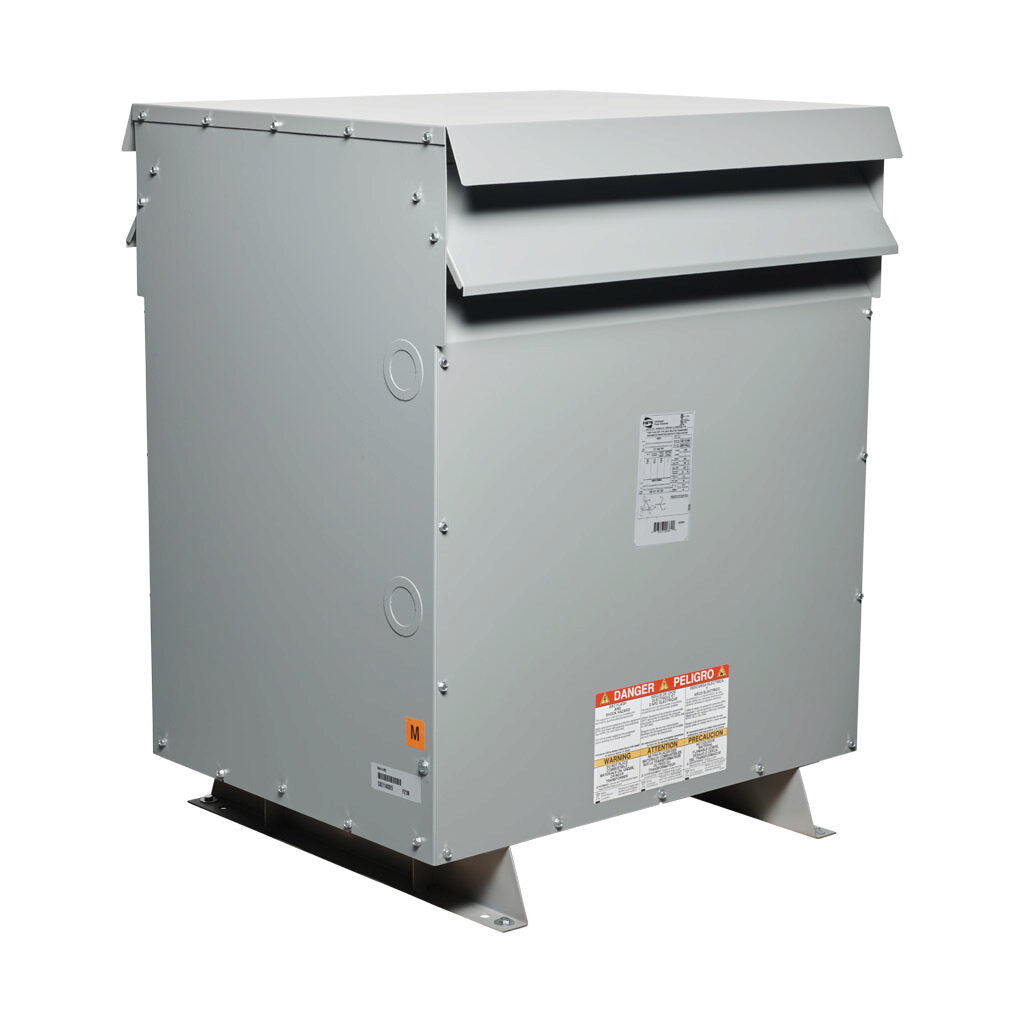

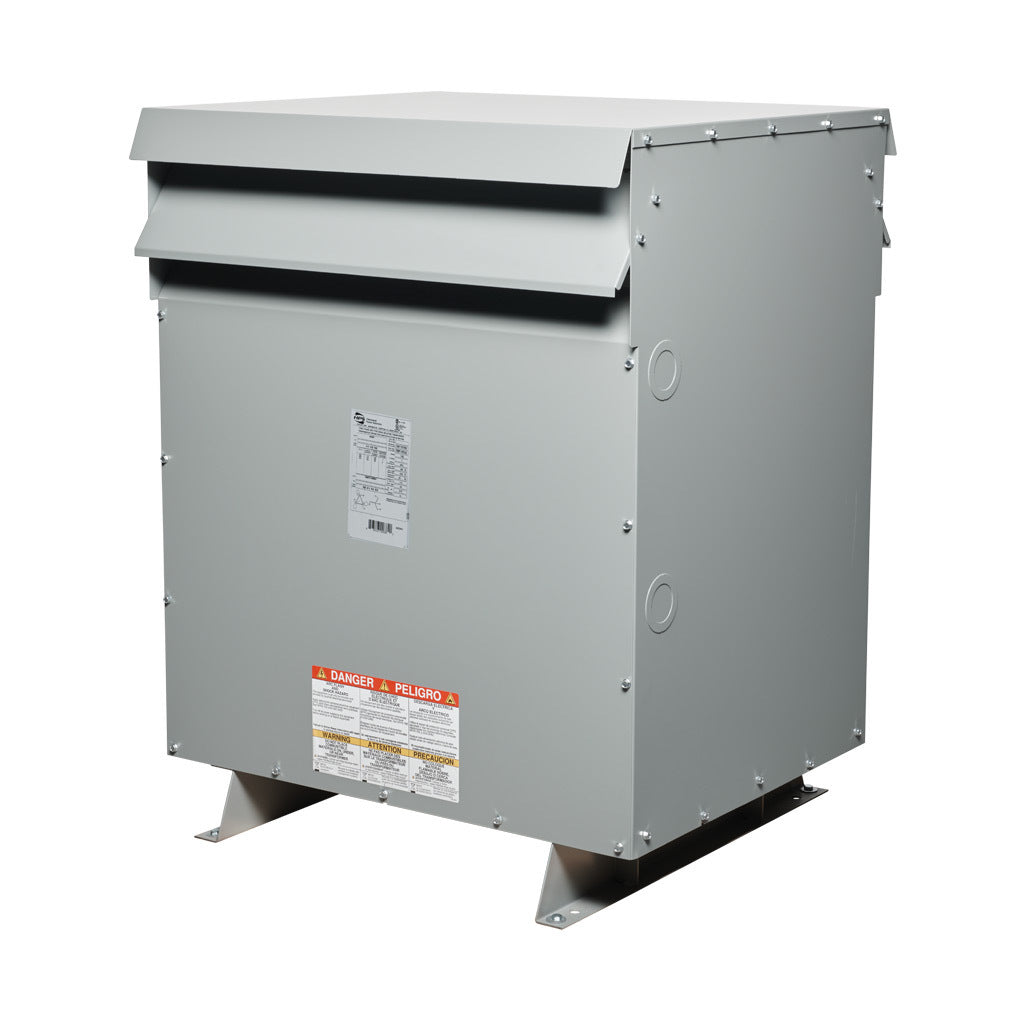

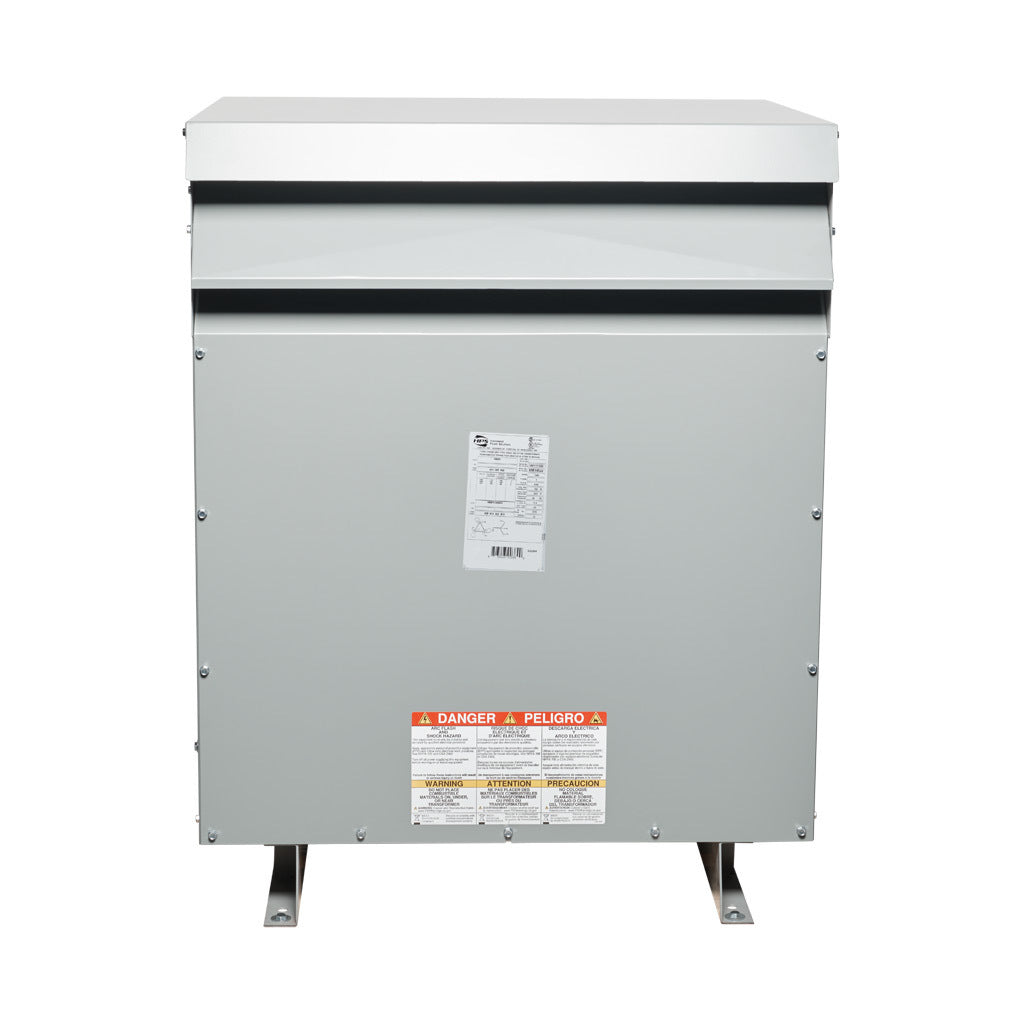

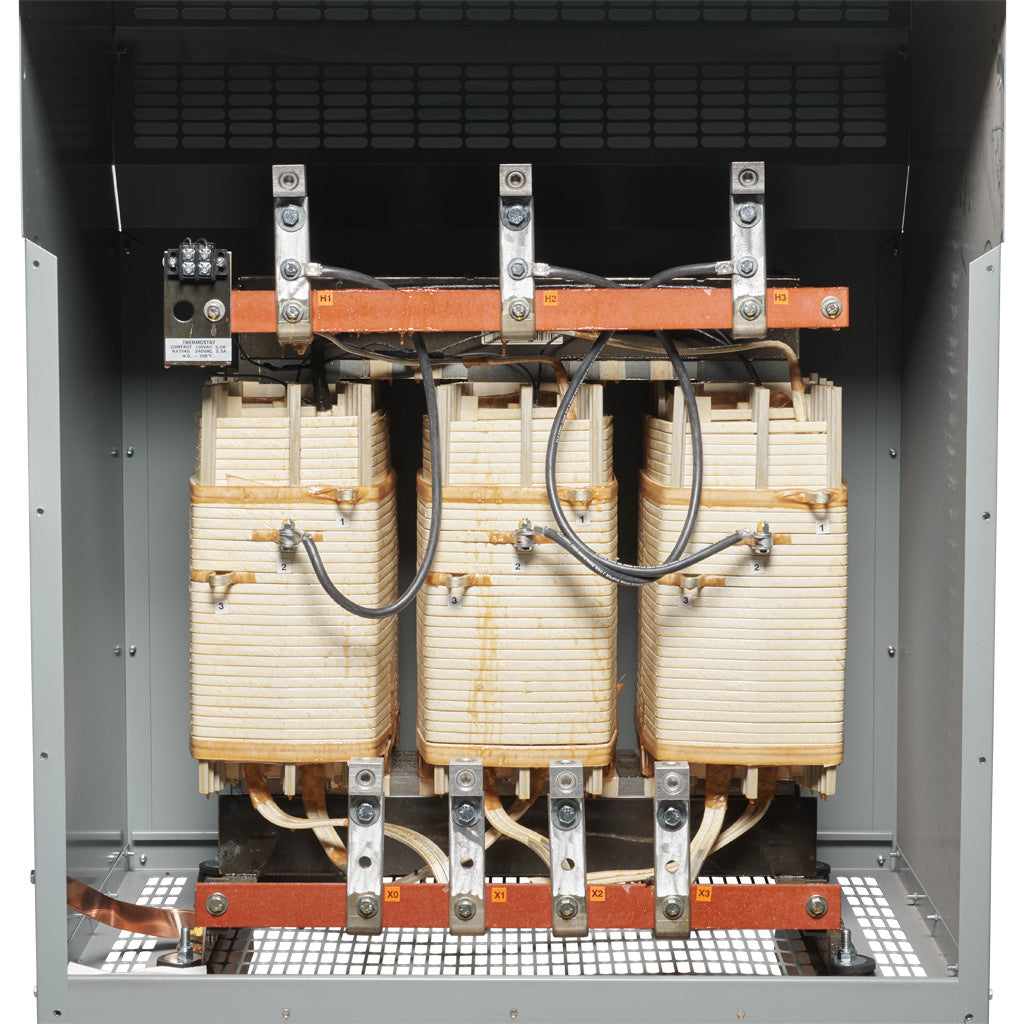

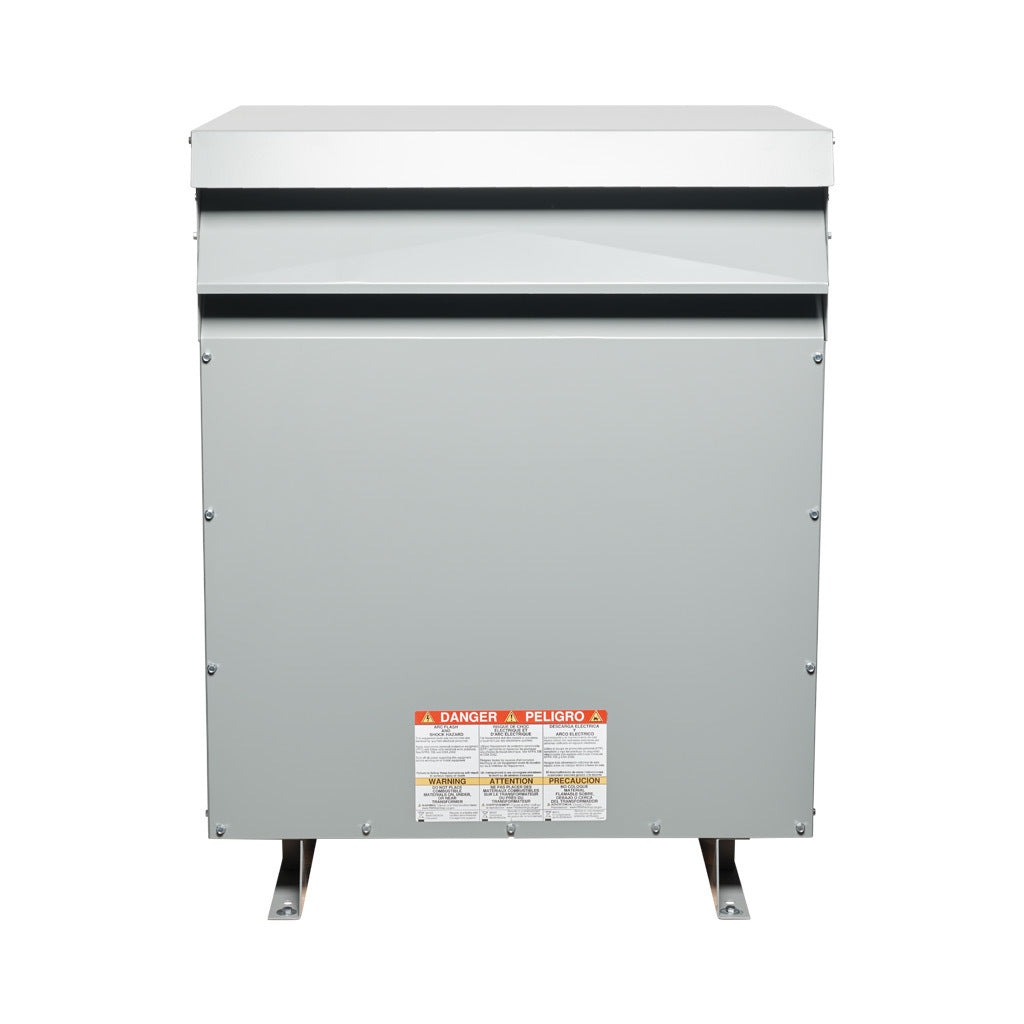

Hammond Power Solutions DM145JJ Transformer | 3-Phase 145kVA 460D-460Y/266V
Hammond Power Solutions DM145JJ Transformer | 3-Phase 145kVA 460D-460Y/266V
Price:
Sale
Sold out
Regular price
$7,012.39 USD
Regular price
$9,792.00 USD
Sale price
$7,012.39 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:
The DM145JJ is a three-phase general duty transformer designed for industrial power distribution. It features a 460V delta primary and 460Y/266V wye secondary configuration with a 145 kVA capacity. Constructed with aluminum windings and housed in a Type 3R/IP24 enclosure, it is compliant with IBC 2018 seismic standards and operates at 60Hz.
Key Features:
✔ Part Number: DM145JJ
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 3
✔ Duty: General Duty
✔ Frequency: 60Hz
✔ Primary Voltage: 460D
✔ Primary Connection: Delta
✔ Secondary Voltage: 460Y/266
✔ Secondary Connection: Wye-N
✔ Material: Aluminum
✔ Temperature Rise: 150°C
✔ Insulation Class: 220°C
✔ kVA Rating: 145
✔ Impedance: 3-6%
✔ Enclosure Type: Type 3R / IP24
✔ Enclosure Finish: ANSI 61 Grey, UL50
✔ Dimensions: 41"H × 32"W × 25.5"D
✔ Sound Level: 50 dBA
✔ Seismic Compliance: IBC 2018
✔ Vector Configuration: Dyn1
✔ UPC: 803423003890
✔ Weight: 815
✔ Certification: CSA, UL
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
✔ Enclosure CAD Drawing (PDF)
