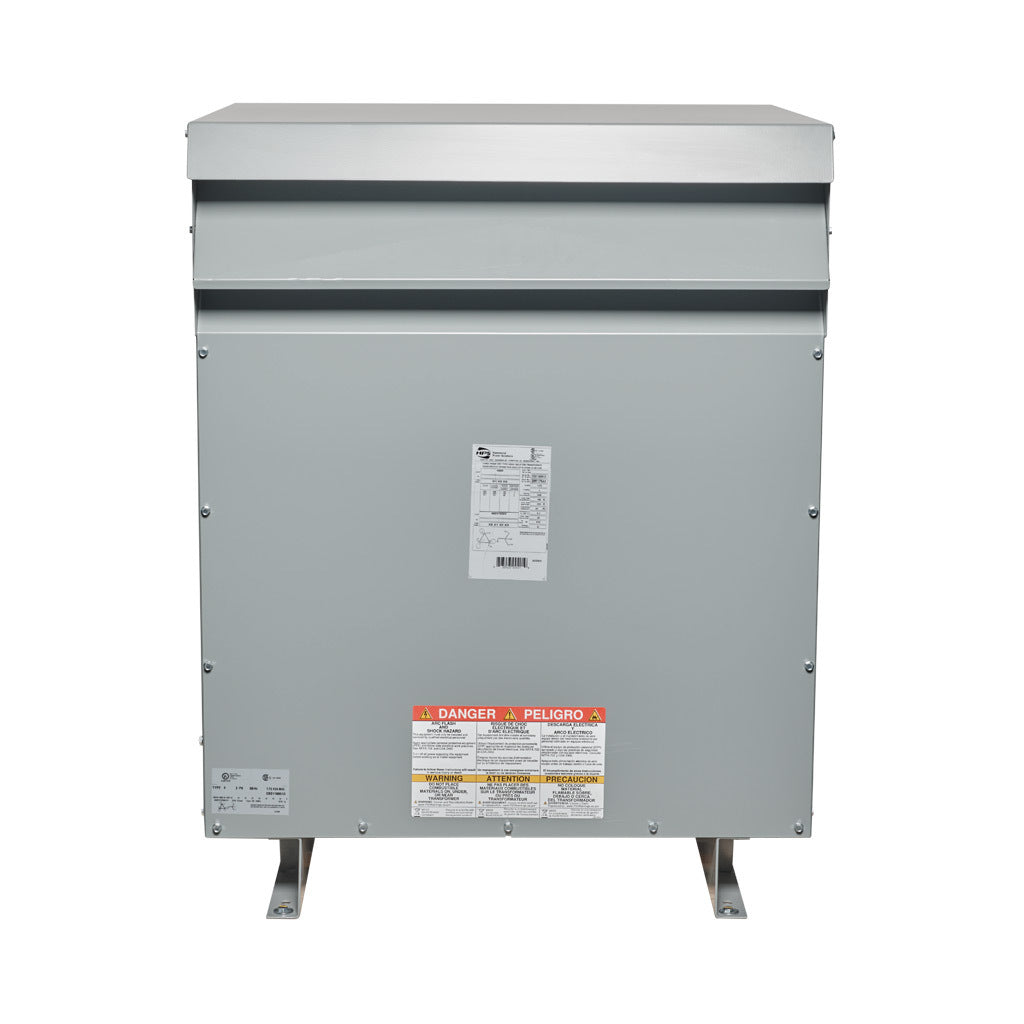

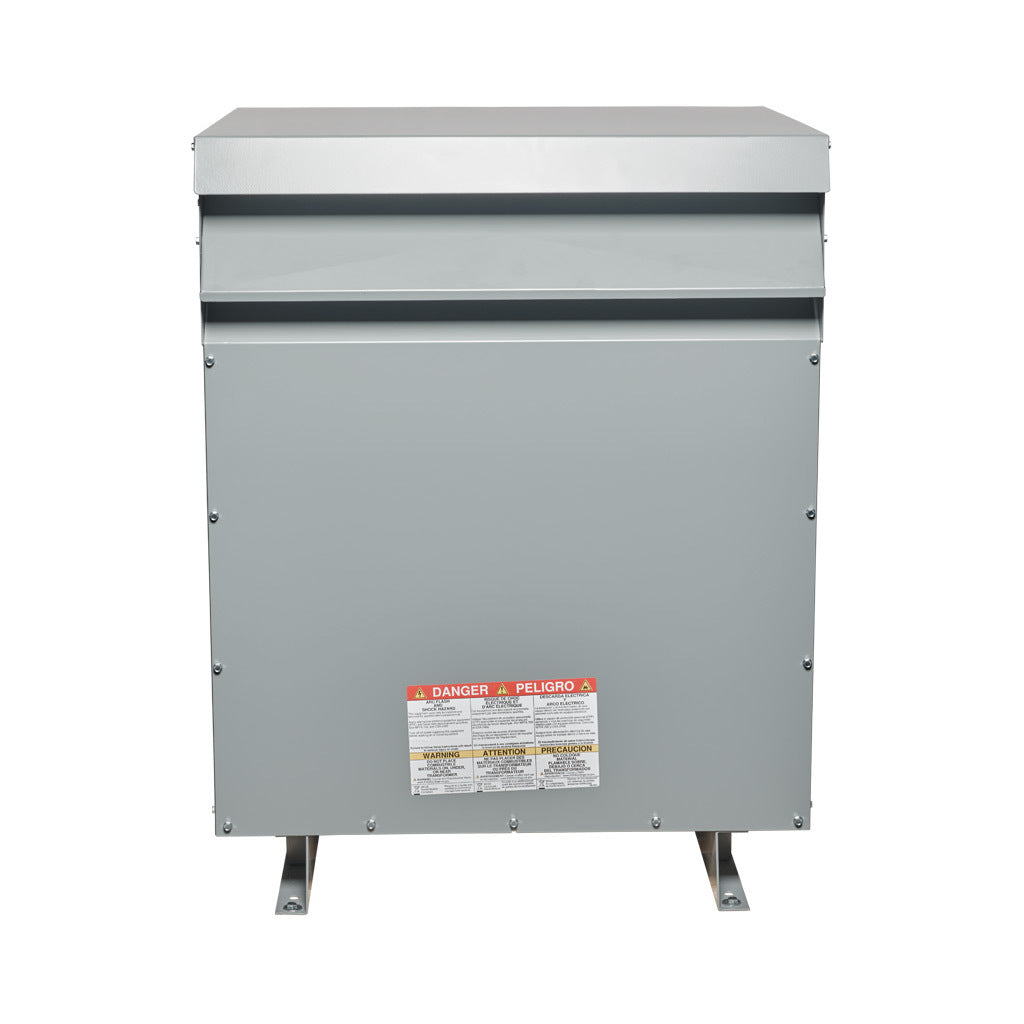

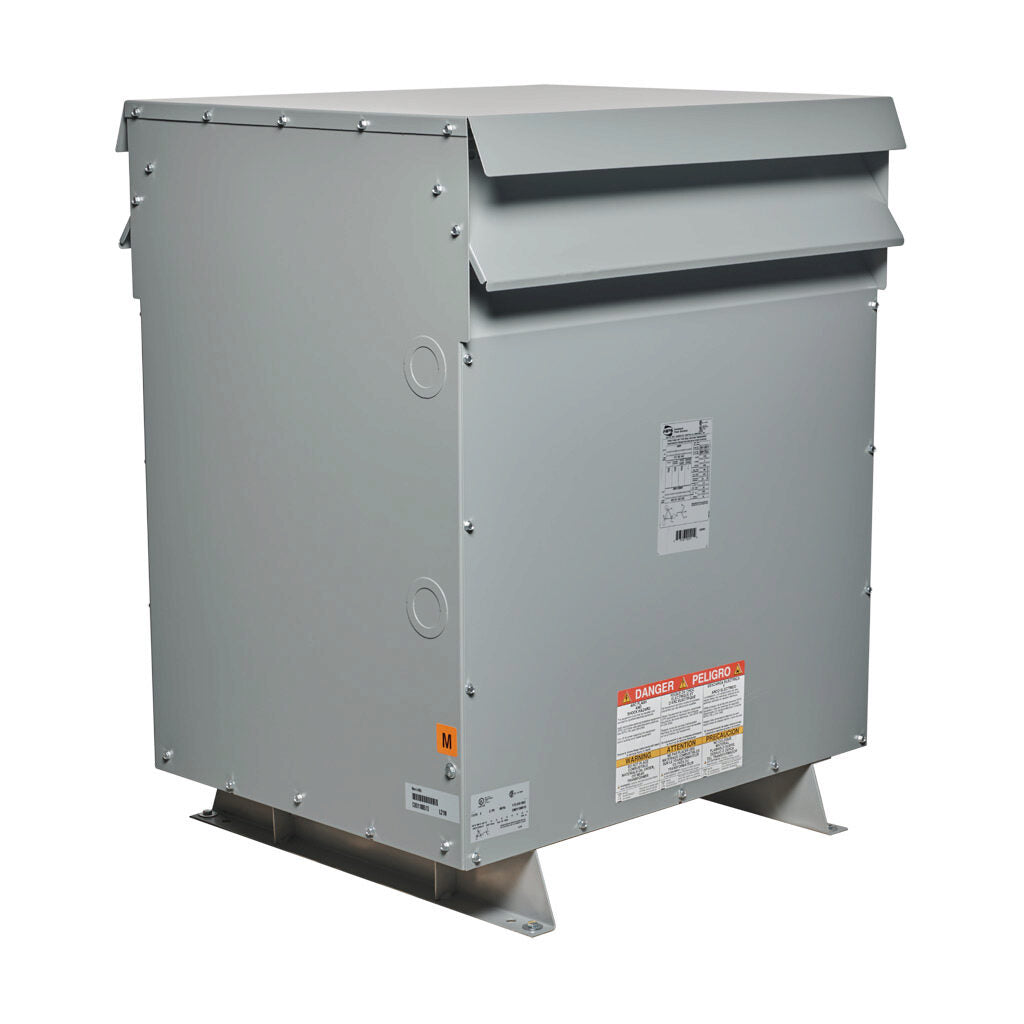

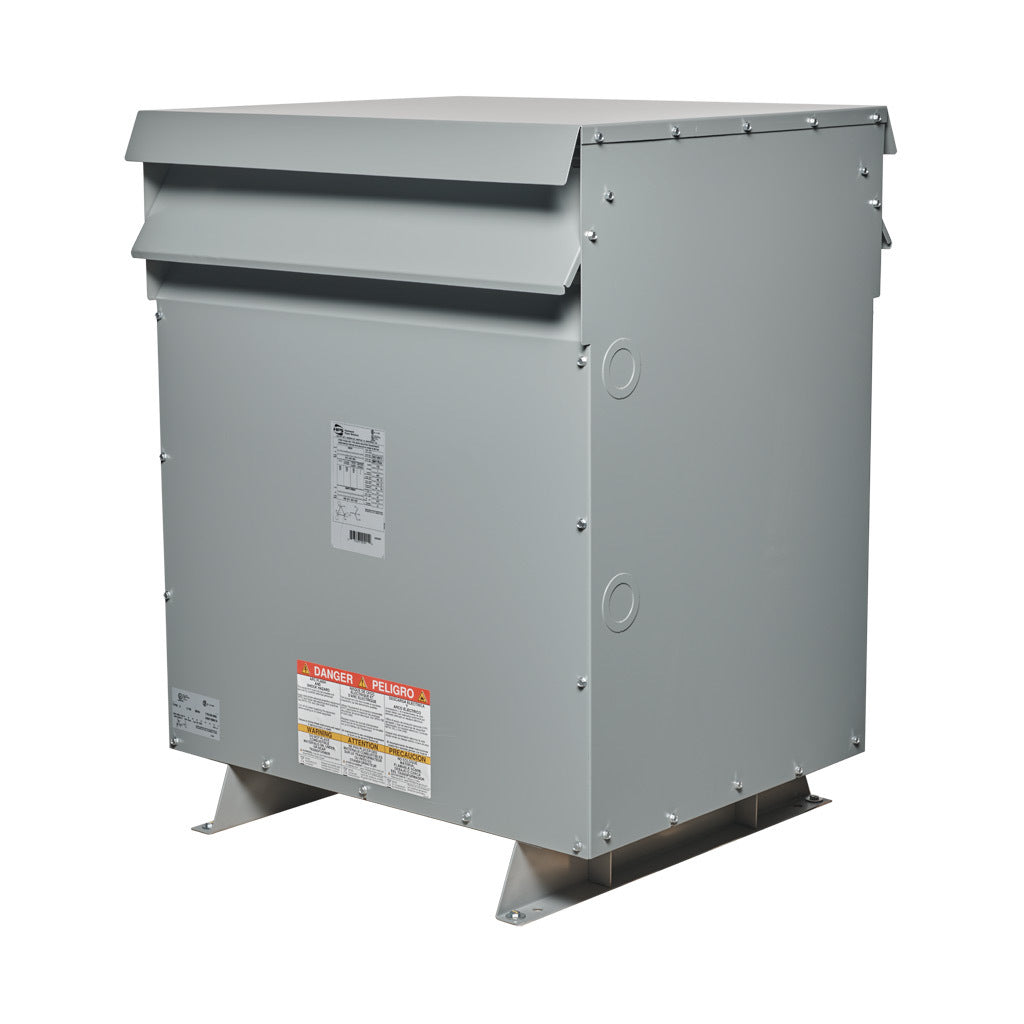

Hammond Power Solutions DM175JJ Transformer 175 kVA 3-Phase 460V Delta/Wye
Hammond Power Solutions DM175JJ Transformer 175 kVA 3-Phase 460V Delta/Wye
Price:
Sale
Sold out
Regular price
$8,847.79 USD
Regular price
$12,360.00 USD
Sale price
$8,847.79 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:

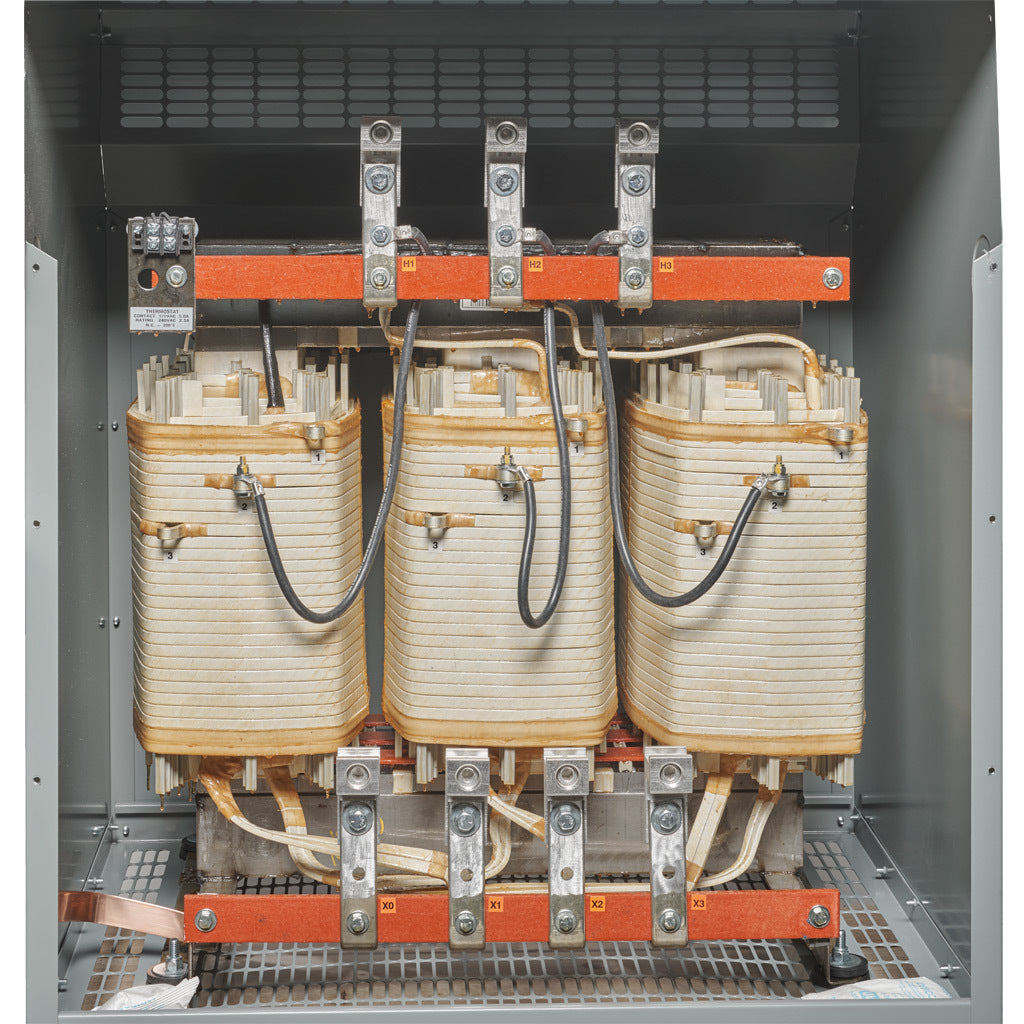

The DM175JJ is a three-phase general duty transformer designed for industrial power distribution. It features a 460V delta primary and 460Y/266V wye-n secondary configuration with a 175 kVA rating. The unit is constructed with aluminum windings and housed in a Type 3R/IP24 enclosure, complying with IBC 2018 seismic standards and NEMA ST-20 sound level requirements.
Key Features:
✔ Part Number: DM175JJ
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 3
✔ Duty: General Duty
✔ Frequency: 60Hz
✔ Primary Voltage: 460D
✔ Primary Connection: Delta
✔ Secondary Voltage: 460Y/266
✔ Secondary Connection: Wye-N
✔ Material: Aluminum
✔ Temperature Rise: 150°C
✔ Insulation Class: 220°C
✔ EKVA: 175
✔ Seismic Compliance: IBC 2018 (Sds=2.0, z/h=0, lp=1.5)
✔ Sound Level: 55 dBA (NEMA ST-20)
✔ Impedance (Std): 3.5% - 6.5%
✔ Enclosure Type: Type 3R / IP24
✔ Enclosure Finish: ANSI 61 Grey, UL50
✔ Enclosure Dimensions: 41in/1042mm(H), 32in/813mm(W), 25.5in/648mm(D)
✔ Vector Configuration: Dyn1 (-30°)
✔ UPC: 803423004019
✔ Weight: 975
✔ Certification: CSA, UL
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
✔ Enclosure CAD Drawing (PDF)
