Product Description:

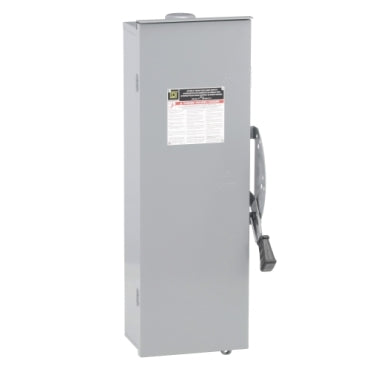

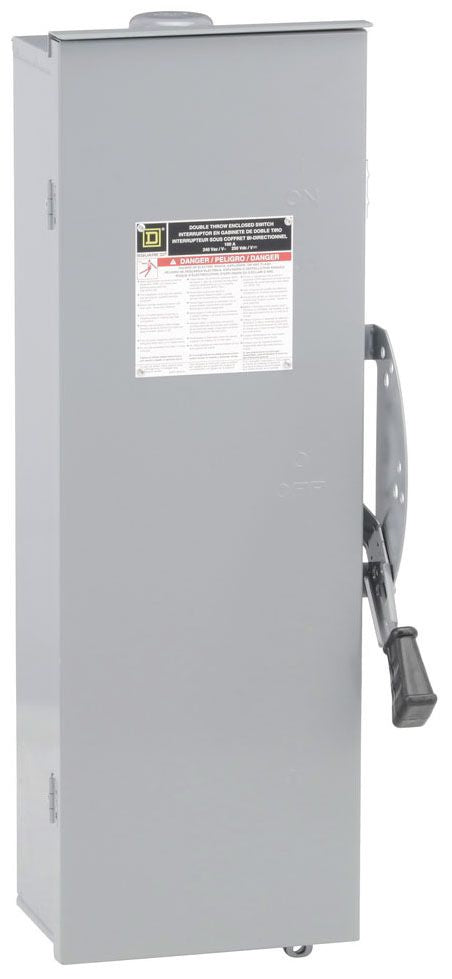

The Square D DTU223RB is a 1-phase, 2-pole disconnect switch rated for 100 amps. It features a NEMA 3R enclosure rating and a high AIC rating of 200kA@240V. This non-fusible switch is designed for reliable performance in industrial and commercial applications. Its compact design ensures easy installation and durability.
Key Features:
✔ Part Number: DTU223RB
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series F
✔ Type: DTU
✔ Voltage: 240V AC/DC
✔ Amperage: 100
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 200kA@240V
✔ Fuse Class: H, K, R, J, T
✔ Configuration: Single
✔ Switch Style: Non-Fusible
✔ NEMA Rating: NEMA 3R
✔ Compatible Frames: RLF
✔ UPC: 785901308492
✔ GTIN: 00887621872670
✔ Country of Origin: United States
✔ Dimensions: 11.96 in x 6.93 in x 30.5 in (WxDxH)
✔ Weight: 16.92
✔ Certification: UL listed
