Product Description:

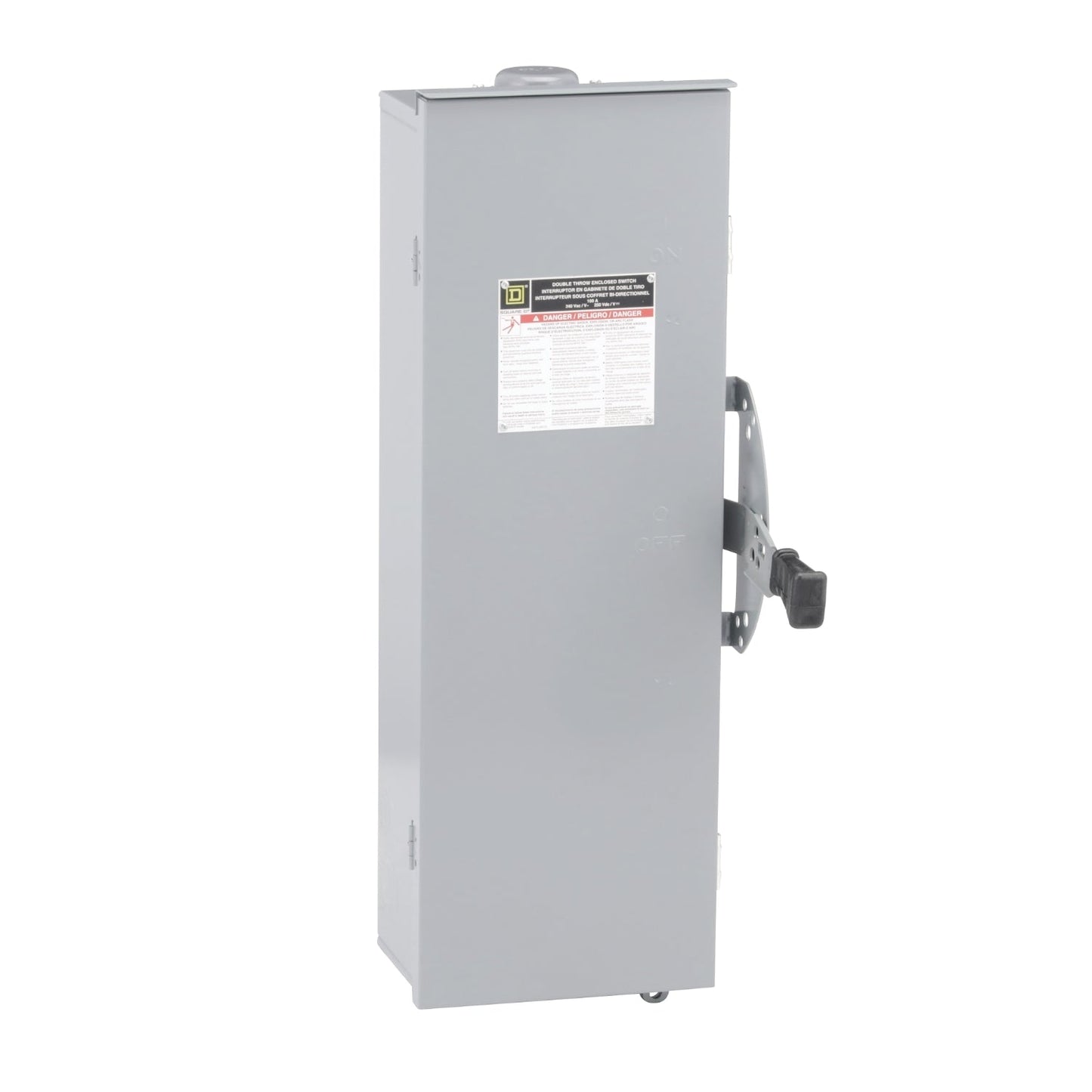

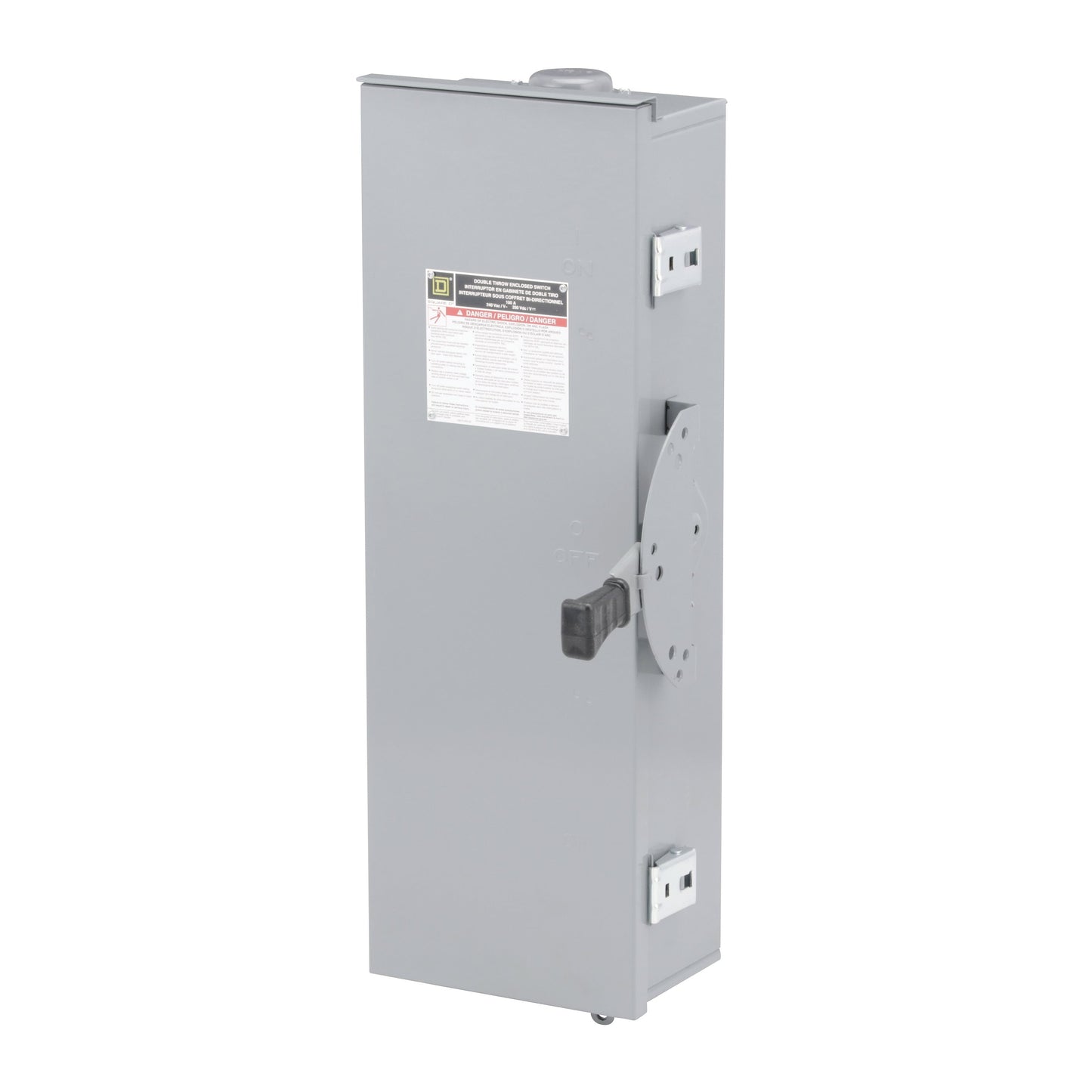

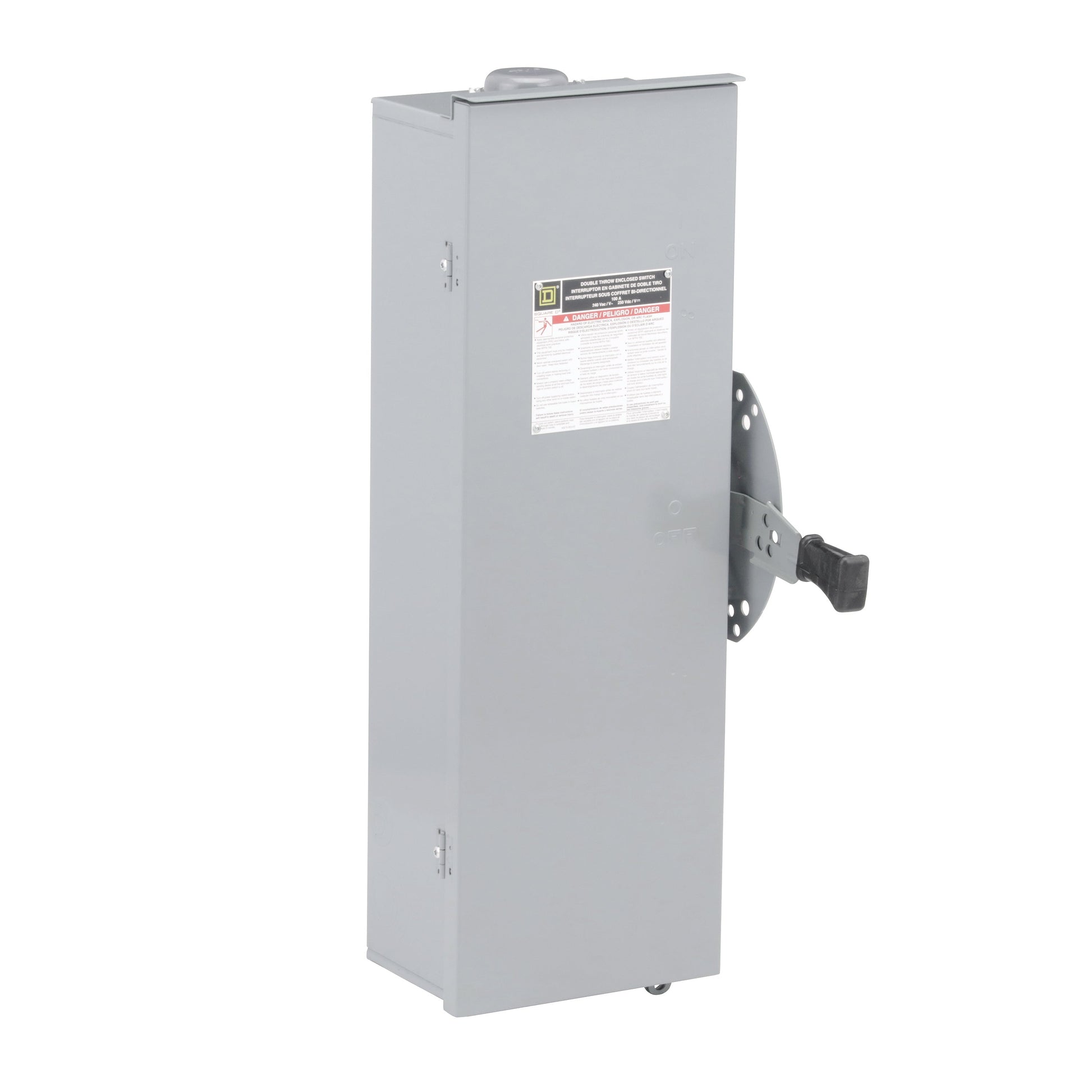

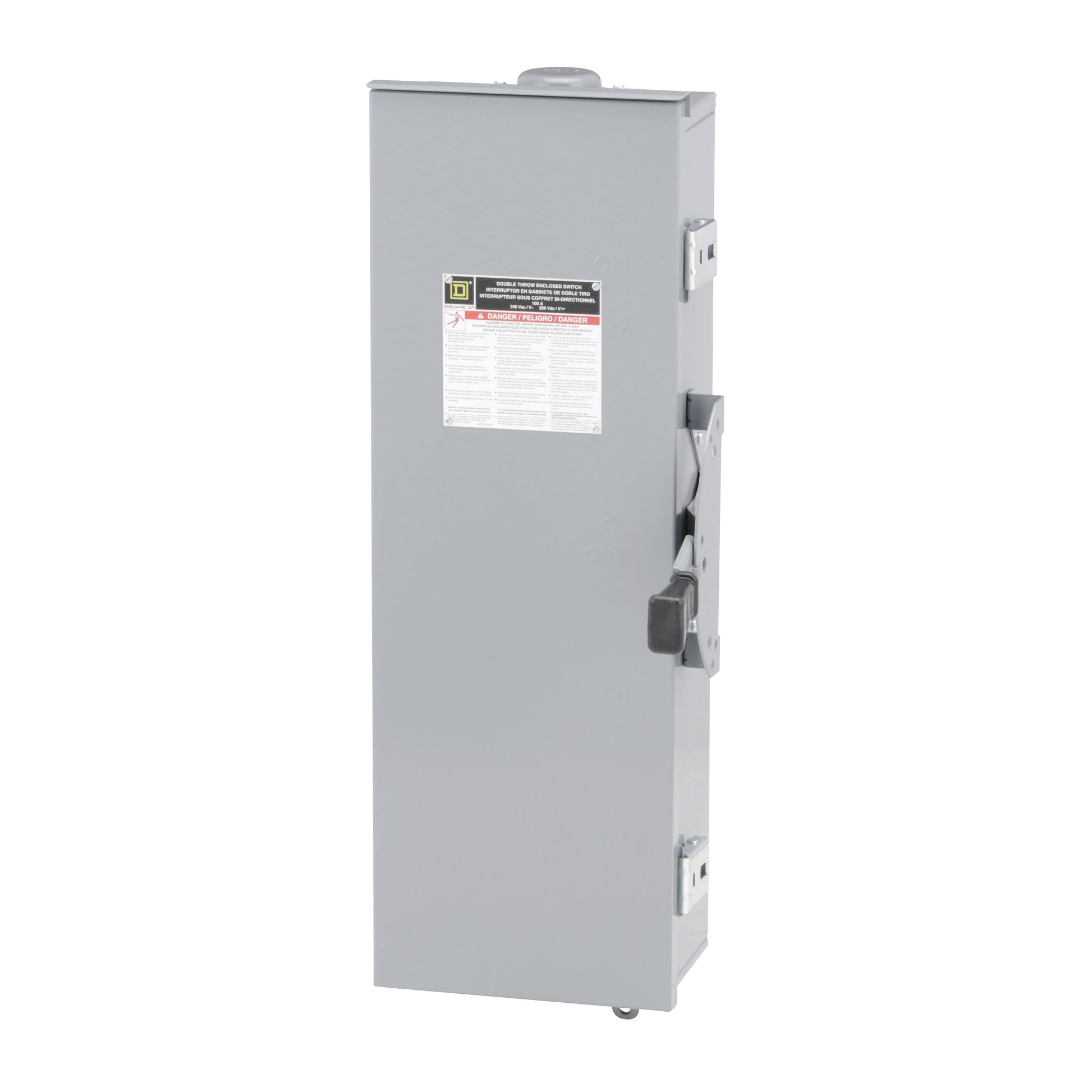

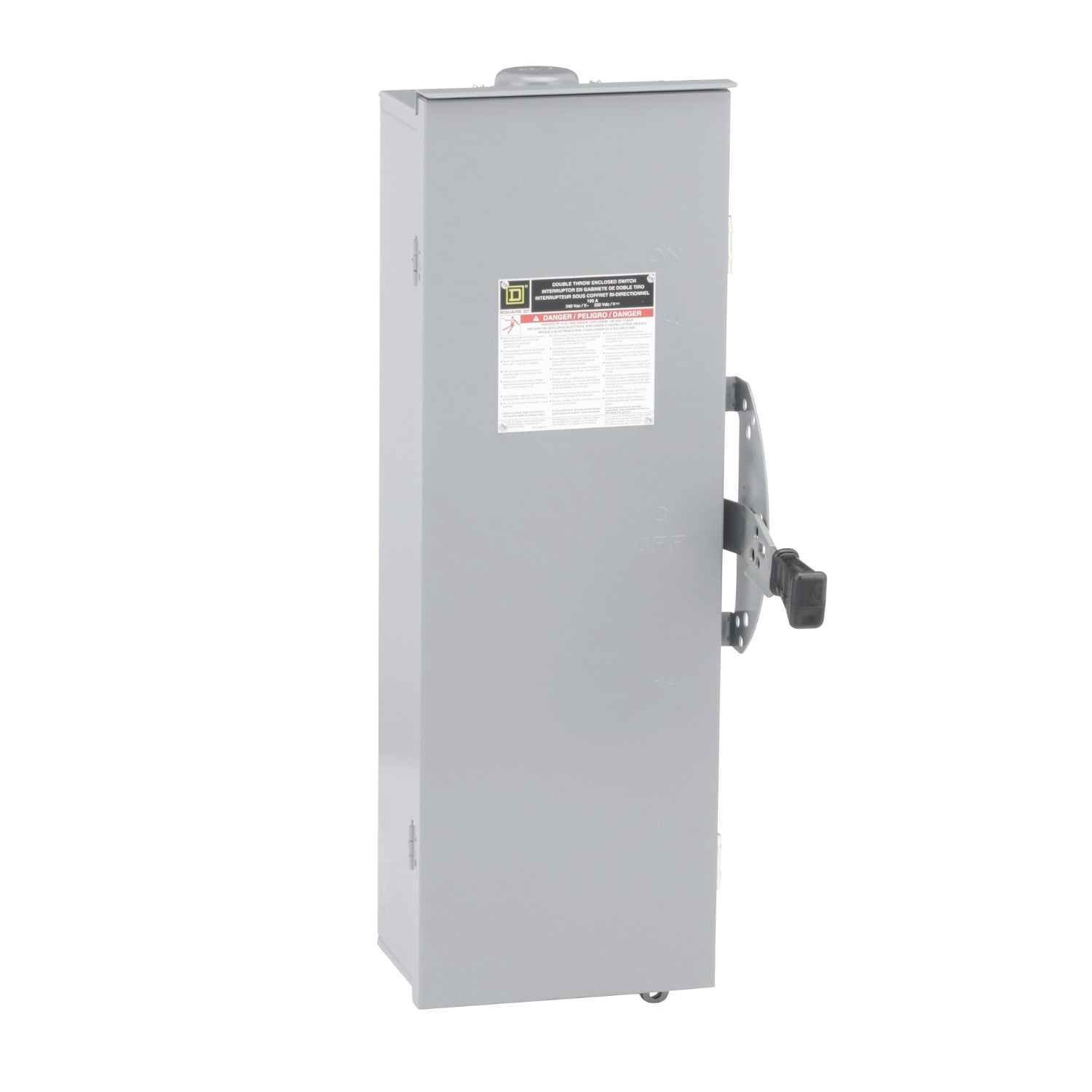

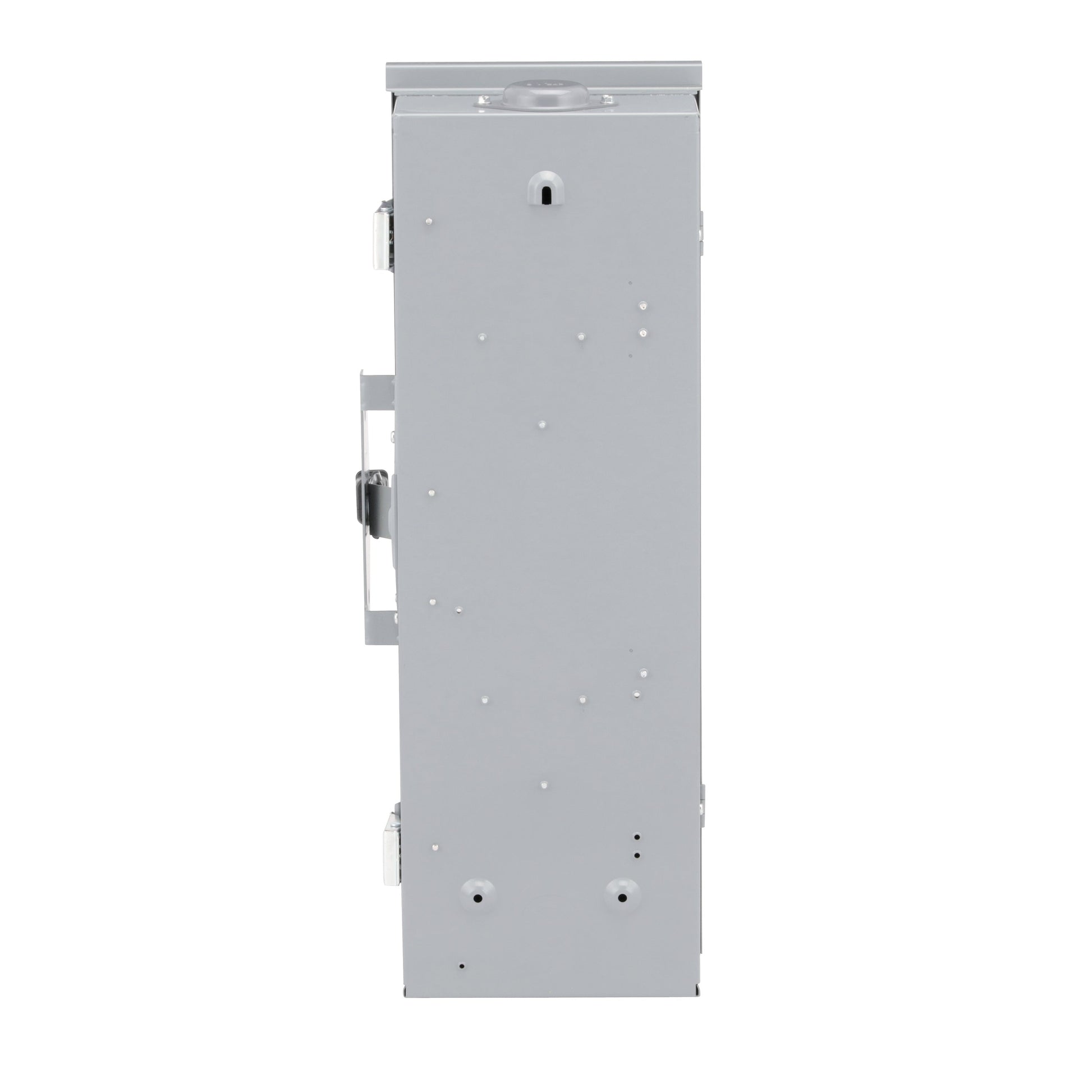

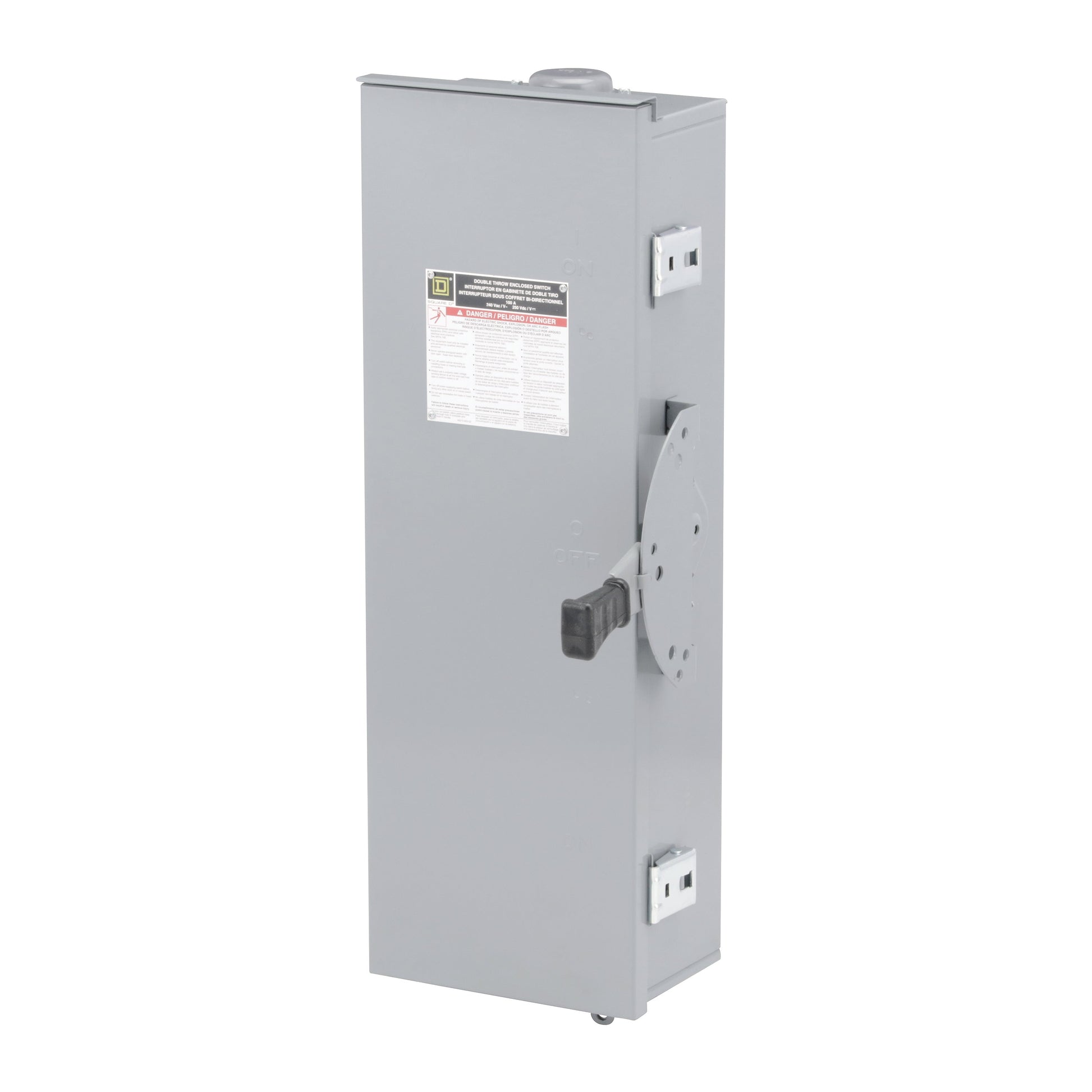

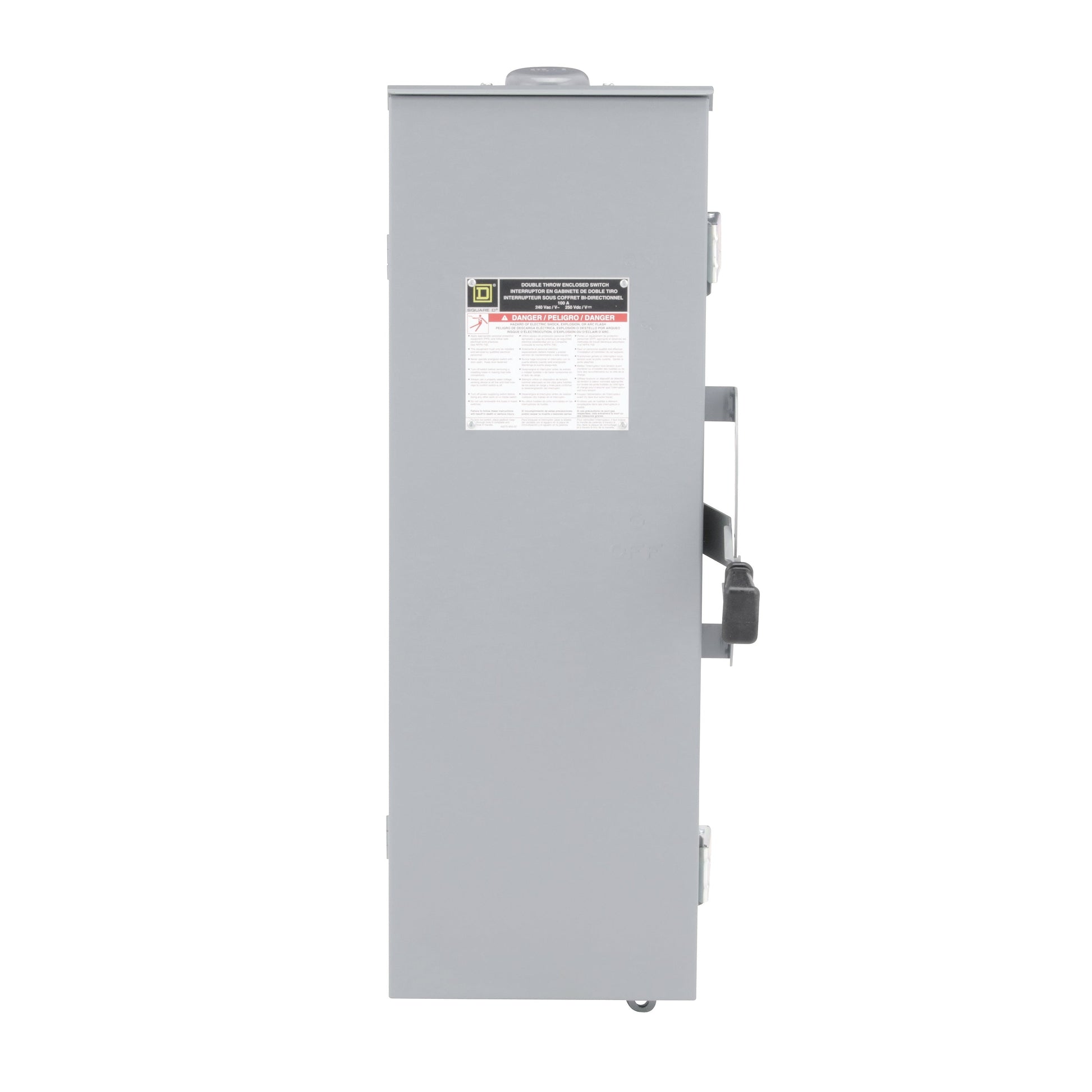

The Square D DTU323RB is a 3-phase, 3-pole disconnect switch rated for 240V and 100A. It features a NEMA 3R enclosure rating and a high AIC rating of 200kA@240V. This non-fusible switch is designed for industrial and commercial applications requiring reliable power disconnection.
Key Features:
✔ Part Number: DTU323RB
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Voltage: 240V AC
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@240V
✔ Fuse Class: H, K, R, J, T
✔ Wire: 3
✔ Configuration: Single
✔ Switch Style: Non-Fusible
✔ Nema Rating: NEMA 3R
✔ Compatible Frames: RLF
✔ UPC: 78590130873
✔ GTIN: 00785901308737
✔ Country of Origin: United States
✔ Dimensions: 11.96 in x 6.93 in x 30.5 in (WxDxH)
✔ Weight: 17.15
✔ Certification: UL listed
