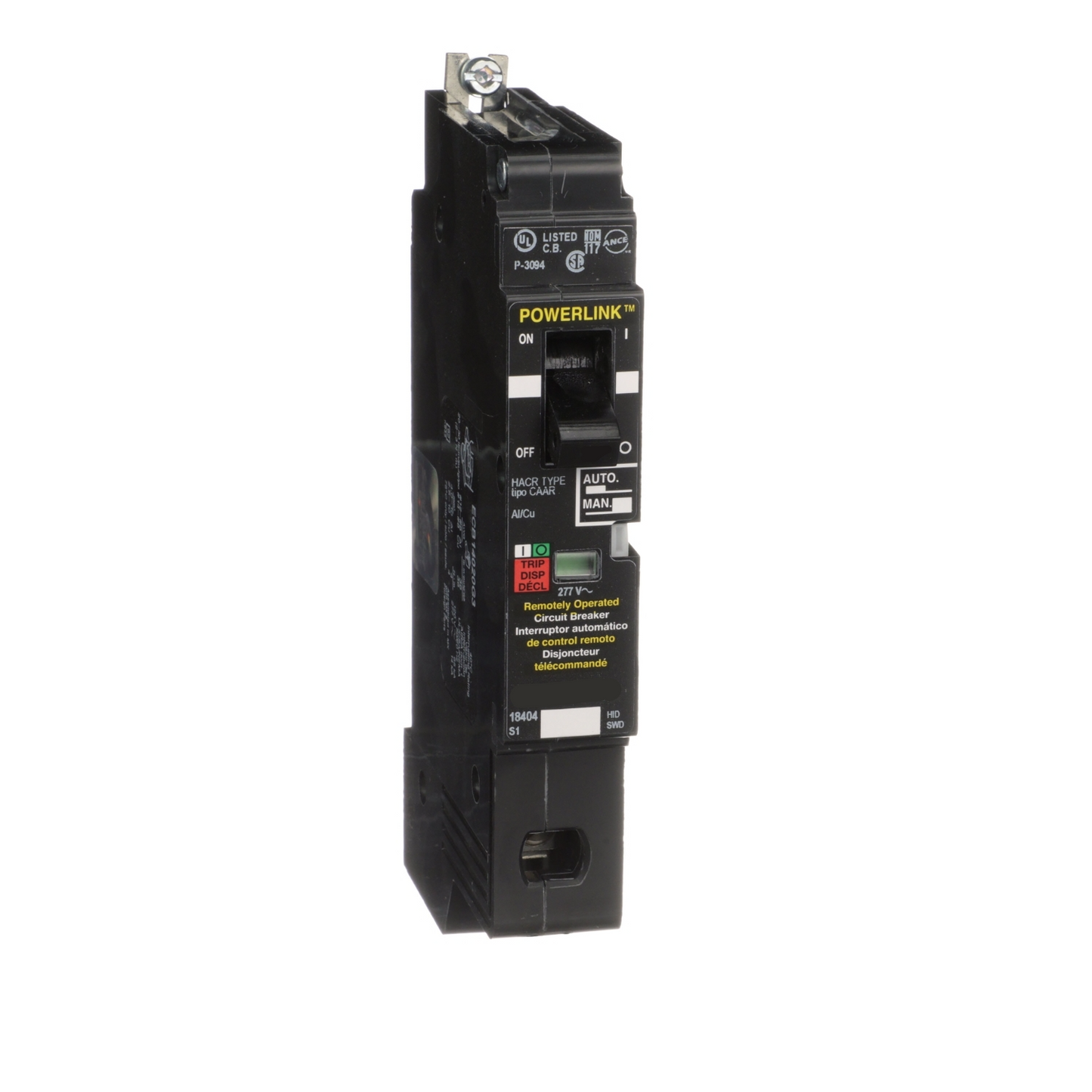

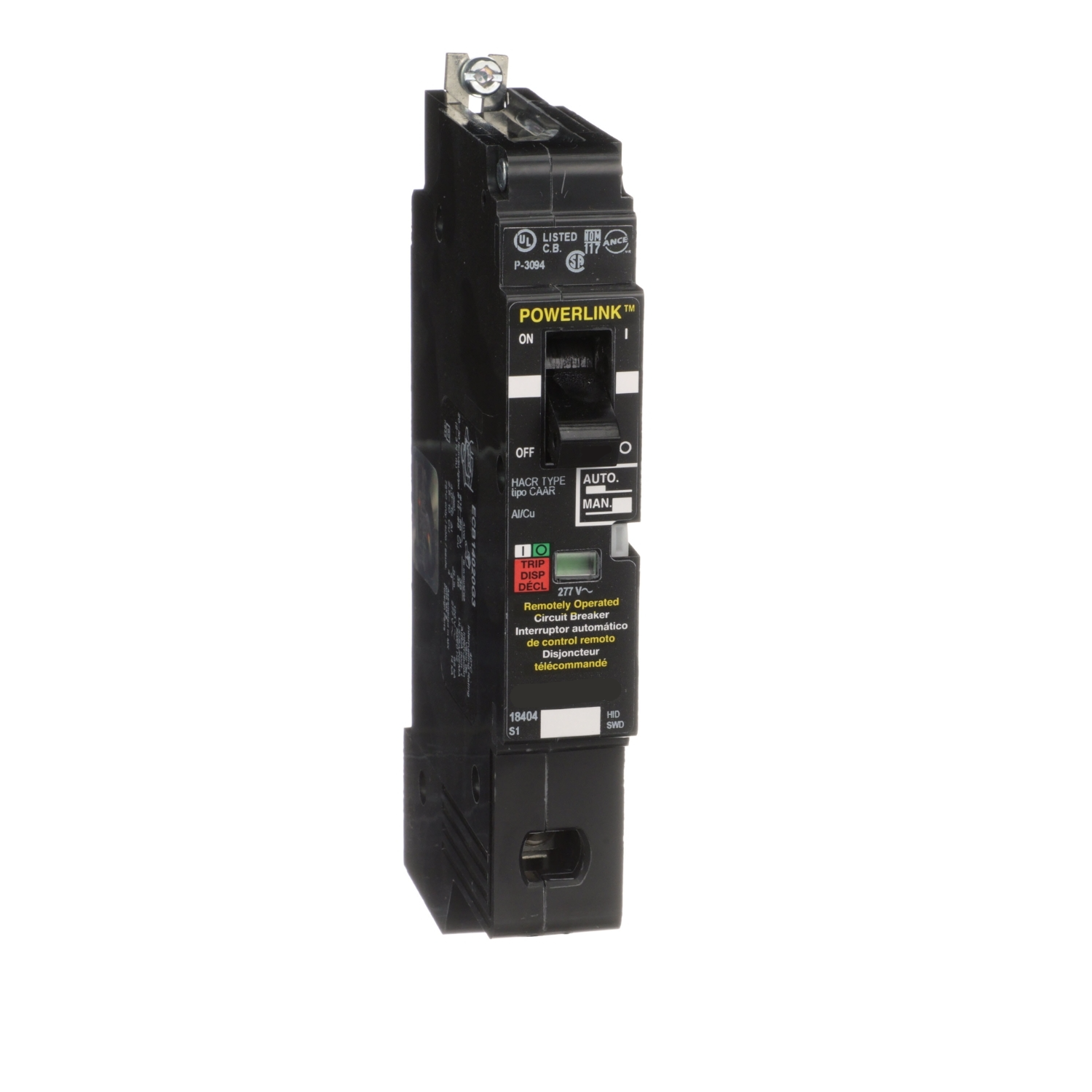

Square D ECB14030G3 Circuit Breaker | 480V 30A 1P 14kA@480V Bolt-On Powerlink

Product Description:
The Square D ECB14030G3 is a Molded Case Circuit Breaker from the Powerlink family. It features a 1-pole design with a 480V, 30A rating and a 14kA@480V AIC rating. This breaker uses a Bolt-On connection and provides Thermal Magnetic protection for reliable circuit safety.

Key Features:
✔ Part Number: ECB14030G3
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerlink
✔ Type: ECB-G3
✔ Voltage: 480
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 14kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Bolted Connection
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG (Cu/Al)
✔ Breaker Type: ECB-G3
✔ Protection: Thermal Magnetic
✔ UPC: 785901300151
✔ GTIN: 00785901300151
✔ Country of Origin: Mexico
✔ Dimensions: Width 34.38 in (873.25 mm) Height 39 in (990.60 mm)
✔ Weight: 0.6
✔ Standards: CSA, UL Listed
✔ Certification: CSA, UL Listed
