Square D ECB32030G3 Circuit Breaker | 240V 30A 3P 65kA@240V Bolt-On Powerlink

Product Description:

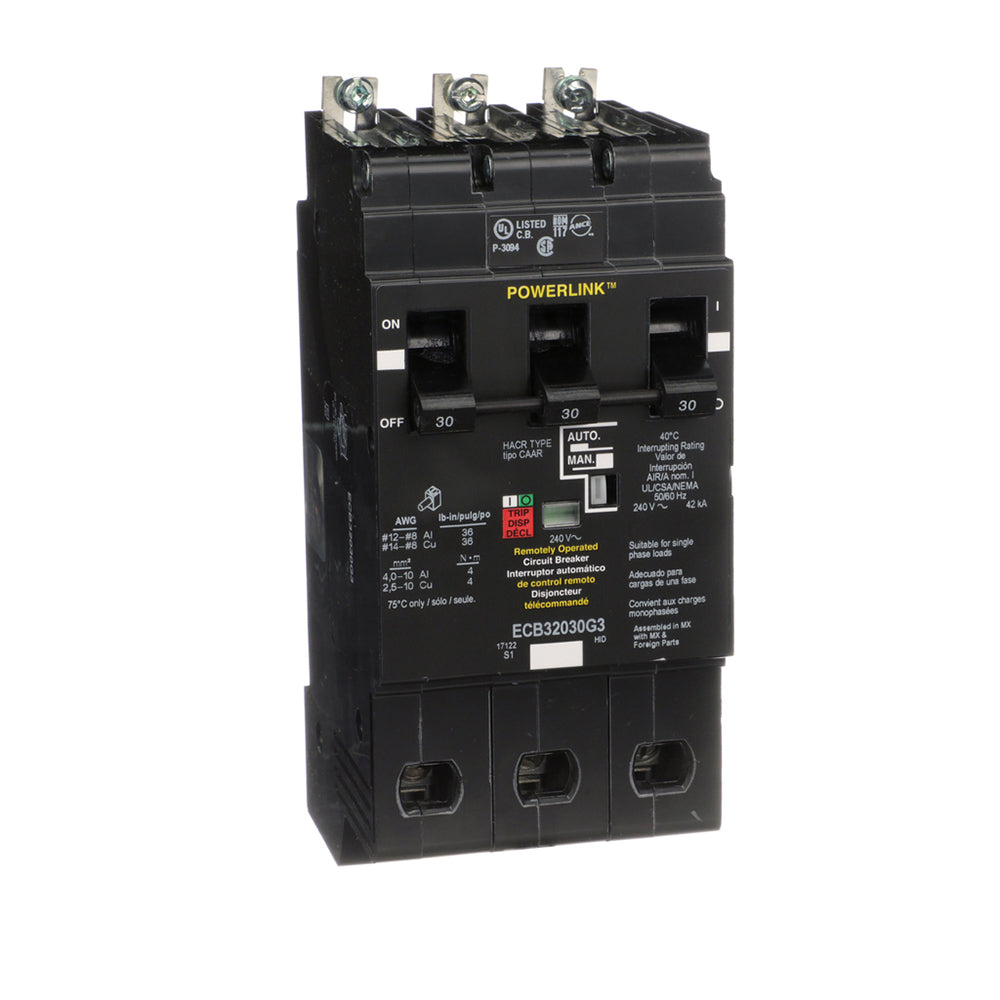

The Square D ECB32030G3 is a Molded Case Circuit Breaker from the Powerlink family. It features a 3-pole design with a 240V, 30A rating and a 65kA@240V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable circuit safety.

Key Features:
✔ Part Number: ECB32030G3
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerlink
✔ Type: ECB-G3
✔ Voltage: 240
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Bolted Connection
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG (Cu/Al)
✔ Breaker Type: ECB-G3
✔ Protection: Thermal Magnetic
✔ UPC: 785901300175
✔ GTIN: 00785901300175
✔ Country of Origin: Mexico
✔ Weight: 1.72
✔ Standards: UL Listed, CSA
✔ Certification: UL Listed, CSA
✔ Wire Size: AWG 12 to AWG 8, AWG 10 to AWG 8, Aluminum/Copper
