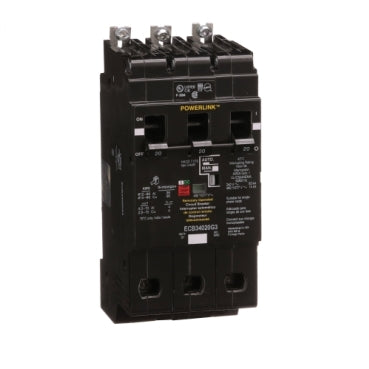

Square D ECB34020G3 Circuit Breaker | 480V 20A 3P 14kA@480V Bolt-On Powerlink

Product Description:
The Square D ECB34020G3 is a Molded Case Circuit Breaker from the Powerlink family. It features a 3-pole design with a 480V voltage rating and 20A amperage. This breaker offers Thermal Magnetic protection and a 14kA@480V AIC rating. It uses a Bolt-On connection for secure installation.

Key Features:
✔ Part Number: ECB34020G3
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerlink
✔ Type: ECB-G3
✔ Voltage: 480
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 14kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Bolted Connection
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG (Cu/Al)
✔ Breaker Type: ECB-G3
✔ Protection: Thermal Magnetic
✔ UPC: 785901300199
✔ GTIN: 00785901300199
✔ Country of Origin: Mexico
✔ Dimensions: Width 14.25 in (362 mm) Height 39.37 in (1000 mm)
✔ Weight: 1.71
✔ Standards: CSA, UL Listed
✔ Certification: CSA, UL Listed
✔ Wire Size: AWG 12, AWG 8 Aluminium, AWG 10, AWG 8 Copper
