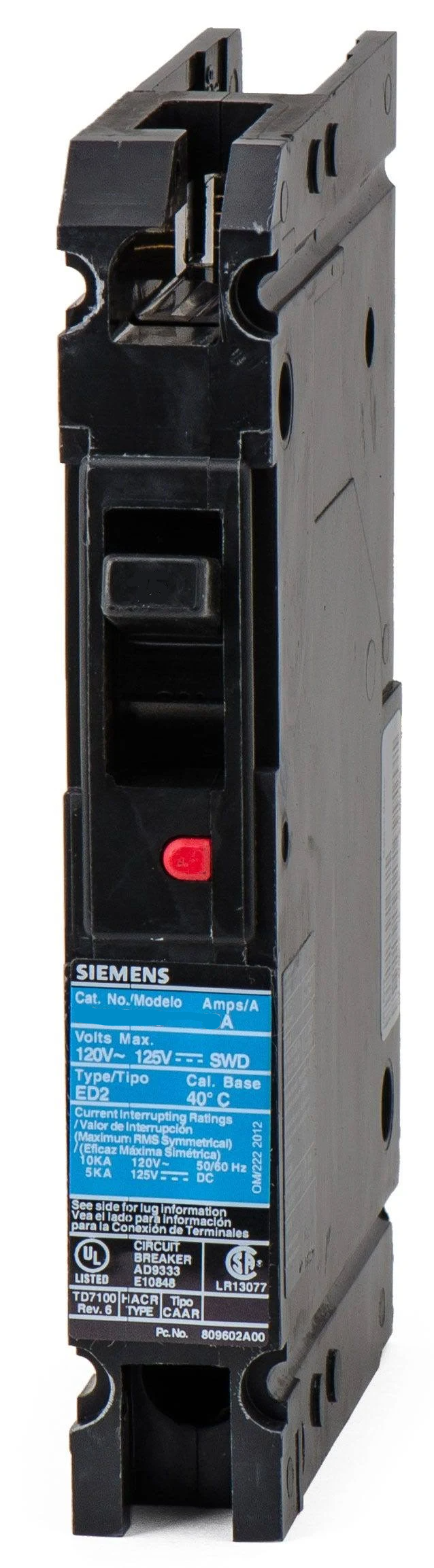

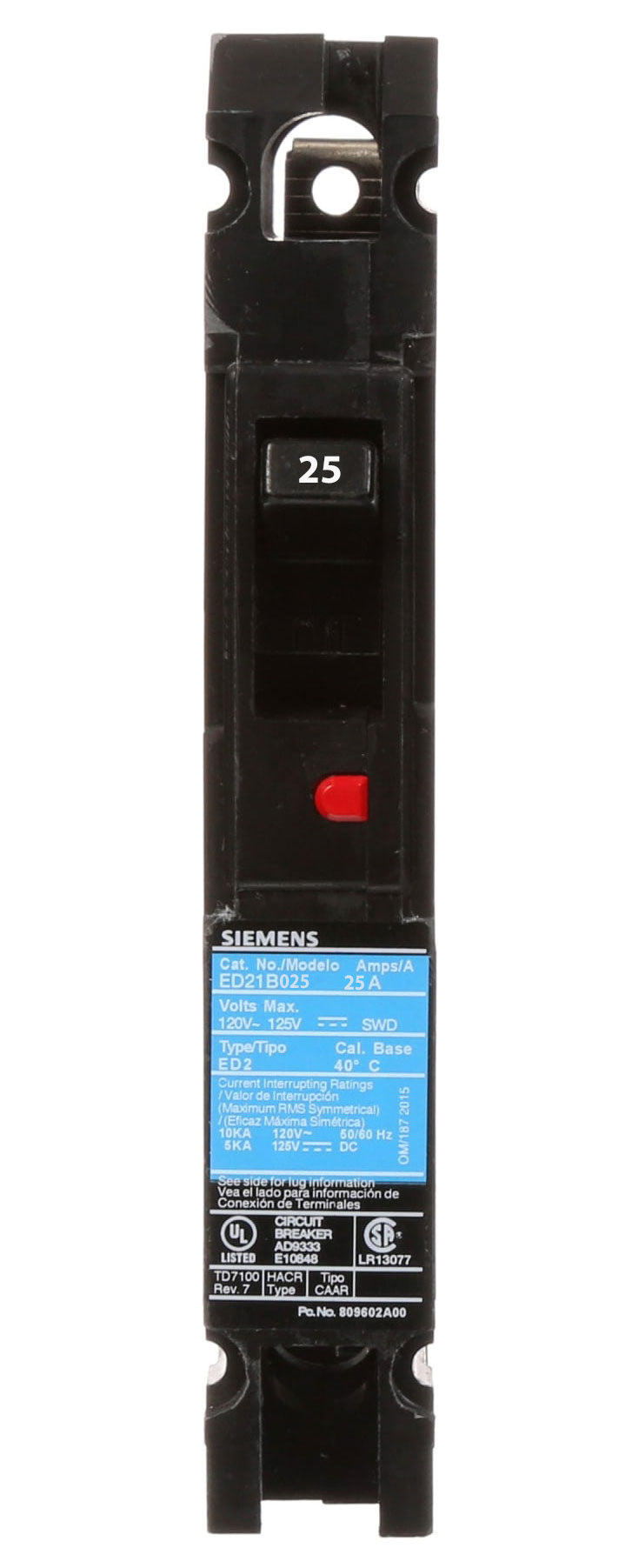

Siemens ED21B025 Circuit Breaker | 120V 25A 1P 10kA@120V Lug In Panelboard Sentron Series

Product Description:
The Siemens ED21B025 is a Molded Case Circuit Breaker from the Sentron Series family. It features a 1-pole design with 120V voltage and 25A amperage rating, suitable for panelboard connections. This breaker offers Thermal Magnetic protection and has an AIC rating of 10kA@120V. It is compatible with SB Switchboards and Sentron Panelboards.

Key Features:
✔ Part Number: ED21B025
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 120
✔ Amperage: 25
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Any
✔ UPC: 783643208728
✔ GTIN: 00783643208728
✔ Country of Origin: Mexico
✔ Weight: 4
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
