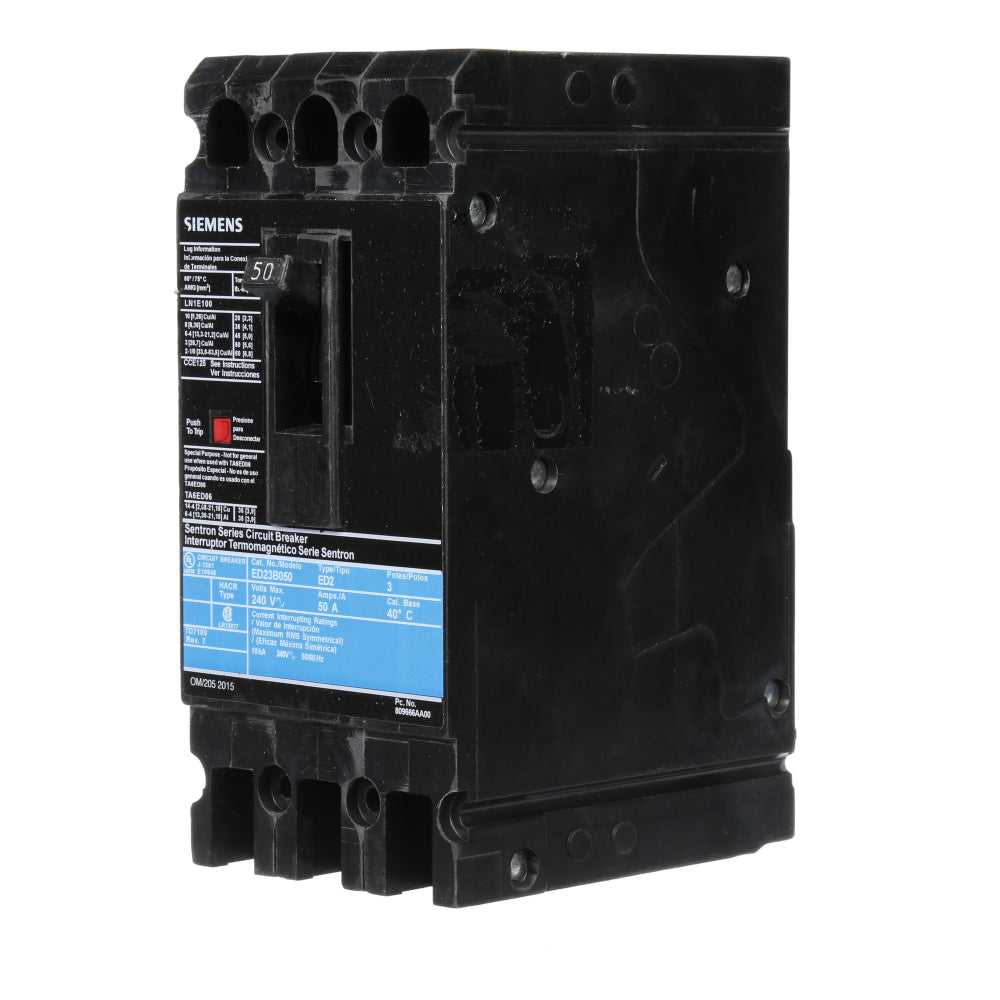

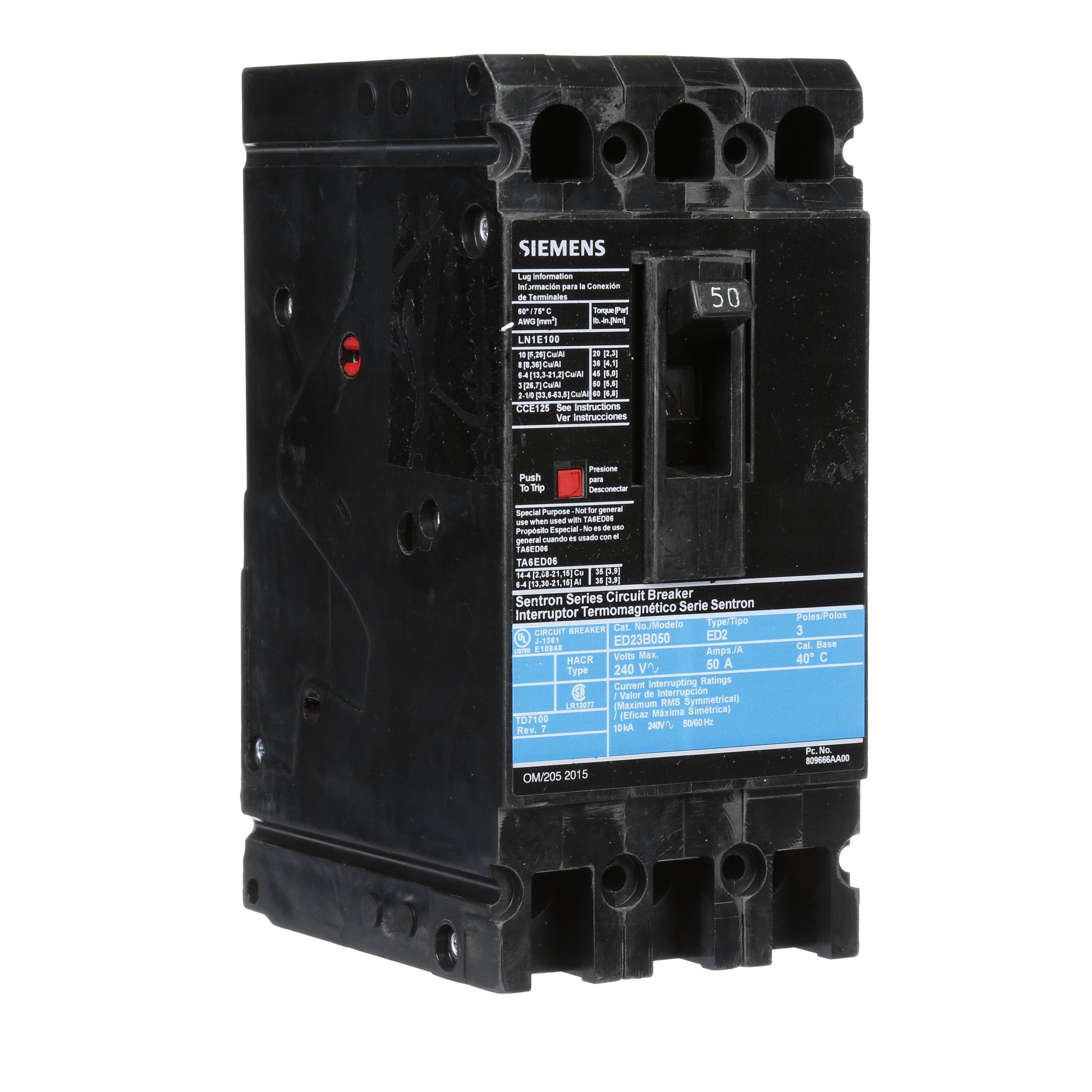

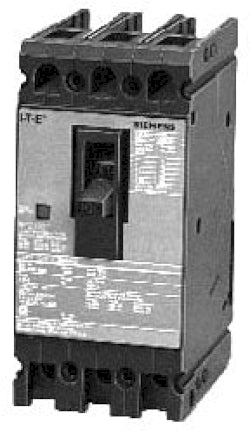

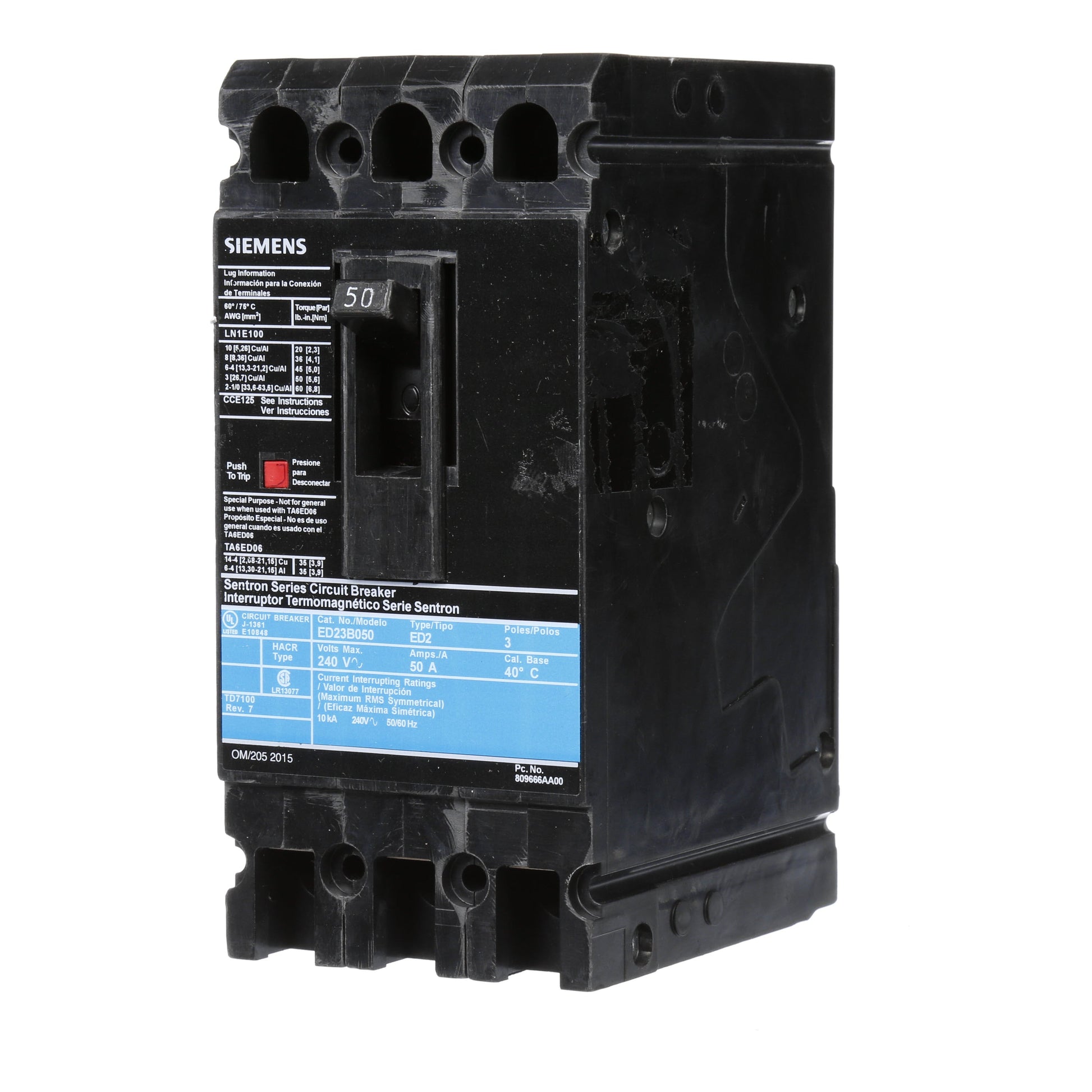

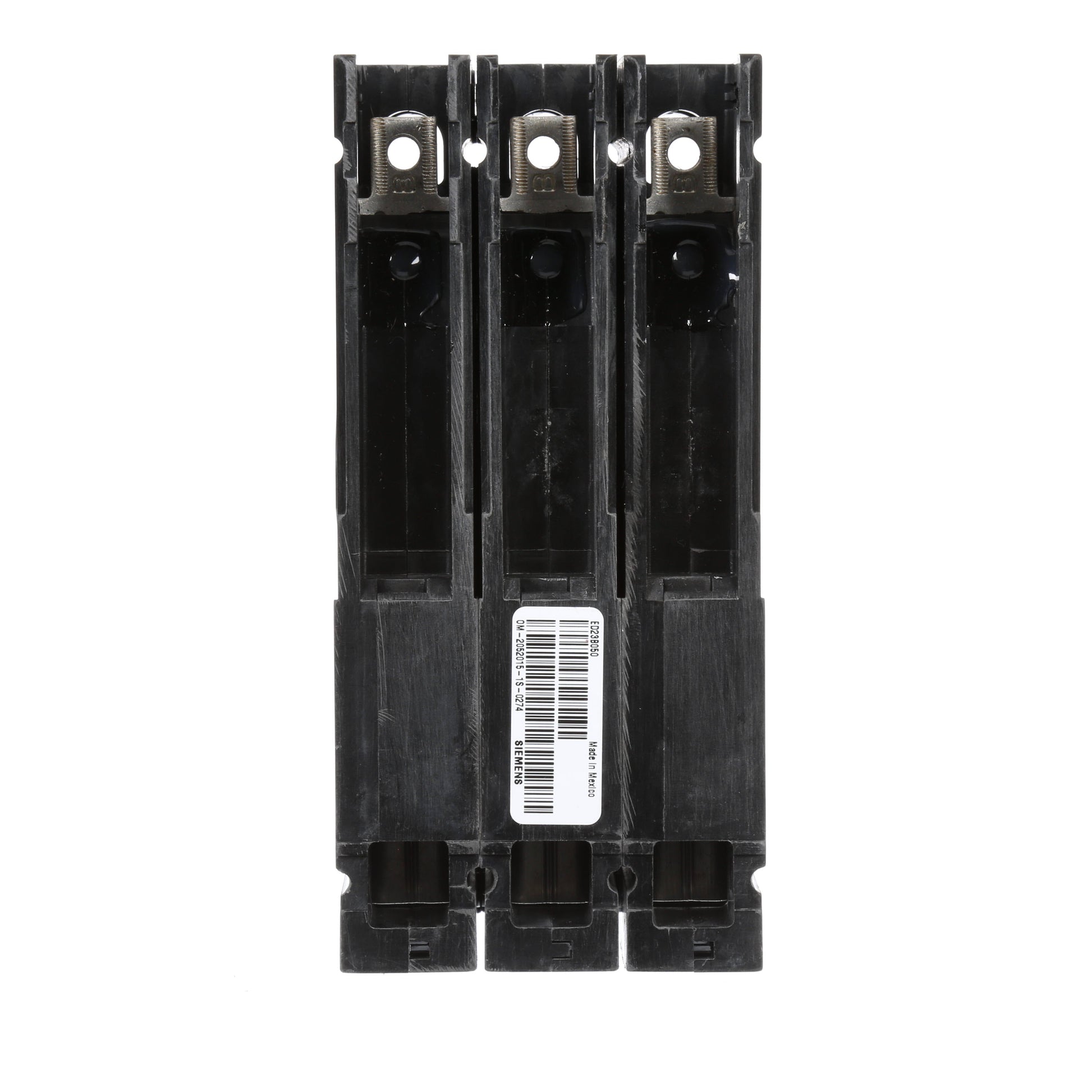

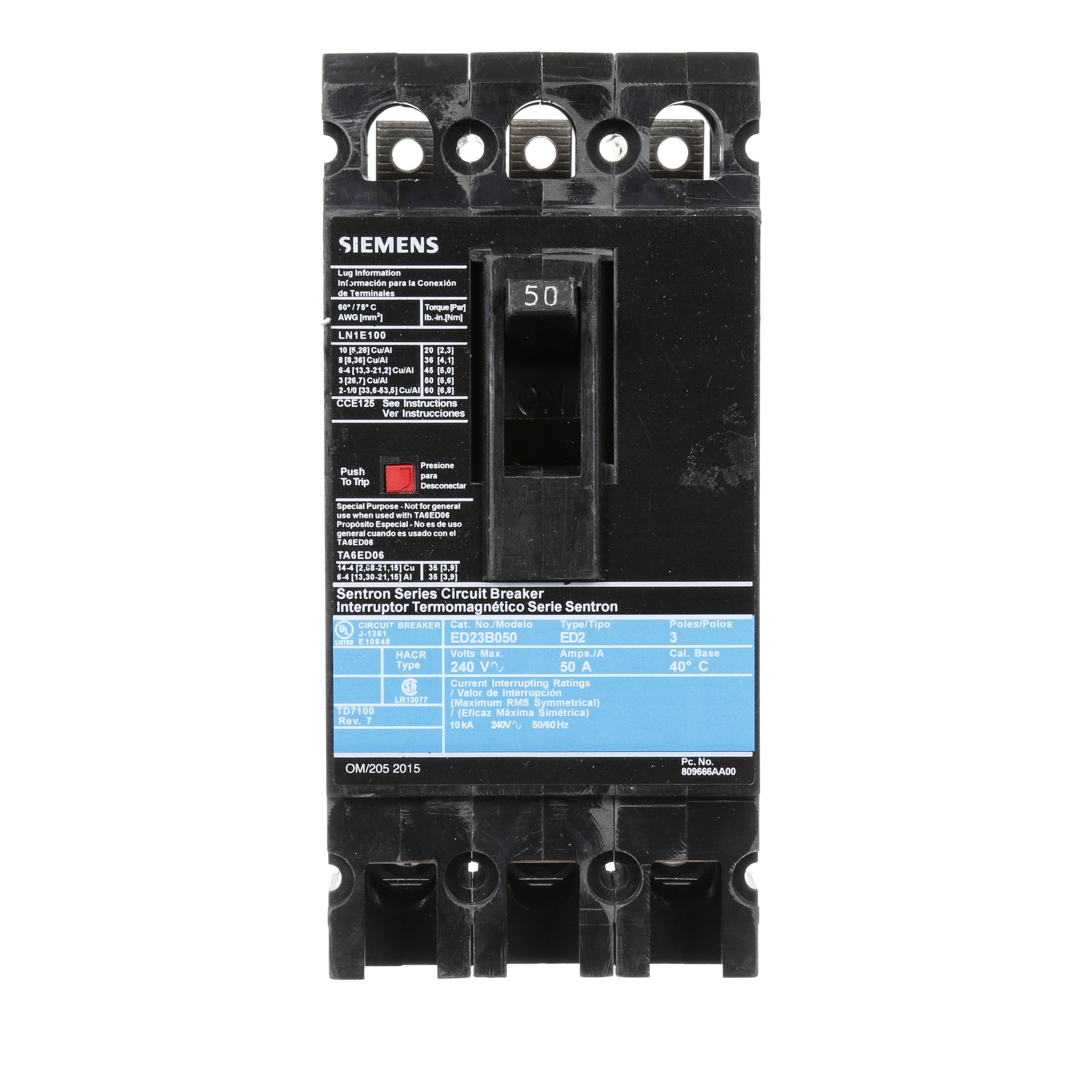

Siemens ED23B050 Circuit Breaker | 240V 50A 3P 10kA@240V Lug In Panelboard Sentron Series
Siemens ED23B050 Circuit Breaker | 240V 50A 3P 10kA@240V Lug In Panelboard Sentron Series
Price:
Sale
Sold out
Regular price
$337.34 USD
Regular price
$1,772.00 USD
Sale price
$337.34 USD
Unit price
per
Shipping calculated at checkout.
Stock:
14 in stock
Couldn't load pickup availability
Product Description:
The Siemens ED23B050 is a Molded Case Circuit Breaker from the Sentron Series family. It is a 3-pole, 240 Volt, 50 amp rated breaker with an AIC rating of 10kA@240V. This model uses a Lug In Panelboard connection and provides Thermal Magnetic protection for reliable circuit safety.
Key Features:
✔ Part Number: ED23B050
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 240
✔ Amperage: 50
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 783643209039
✔ GTIN: 00783643209039
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 6.34 in
✔ Weight: 7
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
✔ Wire Size: 10 To 1/0 AWG (Aluminum/Copper)
