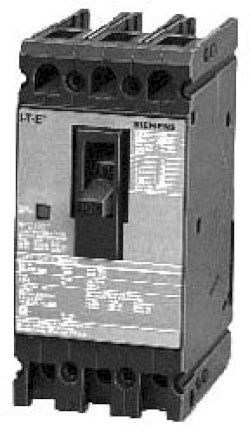

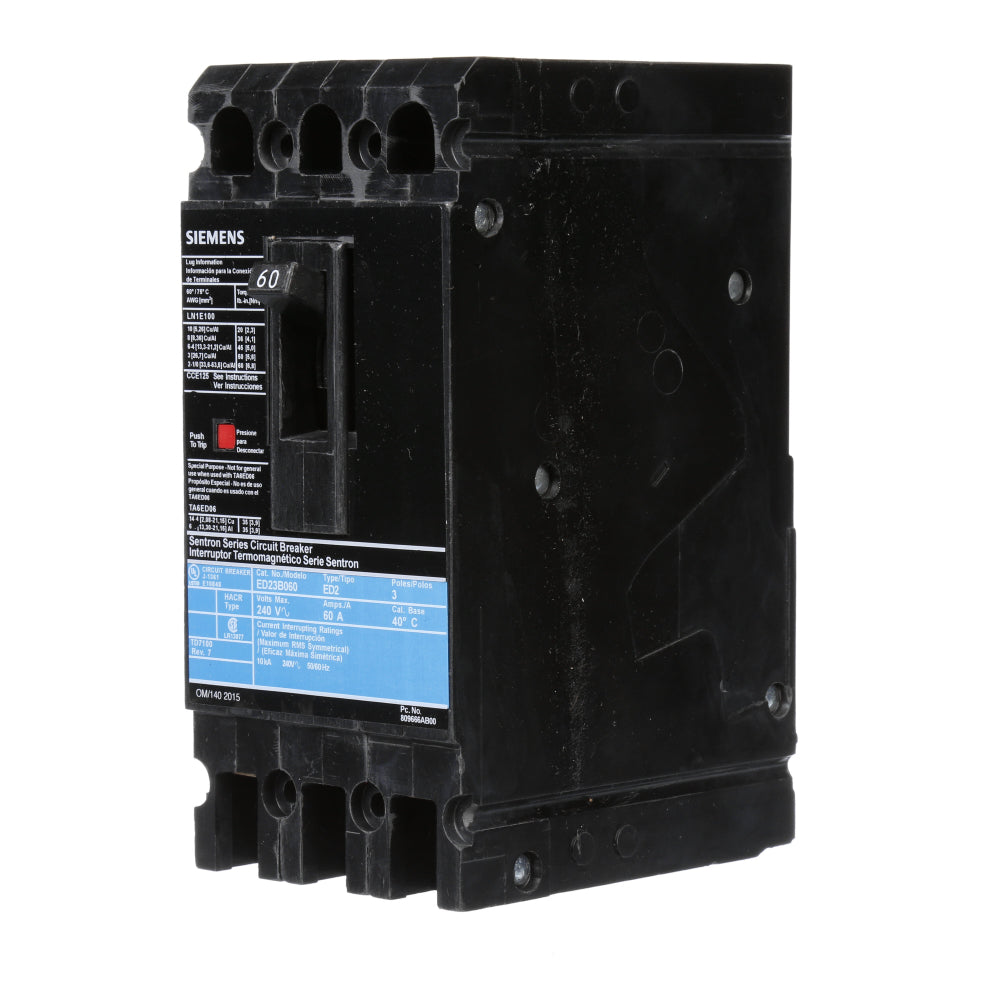

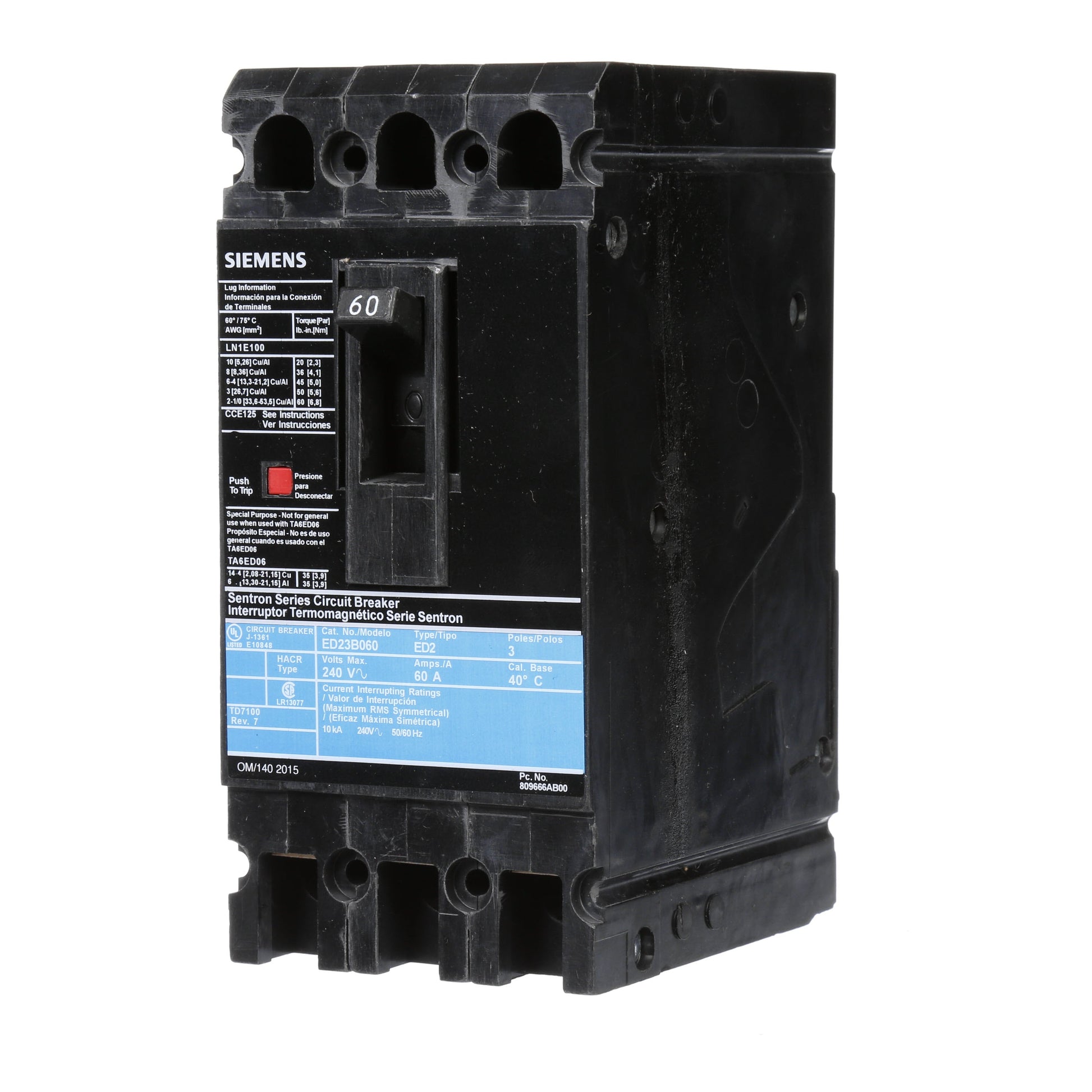

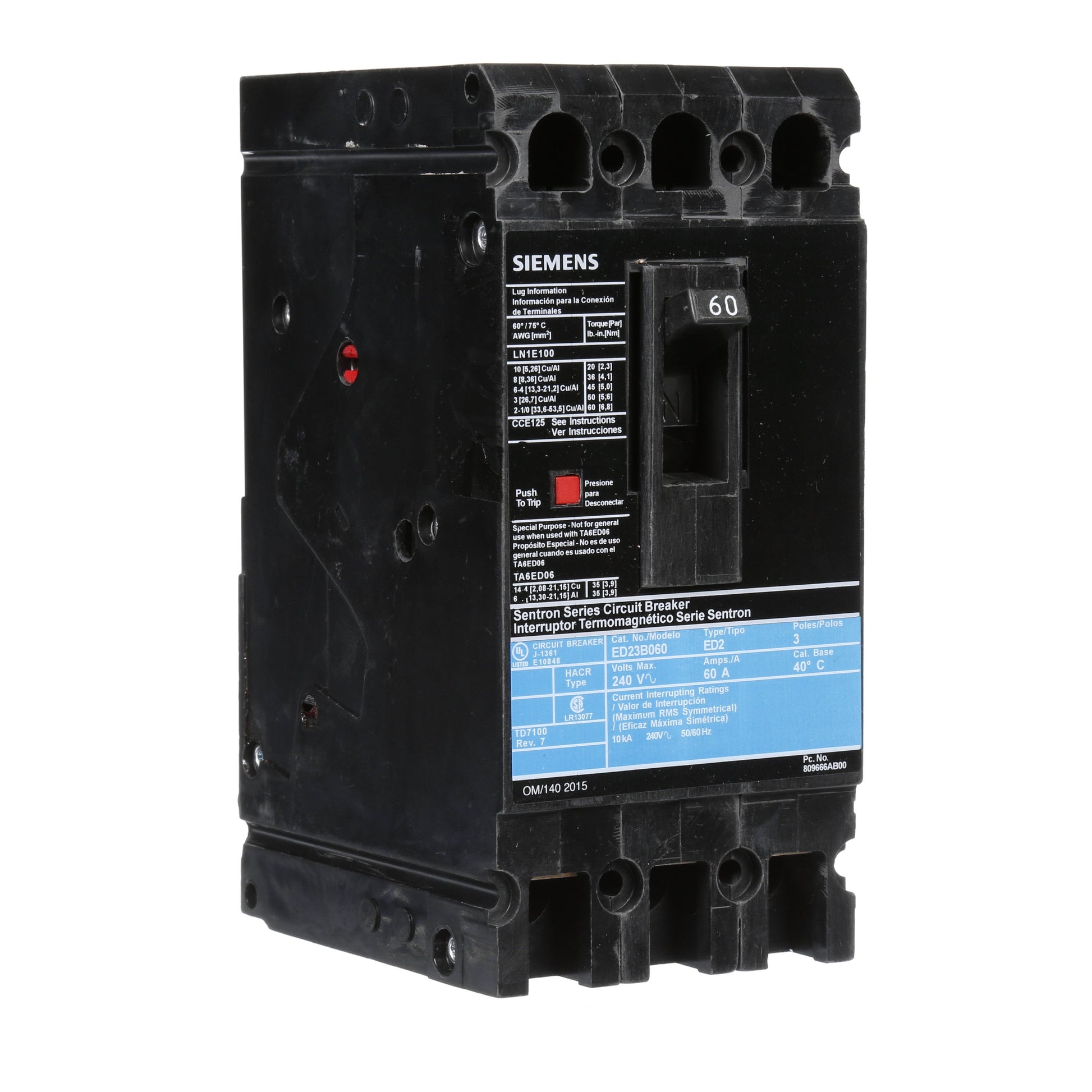

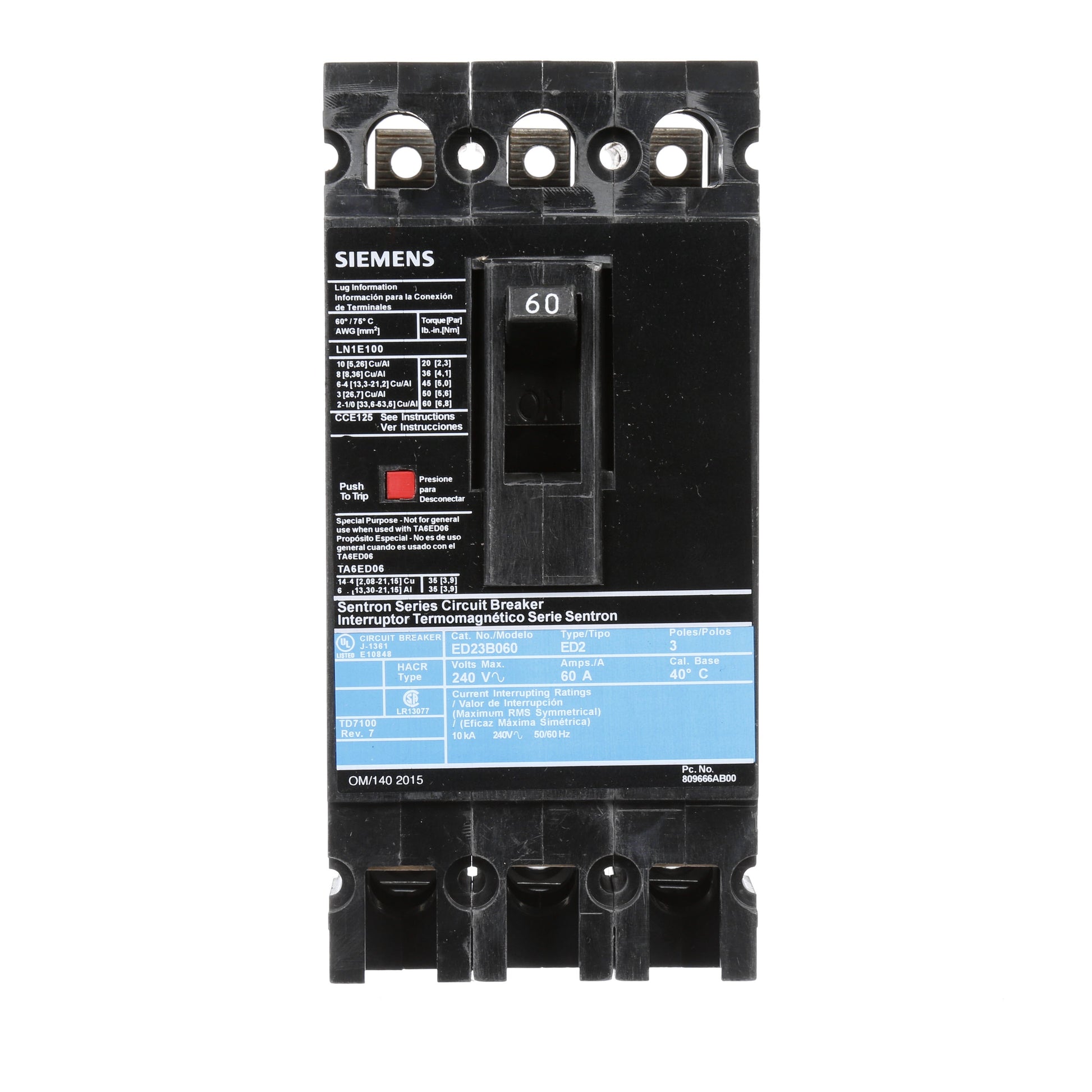

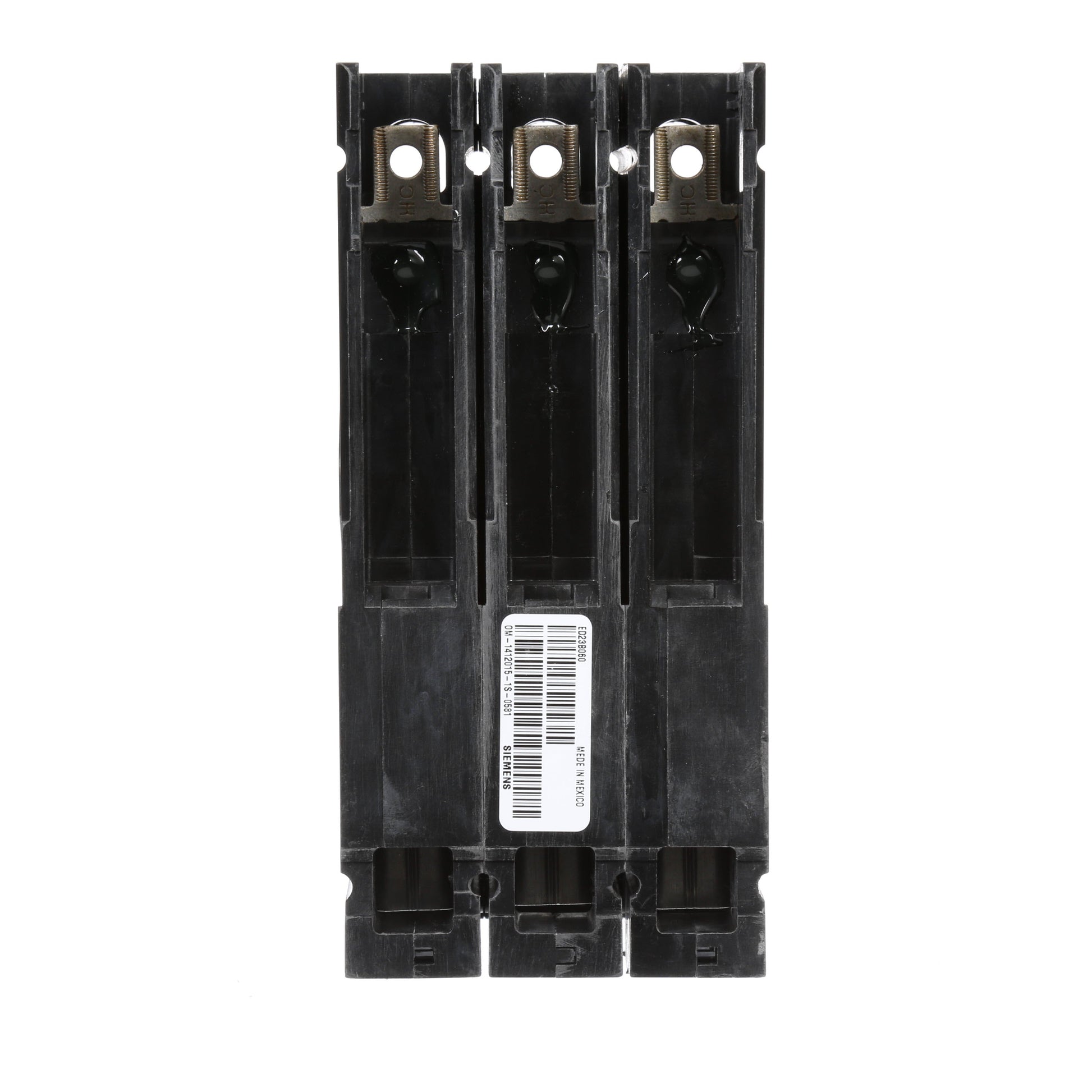

Siemens ED23B060 Circuit Breaker | 240V 60A 3P 10kA@240V Sentron Series
Siemens ED23B060 Circuit Breaker | 240V 60A 3P 10kA@240V Sentron Series
Price:
Sale
Sold out
Regular price
$328.12 USD
Regular price
$1,772.00 USD
Sale price
$328.12 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 8 left
Couldn't load pickup availability
Product Description:
The Siemens ED23B060 is a Molded Case Circuit Breaker from the Sentron Series family. It is a 3-pole, 60 amp breaker rated for 240 volts with a 10kA interrupting capacity. This model features thermal magnetic protection and is designed for use with lug-in panelboards.
Key Features:
✔ Part Number: ED23B060
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 240
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 10kA@240V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 783643209046
✔ GTIN: 00783643209046
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 6.34 in
✔ Weight: 7
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
✔ Wire Size: 10 To 1/0 AWG (Aluminum/Copper)
