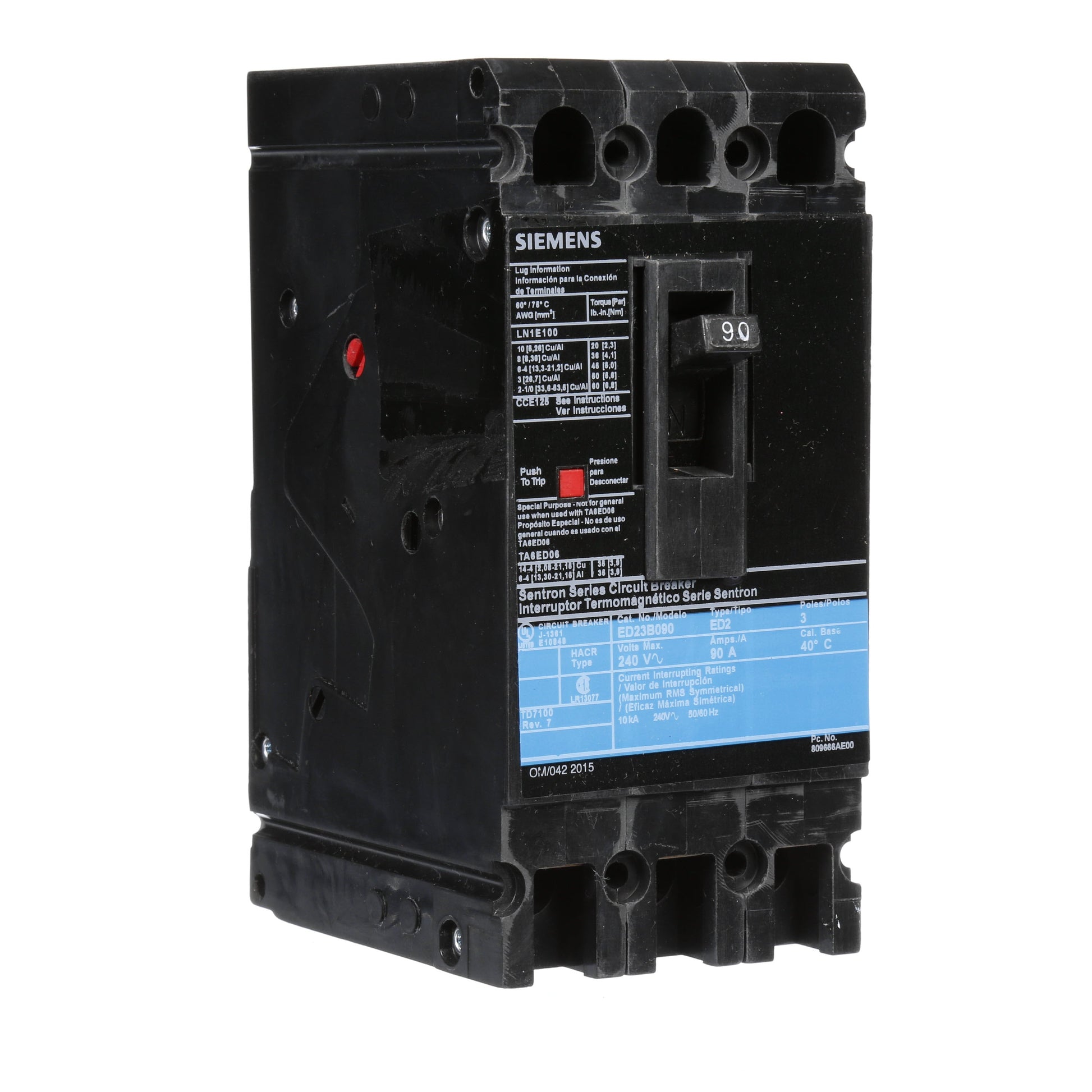

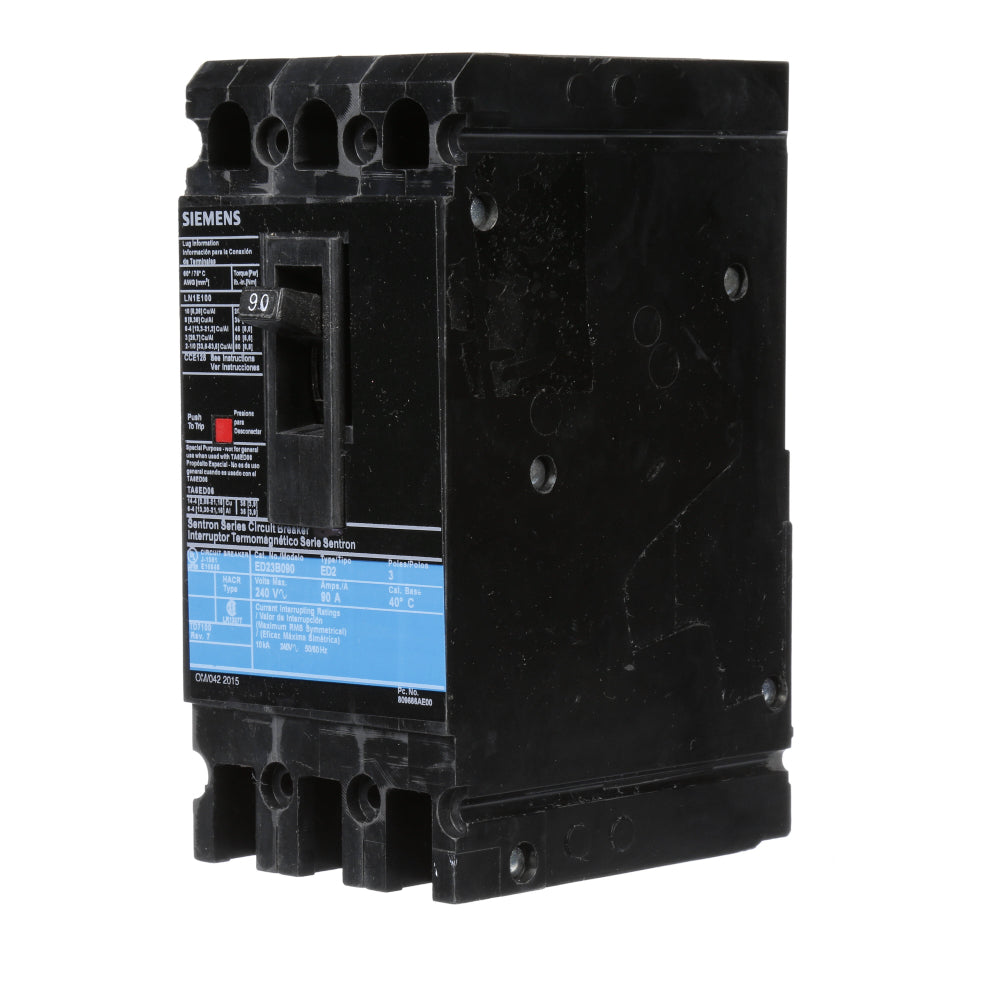

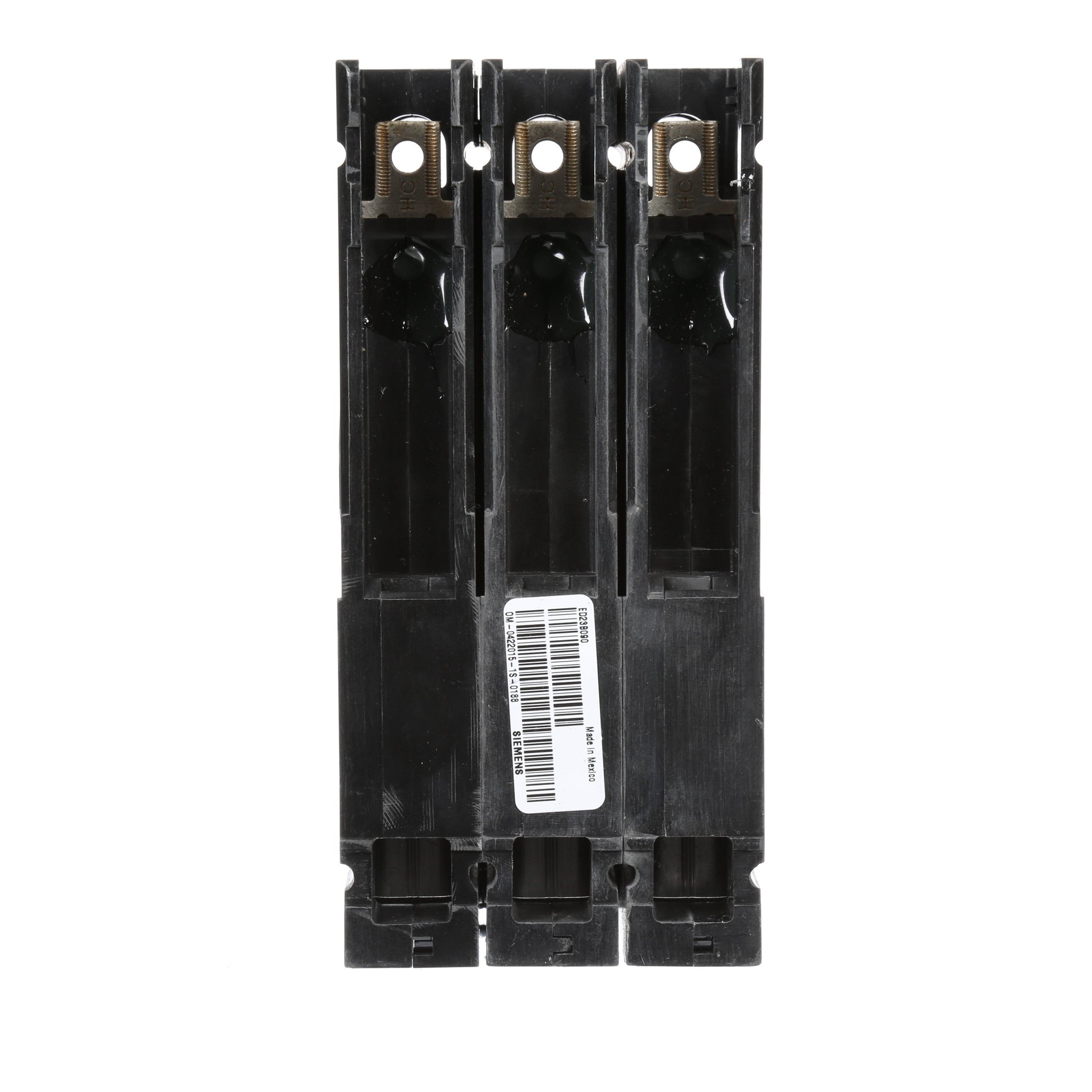

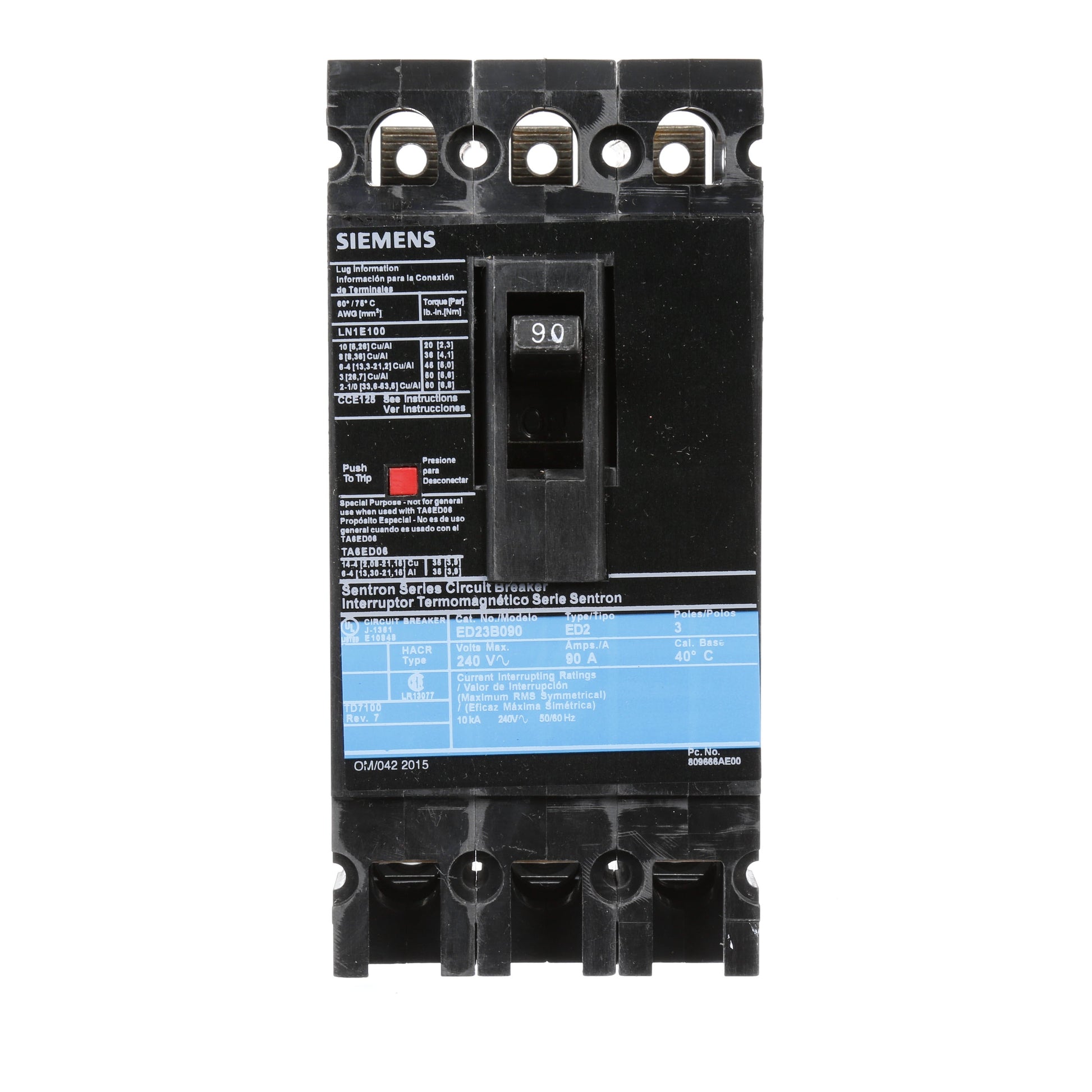

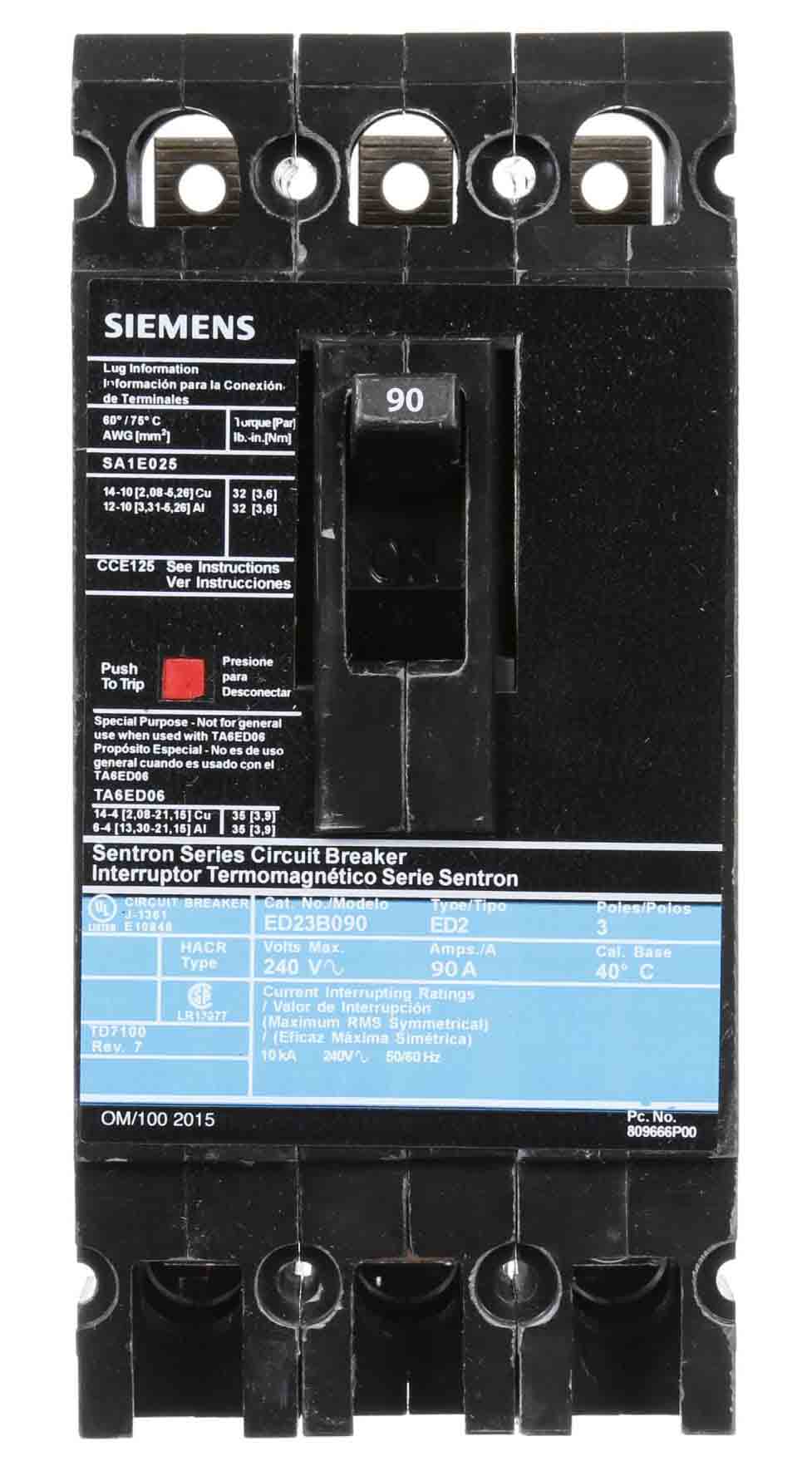

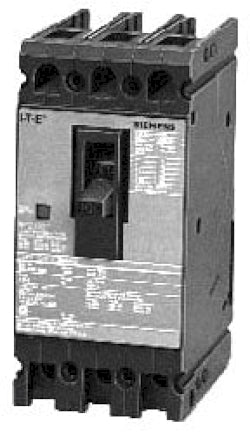

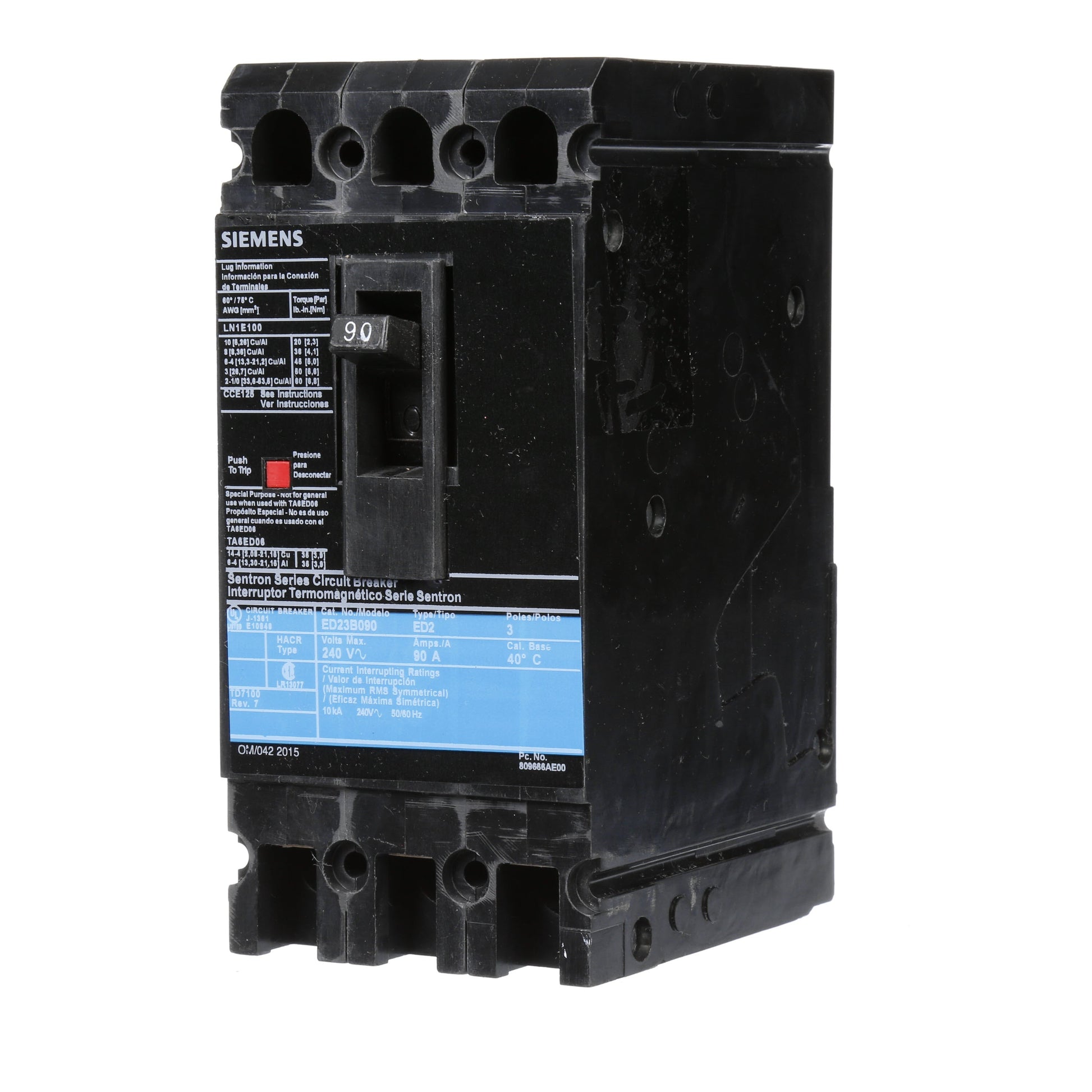

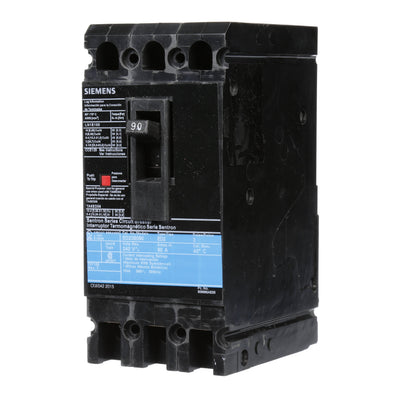

Siemens ED23B090 Circuit Breaker | 240V 90A 3P 10kA@240V Lug In Panelboard Sentron Series
Siemens ED23B090 Circuit Breaker | 240V 90A 3P 10kA@240V Lug In Panelboard Sentron Series
Price:
Sale
Sold out
Regular price
$186.84 USD
Regular price
$1,433.00 USD
Sale price
$186.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Siemens ED23B090 is a Molded Case Circuit Breaker from the Sentron Series family. It features a 3-pole design with a 240V voltage rating and 90A amperage capacity. This breaker offers Thermal Magnetic protection and has an AIC rating of 10kA@240V. It is compatible with SB Switchboards and Sentron Panelboards.
Key Features:
✔ Part Number: ED23B090
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 240
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 783643209077
✔ GTIN: 00783643209077
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 6.34 in
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
✔ Wire Size: 10 to 1/0 AWG Aluminum/Copper
The Siemens ED23B090 is a Molded Case Circuit Breaker from the Sentron Series family. It features a 3-pole design with a 240V voltage rating and 90A amperage capacity. This breaker offers Thermal Magnetic protection and has an AIC rating of 10kA@240V. It is compatible with SB Switchboards and Sentron Panelboards.
Key Features:
✔ Part Number: ED23B090
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 240
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 783643209077
✔ GTIN: 00783643209077
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 6.34 in
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
✔ Wire Size: 10 to 1/0 AWG Aluminum/Copper
