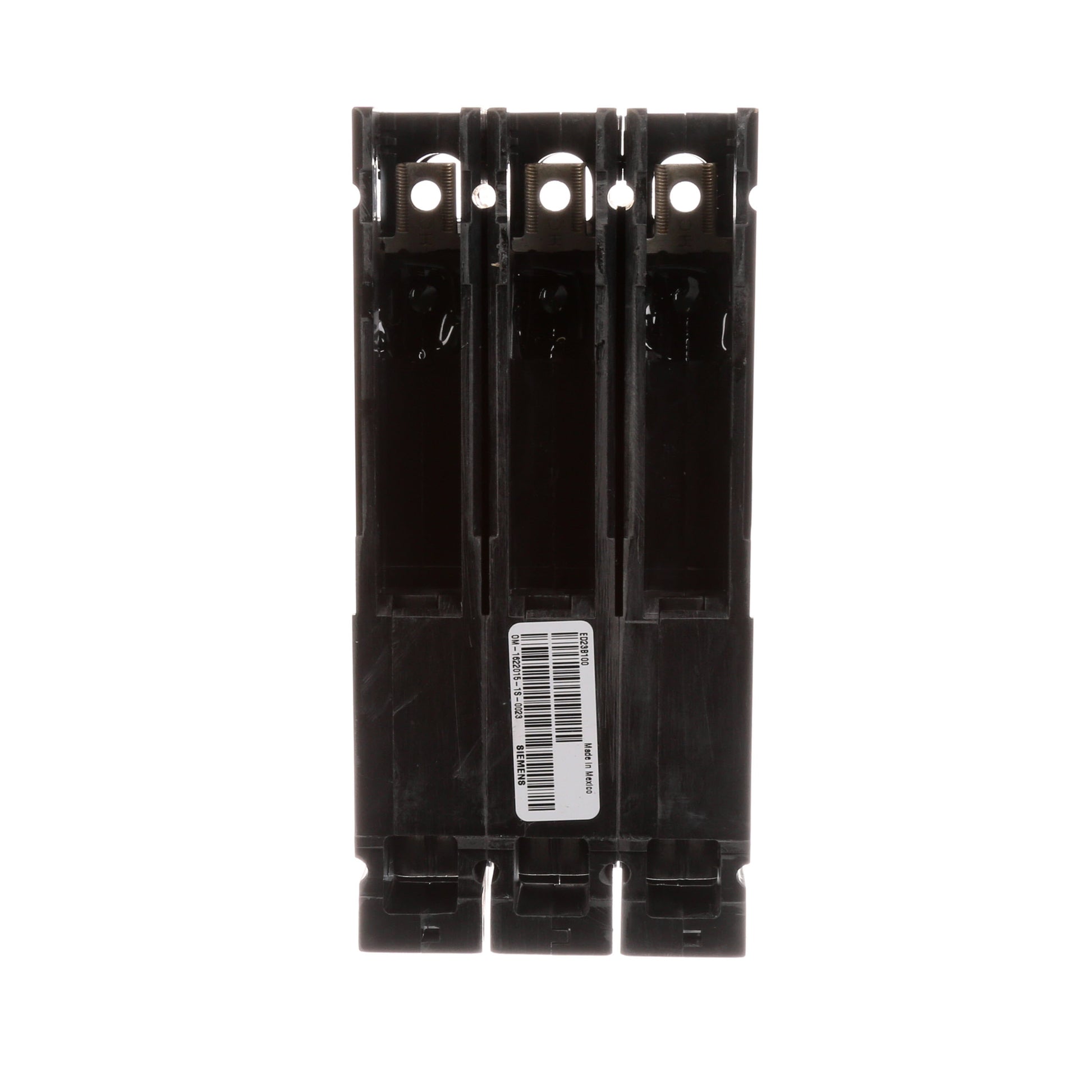

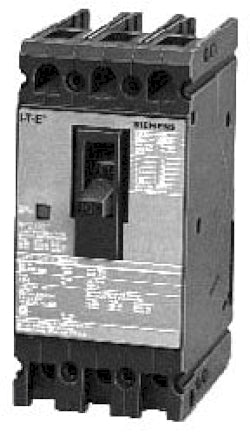

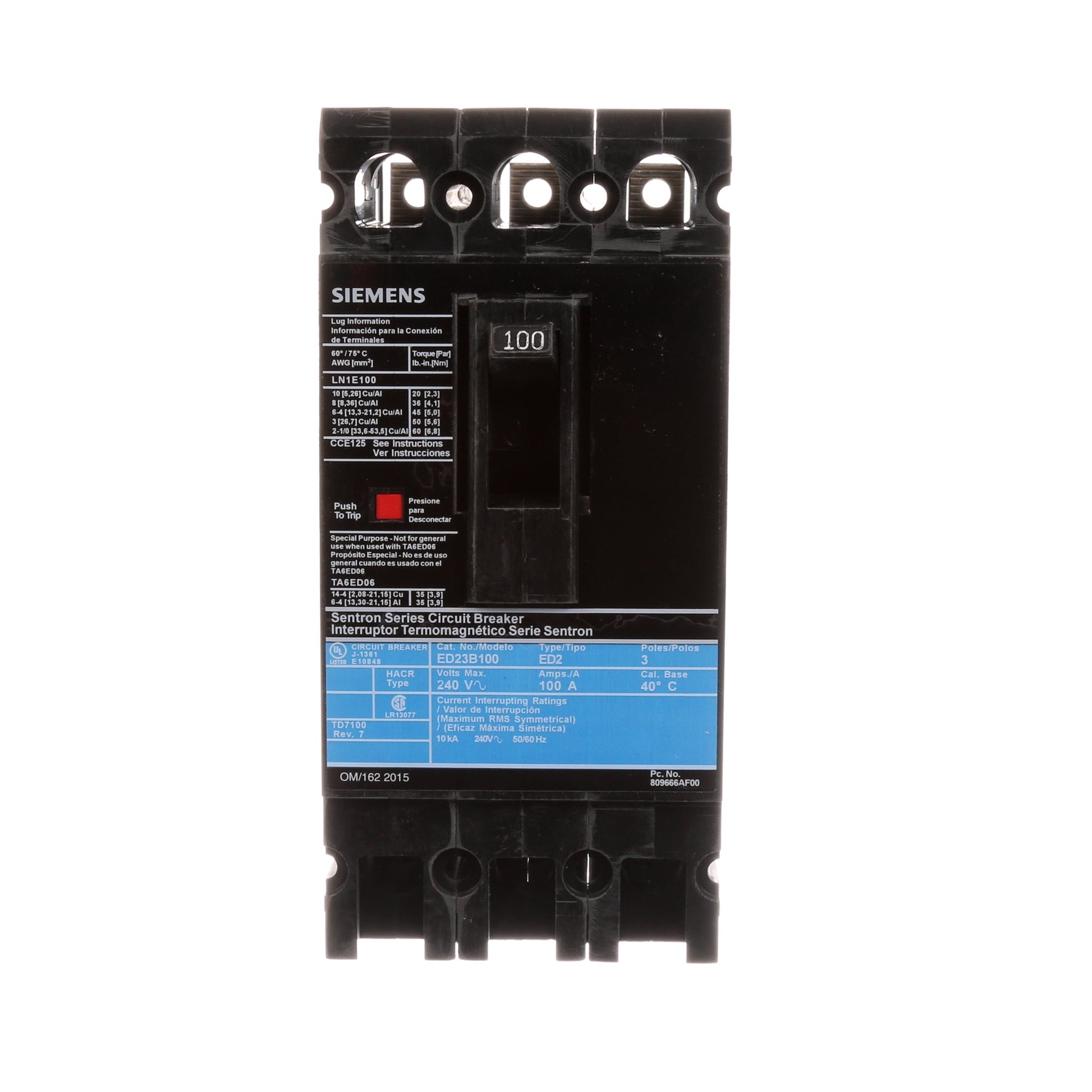

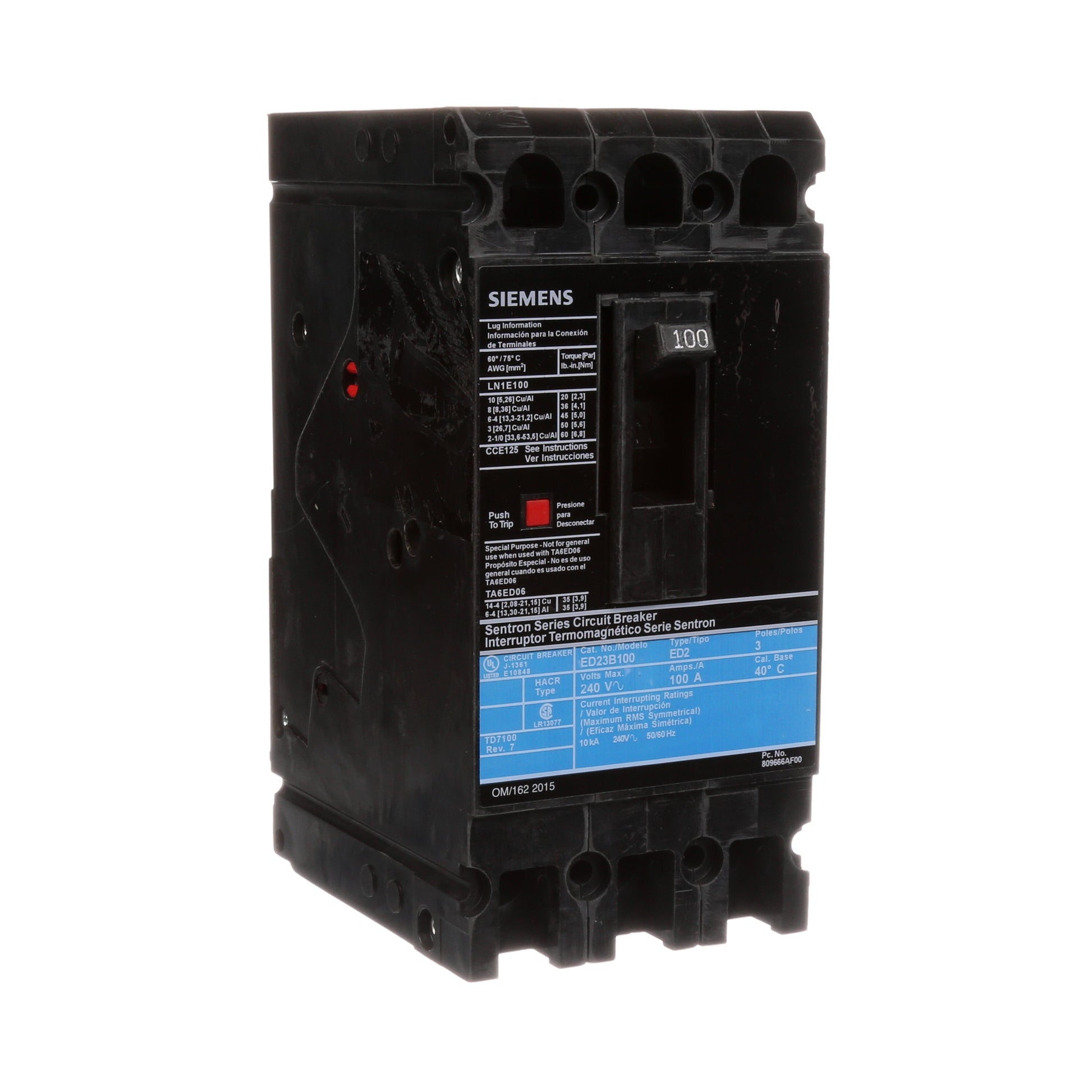

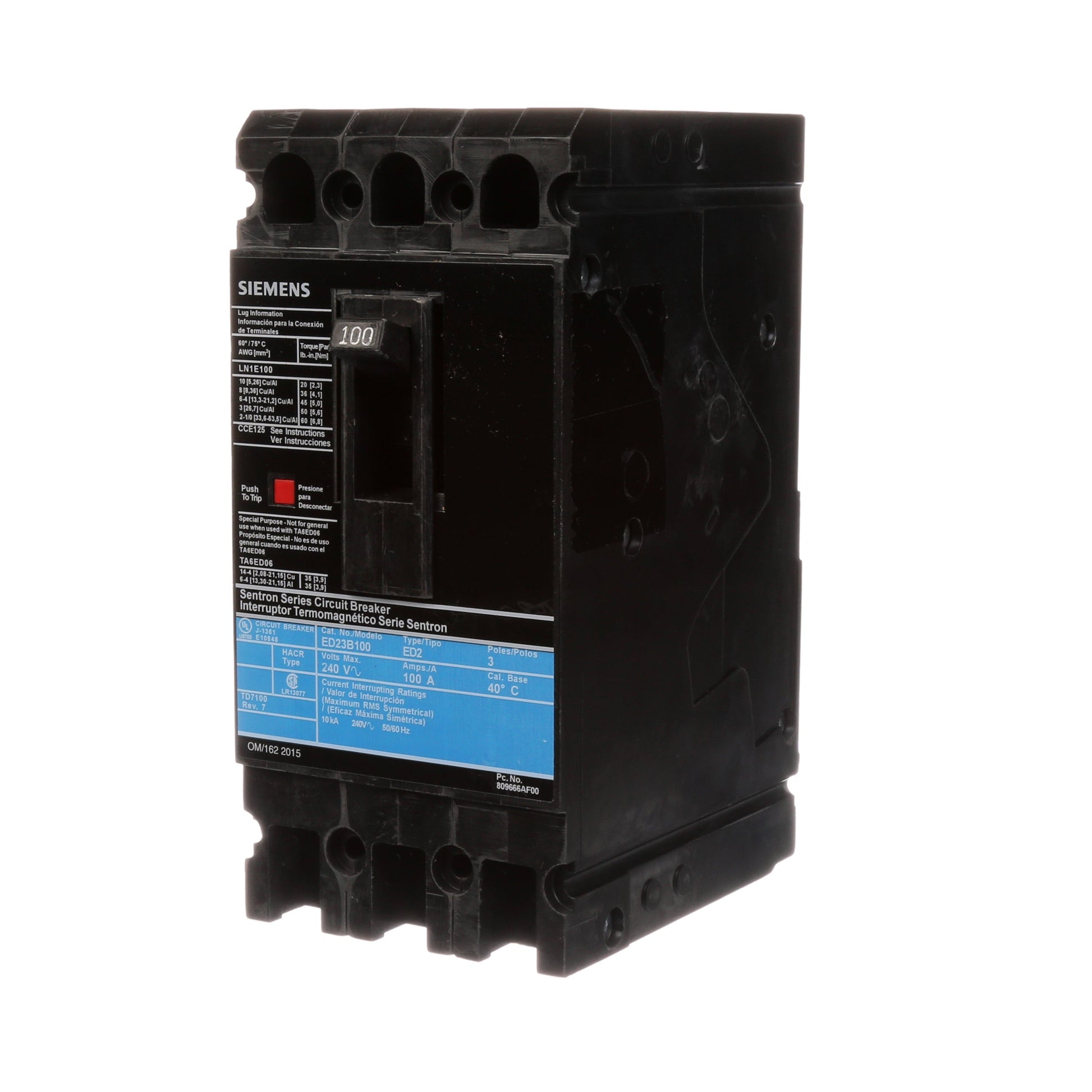

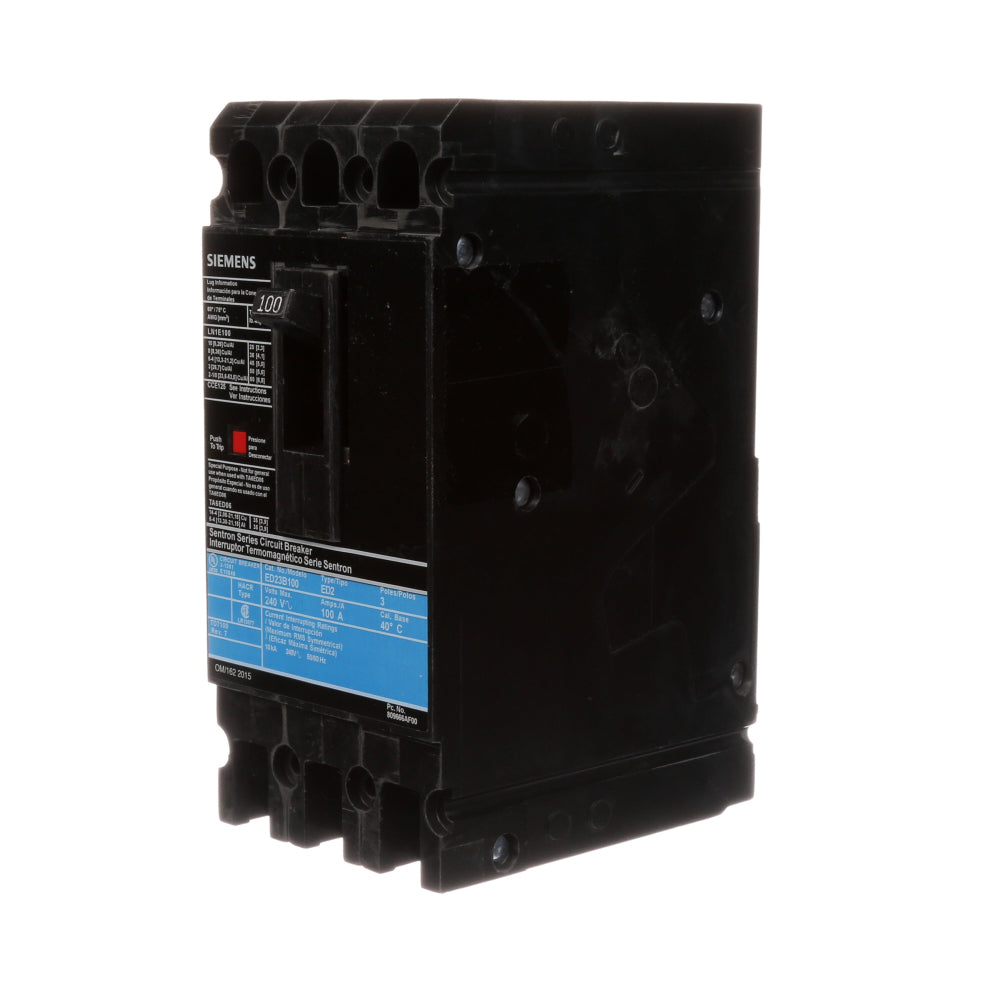

Siemens ED23B100 Circuit Breaker | 240V 100A 3P 10kA@240V Lug In Panelboard Sentron Series

Product Description:
The Siemens ED23B100 is a Molded Case Circuit Breaker from the Sentron Series family. It features a 3-pole design with a 240V, 100A rating and a 10kA@240V AIC rating. This breaker uses a Lug In Panelboard connection and offers Thermal Magnetic protection. It is compatible with SB Switchboards and Sentron Panelboards.

Key Features:
✔ Part Number: ED23B100
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 240
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 783643209084
✔ GTIN: 00783643209084
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 6.34 in
✔ Weight: 7
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
