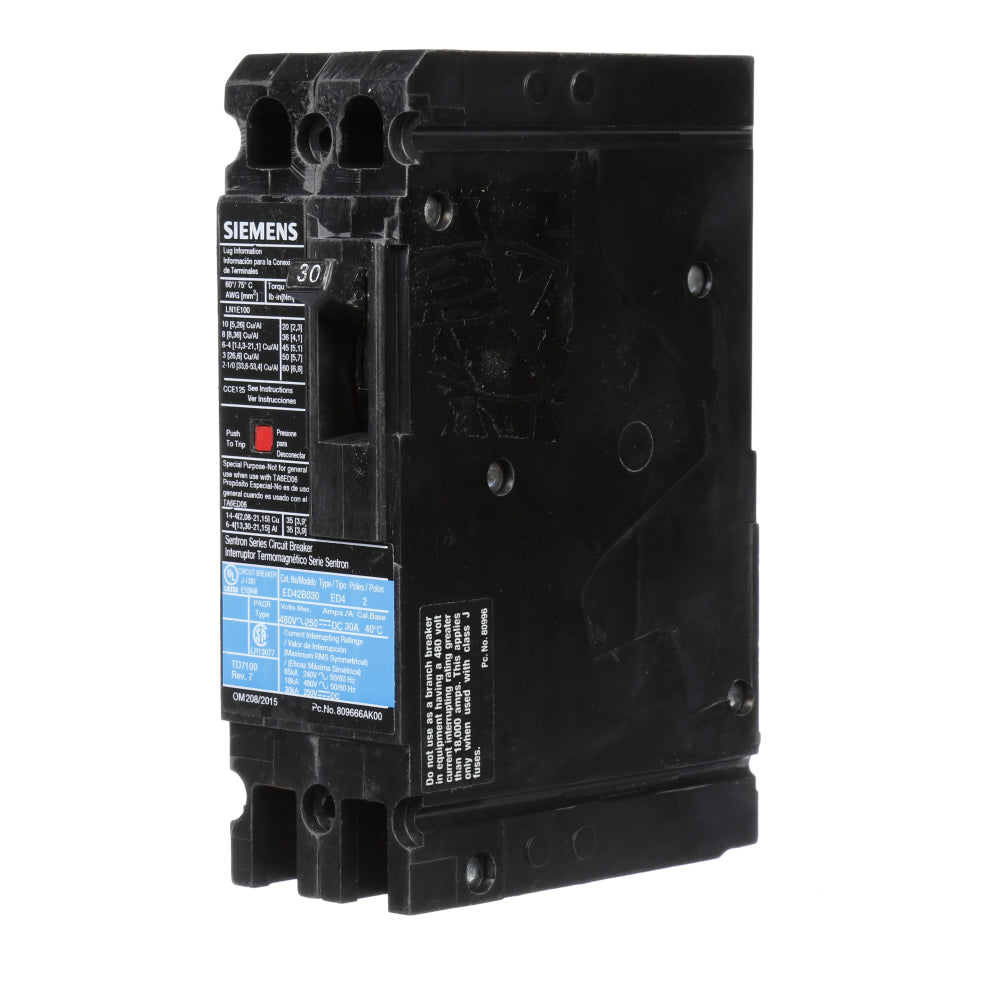

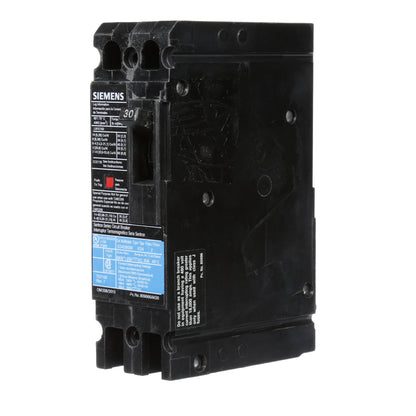

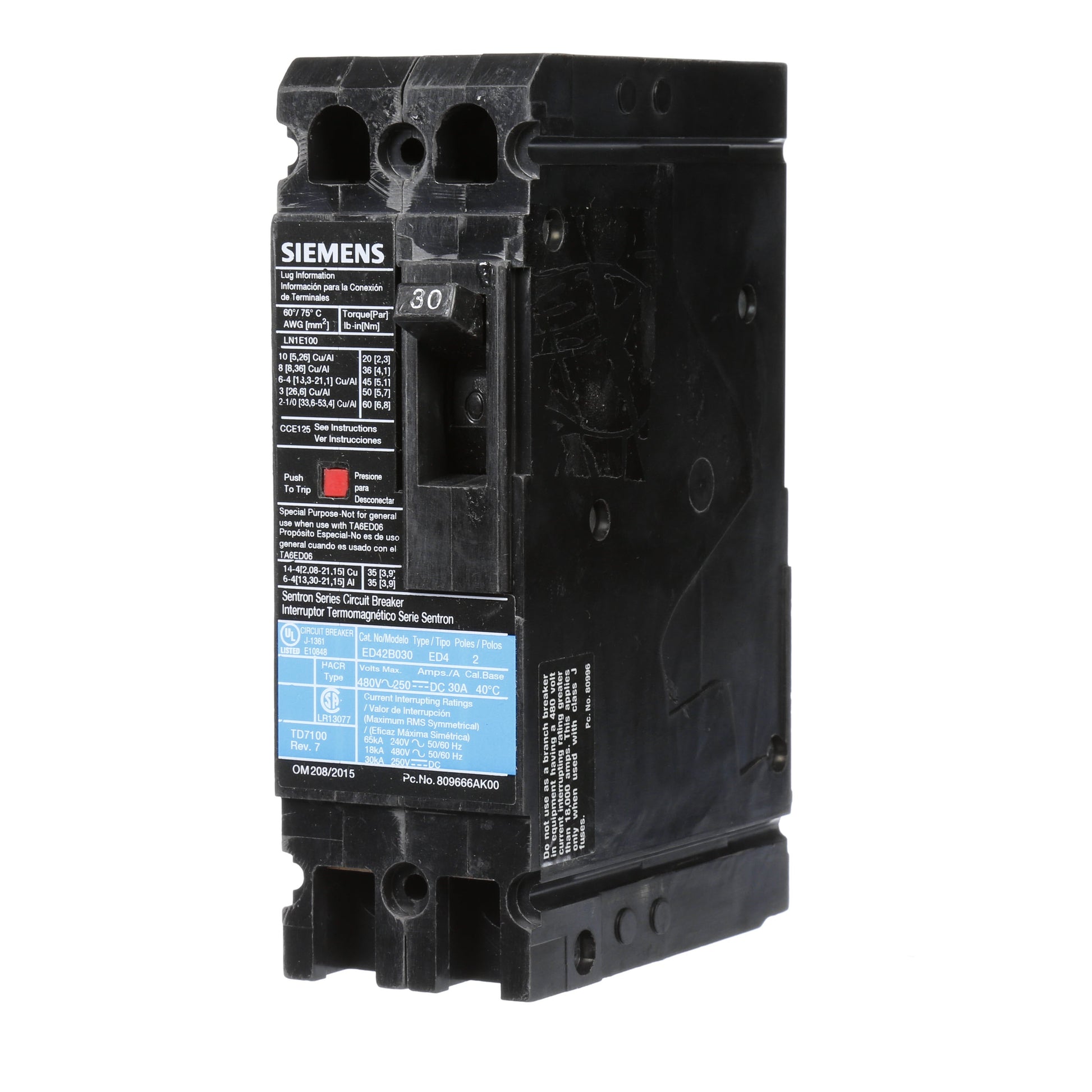

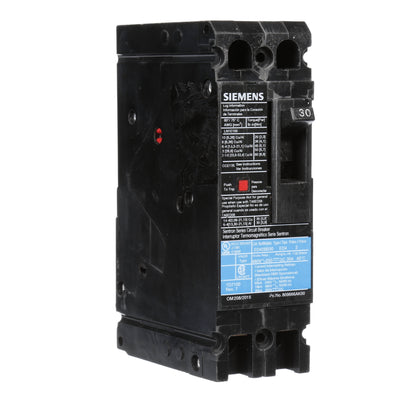

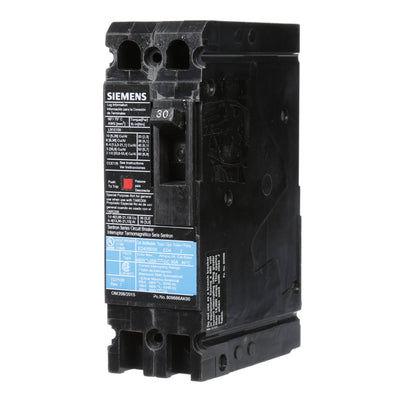

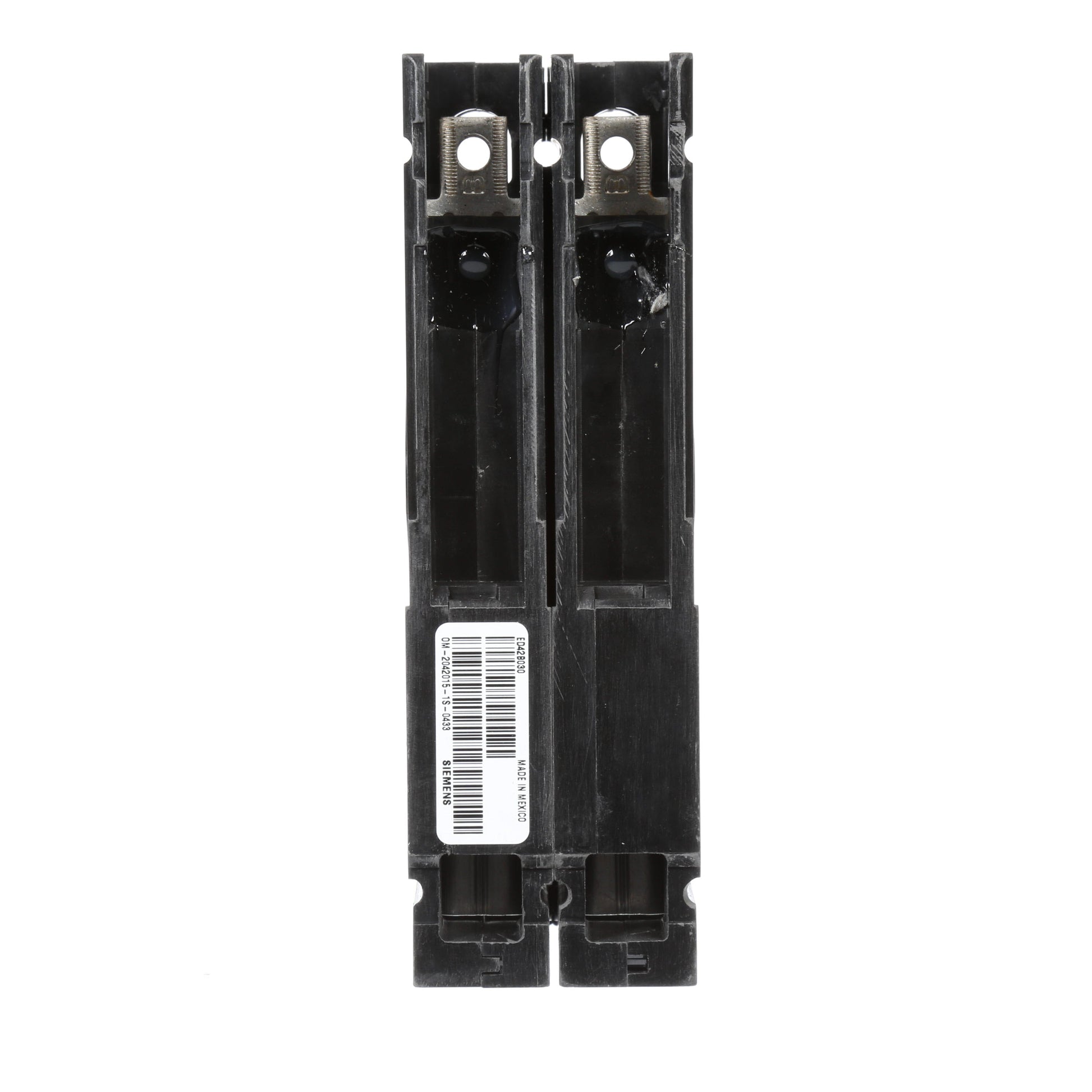

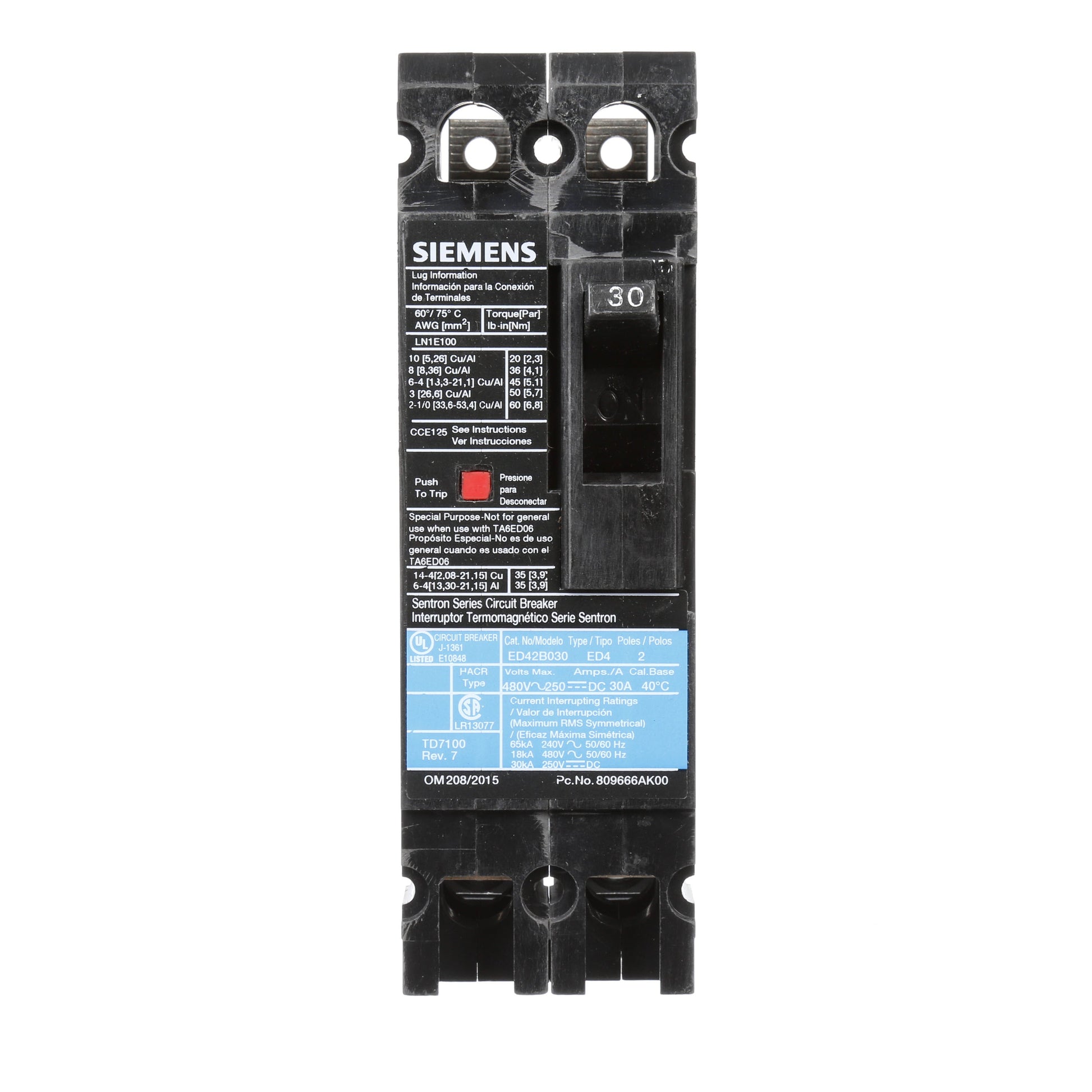

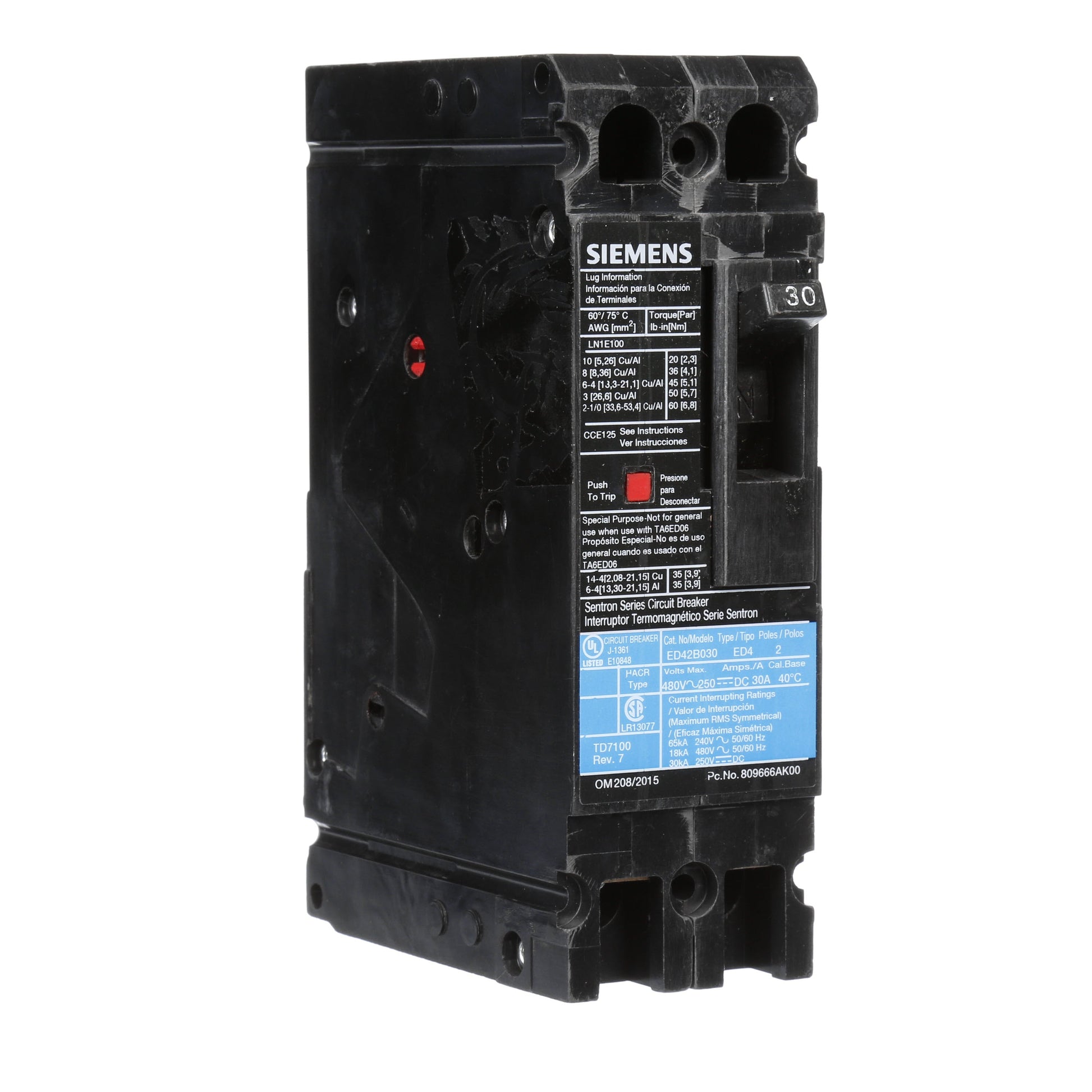

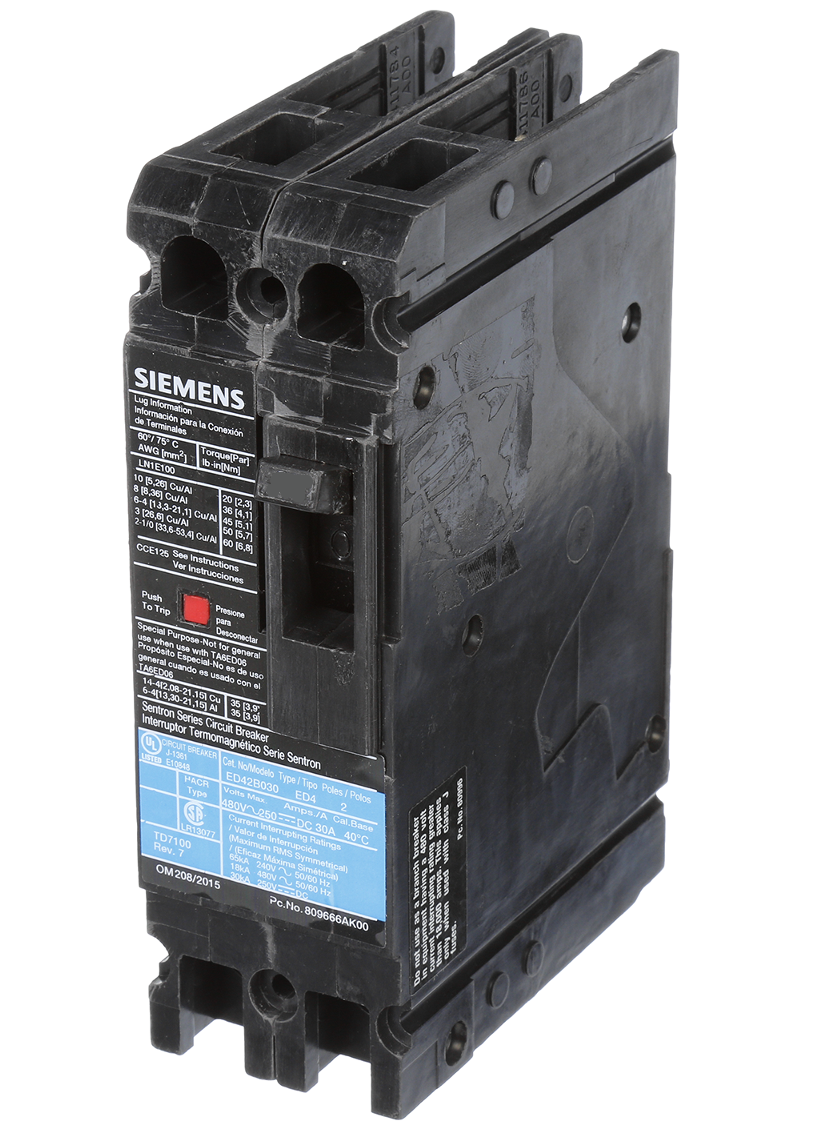

Siemens ED42B030 Circuit Breaker | 480V 30A 2P 18kA@480V Sentron Series

Product Description:
The Siemens ED42B030 is a Molded Case Circuit Breaker from the Sentron Series family. It features a 2-pole design with a 480V, 30A rating and an 18kA@480V AIC rating. This breaker uses a Lug In Panelboard connection and offers Thermal Magnetic protection. It is compatible with SB Switchboards and Sentron Panelboards.

Key Features:
✔ Part Number: ED42B030
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 480
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Any
✔ UPC: 783643209244
✔ GTIN: 00783643209244
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 6.34 in
✔ Weight: 5
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
✔ Wire Size: 10 to 1/0 AWG Aluminum/Copper
