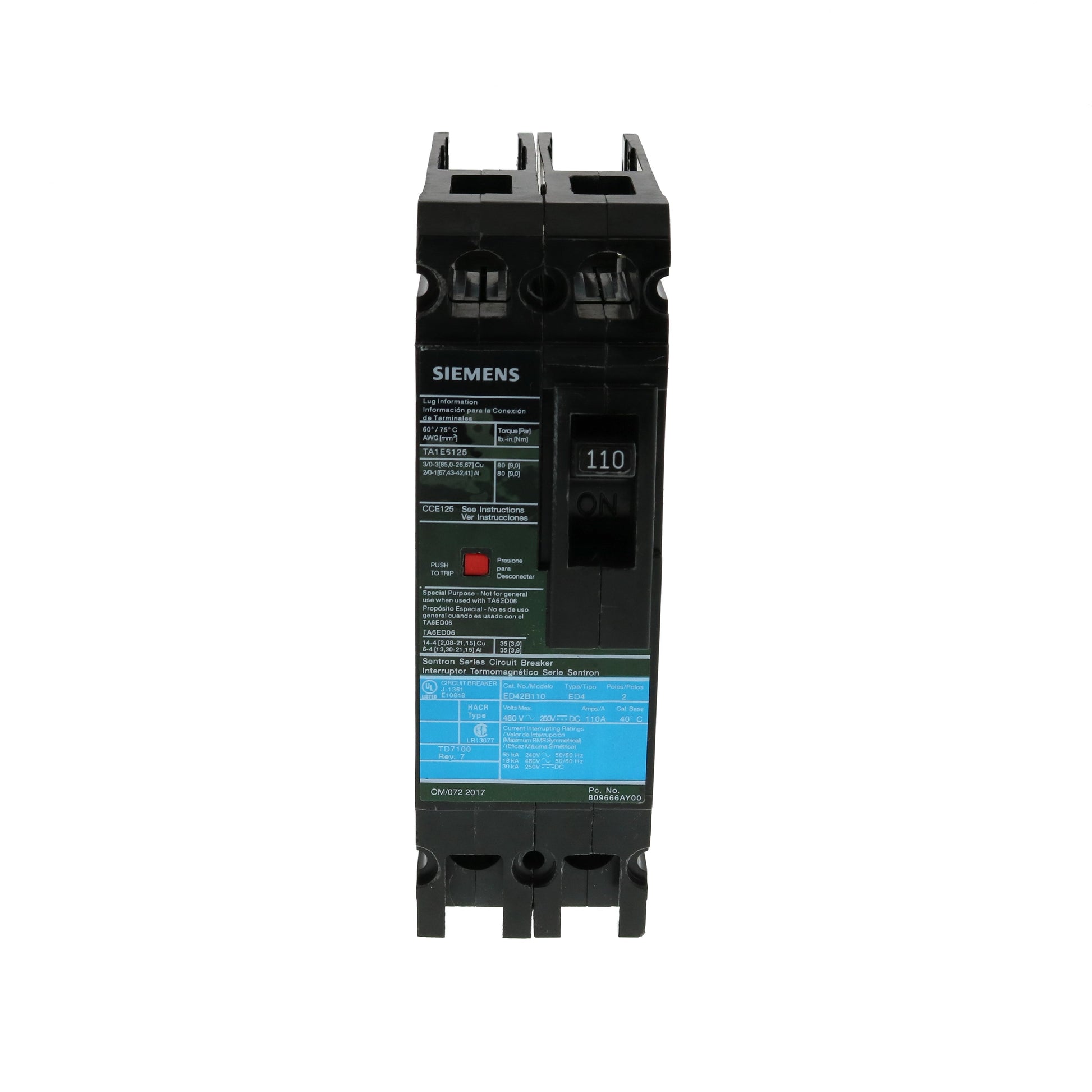

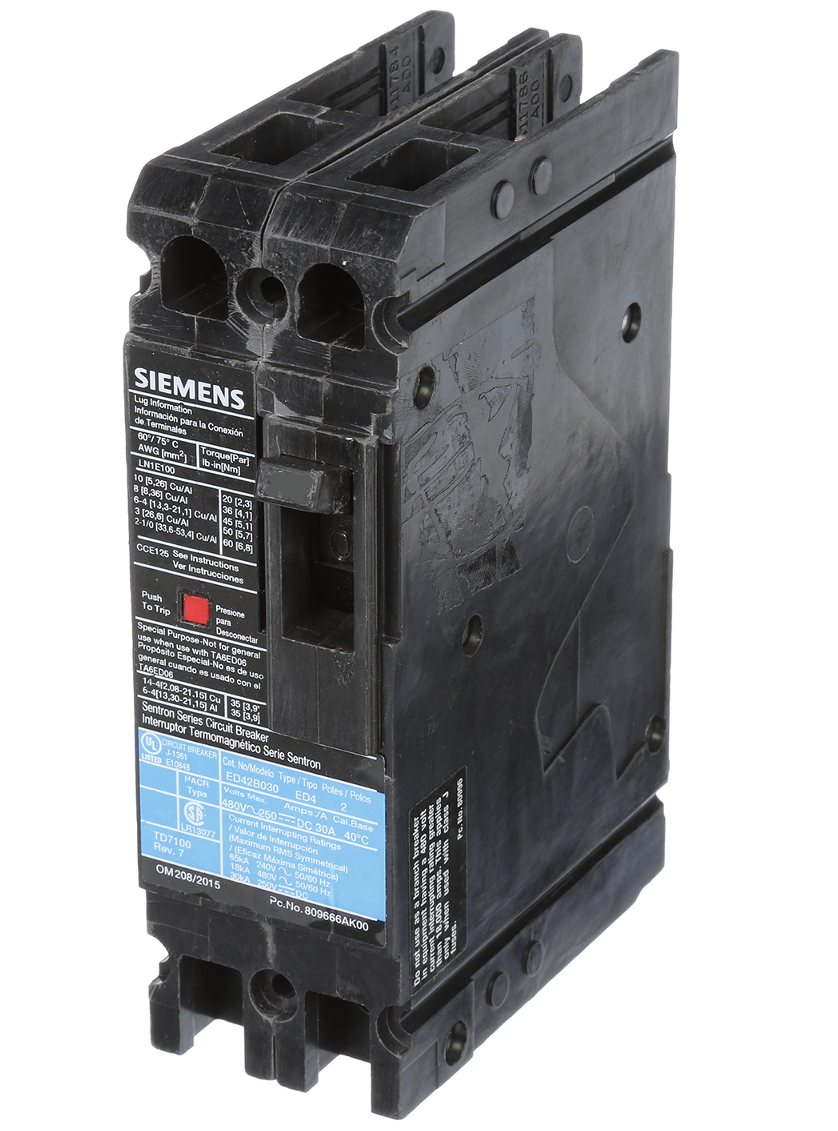

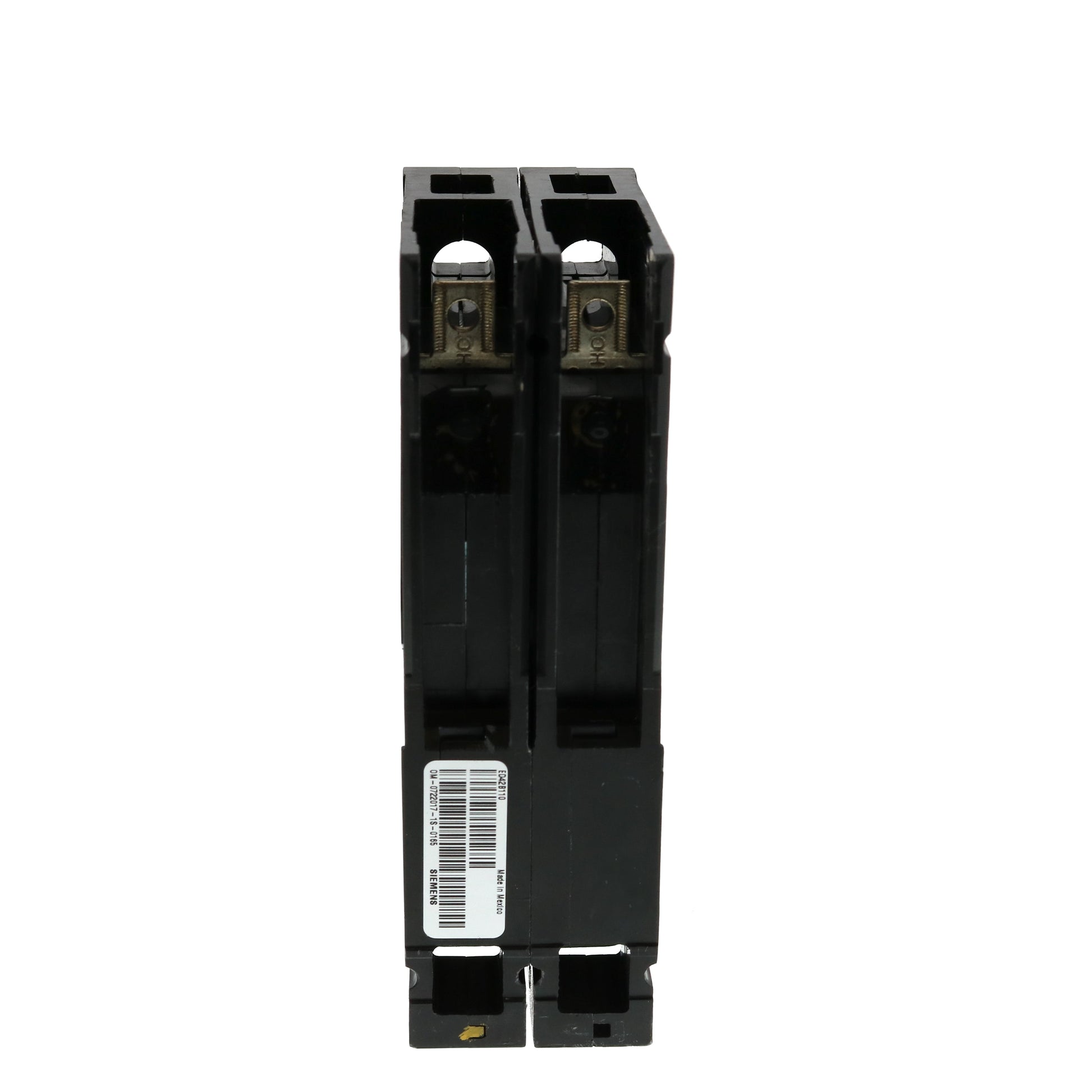

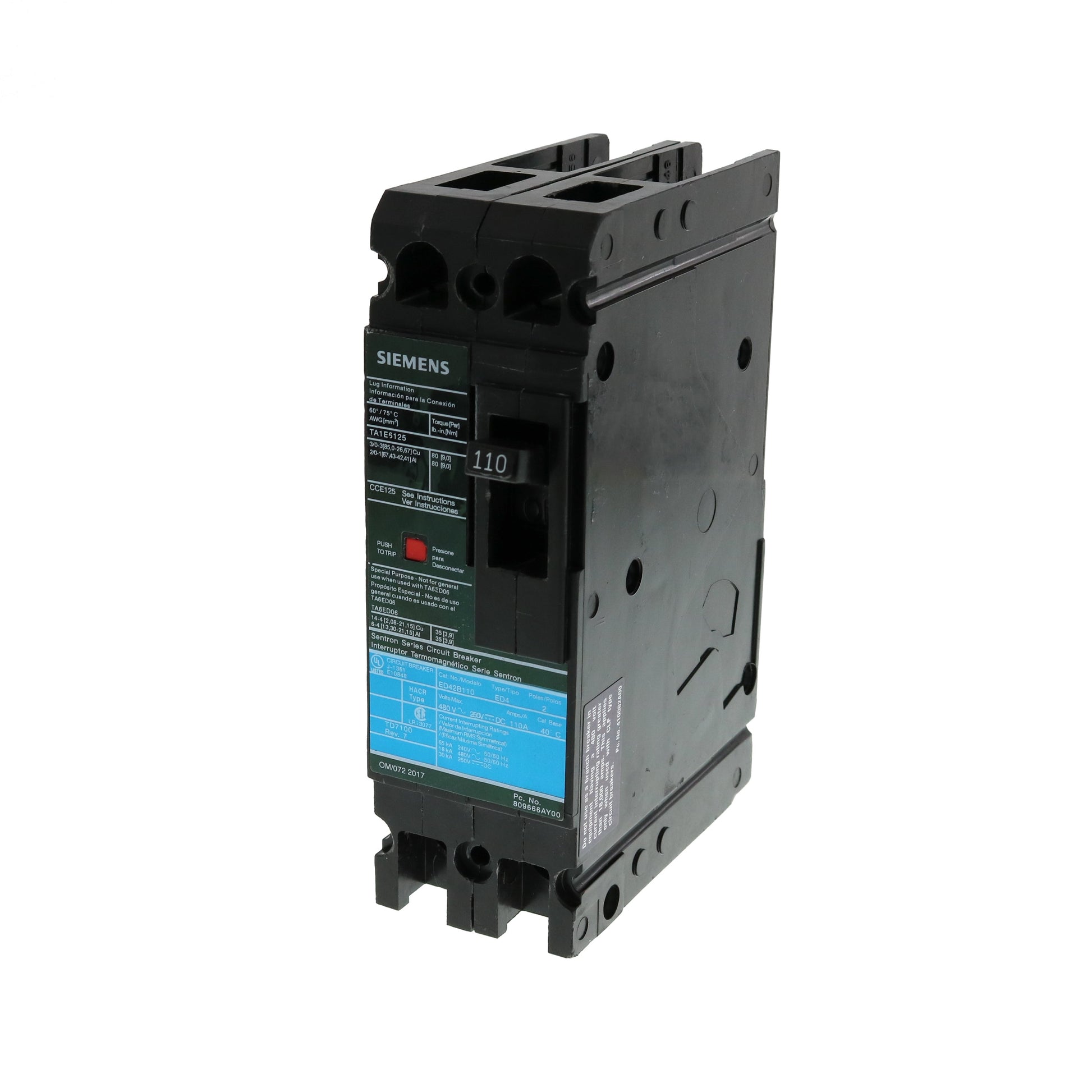

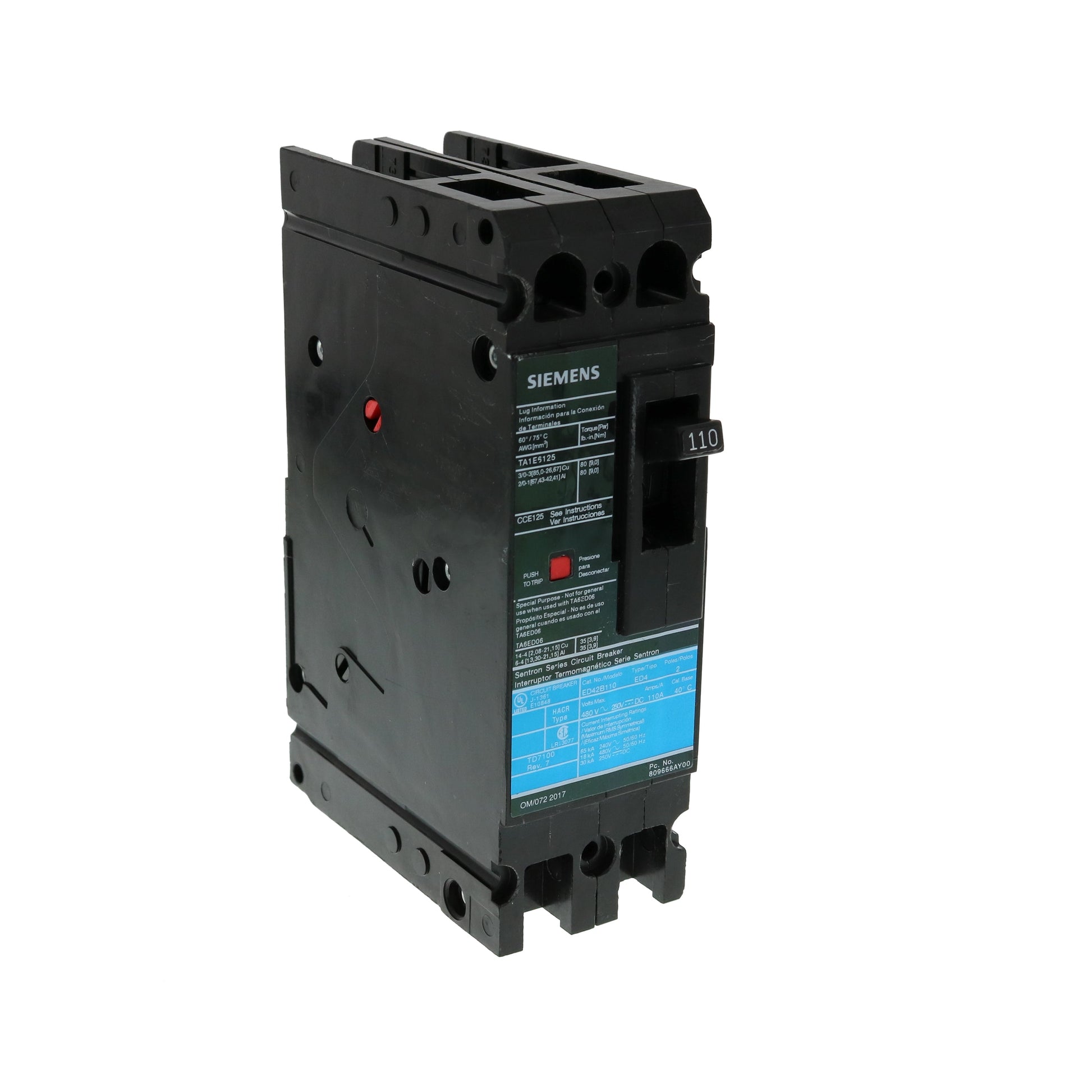

Siemens ED42B110 Circuit Breaker | 480V 110A 2P 18kA@480V Lug In Panelboard Sentron Series

Product Description:
The Siemens ED42B110 is a Molded Case Circuit Breaker from the Sentron Series family. It is a 2-pole, 110 amp breaker rated for 480 volts with an AIC rating of 18kA@480V. This thermal magnetic circuit breaker uses a lug-in panelboard connection for reliable performance.

Key Features:
✔ Part Number: ED42B110
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 480
✔ Amperage: 110
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 1/0 AWG (Al), 3 AWG (Cu) Max. Wire Size 2 AWG (Al), 3 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 783643209343
✔ GTIN: 00783643209343
✔ Country of Origin: United States
✔ Dimensions: 2 in x 6.34 in
✔ Weight: 5
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
✔ Wire Size: 3 AWG (Cu), 1/0 AWG (Al)- 3 AWG (Cu), 2 AWG (Al)
