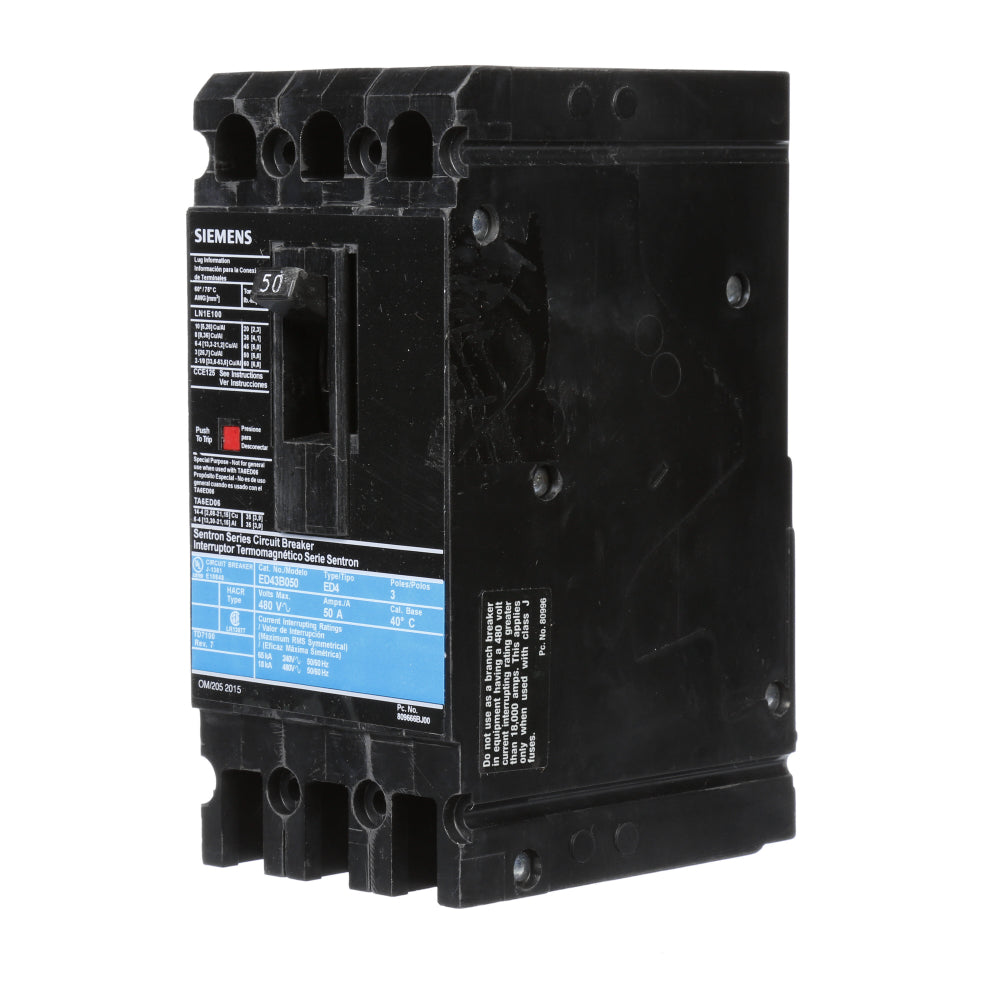

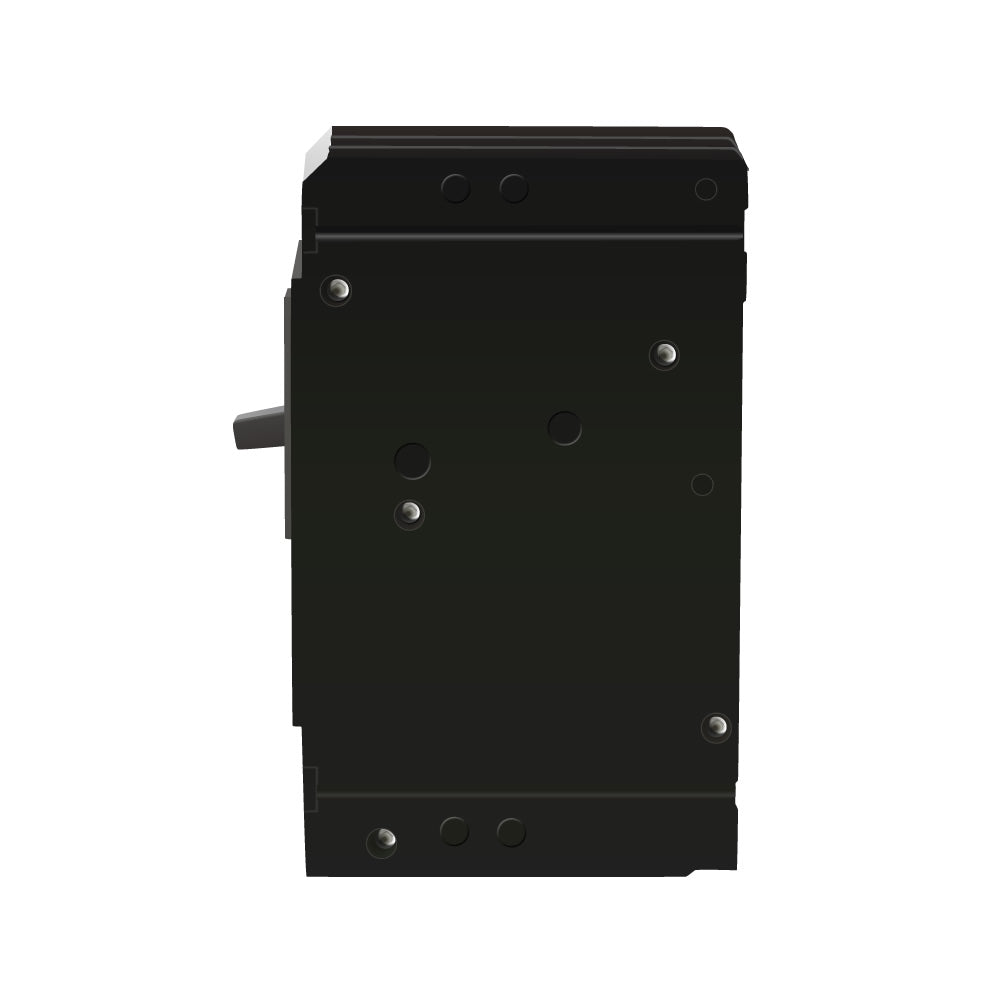

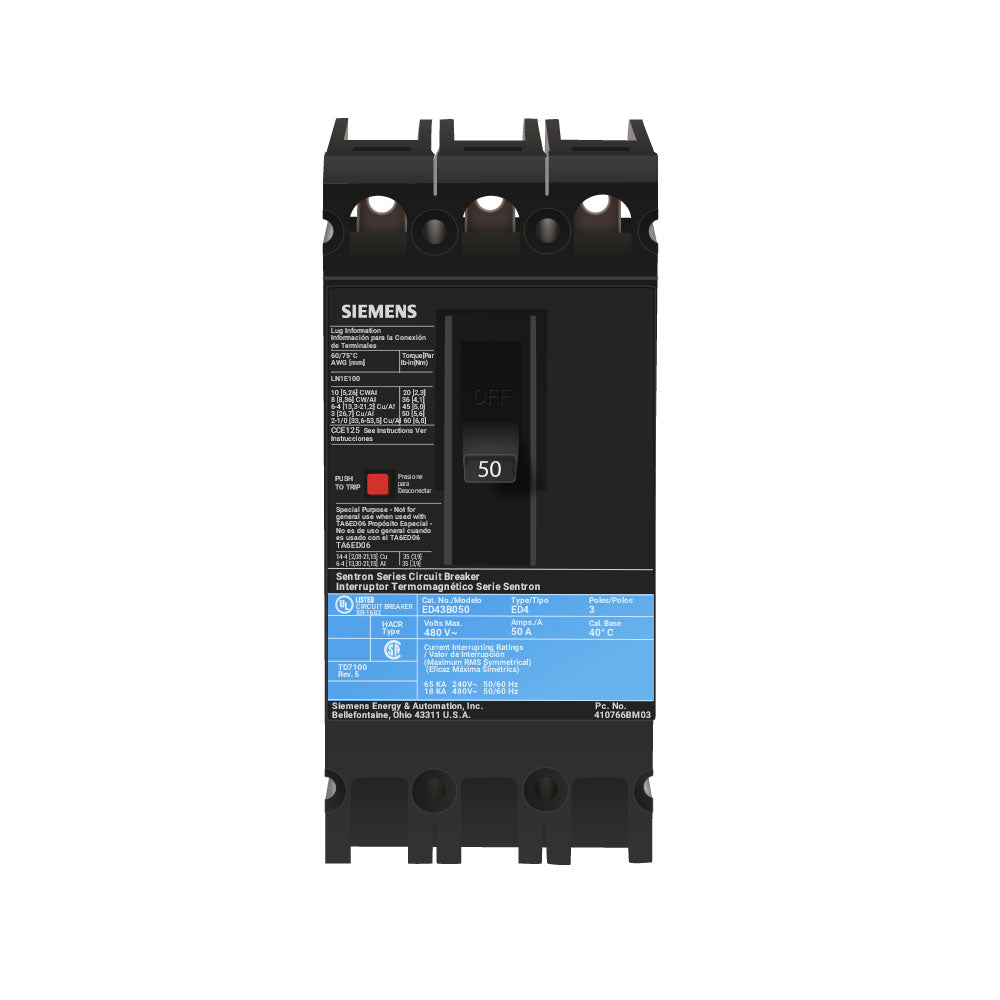

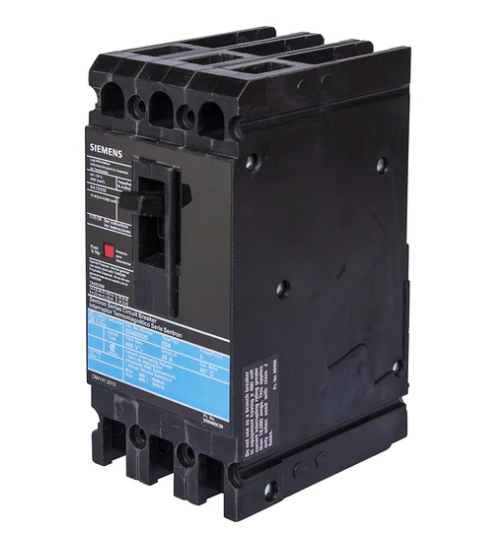

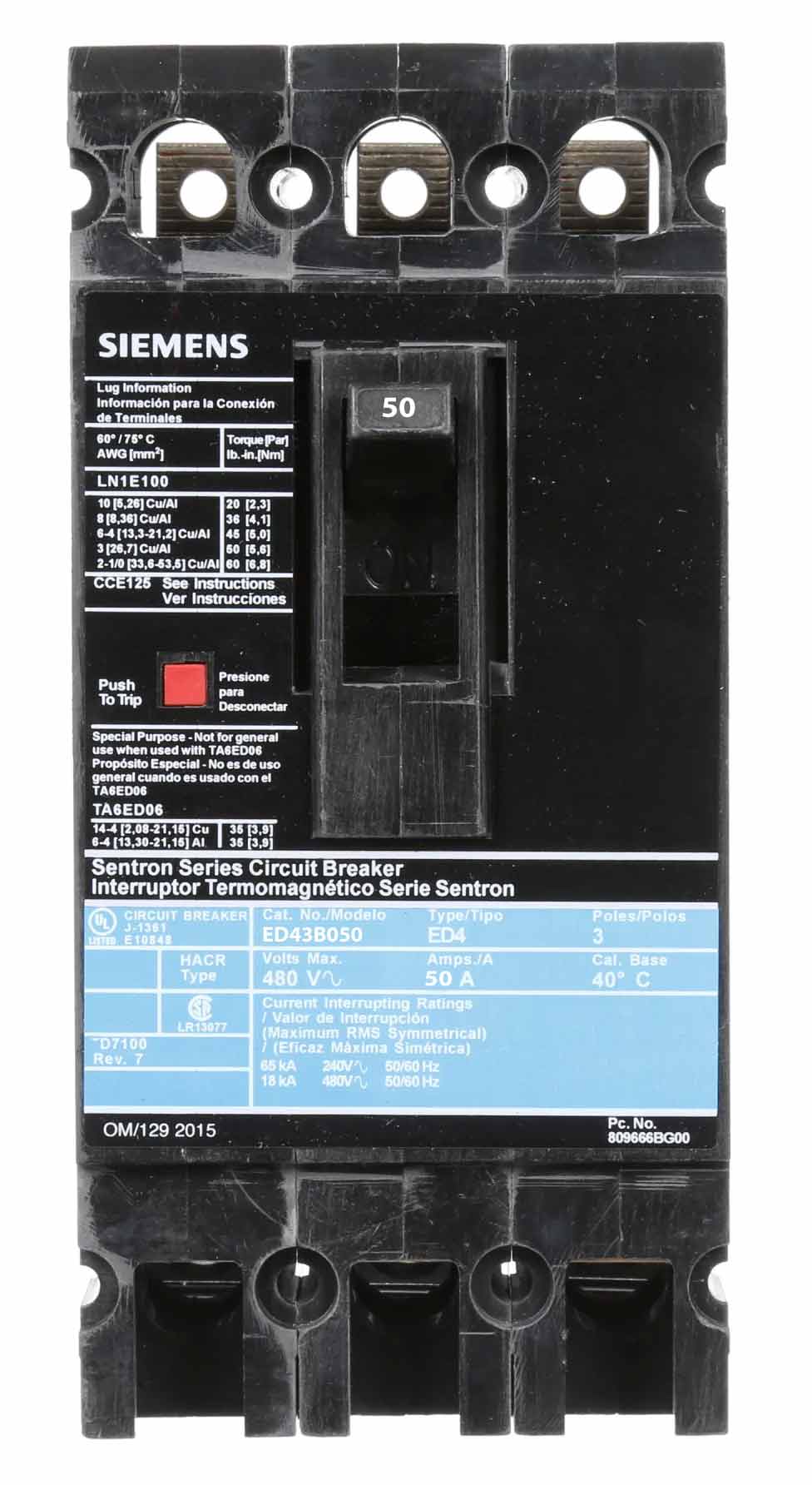

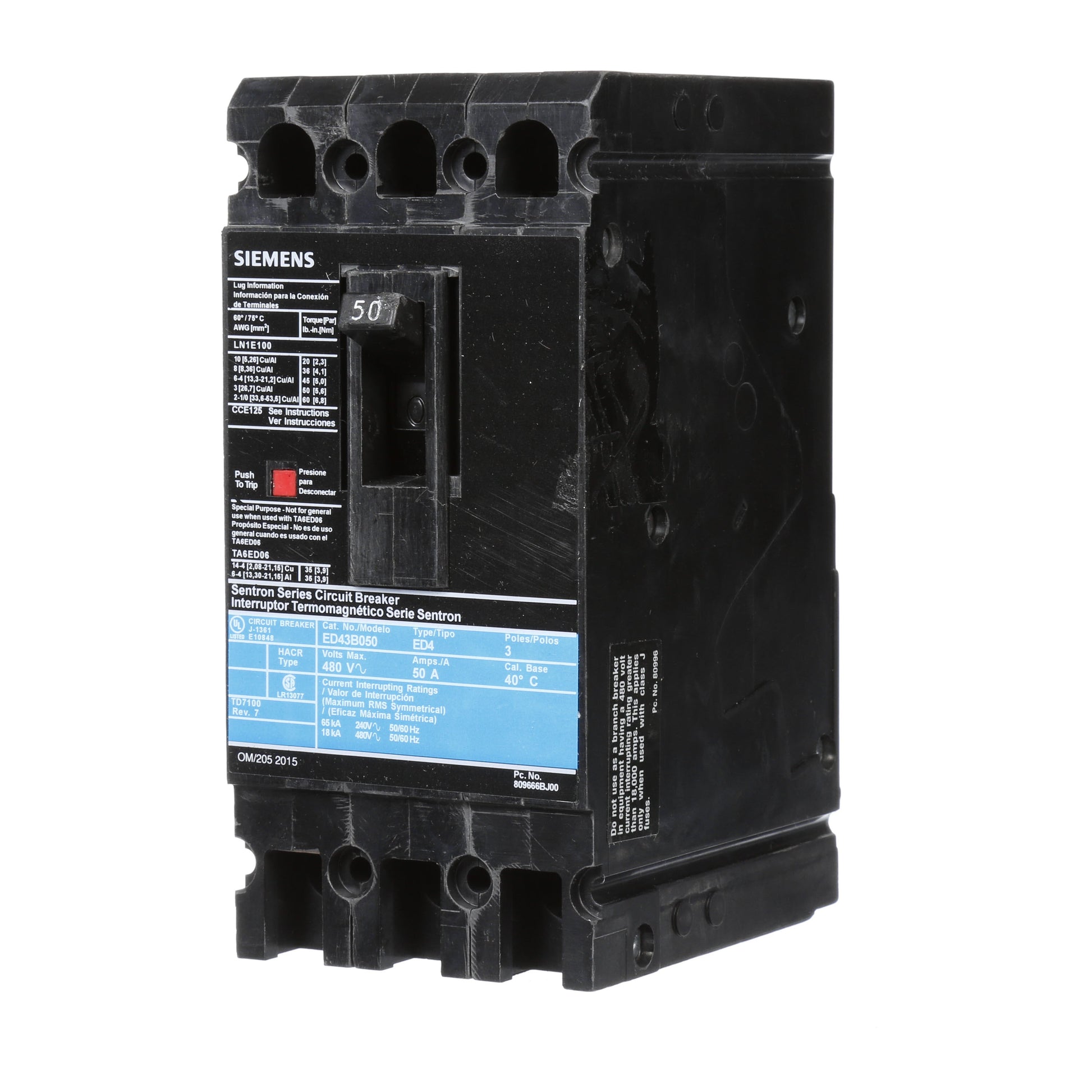

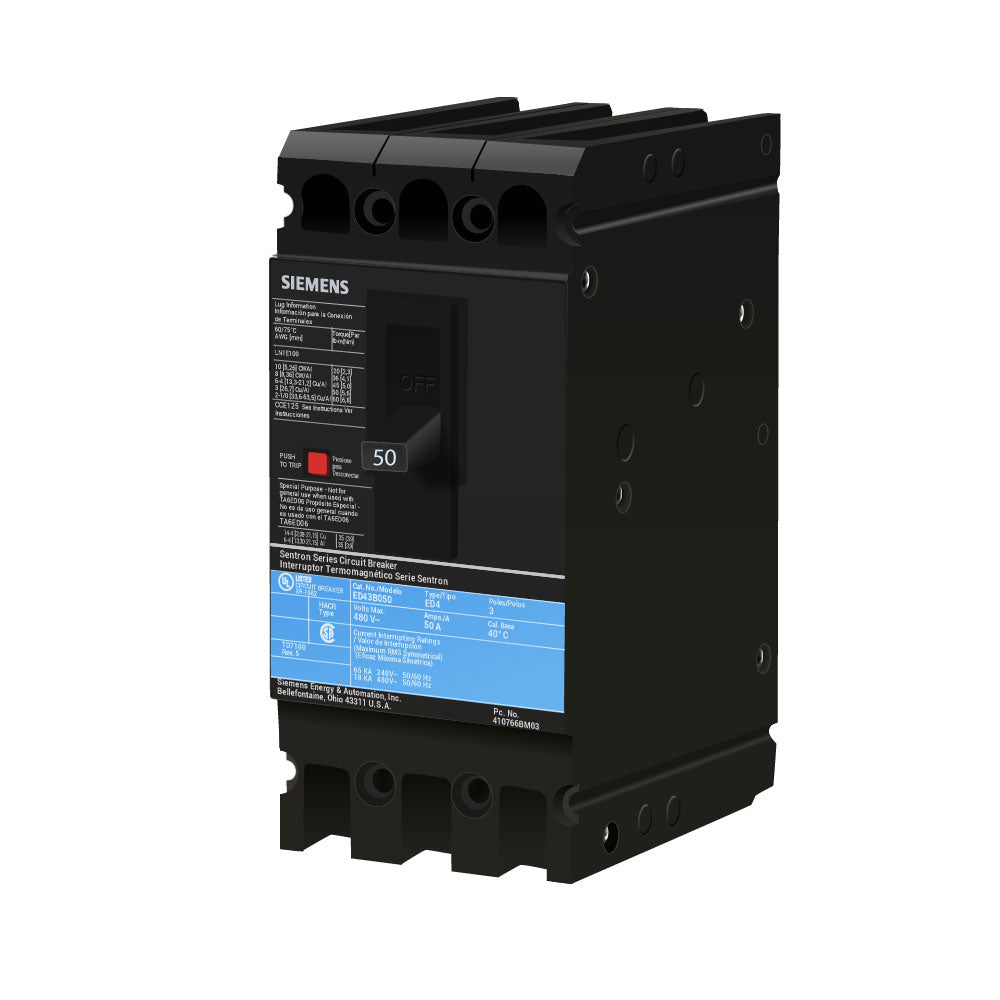

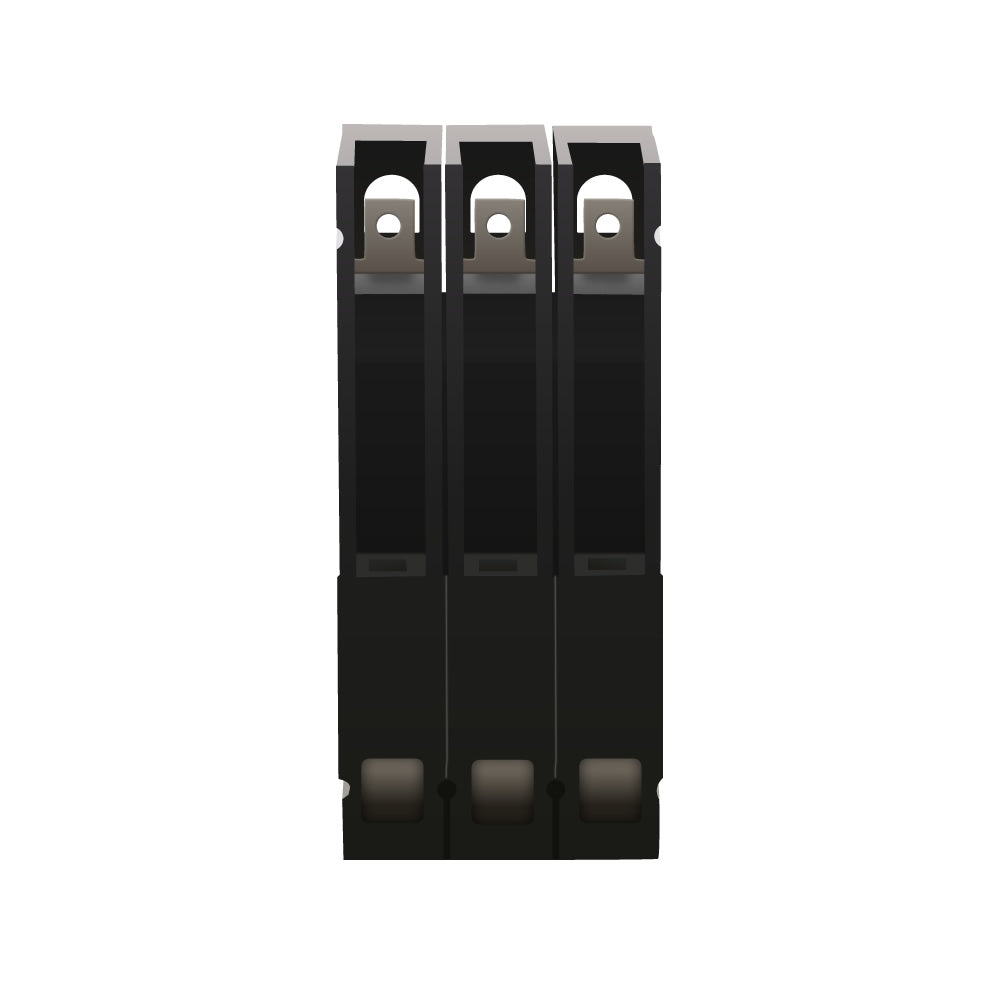

Siemens ED43B050 Molded Case Circuit Breaker | 480V 50A 3P 18kA@480V Lug In Panelboard Sentron Series

Product Description:
The Siemens ED43B050 is a Molded Case Circuit Breaker from the Sentron Series family. This 3-pole breaker is rated for 50 amps at 480 volts and features an 18kA interrupting capacity. It provides thermal magnetic protection and is designed for use with lug-in panelboard connections.

Key Features:
✔ Part Number: ED43B050
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 480
✔ Amperage: 50
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 783643209435
✔ GTIN: 00783643209435
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 6.34 in
✔ Weight: 7
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
✔ Wire Size: 10 To 1/0 AWG (Aluminum/Copper)
