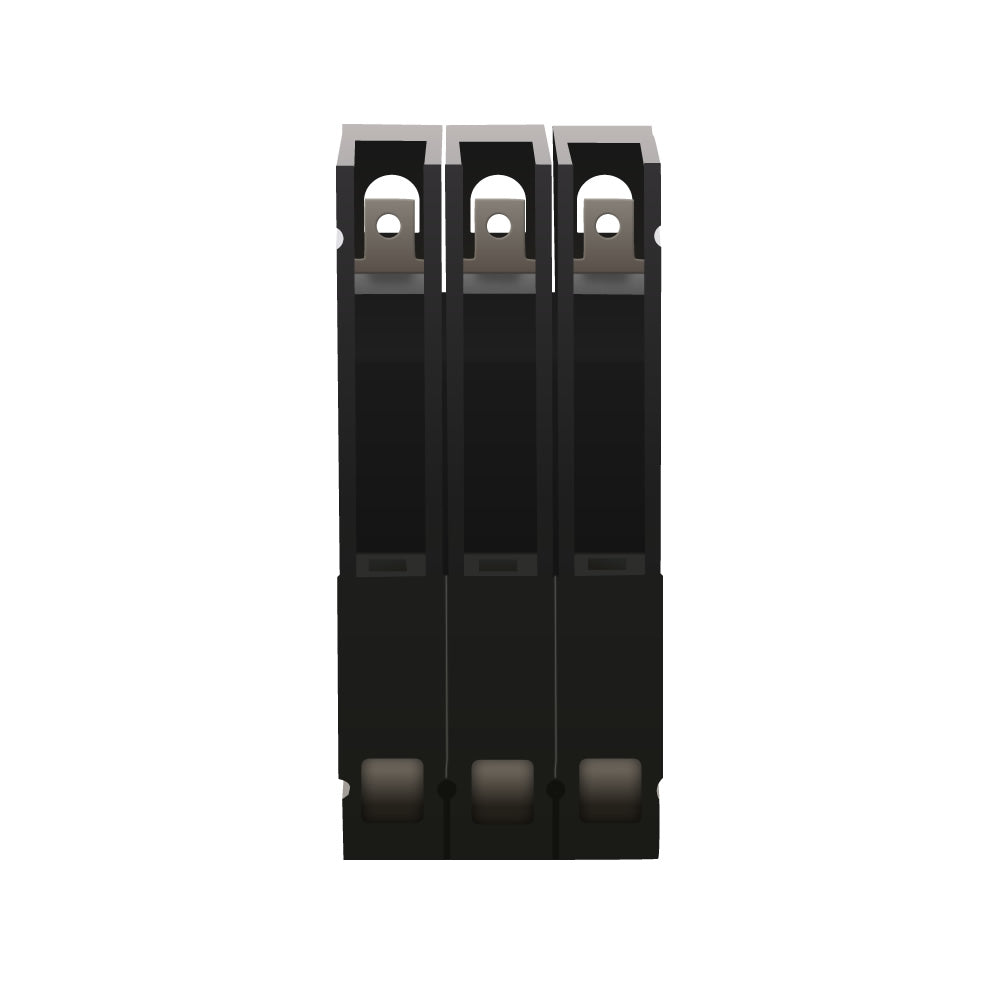

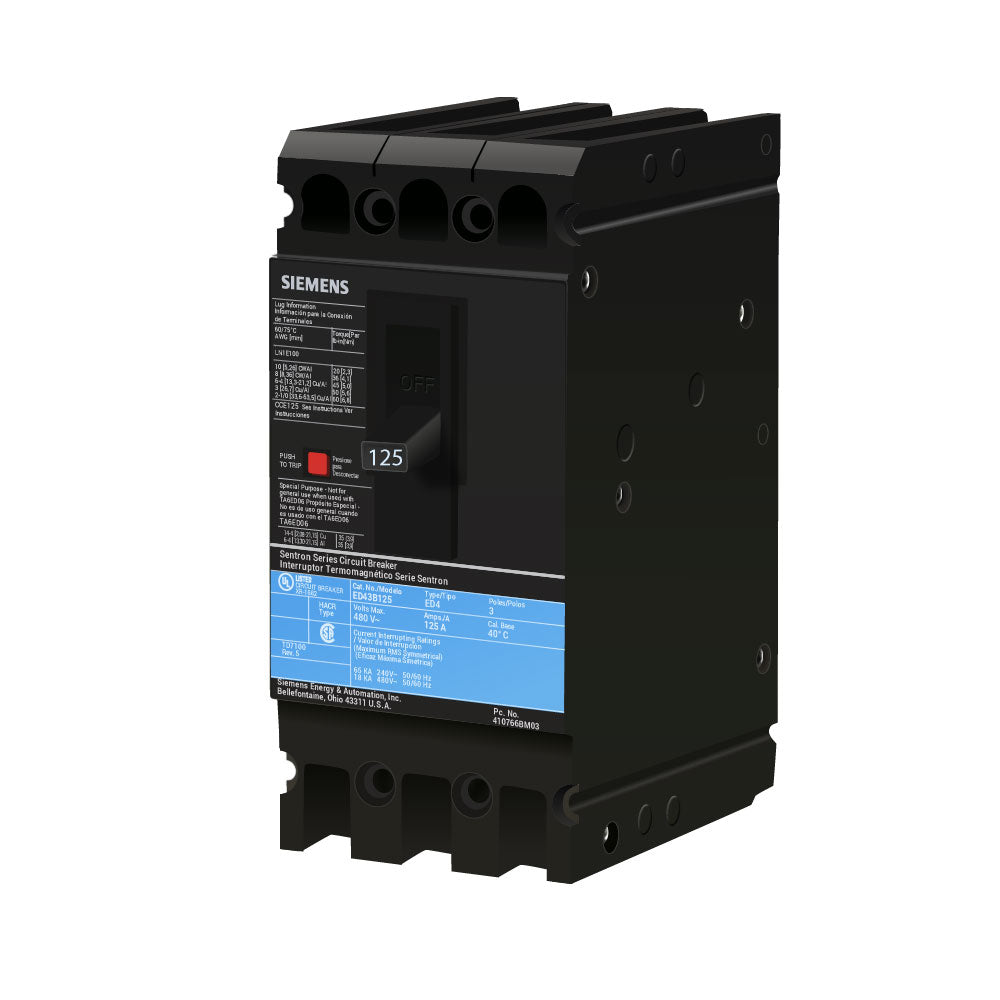

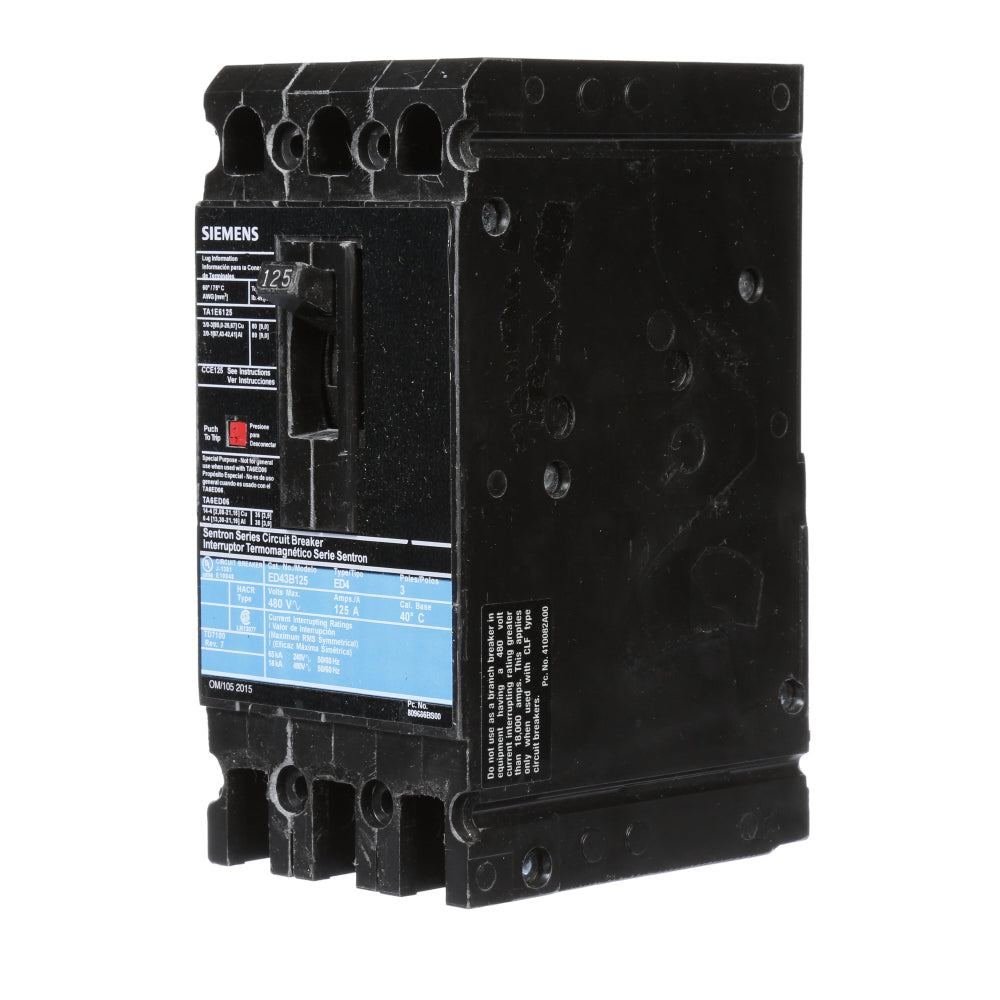

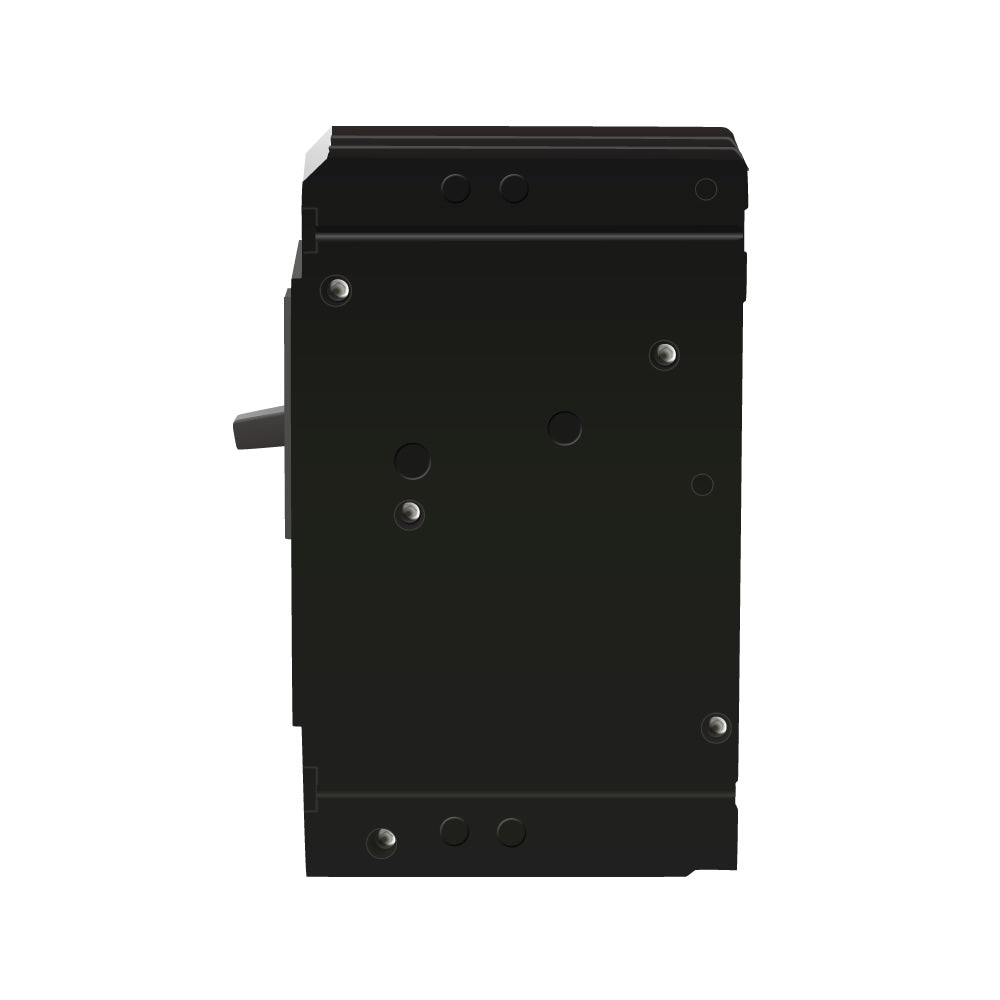

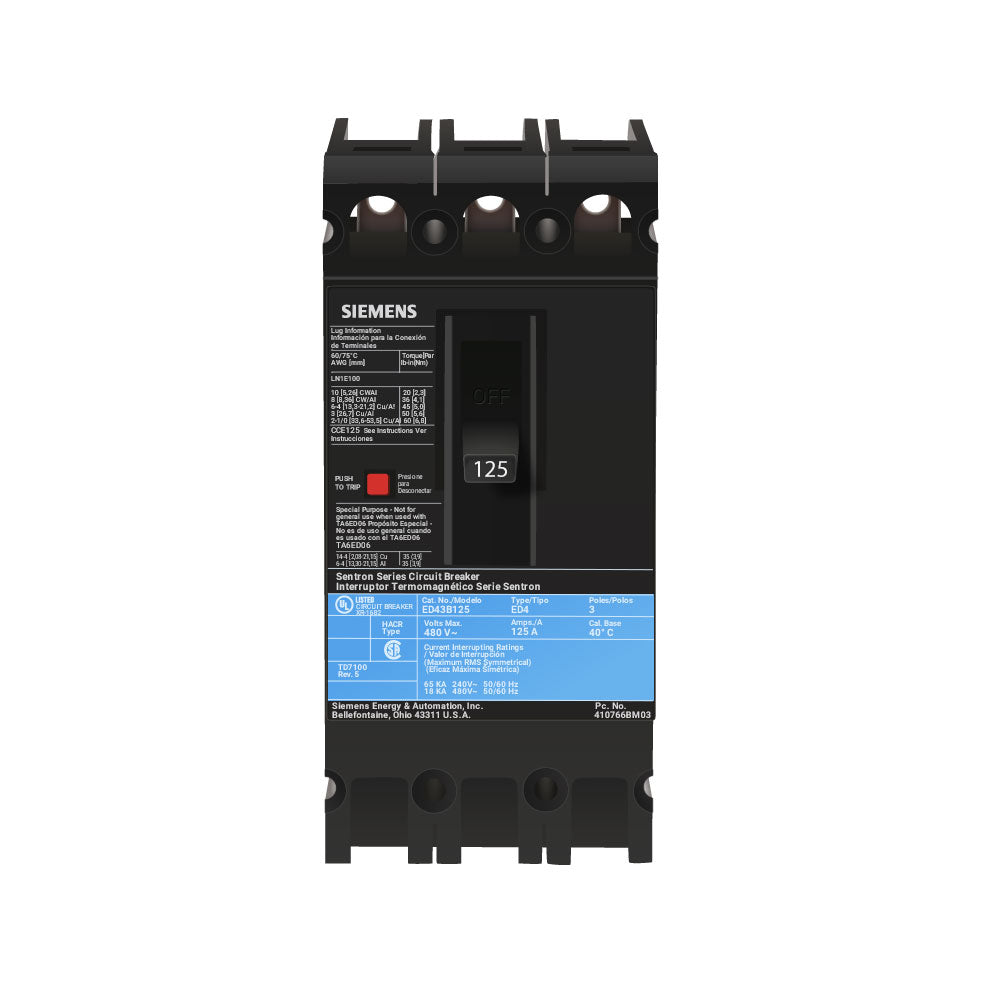

Siemens ED43B125 Circuit Breaker | 480V 125A 3P 18kA@480V Sentron Series

Product Description:
The Siemens ED43B125 is a Molded Case Circuit Breaker from the Sentron Series family. It is a 3-pole, 125 amp breaker rated for 480 volts with an AIC rating of 18kA@480V. This thermal magnetic circuit breaker uses a lug-in panelboard connection for reliable electrical protection.

Key Features:
✔ Part Number: ED43B125
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 480
✔ Amperage: 125
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 783643209503
✔ GTIN: 00783643209503
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 6.34 in
✔ Weight: 7
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
✔ Wire Size: 1 To 2/0 AWG Aluminum
