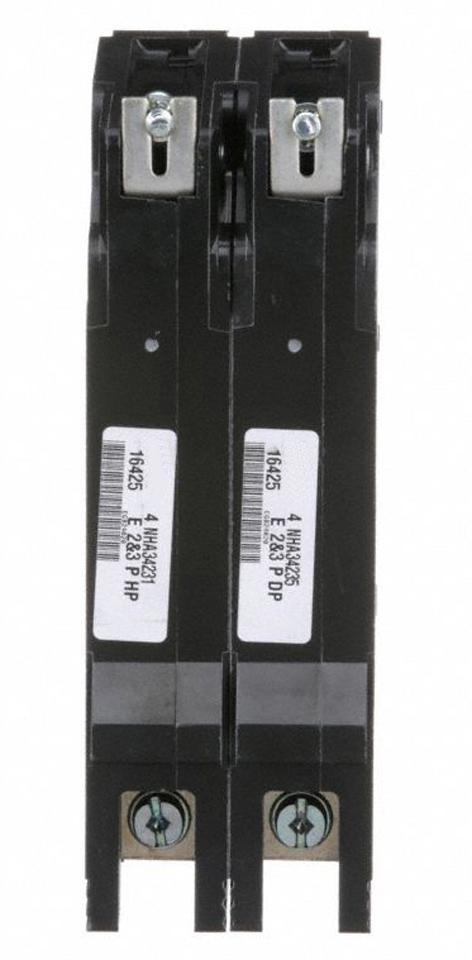

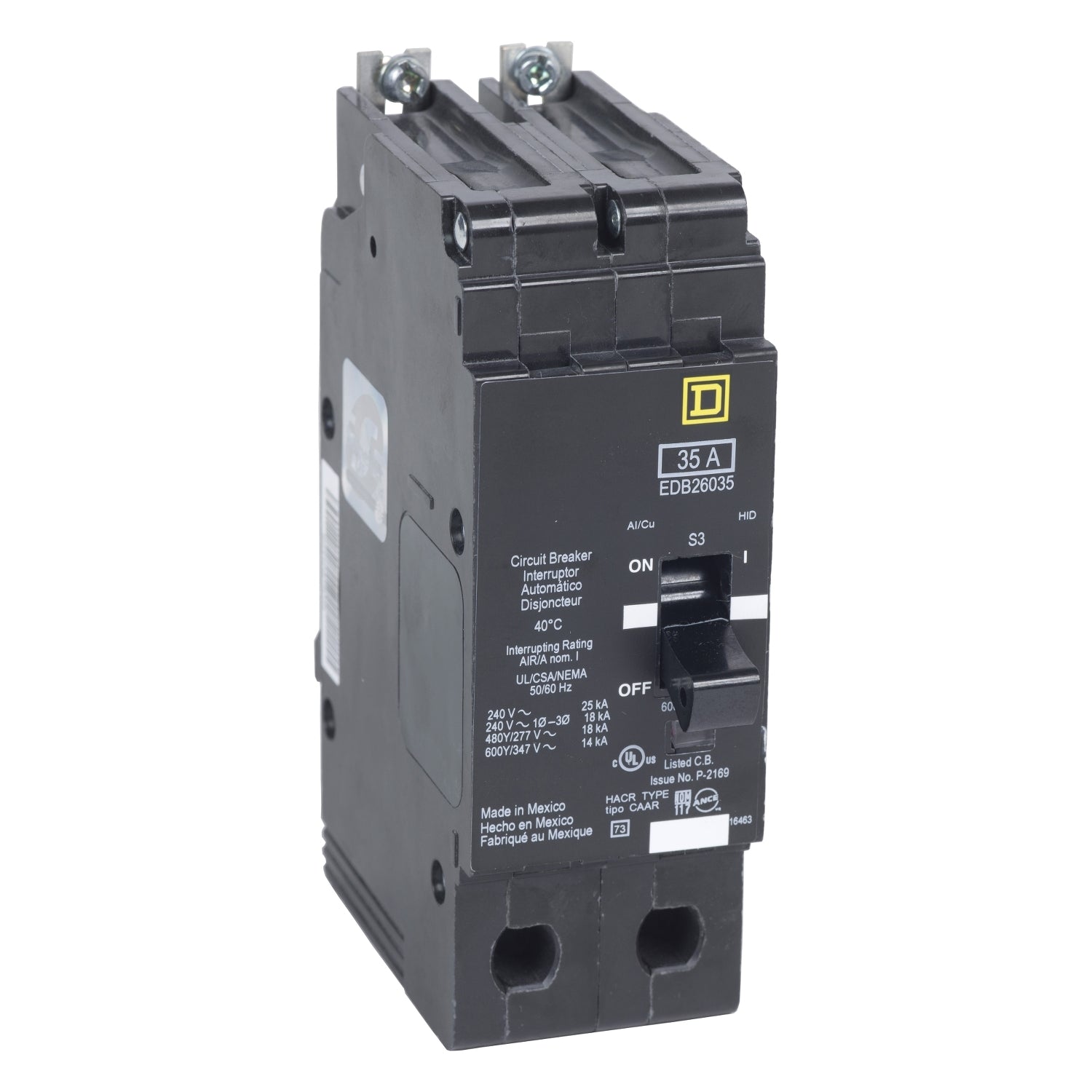

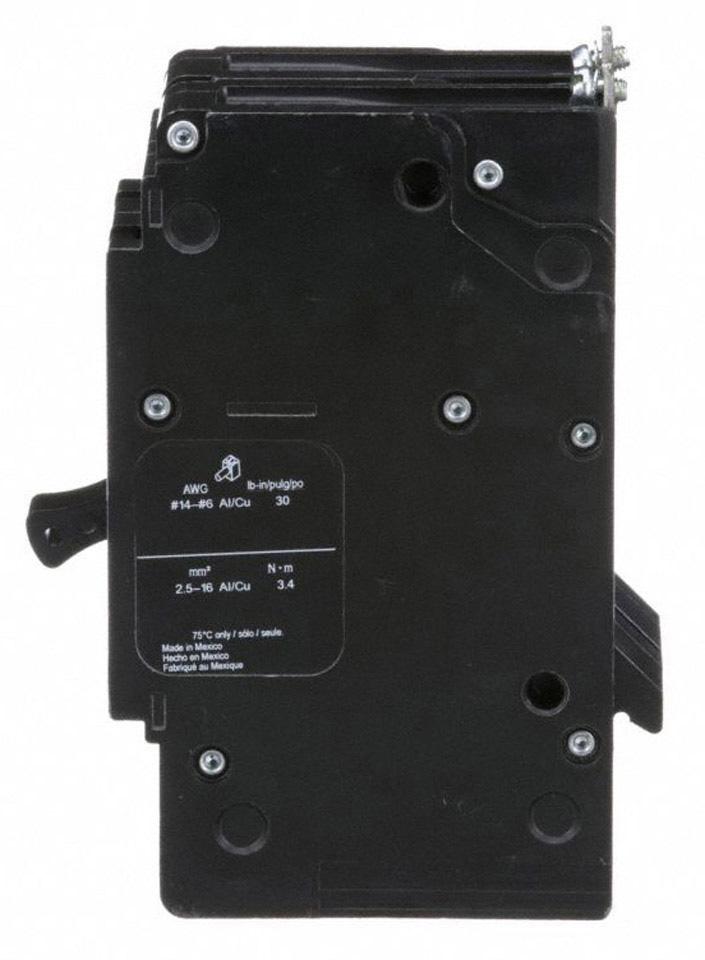

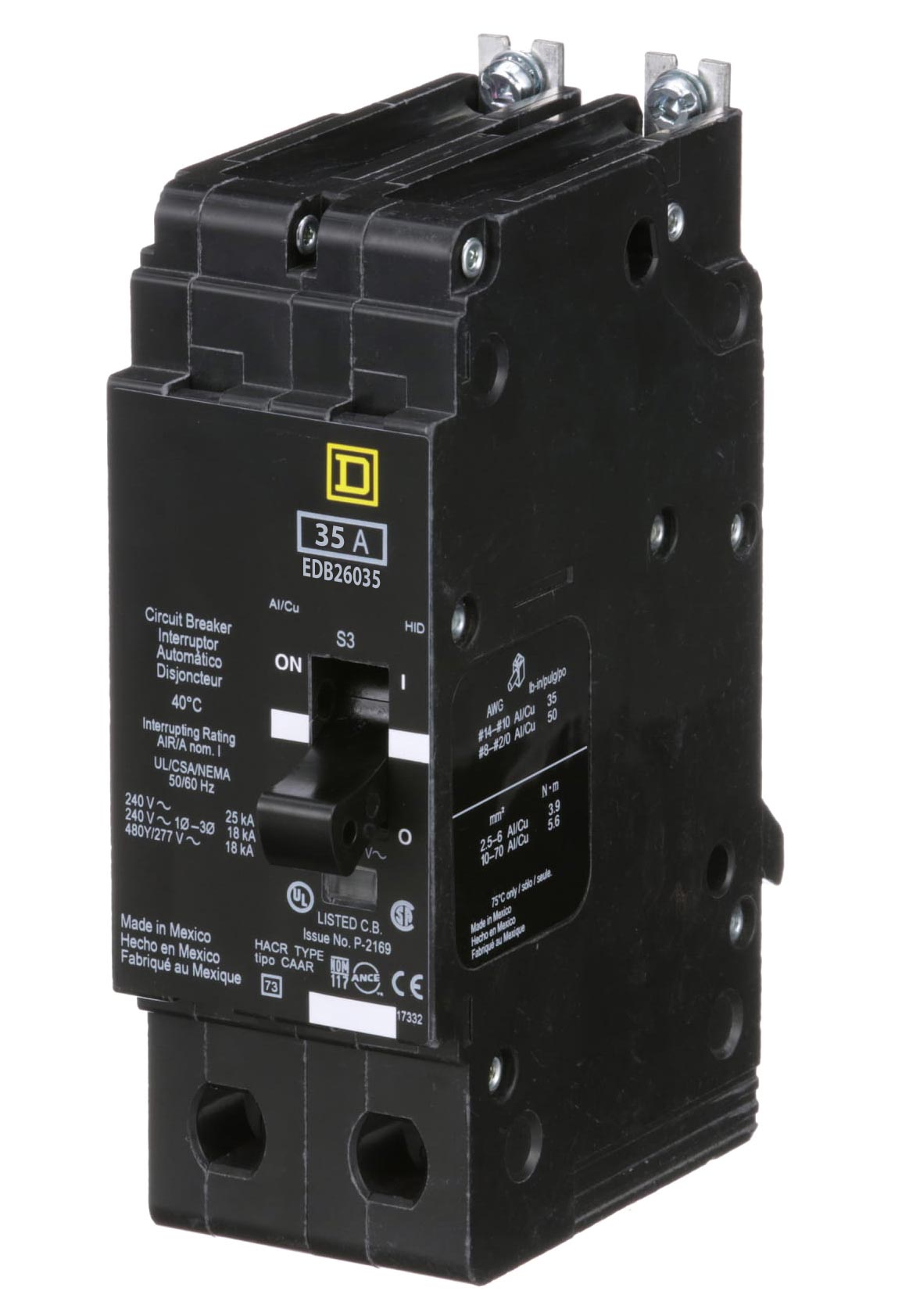

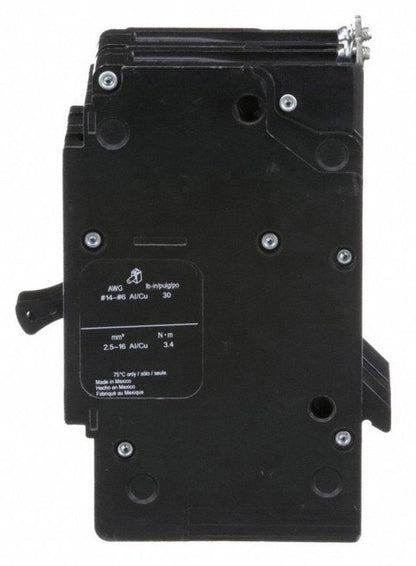

Square D EDB26035 Circuit Breaker | EDB Series EDB 600V 35A

Product Description:
The Square D EDB26035 is a Molded Case Circuit Breaker from the EDB Series. It features a 2-pole design with a 600V, 35A rating and an 18kA@480V AIC rating. This breaker uses a Bolt-On connection and provides Thermal Magnetic protection for reliable circuit safety.

Key Features:
✔ Part Number: EDB26035
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EDB Series
✔ Type: EDB
✔ Voltage: 600V
✔ Amperage: 35A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 18kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 785901407256
✔ GTIN: 00785901407256
✔ Country of Origin: United States
✔ Dimensions: 5.66" H x 3.09" D x 4.44" W
✔ Weight: 1.16 lbs
✔ Panel Type: NF panelboard
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 2/0 aluminum
AWG 14...AWG 2/0 copper
