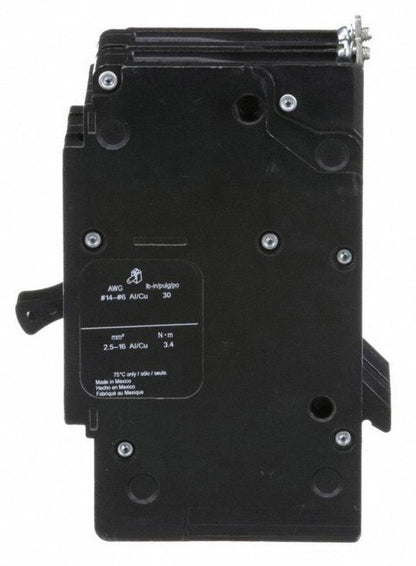

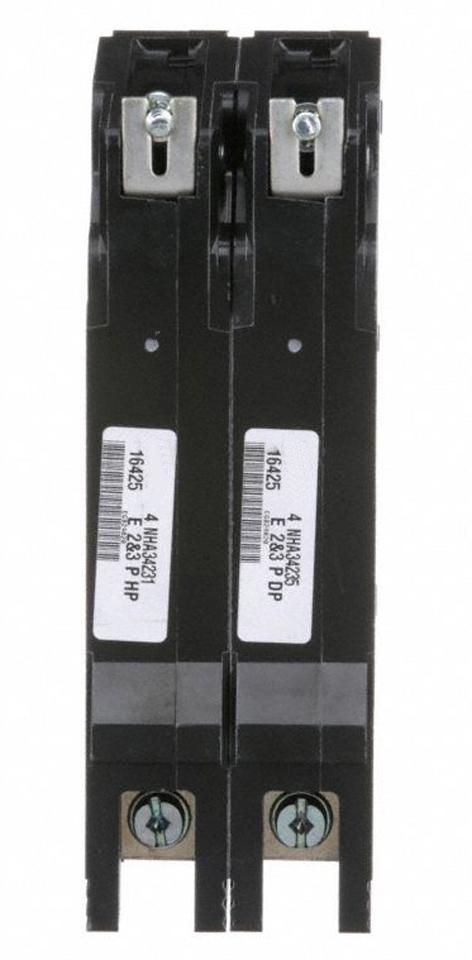

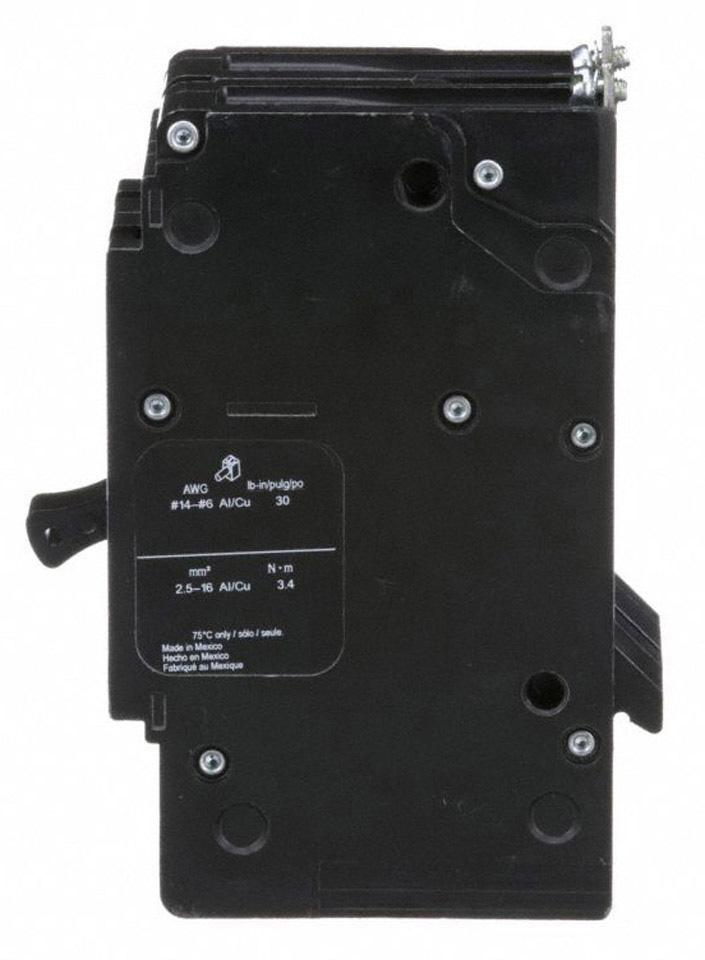

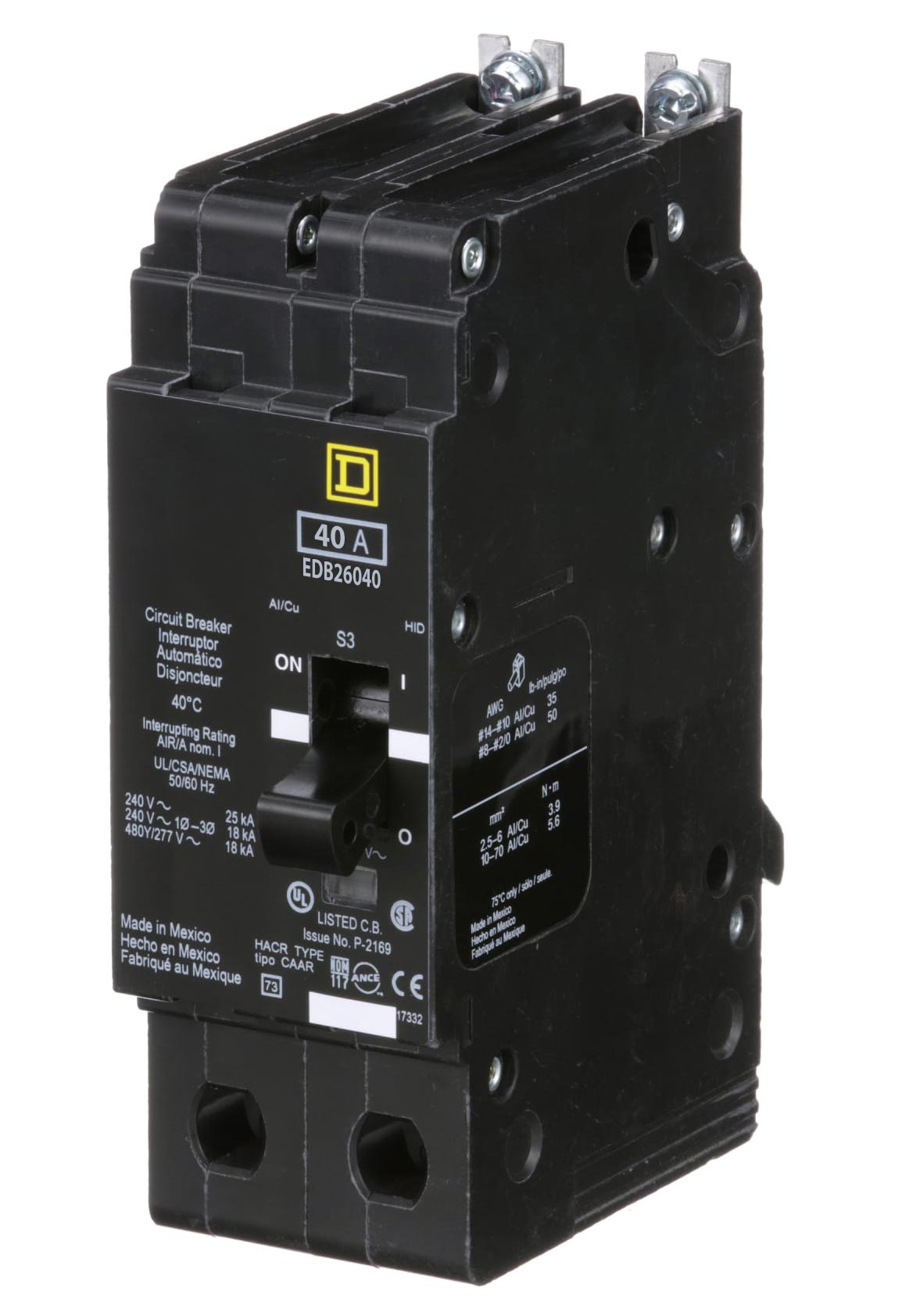

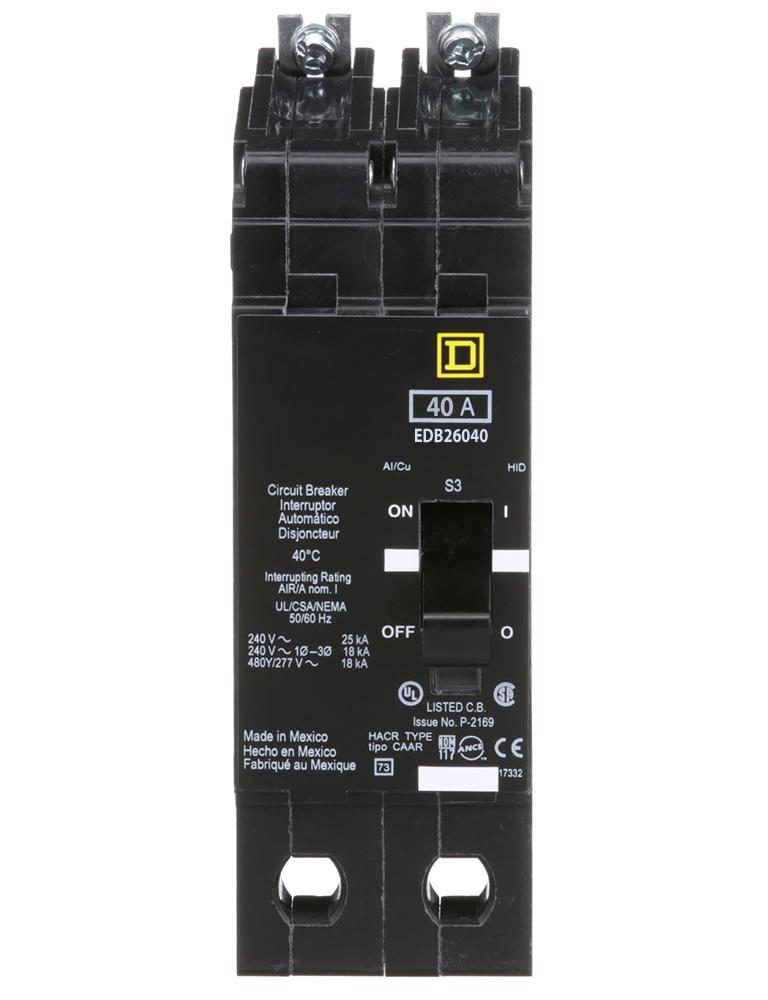

Square D EDB26040 Circuit Breaker | 600V 40A 2P 18kA@480V Bolt-On EDB Series

Product Description:
The Square D EDB26040 is a Molded Case Circuit Breaker from the EDB Series. It features a 2-pole design with a 600V, 40A rating and an AIC rating of 18kA@480V. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance. It is suitable for NF panelboards and complies with cULus standards.

Key Features:
✔ Part Number: EDB26040
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EDB Series
✔ Type: EDB
✔ Voltage: 600
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: D; E-Frame
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901412410
✔ GTIN: 00785901412410
✔ Country of Origin: Mexico
✔ Dimensions: 1.96 in x 5.66 in
✔ Weight: 1.16
✔ Panel Type: NF panelboard
✔ Standards: cULus
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 2/0 aluminum, AWG 14...AWG 2/0 copper
