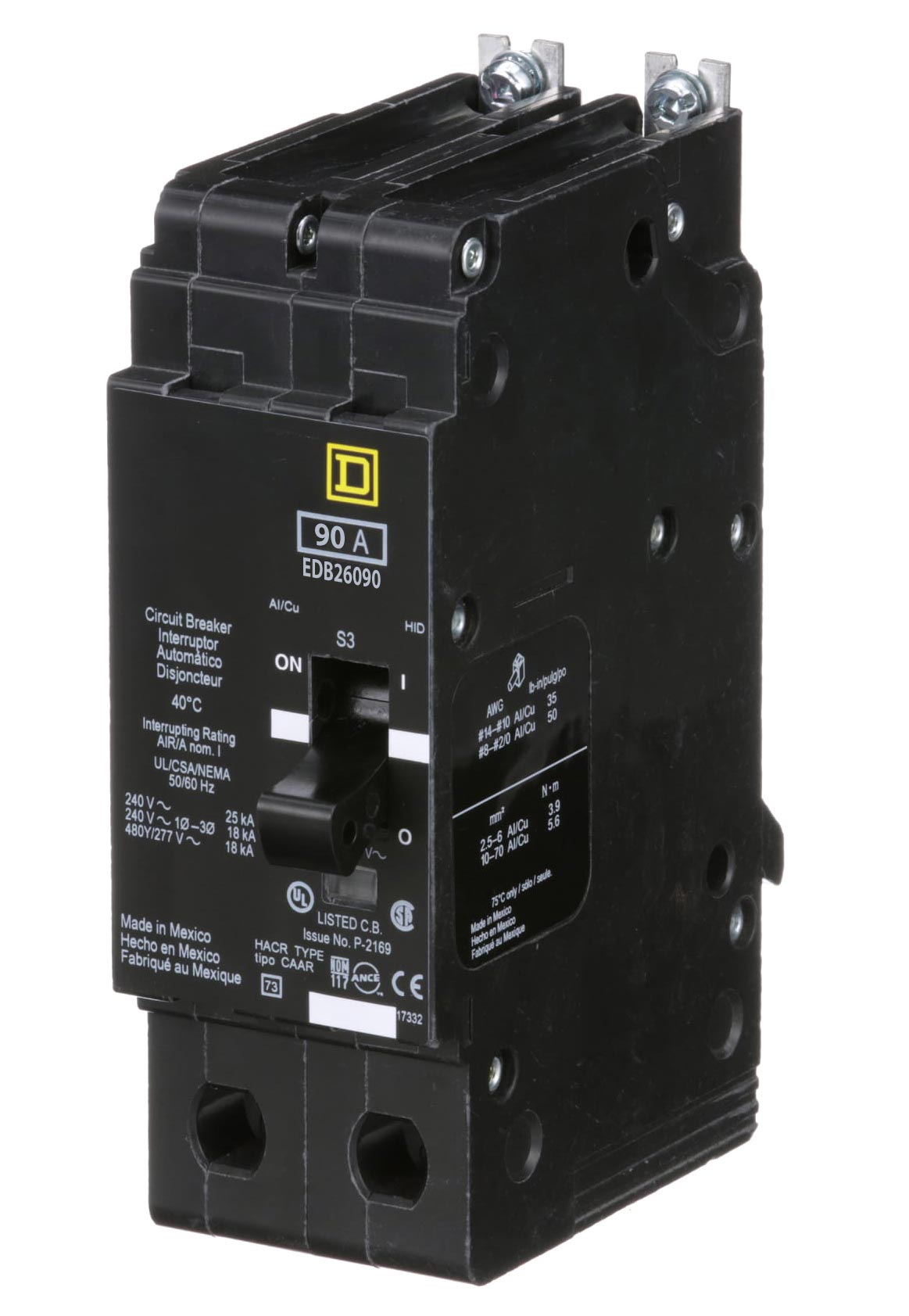

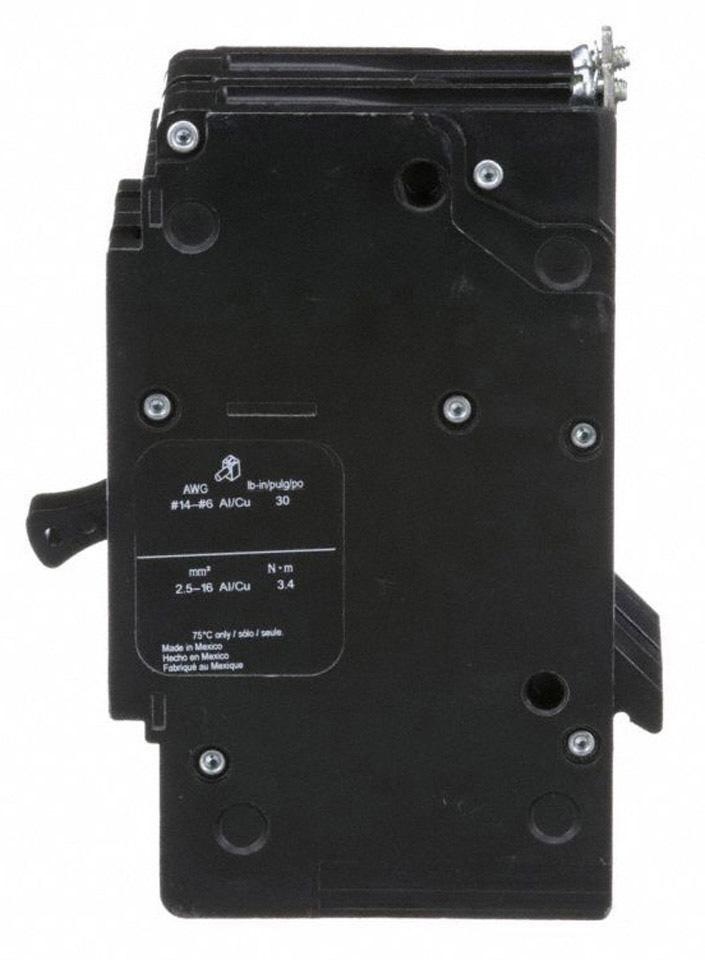

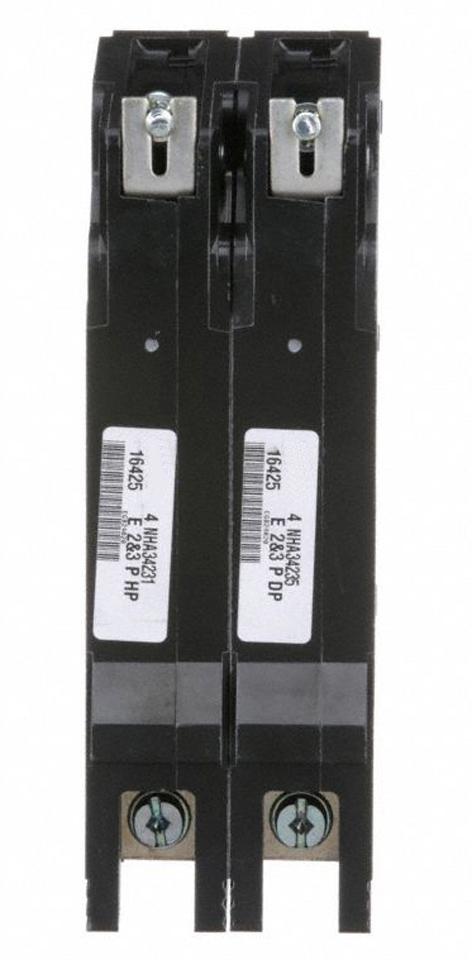

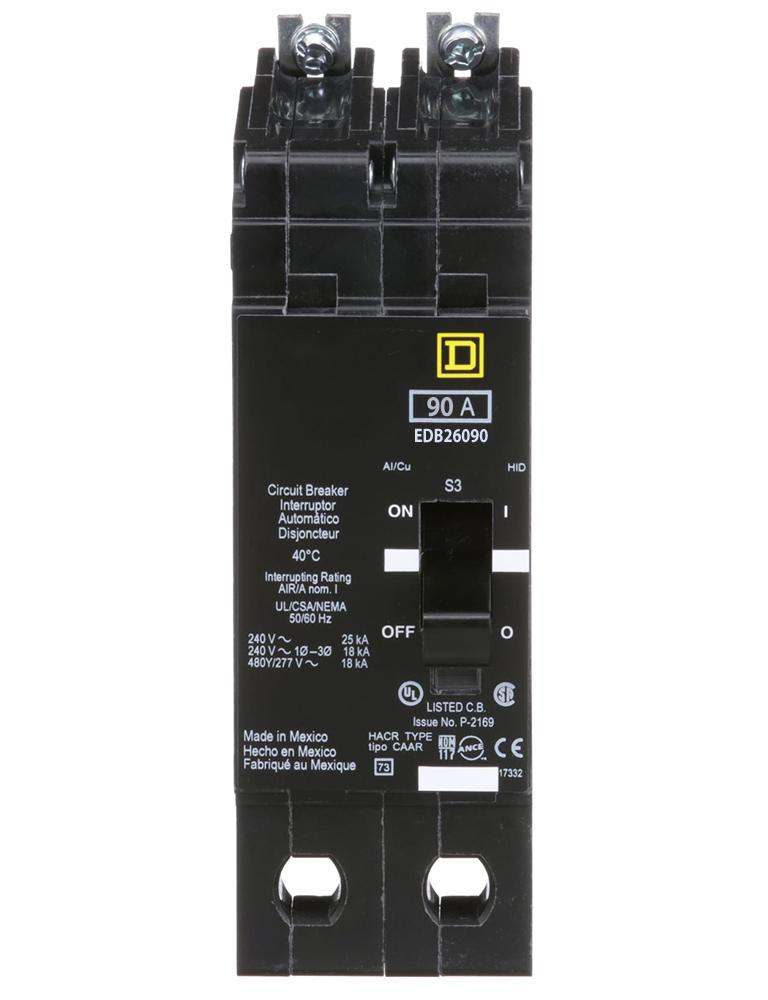

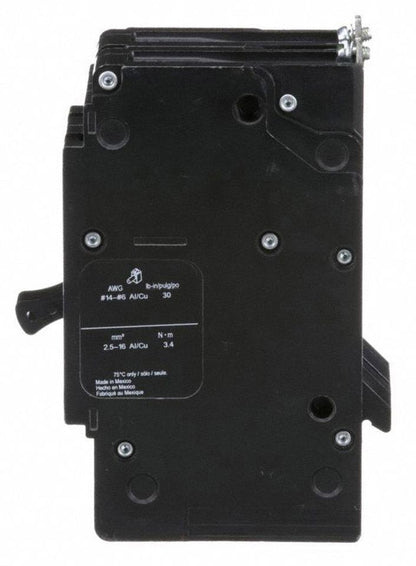

Square D EDB26090 Circuit Breaker | 600V 90A 2P 18kA@480V Bolt-On EDB Series

Product Description:
The Square D EDB26090 is a Molded Case Circuit Breaker from the EDB Series. It features a 2-pole design with a 600V rating and 90A capacity, offering Thermal Magnetic protection. This breaker has an AIC rating of 18kA@480V and uses a Bolt-On connection for secure installation.

Key Features:
✔ Part Number: EDB26090
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EDB Series
✔ Type: EDB
✔ Voltage: 600
✔ Amperage: 90
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 785901407270
✔ GTIN: 00785901407270
✔ Country of Origin: United States
✔ Dimensions: Height 5.66 in (143.76 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.16
✔ Panel Type: NF panelboard
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 2/0 aluminum / AWG 14...AWG 2/0 copper
