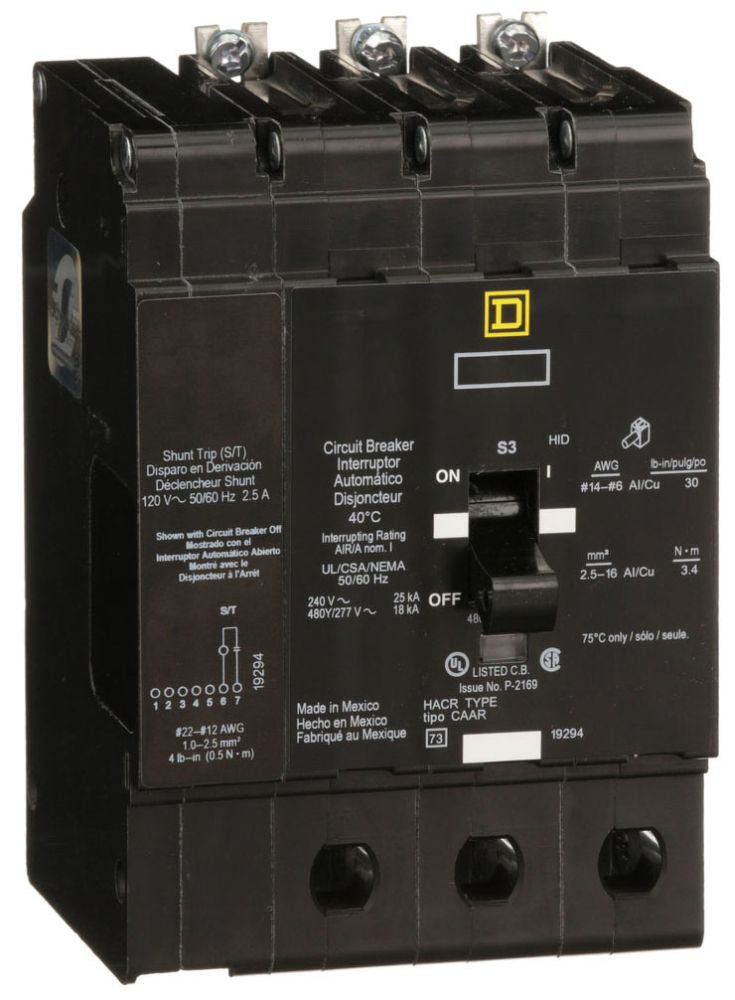

Square D EDB34030SA Circuit Breaker | 480Y/277V 30A 3P 18kA@480V Bolt-on EDB Series

Product Description:
The Square D EDB34030SA is a 3-pole molded case circuit breaker designed for 480Y/277 Volt systems with a 30 amp rating. It features thermal magnetic protection and an 18kA interrupting capacity at 480V. This bolt-on breaker is part of the EDB Series and includes a 120V shunt trip function for enhanced control.

Key Features:
✔ Part Number: EDB34030SA
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EDB Series
✔ Type: EDB
✔ Voltage: 480Y/277
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/EDB
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 785901326427
✔ GTIN: 00785901326427
✔ Country of Origin: Mexico
✔ Dimensions: 3.92 in x 5.66 in x 5.66 in
✔ Weight: 1.91
✔ Panel Type: Square D NF Panelboards
✔ Standards: cULus
✔ Certification: cULus
